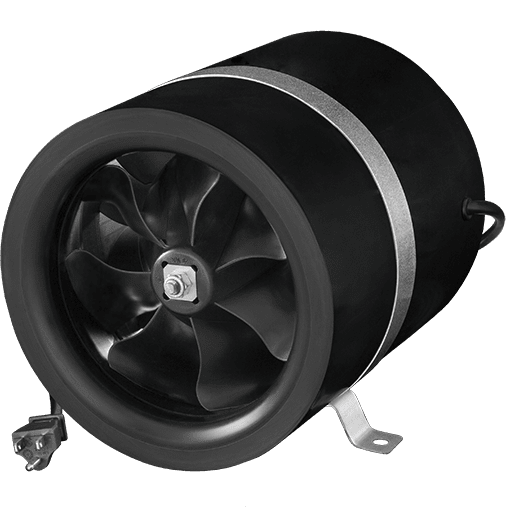

Ruck Air Movement 8-In. Prime Mixed Flow Inline Duct Fan
Description
Description
The Ruck Air Movement 8-inch Prime Mixed Flow Inline Duct Fans are equipped with a single-phase AC motor with an integrated 3-speed switch. Designed with three-dimensionally shaped impeller blades for the highest aerodynamic efficiency and powerful airflow.
With these German-manufactured fans, you have the option of selecting the standard Prime fan with 656 CFM or the Prime HO fan with 946 CFM.
Efficient Ventilation
These Ruck mixed airflow inline duct fans are efficient, as well as powerful and give you two options for maximum airflow.
- 8-inch Prime: 656 Max CFM, 1.7 Amps, IPX4 Rating

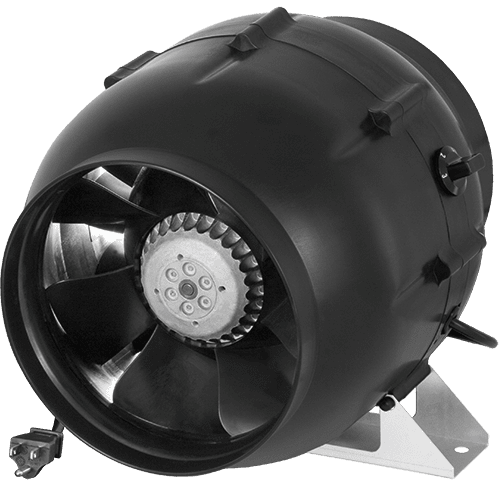

- 8-inch Prime HO: 946 Max CFM, 2 Amps, IPX4 Rating
Features & Highlights
- 8-inch Inline Duct Fan
- 3D Shaped Impeller Blades
- Dual Pole
- Corrosion Resistant Plastic Housing
- Integrated 3-speed Switch
- IPX4 Unit Rating
- Minimum Operating Temperature of -13° Fahrenheit (-25° C)
- Maximum Operating Temperature of 104° Fahrenheit (40° C)
- Included Mounting Bracket
- Motor is located in the protected Hub
Summary
The Ruck Air Movement Prime Mixed Flow Inline Duct Fan is available in this 8-inch size. Equipped with a single-phase AC motor, integrated 3-speed switch, and 3D impeller blades. Also available in 6-in, 10-in, 12-in, 14-in, 16-in, 18-in, and 20-in sizes.
Specifications
Specifications
-
Number of Speeds3
-
Sound Level (Sones) (sones)32.037.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorBlack
-
ControlsToggle Switch
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)656.0946.0
-
Amperage (Amps)1.72
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)176222
-
Depth (in.)8.8612.6
-
Depth (with front cover) (in.)8.8612.6
-
Duct Diameter (in.)8.0
-
Height (in.)9.1312.4
-
Height (with front cover) (in.)9.1312.4
-
Weight (lbs.)8.1410.34
-
Width (in.)8.6611.42
-
Width (with front cover) (in.)8.6611.42
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
