Santa Fe Ultra V205 Ventilating Dehumidifier

Name: Santa Fe Ultra V205 Ventilating Dehumidifier
Brand: Santa Fe
Price: 5536.0 USD
Availability: InStock

SKU: ul3689 | Model: 4046180

$5,536.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Add extended protection plan. (Select one)

2-Year Commercial Warranty - $469.99

learn more

A 2-year commercial-grade repair warranty for products less than $7,500.

4-Year Commercial Warranty - $899.99

learn more

A 4-year commercial-grade repair warranty for products less than $7,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

6-Year Limited Warranty

What's In The Box?

Santa Fe Ultra V205 Ventilating Dehumidifier
Leveling Feet (4)
Hardwire Kit
MERV-13 Filter (1)
10-inch Round Duct Collar (2)
8-inch Round Duct Collar (1)
Owner’s Manual

Info & Guides

Description

Take control of humidity and air quality in your home with the Santa Fe Ultra V205 Ventilating Dehumidifier.

Perfectly engineered for basements, crawl spaces, attics, and whole-house applications up to 5,000 square feet, this high-performance dehumidifier removes up to 205 pints of moisture a day, protecting your family’s comfort and your home’s structural integrity.

With Santa Fe’s innovative Efficiency Capacity Coil Optimization (ECCO) technology, this Energy Star-rated basement dehumidifier ensures maximum moisture removal and energy efficiency, making it a smart investment for year-round comfort.

Key Features and Benefits of the Santa Fe Ultra V205 Ventilating Dehumidifier

High-Performance Dehumidification: Removes up to 205 pints of moisture per day at AHAM conditions (80 degrees F and 60 percent RH), maintaining consistent humidity levels in demanding, high-humidity environments.
Energy-Efficient Operation: Uses patented ECCO technology and a highly efficient fan capable of removing 7.5 pints/kWh at 80 degrees F and 60 percent relative humidity, providing superior moisture removal at lower operating costs.
Environmentally-Friendly Refrigerant: Designed with R-454B refrigerant, it has a lower environmental impact and global warming potential than older refrigerant formulas.
Whole House Ventilation: Integrates easily into your HVAC system and meets ASHRAE 62.2 requirements when installed using the outdoor air intake for improved ventilation, bringing in fresh outdoor air.
Superior Air Filtration: Includes a MERV-13 filter for enhanced indoor air quality by effectively removing allergens, dust, spores, and contaminants.
Intuitive Control: Equipped with an onboard digital control panel and compatible with the SmartAire Remote Sensor and the DEH3000 Digital Controller or other external 24V controllers for custom humidity management.
Simple Drainage: Drain condensate using the provided gravity drain setup or upgrade with a Santa Fe Condensate Pump to move condensate vertically for up to 15 feet. It's recommended to use a drain trap with a float switch to prevent backflow and leaks.
Reliable Construction: Built with corrosion-resistant dual-coated coils and durable materials, ensuring lasting operation even in harsh conditions.

Installation and Ducting Considerations

The Santa Fe Ultra V205 Ventilating Dehumidifier's performance effectiveness depends significantly on proper installation and thoughtful ducting. Install this unit either on the floor or suspended from the ceiling, providing versatility in managing airflow and accessibility.

Featuring standard 10-inch round inlet and outlet duct collars and an 8-inch round outdoor air intake duct collar connections for both supply and return air, the system accommodates 10-inch flex ducts and an optional 8-inch flex duct for outdoor air intake.

Ensure adequate clearance around the Santa Fe dehumidifier to facilitate easy maintenance and optimal air distribution. When integrating with existing HVAC systems, include a backdraft damper to prevent reverse airflow, and adhere strictly to local and national HVAC installation standards.

Sylvane's Expert Take

The Santa Fe Ultra V205 Ventilating Dehumidifier stands out for its exceptional balance of moisture control, air filtration, and energy efficiency, meeting Energy Star’s Most Efficient 2025 requirements. Its ability to remove significant moisture quickly makes it perfect for large homes and challenging environments like basements and crawl spaces. The integrated outdoor ventilation capability enhances air quality in addition to helping homes comply with ventilation standards.

For those seeking a reliable, powerful, and energy-efficient dehumidifier, the Ultra V205 is a great choice. Santa Fe dehumidifiers deliver the high-humidity management and performance customers have grown to trust.

Specifications

Key Specifications

Internal Condensate Pump

No
Manufacturer-Suggested Room Size (sq. ft.)

5000
Number of Speeds

1
Pint Capacity (pints)

205.0
Sylvane's Suggested
Room Size (sq. ft.)

5000

General

California Residents

⚠ WARNING: Cancer - www.p65warnings.ca.gov.
Certifications

UL, CSA
Color

White
Controls

Electronic
Drain Hose Diameter (in.)

0.75
Fan Operation

Can Run Continuously or Only When Dehumidifying
Filter Type

MERV 13
Lowest Operating Temperature (degrees)

40
Maximum Cubic Feet per Minute (CFM) (CFM)

550.0
Number of Filters

1
Recommended For

Whole House
Refrigerant Type

R-454B

Power

Maximum Amperage (Amps)

12.5
Maximum Wattage (W)

1115
Power Cord Length (ft.)

10
Power Supply

Plug
Voltage (V)

110-120

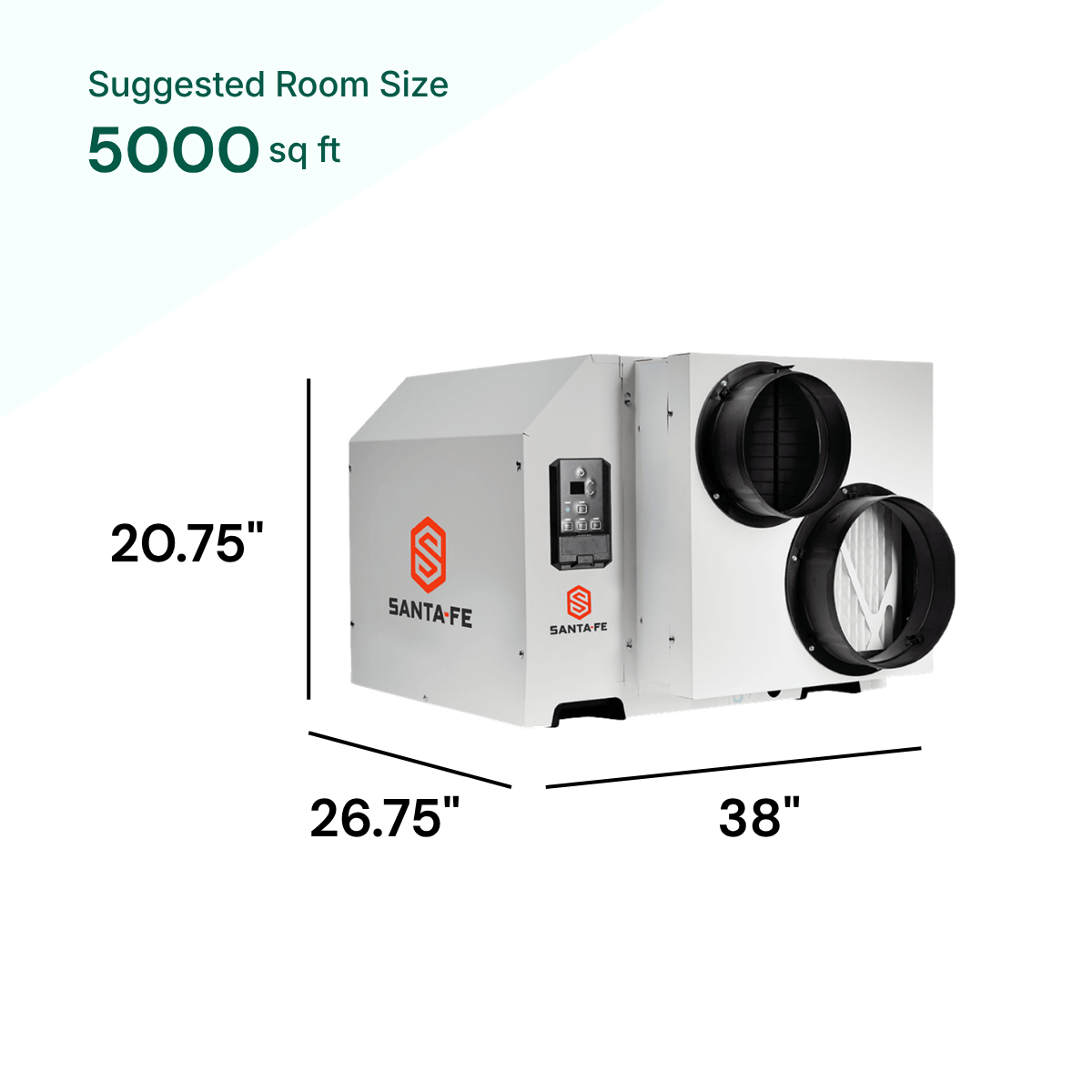

Dimensions

Depth (in.)

38.0
Depth (with front cover) (in.)

38.0
Height (in.)

20.75
Height (with front cover) (in.)

20.75
Weight (lbs.)

148
Width (in.)

26.75
Width (with front cover) (in.)

26.75

Additional Features

Additional Features

Energy Star, Continuous Drain Capable, Humidistat, Low Temperature Operation (41 degrees F and Under), Automatic Defrost, Ductable, Auto-Restart, ENERGY STAR® Most Efficient
