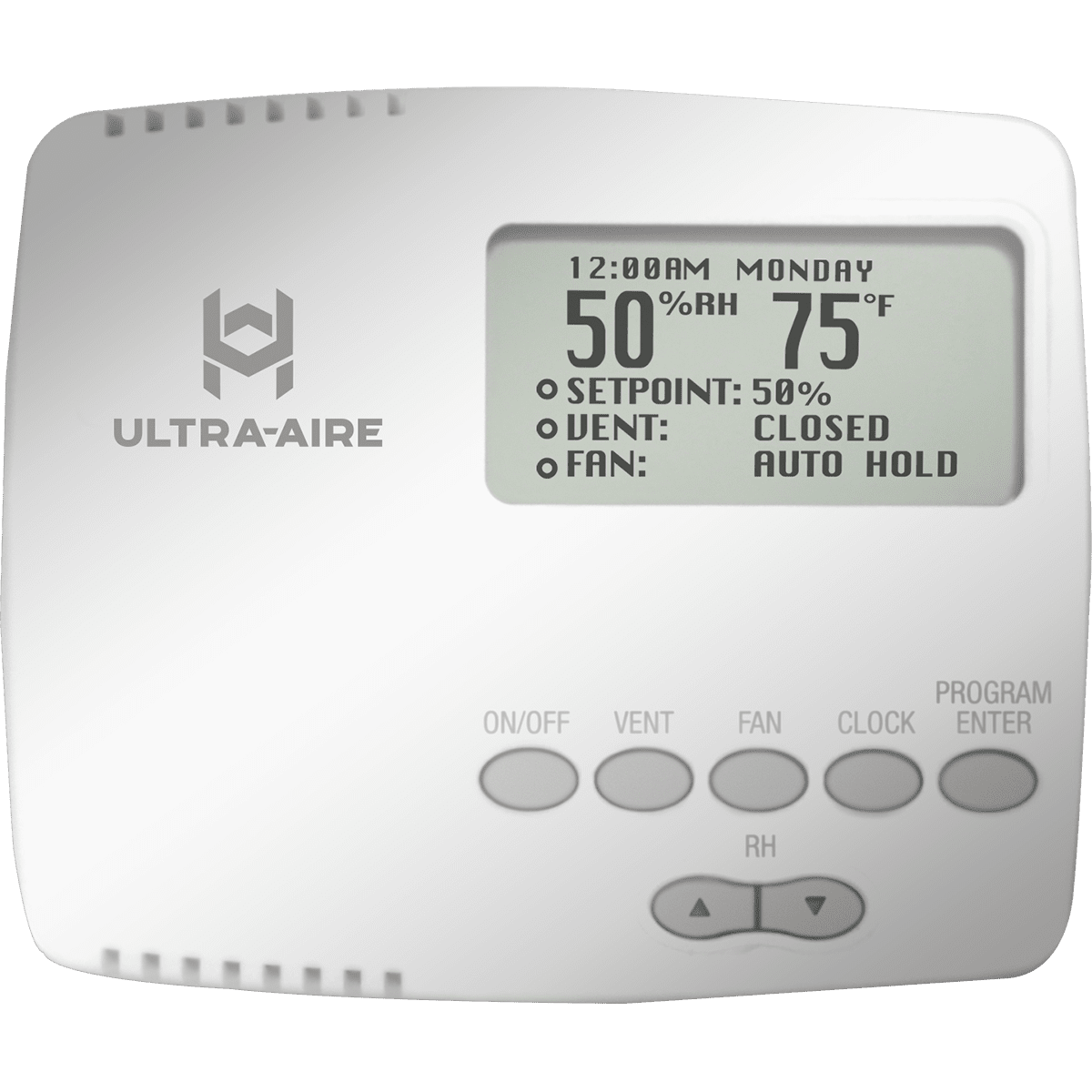

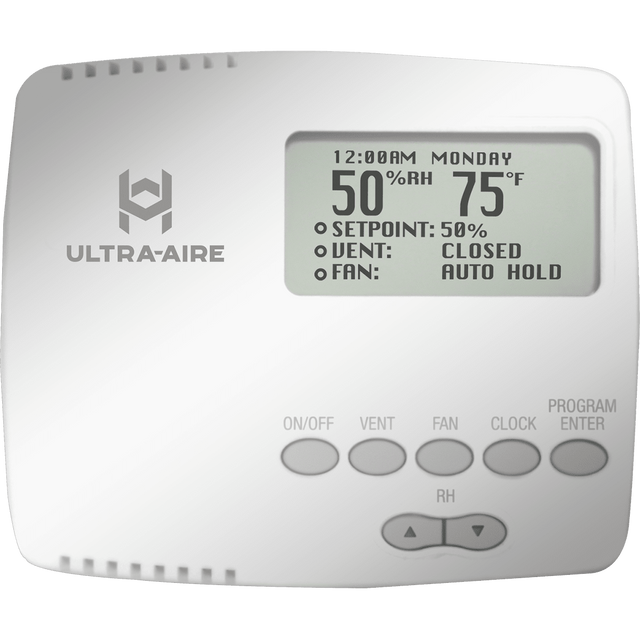

Ultra-Aire DEH 3000 Digital Controller
Ultra-Aire DEH 3000 Digital Controller - DEH 3000R With Remote Sensor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
Ultra-Aire DEH 3000 or 3000R Digital Controller
Remote Sensor (DEH 3000R Only)
Info & Guides
Info & Guides
Ultra-Aire DEH 3000 Digital Controller
Description
Description
Precisely operate your Santa Fe Ultra Series Whole House Dehumidifier with the Santa Fe DEH 3000 Digital Controller or DEH 3000R Digital Controller With Remote Sensor. With its sleek design and large, easy-to-read backlit LCD, this controller allows you to monitor and control moisture levels, manage fresh air ventilation (with a motorized damper), and activate air filtration, all from the convenience of your living space.
Remote Sensor Upgrade
The DEH 3000R Digital Controller has a separate sensor that can be placed in remote areas, such as a crawl space, and connected to the 3000R Digital Controller when it is wall-mounted in a living space. The sensor allows the digital controller to more accurately detect relative humidity in spaces up to 100 feet away.
Ventilation Options
Set up a fresh air schedule and customize fresh air intake from an optional damper accessory, like the Santa Fe SmartAire Power Damper using this Santa Fe Digital Controller.
When used with a damper accessory, the DEH Digital Controller lets you control when and how much fresh air is introduced into your home. Three damper operation modes are featured with the DEH Controller:
- Open: Opens damper, and dehumidifier fan continuously operates, introducing fresh air into the space.
- Closed: The damper remains closed, and the dehumidifier will not ventilate in this mode. The fan will generally operate to recirculate air and dehumidify it.
- Programmed: The motorized damper and dehumidifier fan operate according to the homeowner's programmed ventilation schedule entered into the DEH Controller.
Additional Features of the DEH Digital Controller
- Central Fan Integration: This controller can operate the A/C fan and the dehumidifier simultaneously.
- AC Sensor: The sensor automatically activates or deactivates Ultra-Aire Dehumidifier when the air conditioner runs.
- High-Temperature Cut-Out: If household temperatures reach the maximum programmed setpoint, this feature disables dehumidification until household temperatures drop below the programmed temp.
- Dry Out Cycle Timer: Automatic fan cycling ensures the dehumidifier always has dry and clean coils.
- Auto Reboot: In the event of a power failure, this feature resumes the dehumidifier's operation to prior programmed settings.
Compatible Models
- Santa Fe Oasis105
- Santa Fe Ultra70
- Santa Fe Ultra98
- Santa Fe Ultra120
- Santa Fe Ultra120V
- Santa Fe Ultra155
- Santa Fe Ultra 205
Specifications
Specifications
-
ColorWhite
General
- GGeorgeReviewingUltra-Aire DEH 3000 Digital ControllerI do not recommend this productRated 1 out of 5 stars7 years agoNot very accurate
This would be a great d-stat if it was only accurate. The reading fluctuate for no reason (which the manufacturer is trying to correct) but also the range on this item is poor. I am a meteorologist and have several accurate hydrometers. When the house humidity ACTUALLY changes from 50% to 30% ... this item will show 43% to 38%. i.e. about 1/4 of the real range. While you can calibrate the actual reading of Humidity... the range sensitivity remains low. The manufacturer did replace my unit but the new unit has the same issues. I have an ecobee thermostat that reads humidity almost perfectly located in the same location as this unit.... so I know it is not a location issue.
- PPaulVerified BuyerReviewingUltra-Aire DEH 3000 Digital ControllerI recommend this productRated 5 out of 5 stars5 years agoArrived quicker than my subs could get to it!
Came quickly, packaged well, arrived safe & sound. It's been installed, but waiting on electrician to get power to the dehu, so I haven't actually used it yet. It came highly recommended, so I've no fears or concerns.
- TTadVerified BuyerReviewingUltra-Aire DEH 3000 Digital ControllerI recommend this productRated 5 out of 5 stars8 months agoYes I would purchase again highly recommended
We installed the Ultra -Aire DEH 3000 Digital Controller on the wall and the slick design looks great with the decor #sweepstakes
- PpatrickVerified BuyerReviewingUltra-Aire DEH 3000 Digital ControllerI recommend this productRated 5 out of 5 stars1 year agoWorks good with the Santa Fe dehumidifier
Simple humidistat controller for my Santa Fe dehumidifier. Can control humidity level and fan operation.
- DDredVerified BuyerReviewingUltra-Aire DEH 3000 Digital ControllerI recommend this productRated 5 out of 5 stars8 years agoPerfect replacment
Replaced old unit
