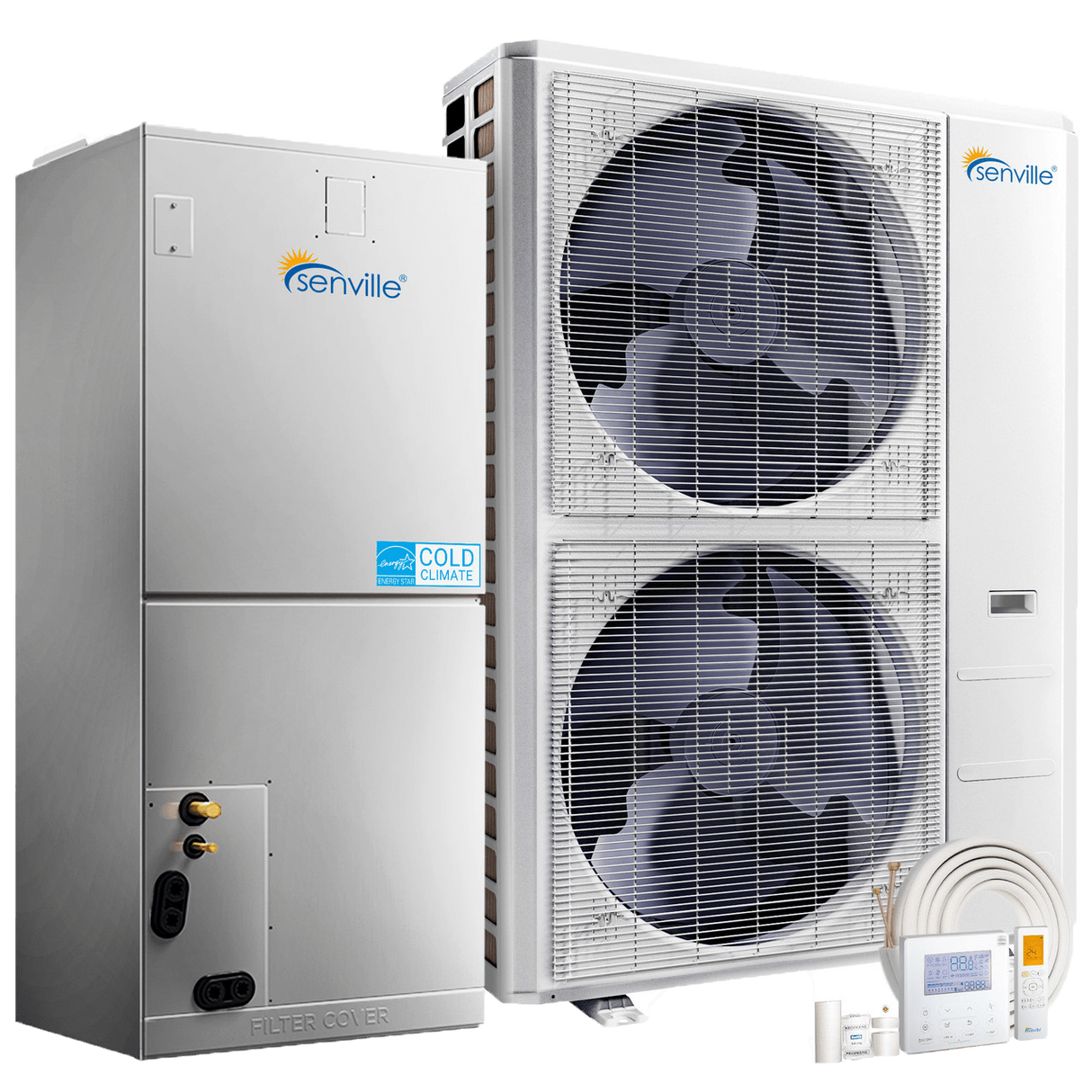

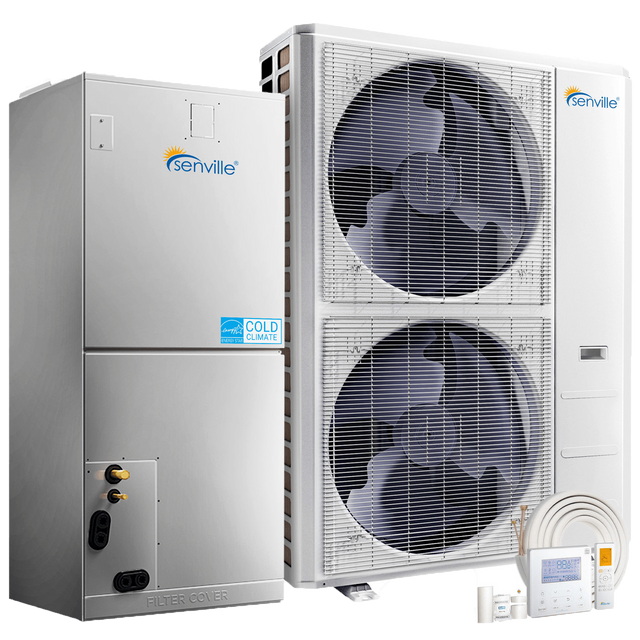

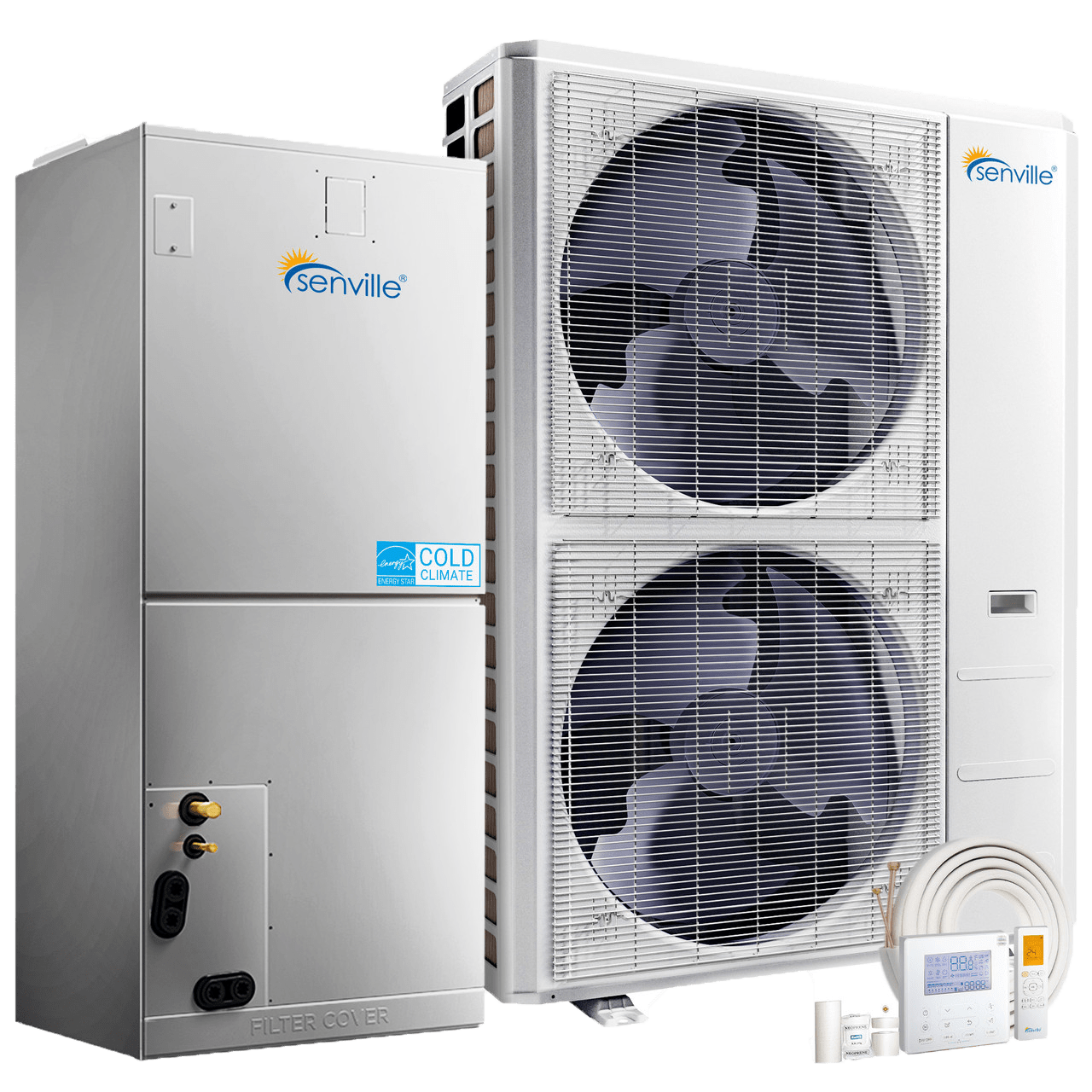

Senville 48,000 BTU 4 Ton Central Split Ducted System w/ Inverter & Heat Pump

SKU: sv15227  |  Model: SENDC-48HF-20K-16
$3,699.99 $3,999.99

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Compressor Warranty
5-Year Parts Warranty

What's In The Box?

  • Senville 48,000 BTU Indoor Air Handler
  • Senville 48,000 BTU Outdoor Unit
  • Owner’s Manual
  • Installation and Line Kit
  • Remote Control
  • Wired Controller

Info & Guides

Description

Offering an exceptional blend of efficiency and robust performance, the Senville 48,000 BTU 4-Ton Central Ducted Split System stands out as a premier solution for heating and cooling large areas. It marries the durability expected of traditional central air systems with the energy efficiency of modern mini-splits, featuring:

  • Energy Star Rated: With a SEER2 (Seasonal Energy Efficiency Ratio 2) rating of 15.6 and an HSPF2 (Heating Seasonal Performance Factor 2) rating of 9.4, this system delivers top-tier energy efficiency, surpassing many conventional units in performance.

  • Seamless Integration: Designed for effortless compatibility and a smooth installation, the system easily connects to existing ducts and control setups.

  • Quiet Performance: Noise level from the indoor unit ranges between 43 and 50 dB (similar to average room noise).

  • Refrigerant Type: R-454B

  • Heat Pump Technology: The "Arctic Inverter Heat Pump" used in this system operates efficiently even at temperatures as low as -22 degrees F, providing reliable warmth in the harshest conditions.

  • Safety Certifications: Has certifications from UL, AHRI (Air-Conditioning, Heating, and Refrigeration Institute), NEEP (Northeast Energy Efficiency Partnerships), and Energy Star.

Note: Professional Installation is required for this unit.

Available Models

The Senville 48,000 BTU Central Air Conditioner is available with a 10KW, 15KW, or 20KW auxiliary heater or without auxiliary heat. All models can be selected with a 16-foot or 50-foot installation kit.

Installation Options

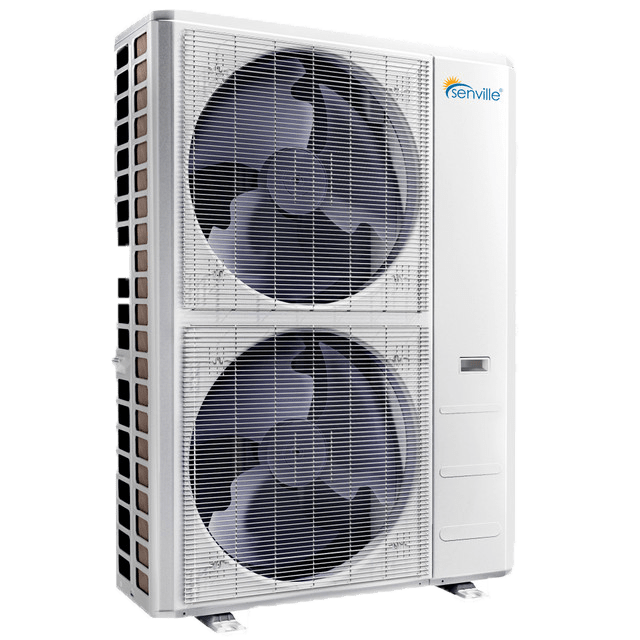

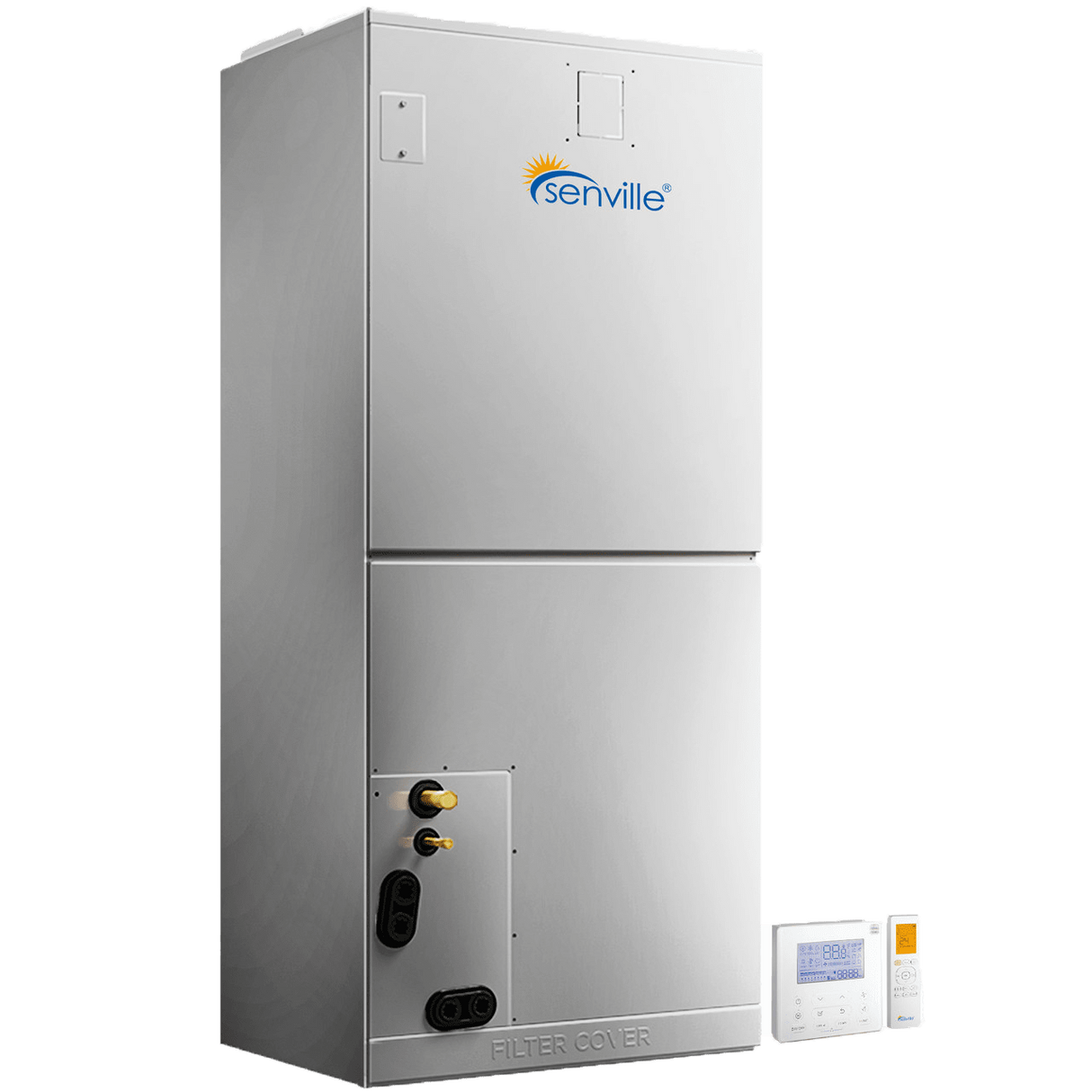

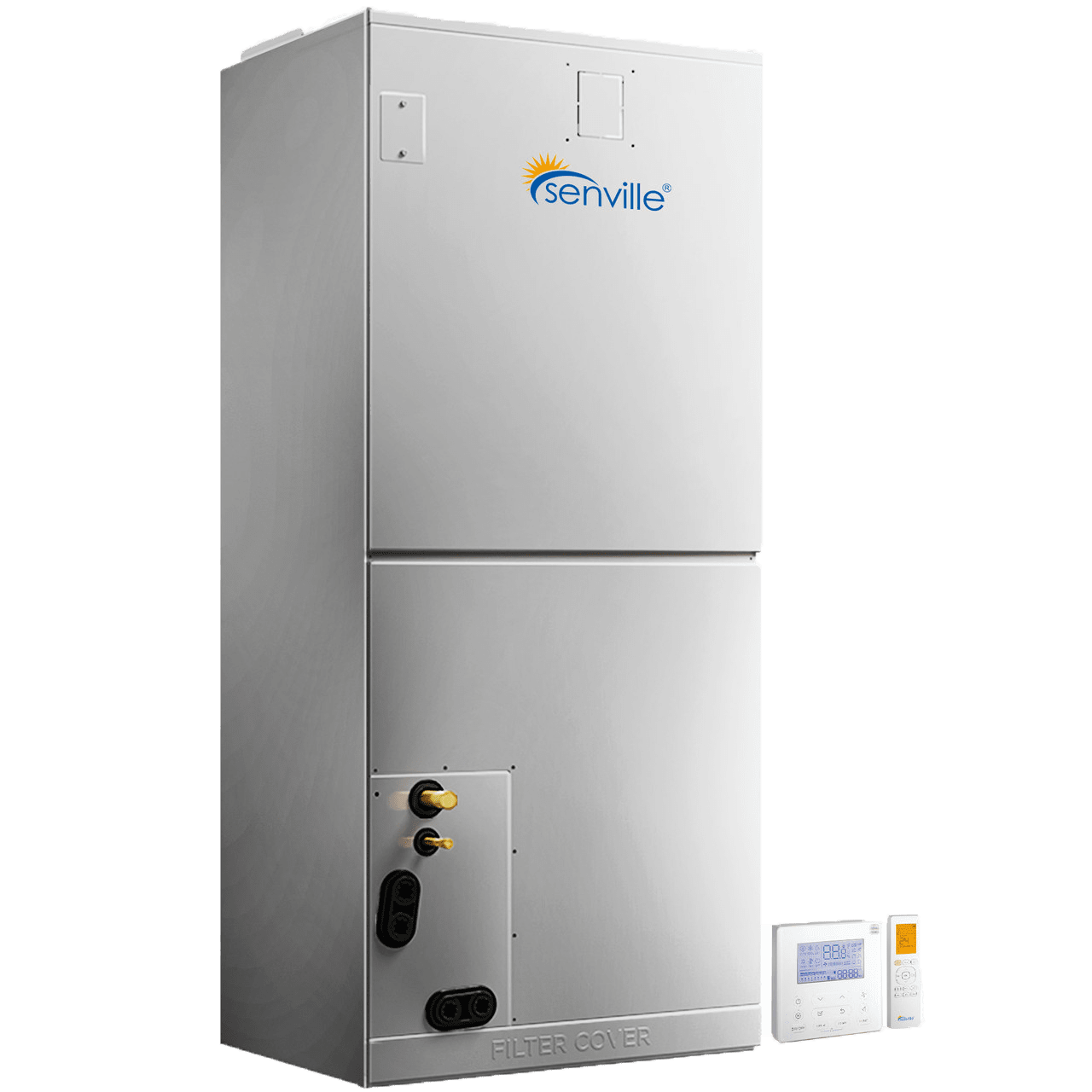

The compact indoor air handler of this Senville unit can be mounted vertically or horizontally, offering versatility for attic or basement installations. Its outdoor compressor unit is designed for a reduced footprint (16.3 inches wide), making it less intrusive than traditional HVAC systems.

Enhanced Comfort

Senville's advanced algorithm and technology ensure a consistent temperature across all ducted areas, providing immediate cooling and heating that's nearly inaudible for uninterrupted comfort.

Simplified Installation and Care

The design of the Senville system prioritizes ease of installation and maintenance. With easy access to the indoor unit's internal parts for quick diagnostics and service and an outdoor unit engineered to withstand environmental challenges, upkeep is straightforward and minimal.

Sylvane's Expert Take

The Senville 48,000 BTU Central Split Ducted System offers efficiency, performance, and easy maintenance, making it an ideal choice for maintaining a controlled climate in large residential and commercial spaces.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      8.2
    • Number of Speeds
      3
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      15.6
    • Total Cooling Capacity (BTUs)
      48000
    • Total Heating Capacity (BTUs)
      55000
    • Type
      Central Split

    General

    • Auxiliary Heat
      20 kW / 16: 20 kW
      15 kW / 50: 15 kW
      15 kW / 16: 15 kW
      10 kW / 50: 10 kW
      10 kW / 16: 10 kW
      None / 50: None
      None / 16: None
      20 kW / 50: 20 kW
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      UL, AHRI
    • Color
      Gray
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      8
    • Installation Type
      Professional Installation
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1470.0
    • Maximum Indoor Noise Level (dB)
      50
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      86
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -22
    • Number of Tons
      4
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Included Line Length (ft.)
      20 kW / 16: 16
      15 kW / 50: 50
      15 kW / 16: 16
      10 kW / 50: 50
      10 kW / 16: 16
      None / 50: 50
      None / 16: 16
      20 kW / 50: 50
    • Indoor Unit Depth (in.)
      21.02
    • Indoor Unit Height (in.)
      49.02
    • Indoor Unit Weight (lbs.)
      130.5
    • Indoor Unit Width (in.)
      21.02
    • Maximum Line Length (ft.)
      213
    • Outdoor Unit Depth (in.)
      16.3
    • Outdoor Unit Height (in.)
      52.5
    • Outdoor Unit Weight (lbs.)
      220.2
    • Outdoor Unit Width (in.)
      37.5

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Line Set Included

    Warranty

    • Manufacturer's Warranty
      10-Year Compressor Warranty 5-Year Parts Warranty
