Senville 18,000 BTU Concealed Mini Split Heat Pump
Description
Description
Keep rooms up to 1,100 square feet comfortable all year long with the Senville 18,000 BTU Concealed Mini Split Heat Pump. Ideal for large rooms like basements, sunrooms, and even offices, this unit's concealed design delivers a cleaner look than other mini split options since only the front grille is visible. Easy to operate, this Energy Star-rated system is a must-have for single-zone comfort.
Concealed Mini Split for Comfort

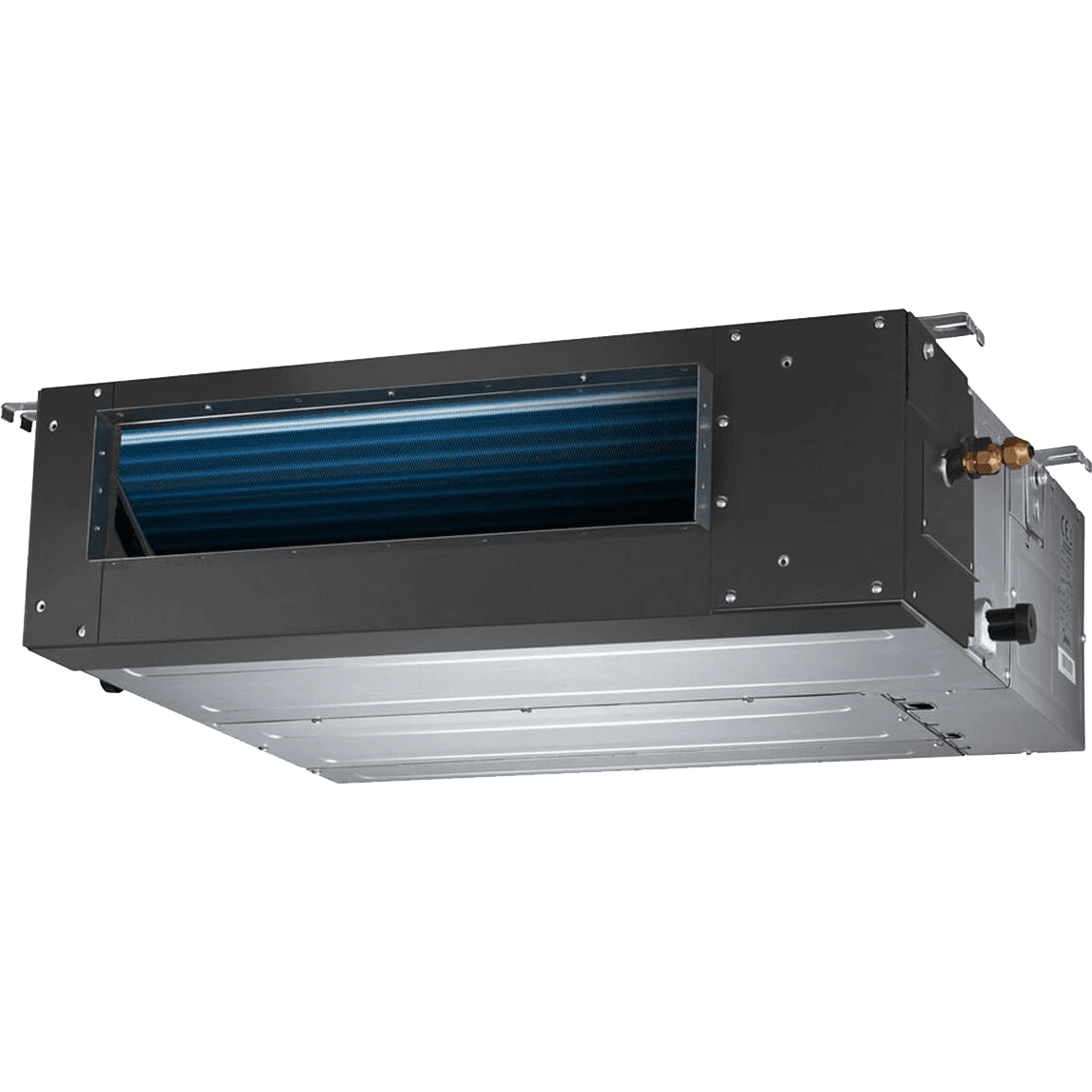

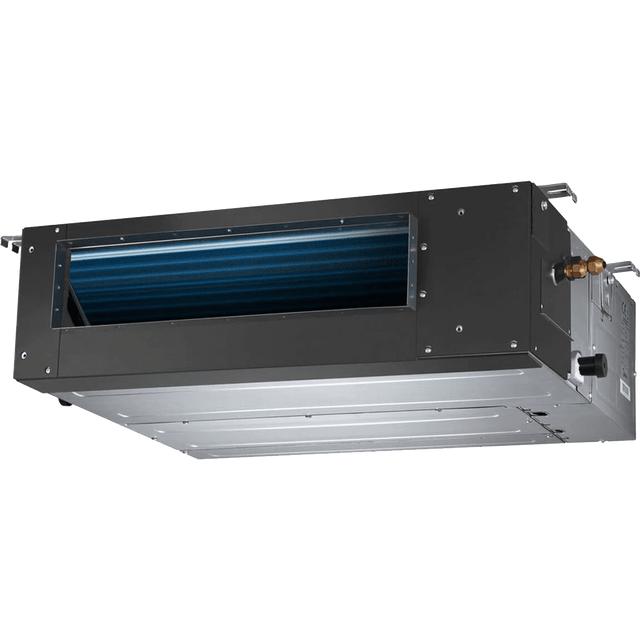

Utilizing a concealed mini split like the Senville SENA-18HF-ID-16 is a great way to get a versatile cooling and heating performance without the distraction. Since most of its main components are installed behind a wall, or in the ceiling, an attic, or utility room, the only part of the air conditioner you ever see is its front grille.
Multiple Operating Modes
With this Senville 18,000 BTU mini split, you'll have a more comfortable living space all year long.
- Cooling: Delivering up to 16,500 BTUs of cooling power, this unit is perfect for large rooms, living areas, and basements.
- Heat: It also uses up to 19,000 BTUs of heating power keeps you warm all winter.
- Fan-Only: Adjust your fan speed to meet your room and noise needs. Choose between low, medium, high speeds.
- Dry: Remove excess moisture from your indoor air by dehumidifying your space.
Energy Star Rated
Stay comfortable indoors doesn't have to break the bank. With energy-saving features, including impressive efficiency ratings like a 12.5 Energy Efficiency Ratio (EER) and 19.6 Seasonal Energy Efficiency Ratio (SEER), this Senville Mini Split Heat Pump delivers an efficient performance. It's so efficient that it has earned an Energy Star Rating.
Additional Features
- Installation Kit Provided: Set up is quick and easy. This mini split features an included pre-charged 16-foot line set.
- Onboard Diagnostics: Receive warnings of potential problems like leaks, get routine maintenance reminders, and much more.
- Built to Last: Features a 10-year warranty on the compressor and a 5-year warranty on all other parts.
- Anti-Microbial Filter: Keeps your air cleaner and protects the air conditioner by trapping harmful allergens and particles via a silver ion filter.
- Vertical Swing Feature: Easily distribute cool or heated air to every corner of your space.
- Low-Temperature Operation: Equipped with a heat pump, this mini split can continue heating even when outside temperatures are as low as -22 degrees Fahrenheit; and will continue cooling when ambient temperatures are as low as 4 degrees F.
- Precise Temperature Control: The included remote control has a follow-me feature that allows the remote to operate as a remote thermostat.
Summary
With an out-of-the-way concealed design and powerful performance, the SENA-18HF-IDQ16 concealed mini split from Senville is the perfect choice for cooling and heating large rooms.
What Customers Love
- Installs Out of The Way: Featuring a concealed design, the only part of this mini split you’ll notice is its front grille.
- Energy Star Rated: Get year-round comfort without breaking the bank thanks to this Energy Star certified model.
Things to Consider
- Additional Line Set Length: This unit comes with a standard 16-foot line set. For additional line set length, consider the compatible Senville PJX-2-15 50 Ft. Insulated Line Set.
Specifications
Specifications
-
AHRI Estimated Annual Cooling Cost106
-
AHRI Estimated Annual Heating Cost389
-
Energy Efficiency Ratio (EER)12.5
-
Mounting TypeConcealed
-
Number of Speeds3
-
Total Cooling Capacity (BTUs)18000
-
Total Heating Capacity (BTUs)18000
-
California Residents⚠ WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsETL
-
ColorGray, White
-
Compressor TypeInverter
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)530.0
-
Maximum Indoor Noise Level (dB)40
-
Maximum Operating Temperature - Cooling (degrees F)90
-
Maximum Operating Temperature - Heating (degrees F)86
-
Minimum Operating Temperature - Cooling (degrees F)4
-
Minimum Operating Temperature - Heating (degrees F)-22
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)1100
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)18800
-
Zone Heating Capacity (BTUs)22000
-
Maximum Cooling Amperage (Amps)6
-
Maximum Cooling Wattage (W)1320
-
Maximum Heating Amperage (Amps)8.7
-
Maximum Heating Wattage (W)1900
-
Voltage (V)208-230
-
Included Line Length (ft.)16
-
Indoor Unit Depth (in.)28.53
-
Indoor Unit Height (in.)8.27
-
Indoor Unit Width (in.)34.65
-
Maximum Line Length (ft.)50
-
Outdoor Unit Depth (in.)10.83
-
Outdoor Unit Height (in.)21.26
-
Outdoor Unit Width (in.)33.86
-
Additional FeaturesRemote Control, Energy Star, Automatic Oscillation, Air Filter, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty
10-Year Compressor / 5 Year Parts
