SkyBlade Wingman 6 ft. IP65 Mobile Drum Fan
SkyBlade Wingman 6 ft. IP65 Mobile Drum Fan is backordered and will ship as soon as it is back in stock.

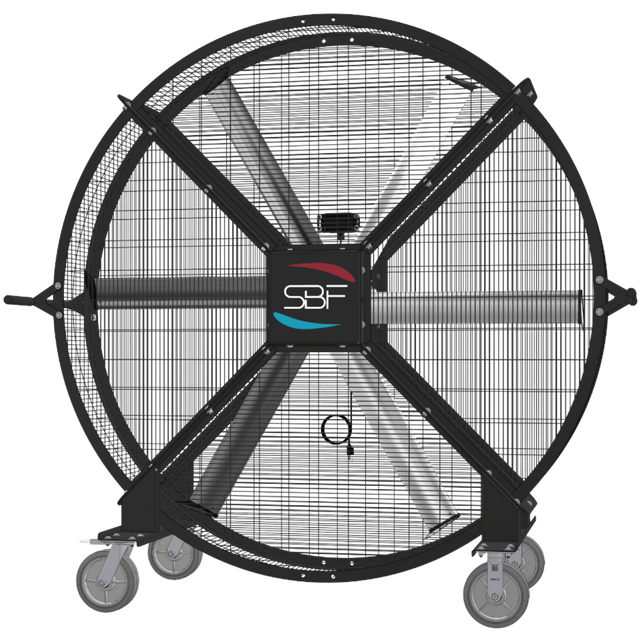

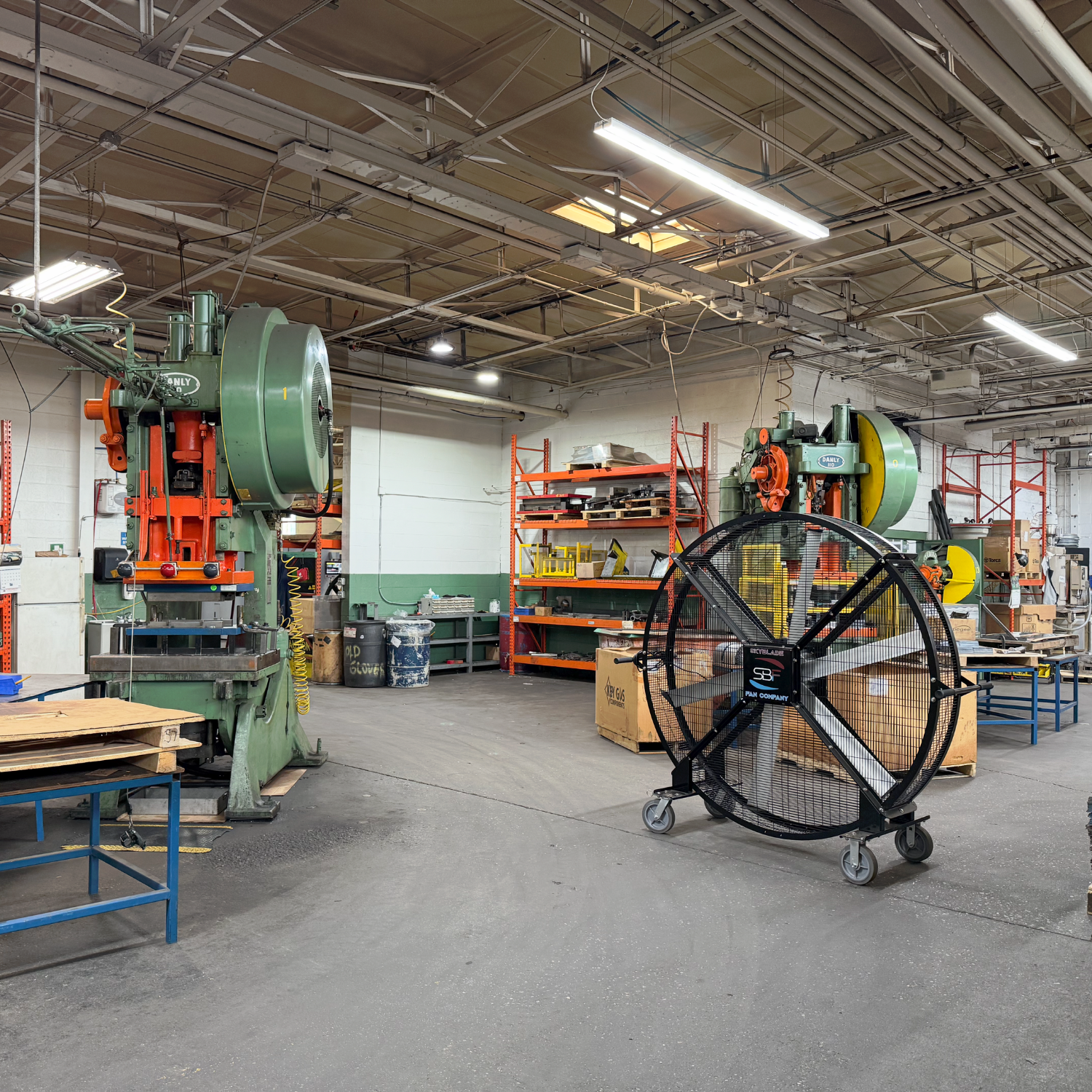

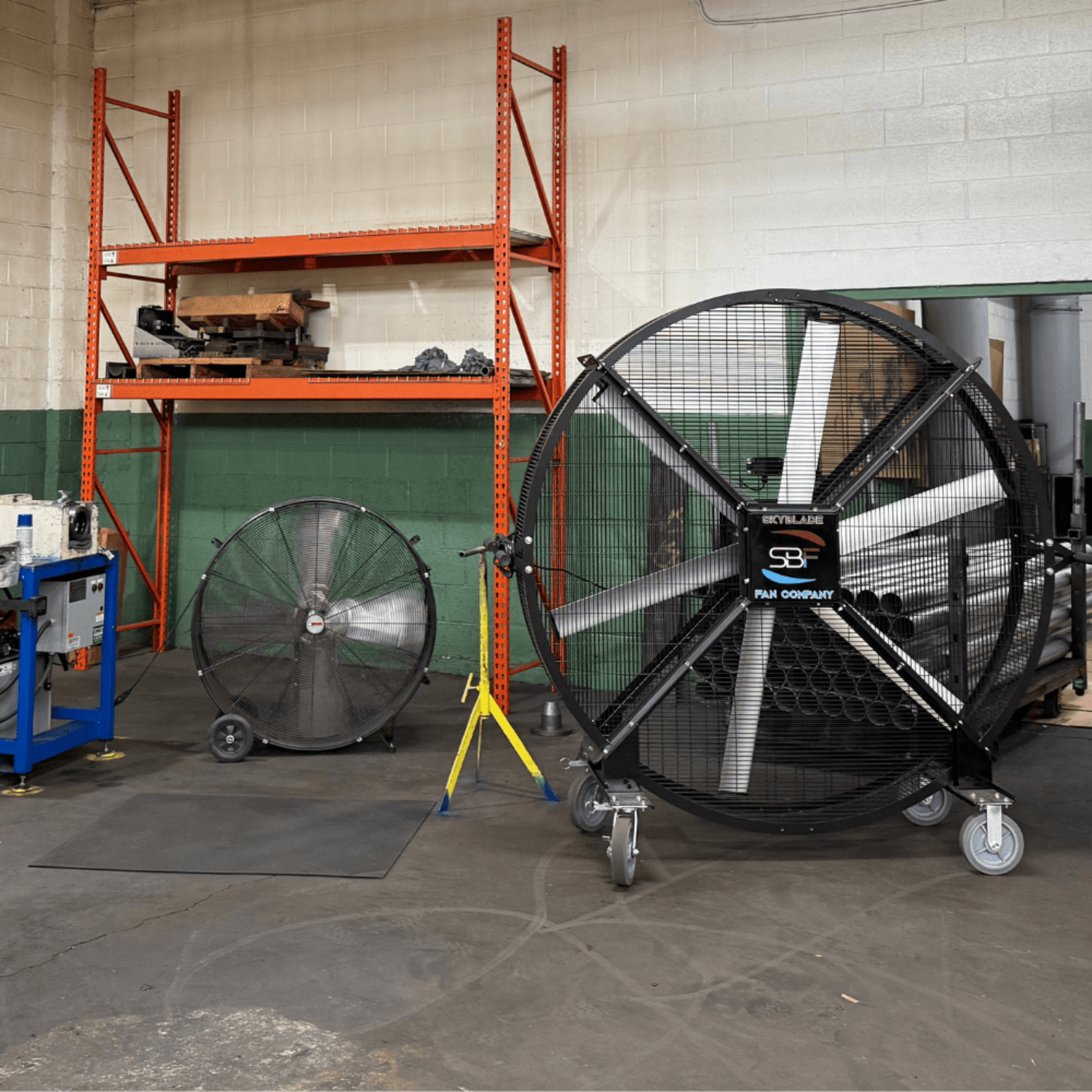

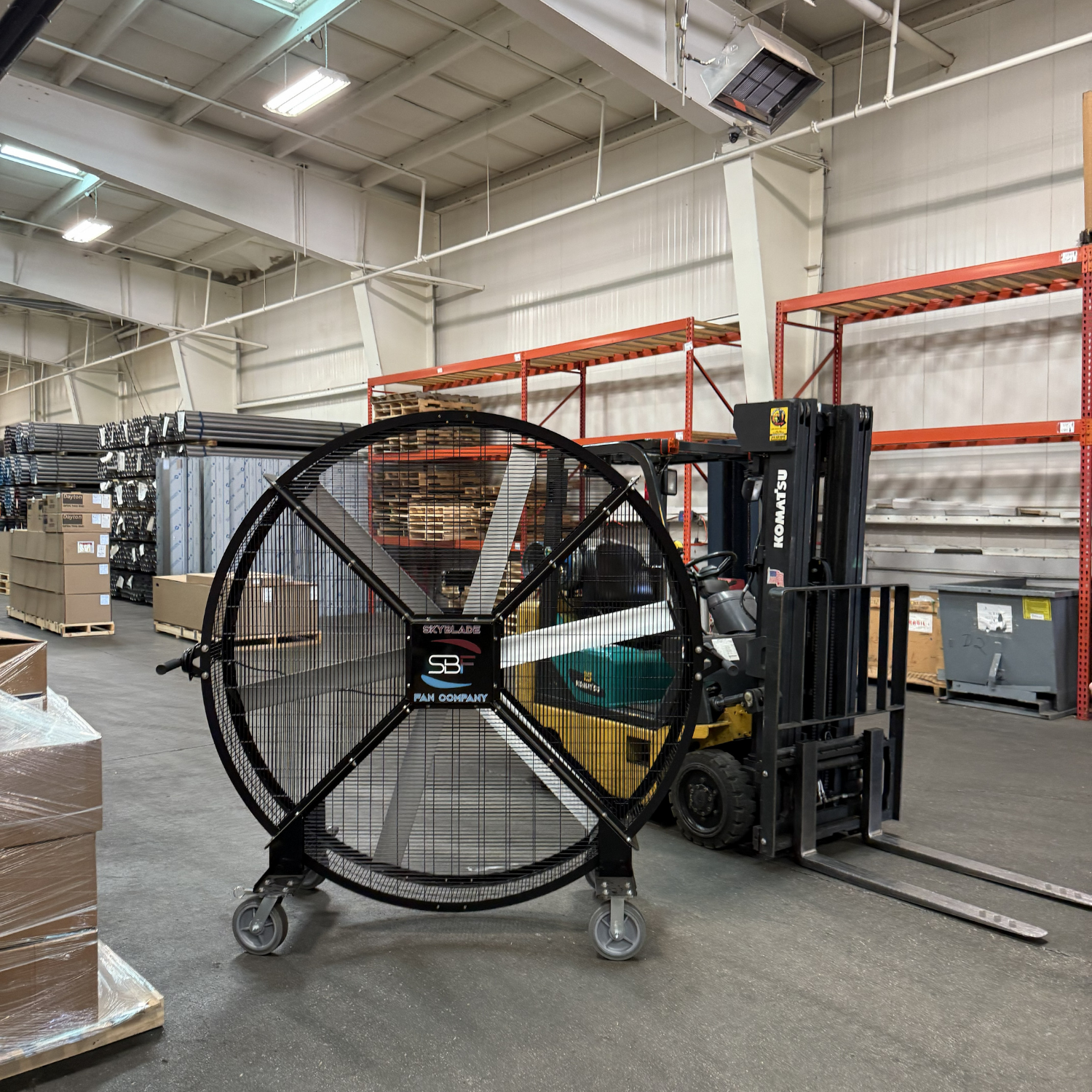

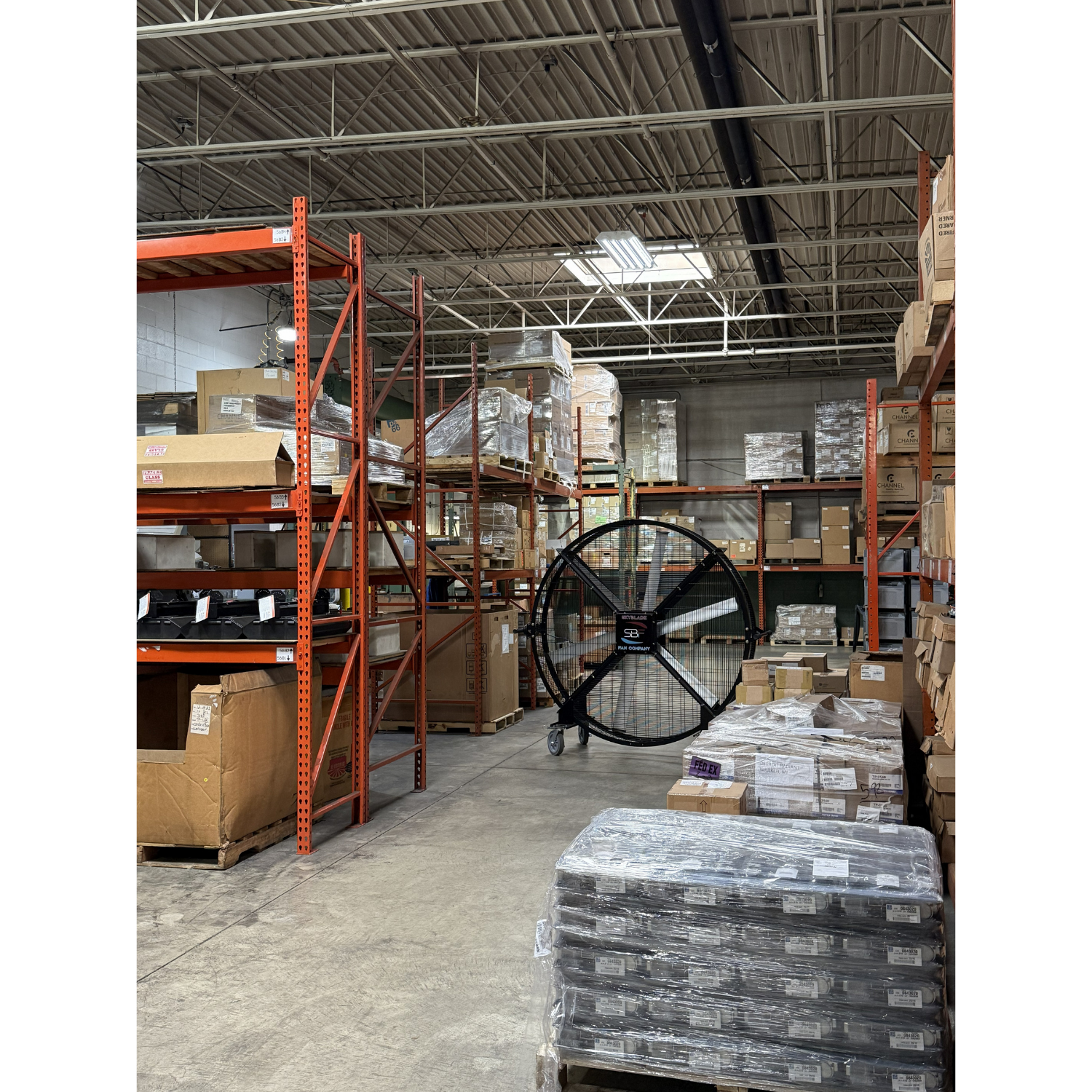

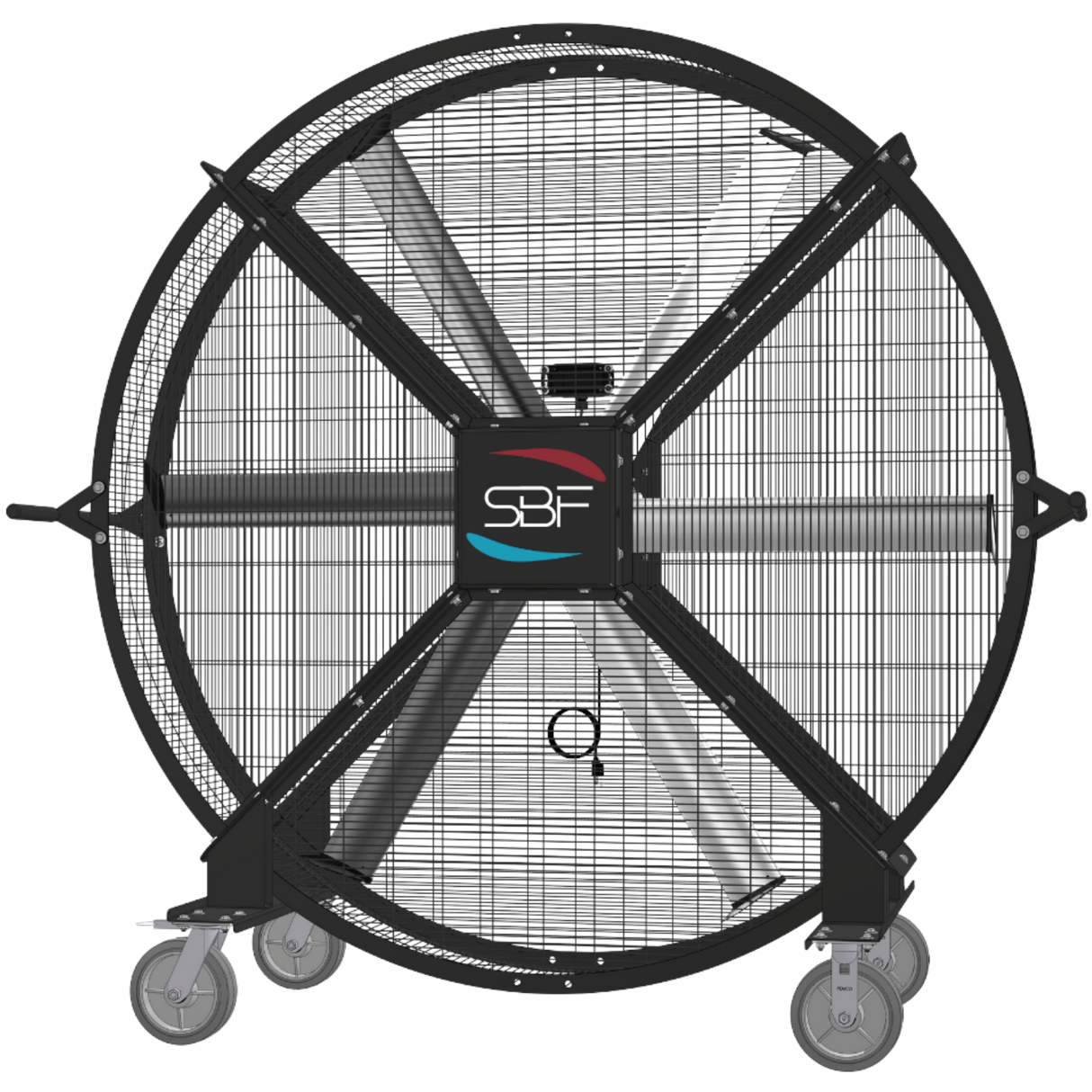

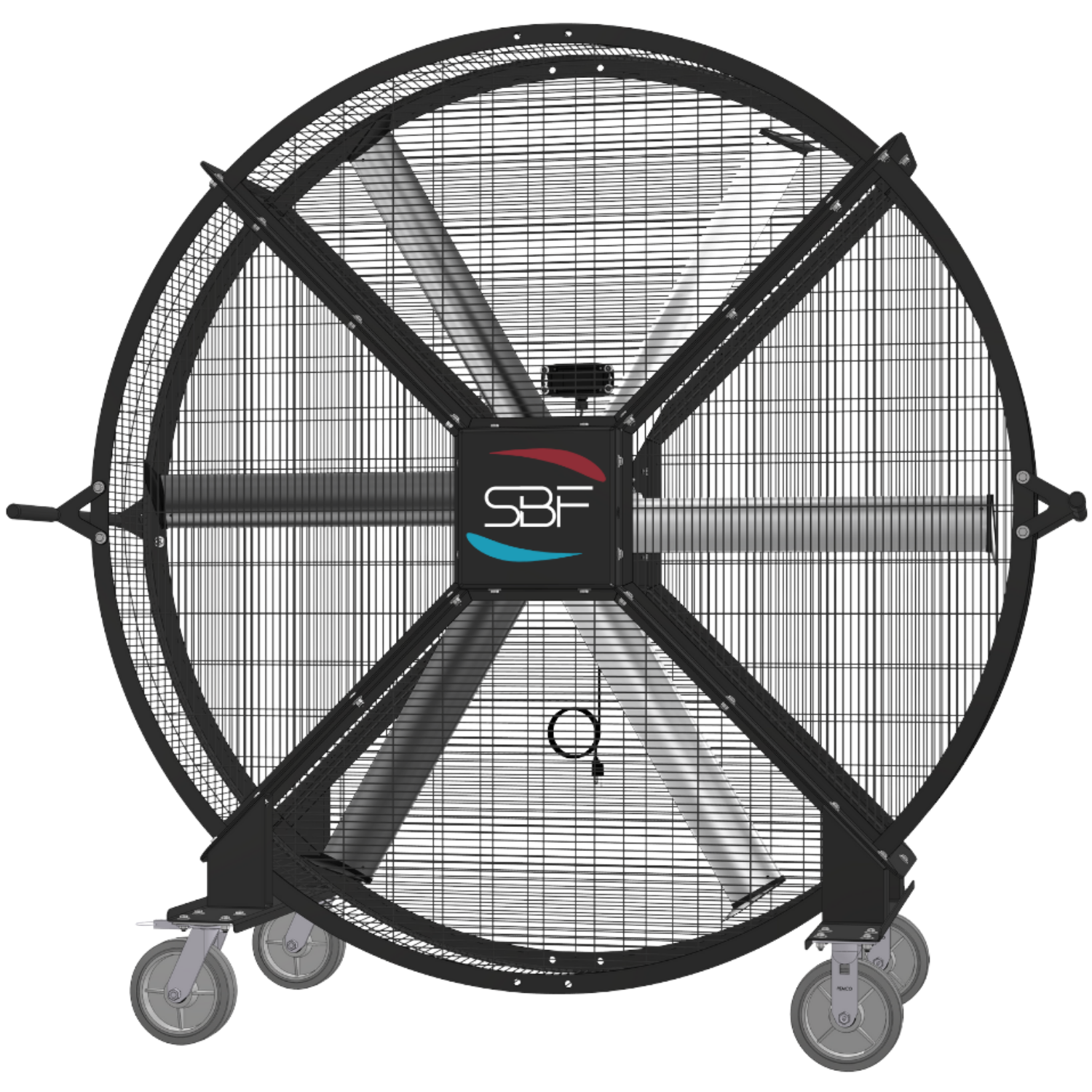

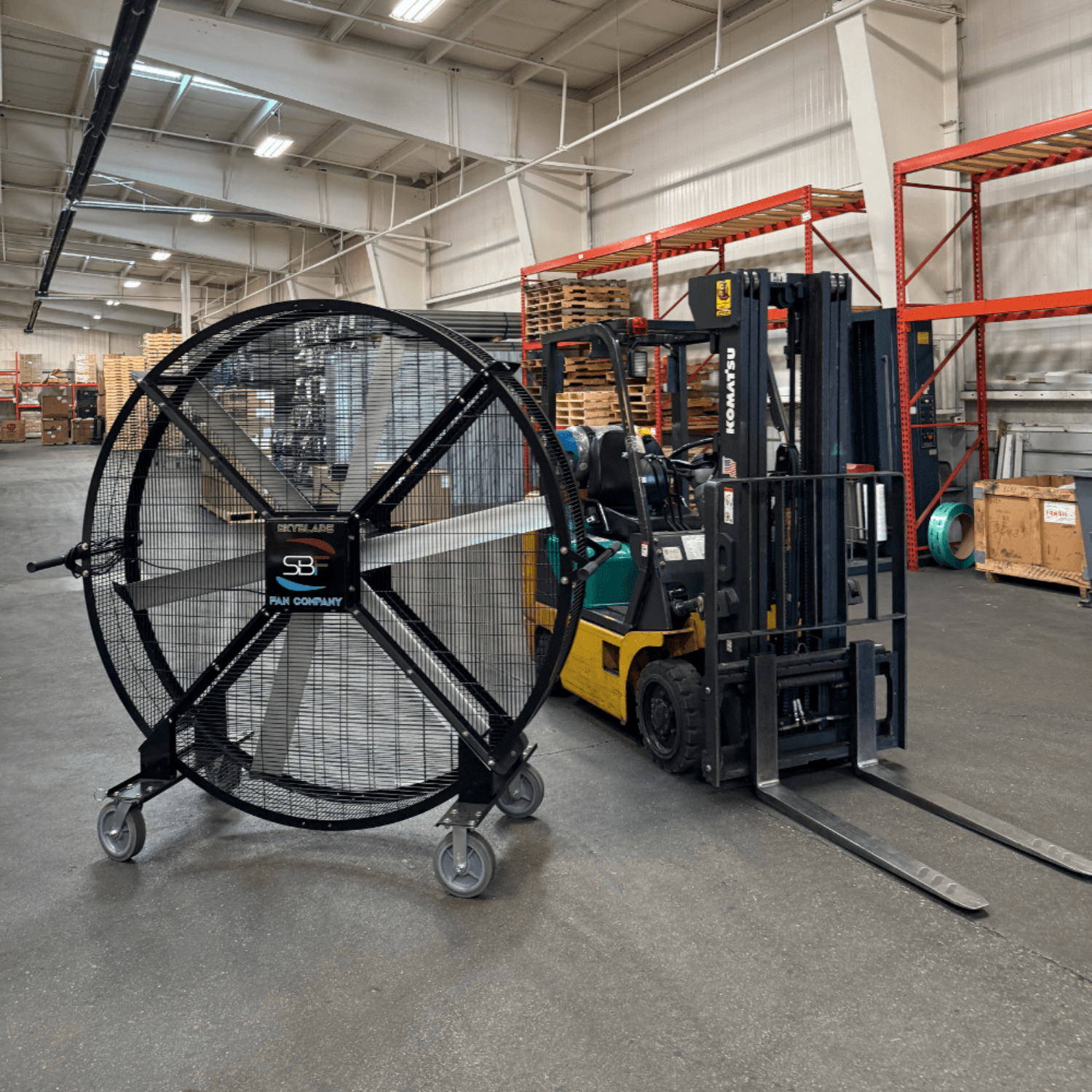

The SkyBlade Wingman 6 Ft. IP65 Mobile Drum Fan rides on a steel cart with 8-inch non-marking casters, so you can roll it from a packing line to a loading dock and set the 2-pivot wheels with brakes where you want the air. Nothing has to be lifted or bolted down to change your setup, and it ships pre-assembled, ready to use upon arrival.

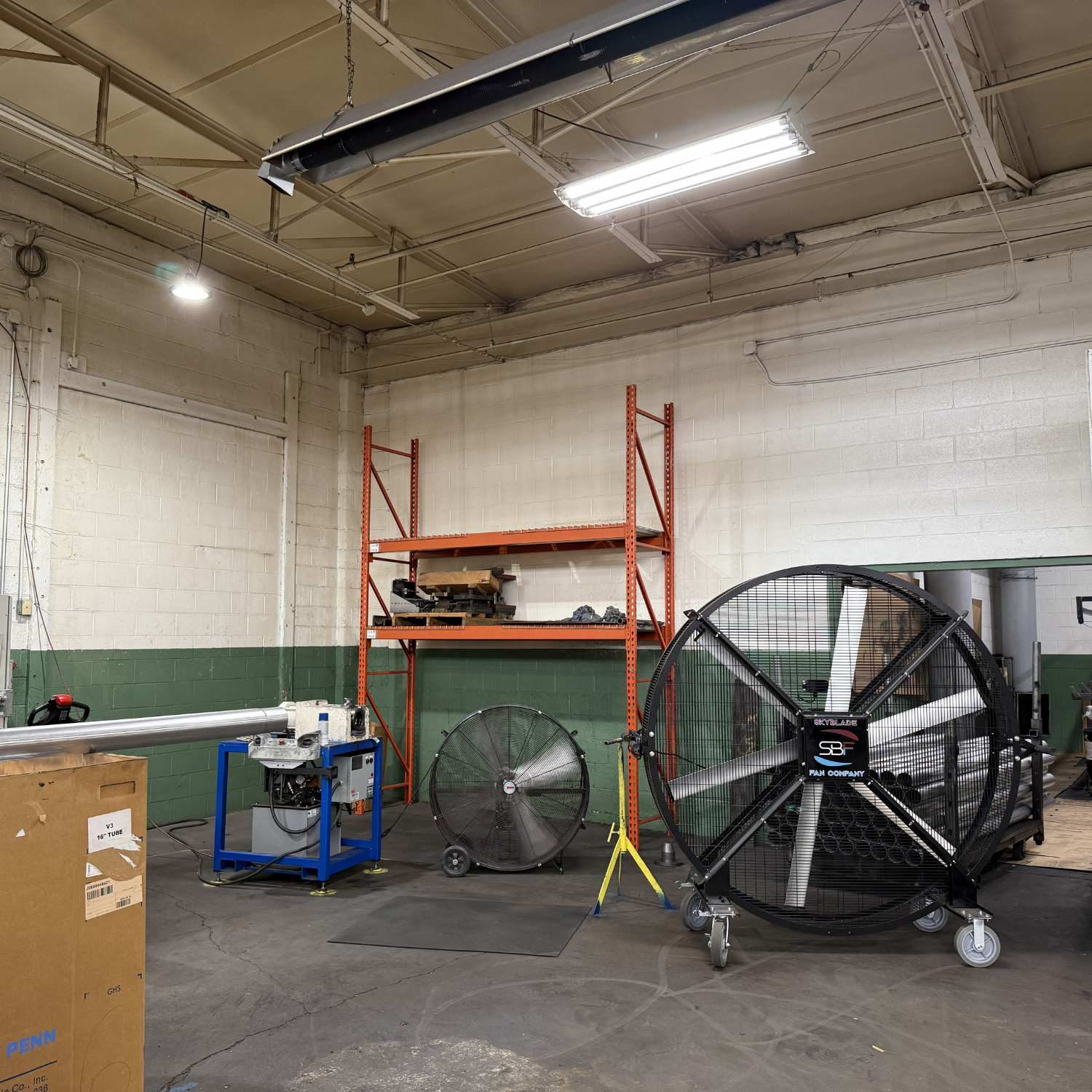

Because it is rated for outdoor use as well as indoor use, the same fan suits a truck wash bay or equipment yard. It also fits an arena concourse or livestock barn. The OSHA compliant cage and frame come in a standard powder-coated black for resistance to weather and corrosion.
Key Features and Benefits of the SkyBlade Wingman 6 Ft. IP65 Mobile Drum Fan
- Direct-Drive Motor: A 1.35 horsepower permanent magnet motor runs the fan at up to 285 RPM.
- Wide Blade Span: The 6-blade anodized aluminum airfoils with wingtips span 72 inches, pushing a broad column of air across an open floor.
- Washdown Build: Weather-tight construction and the IP65-sealed motor let you clean the fan along with the room, with no masking or moving first.

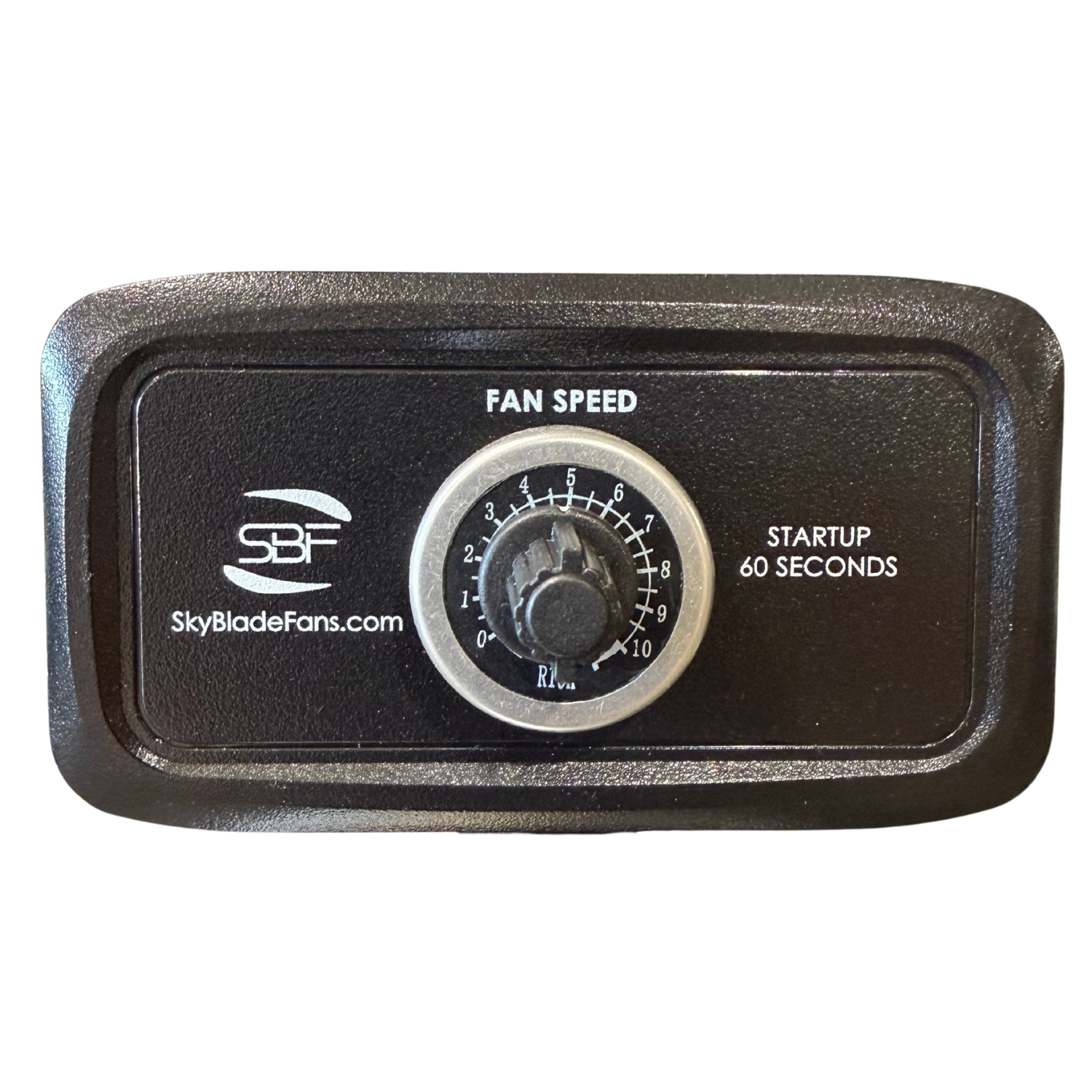

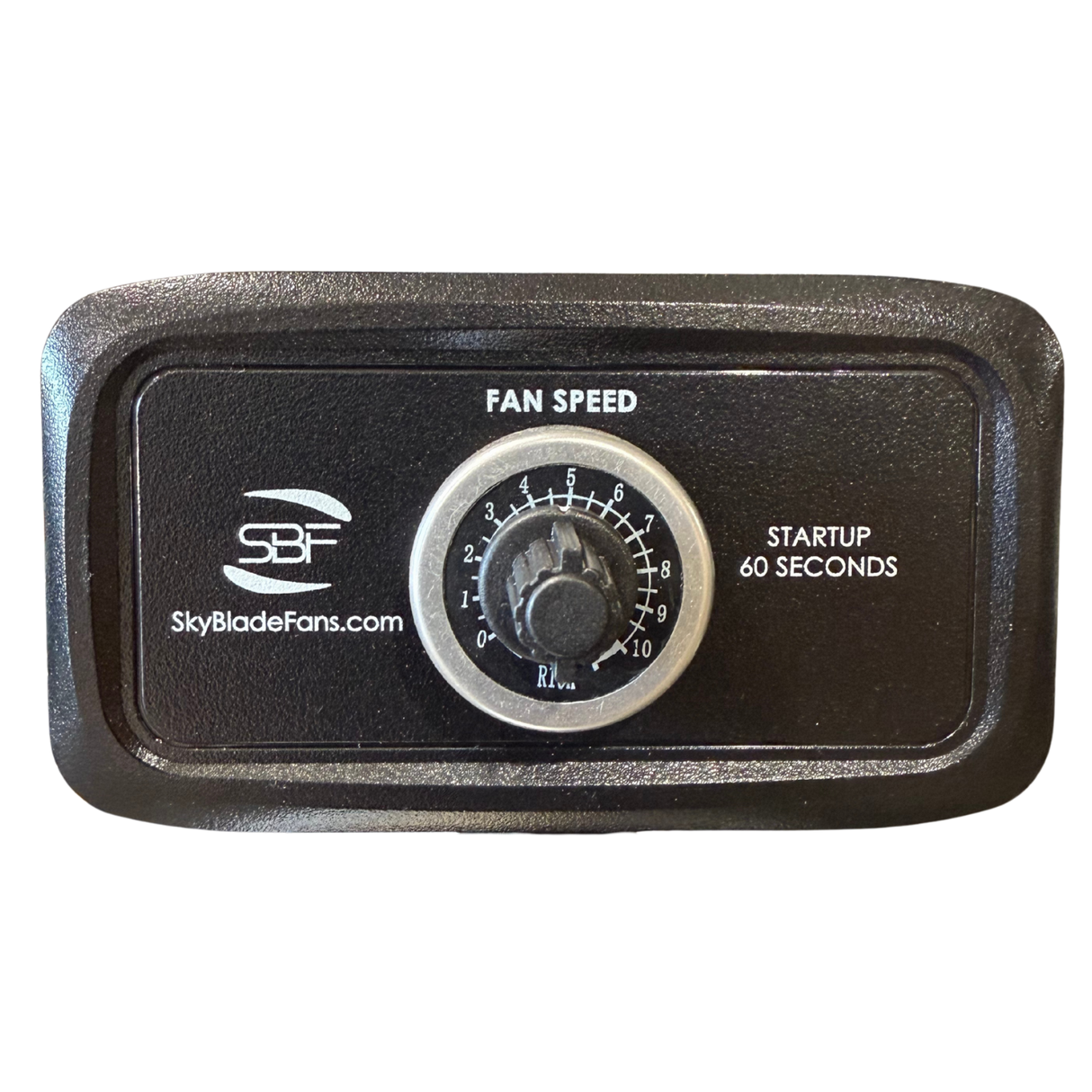

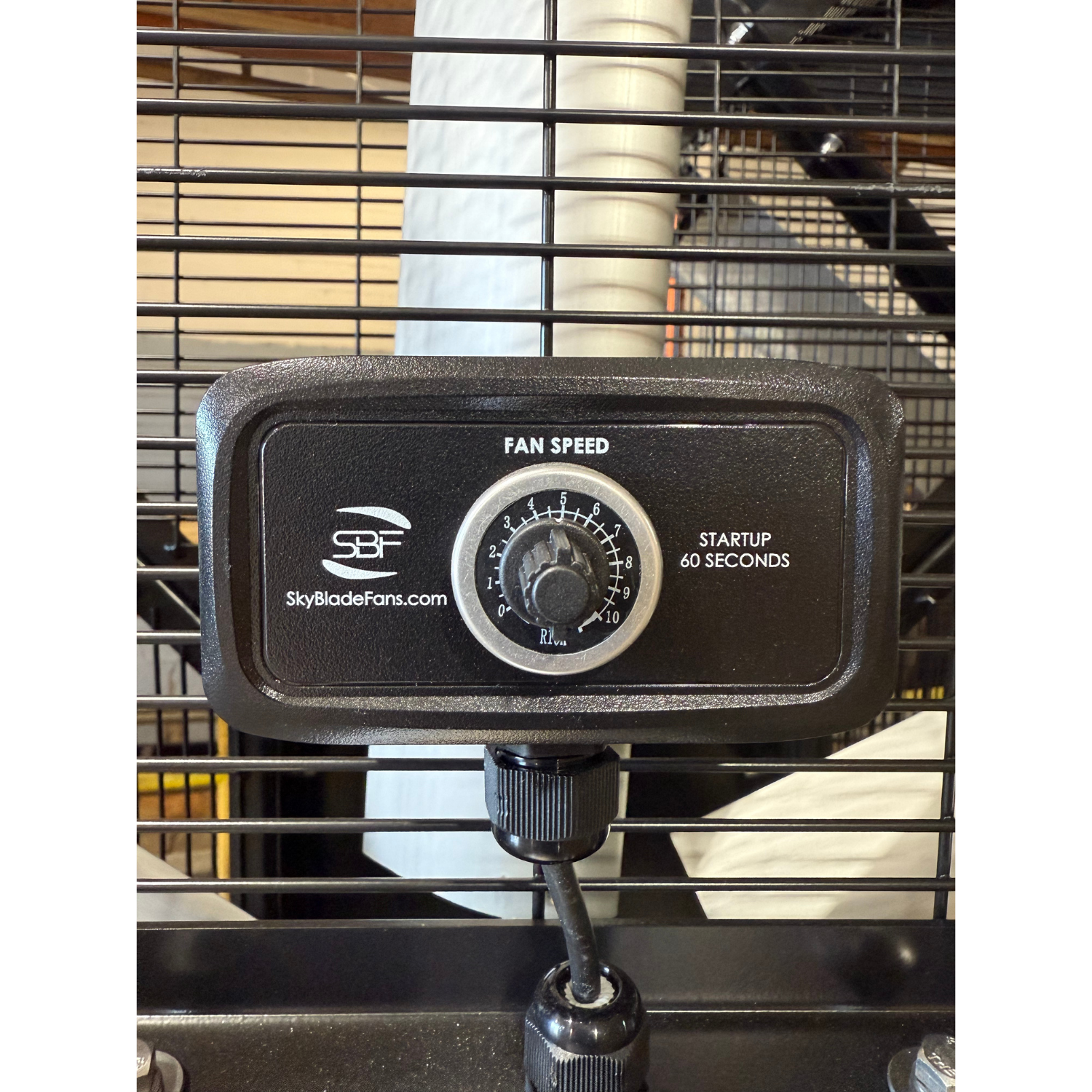

- Variable Speed: An analog dial gives you manual speed controller lets you set the velocity to cool areas up to 120 feet at 320 fpm airflow.
- OSHA Guards: Powder-coated steel guards meet OSHA finger-safe standards.
- Sound Output: Noise tops out at 62 dB on high, so you can still talk to someone standing beside the cart.
- Standard Power: It runs on 120-volt power and draws up to 7 amps and 785 watts, so common outlets handle it. It comes with a 15-foot power cord.
Sizing Up the Footprint
This is a large fan, so measure the space it will be placed in carefully. The cart measures 78 x 82 x 29 inches (H x W x D), which makes it able to fit through a standard door. At 315 pounds, it is meant to roll rather than be carried, so keep the path flat and clear of raised thresholds. Once it is positioned, leave open space in front of the blades and set the caster brakes. At 120 feet, the fan outputs an airflow velocity of up to 250 FPM.
Sylvane's Expert Take
Choose this drum fan if your facility needs to be regularly sprayed clean: food processing rooms, wash bays, dairy barns, and covered outdoor work areas where corrosion ends ordinary fans early. It does its best work in open spaces that need reach rather than a spot breeze. For the amount of air moved per square foot of floor given up, few mobile fans in this class come close.
-
Number of SpeedsVariable
-
TypeDrum Blower
-
ColorBlack
-
ControlsManual
-
Indoor/OutdoorIndoor/Outdoor
-
Maximum Noise Level (dB)62
-
California Residents⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Amperage (Amps)7.0
-
Maximum Wattage (W)785.0
-
Power Cord Length (ft.)15
-
Power SupplyElectric
-
Voltage (V)110-120
-
Depth (in.)29.0
-
Fan Diameter (in.)72.0
-
Height (in.)78.0
-
Weight (lbs.)315
-
Width (in.)82.0
-
Additional FeaturesMeets OSHA Standards
-
Manufacturer's Warranty5-Year Motor, Blades, Chassis, Hub, and Cage Limited Warranty; 1-Year Electronic Parts Limited Warranty
