S&P PV-100XPS Powervent Dryer Booster Kit
S&P PV-100XPS Powervent Dryer Booster Kit is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

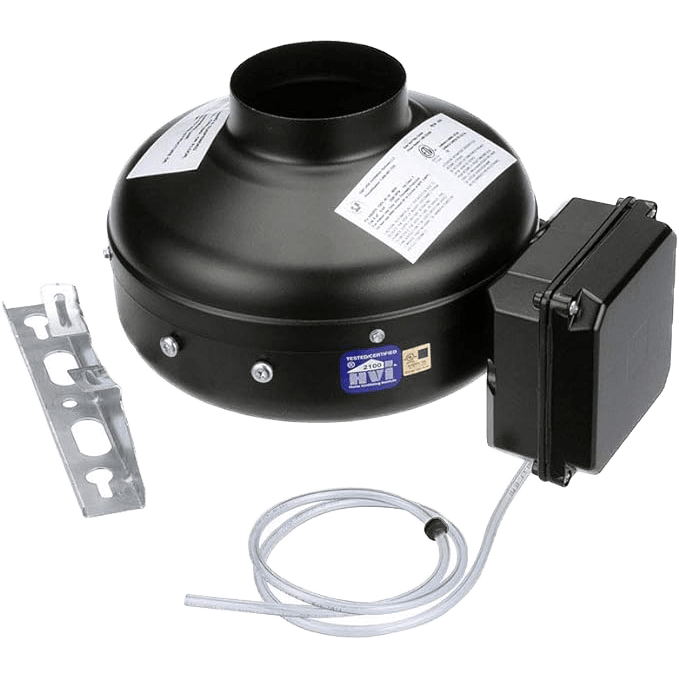

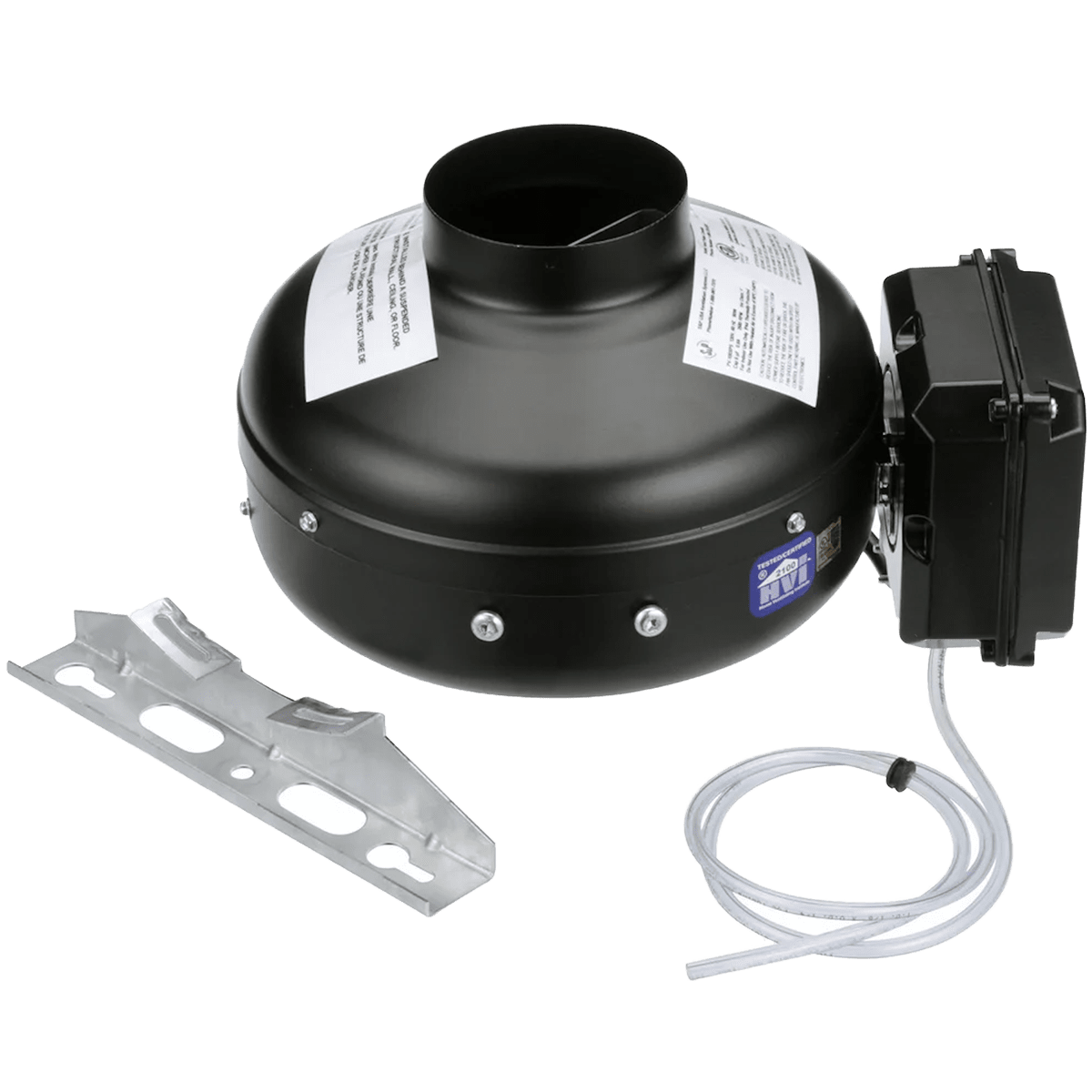

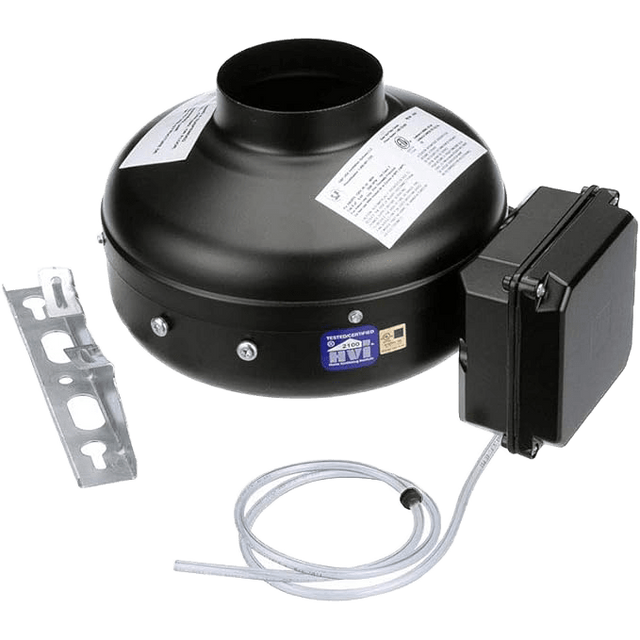

What's In The Box?
What's In The Box?
- S&P PV-100XPS Powervent Dryer Booster Fan
- Pressure Sensing Switch (Pre-wired)
- Mounting Bracket
- Owner’s Manual
Info & Guides
Info & Guides

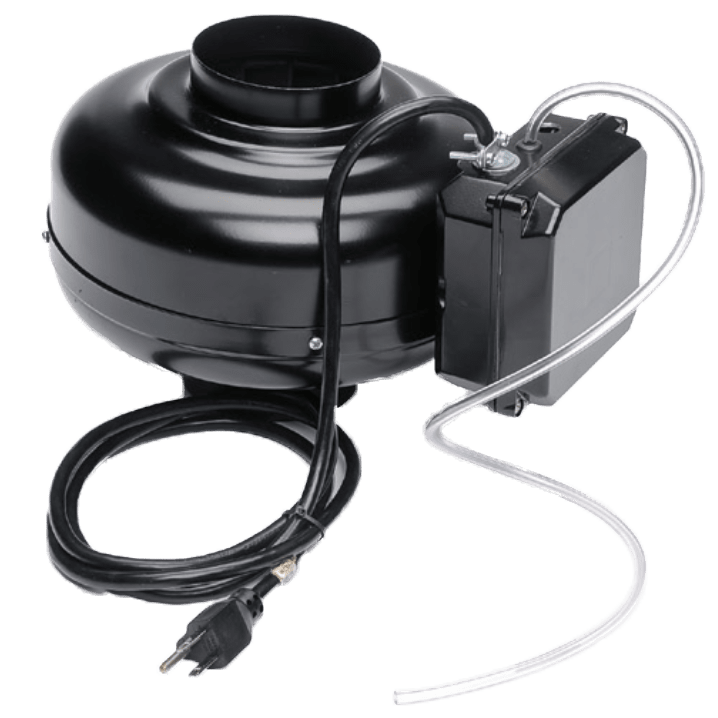

S&P PV-100XPS Powervent Dryer Booster Kit
Description
Description
The S&P PV-100XPS Powervent Dryer Booster Kit is the ideal way to increase dryer efficiency while saving money on your electric bill. With longer duct runs that can occur when dryers are more centrally located, a dryer booster fan is required when duct runs are over 35 feet.
Increase Efficiency
Increase your dryer’s efficiency with the S&P PV-100XPS booster fan:
- Improve dryer performance and safety
- Reduce dryer cycle times
- Less wear and tear on the dryer
Smart Design
This reliable dryer booster fan with an integrated pressure switch is designed for ease of installation and performance:
- Versatile Installation: The PV-100XPS can be mounted in any orientation and attached to a rafter or joist with the supplied mounting bracket.
- Centrifugal Blade: Overcomes extreme resistance in challenging installations.
- Fully Enclosed Motor: Ensures long life with minimal maintenance required.
- Air Pressure Sensing Switch: This premium sensing switch recognizes the positive pressure generated by the dryer fan and activates the fan.
- Secondary Lint Filter: This model should be installed 15 feet from the dryer's exhaust outlet. However, with this secondary lint filter, it can be installed closer to the exhaust outlet.
Key Specifications
- Electrical: 115 Volt; 84 W; 2880 RPM
- Airflow: 153 CFM at 0 inches w.g.
- Maximum SP: 1.85 inches w.g.
- Duct Diameter: Designed for 4-inch duct
- Safety Certifications: ETL-Listed
Sylvane’s Expert Take
Designed for the modern home, the S&P Dryer Booster Fan Kit overcomes long or complex dryer runs for more efficient drying. Customers will appreciate saving money thanks to decreased drying times and can rest easy knowing there is less wear and tear on their dryers. The full kit includes the pressure sensing switch and the mounting bracket for easy installation.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeDryer Booster Duct Fan
-
ApplicationDryer Booster Fan
-
California Residents⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscULus, cETLus, HVI, UL, cUL, ETL
-
ColorBlack
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)158
-
Maximum Cubic Feet per Minute (CFM) (CFM)153.0
-
Amperage (Amps)0.8
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)84
-

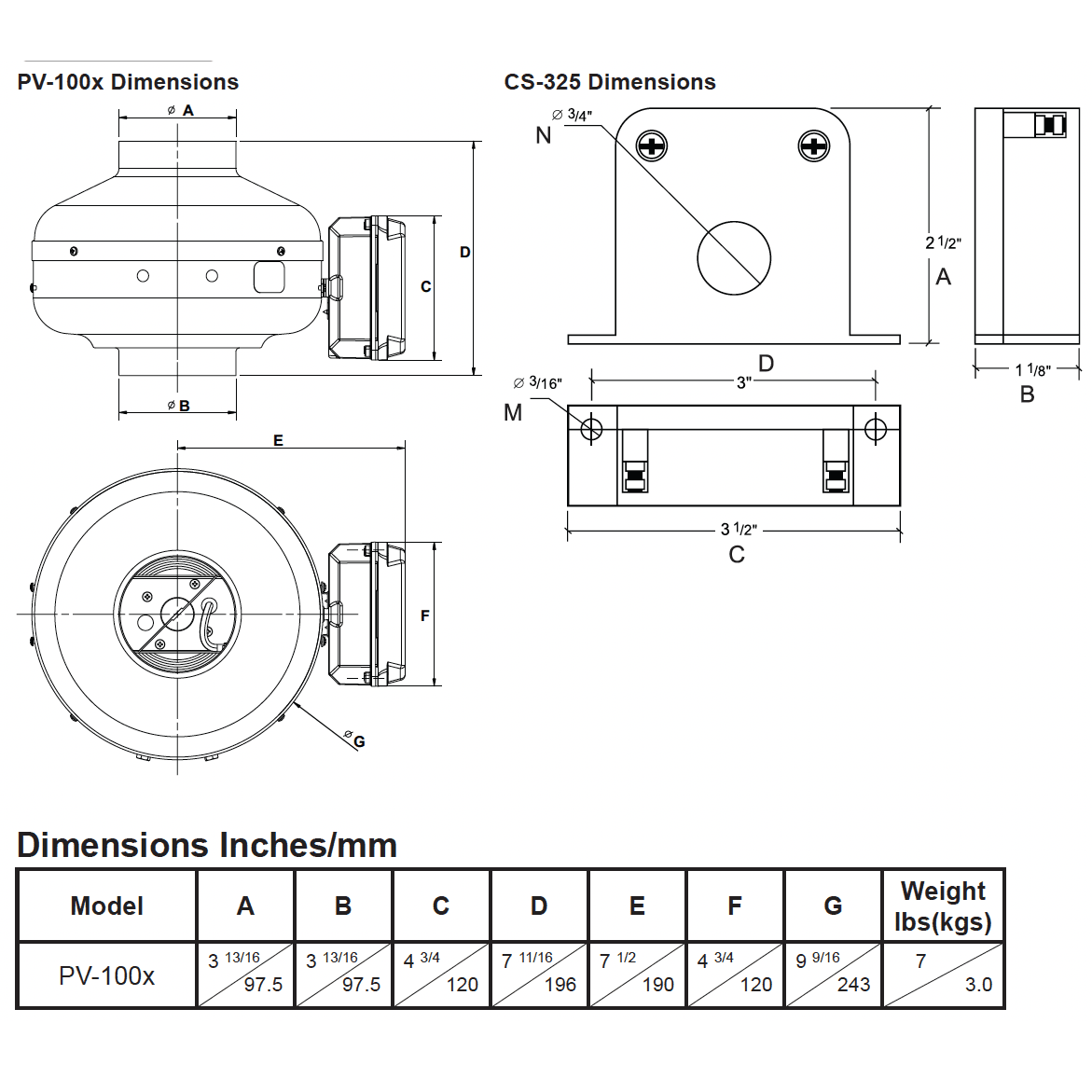

Depth (in.)7.69
-
Depth (with front cover) (in.)7.69
-
Duct Diameter (in.)4.0
-
Weight (lbs.)7
-
Width (in.)3.81
-
Width (with front cover) (in.)3.81
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty5-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
