S&P SWF100(X) 4 Inch Sidewall Fan
S&P SWF100(X) 4 Inch Sidewall Fan - SWF-100 4-Inch 119 CFM is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P SWF-100 (or SWF-100X) Sidewall Fan
- Pre-wired Junction Box
- Installation and Operation Manual
Info & Guides
Info & Guides

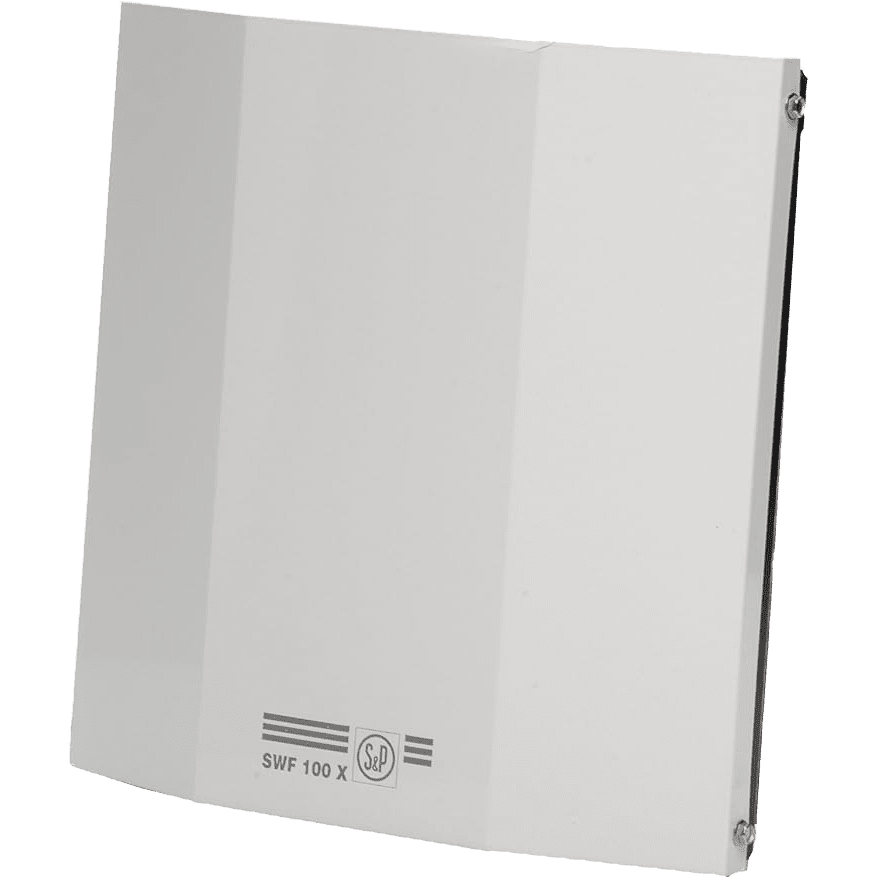

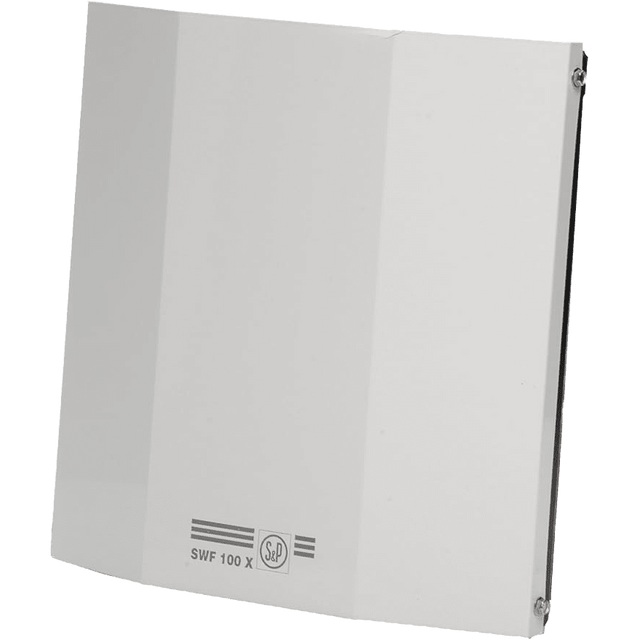

S&P SWF100(X) 4 Inch Sidewall Fan
Description
Description
The S&P SWF-100 and SWF-100X 4-inch Sidewall Fans are designed to provide exceptional ventilation performance in high static pressure applications. Whether for commercial or residential use, these fans are perfect for spaces where traditional inline fans are unsuitable due to space limitations.
Manufactured with high-grade galvanized steel and a baked enamel coating, the SWF-100 and SWF-100X are specifically designed for an easy, low profile, exterior wall installation.

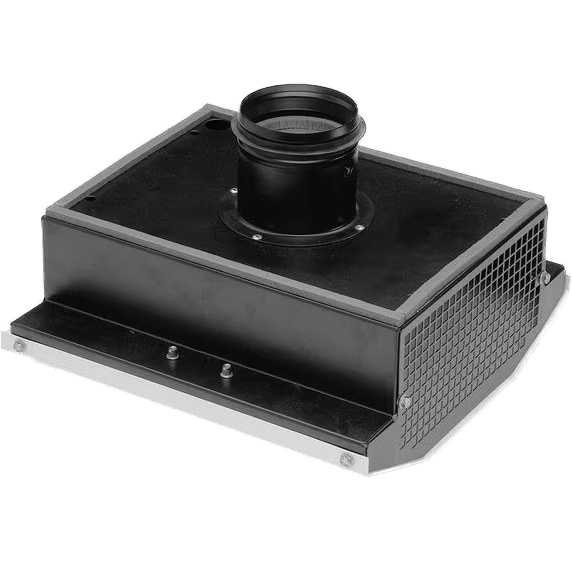

The SWF-100 and SWF-100X connect directly to 4-inch round ductwork, and because they are installed on an exterior wall, fan noise is kept out of living spaces.
Top Features
- High Static Pressure Capability: The SWF-100 and SWF-100X deliver an efficient airflow of up to 119 CFM (171 CFM for SWF-100X) in ducted systems with static pressure up to 1-inch w.g. (1.5-inch w.g. for the SWF-100X).
- Durable Construction: The Outdoor Rated Exterior Housing is made from high-grade galvanized steel with a baked enamel coating for long-lasting performance.
- Efficient Performance: It features a non-overloading backward inclined wheel designed for optimal efficiency at higher static pressures.

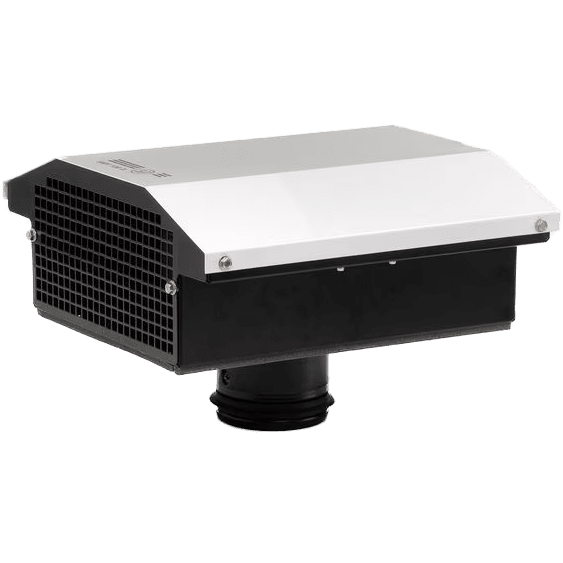

- Easy Maintenance: The removable top allows for convenient access to the motor for cleaning and inspection.
Additional Features
- Powerful Motor: This model uses a totally enclosed permanent split capacitor (PSC) external rotor motor that allows it to operate in high-moisture, lint-, and dust-laden air.
- Thermal Overload Protection: It includes an automatic reset type thermal overload protection for added safety.
- Speed Controllable: This model is compatible with voltage or frequency control regulators for adjustable speed settings.
- Pre-wired Terminal Box: The included pre-wired terminal box simplifies the electrical connection process, making installation straightforward.
- Large Grill Opening: A large grill opening facilitates the easy passing of lint and other materials, reducing clogging and maintenance needs.

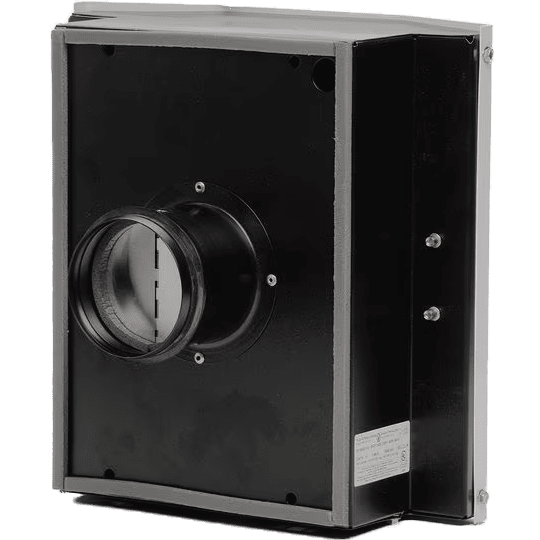

- Built-in Backdraft Damper: The built-in backdraft damper prevents the entry of insects and debris into the ductwork.
Sylvane’s Expert Take
When indoor space is an issue but ventilation for a commercial or residential space is needed, S&P’s SWF-100 and SWF-100X 4-inch Sidewall Fans are the durable and space-saving solution.
-
Outdoor-Rated Housing: The housing of this sidewall fan is built to withstand the elements and has outdoor-rated galvanized steel construction with a baked enamel coating.
-

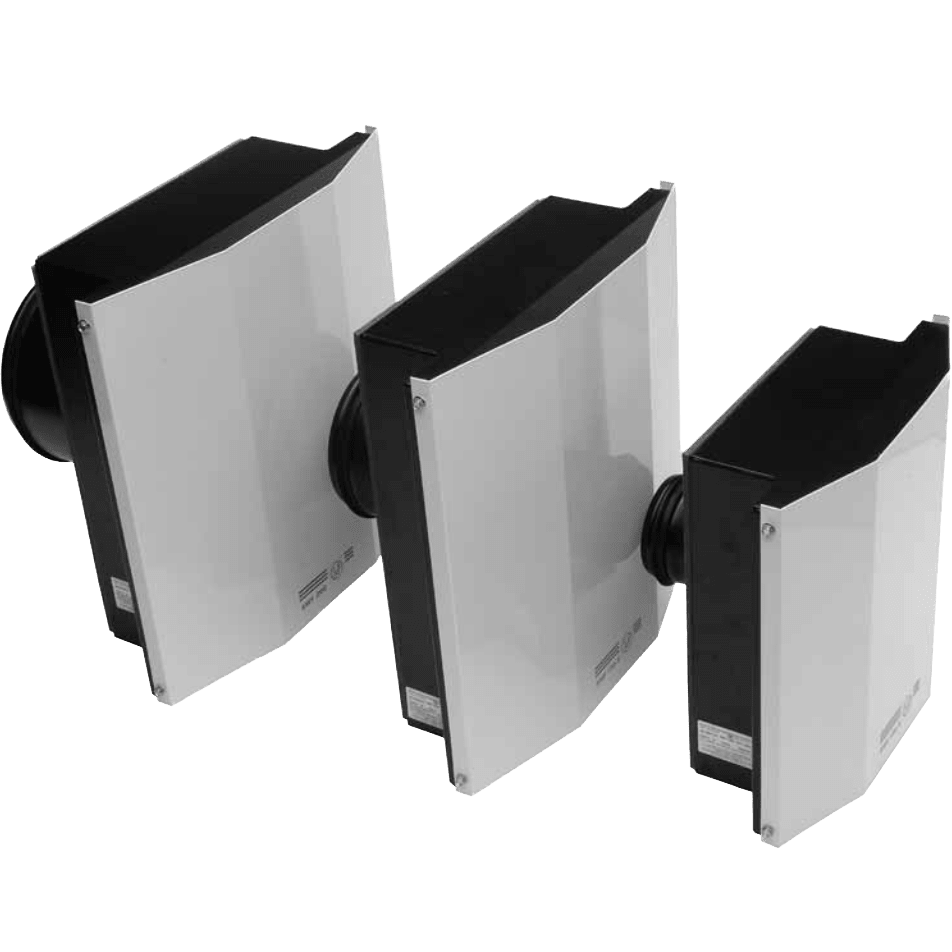

Other Sizes: Customers should also consider the SWF-150(X) and SWF-200 Sidewall Fan.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)6.6
-
TypeSidewall Exhaust Fan
-
ApplicationResidential, Ducting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, cUL, HVI, cULus
-
ColorWhite
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)119.0171.0
-
Amperage (Amps)0.520.8
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)57.471.5
-
Depth (in.)9.0
-
Depth (with front cover) (in.)9.0
-
Duct Diameter (in.)4.0
-
Height (in.)13.25
-
Height (with front cover) (in.)13.25
-
Weight (lbs.)11
-
Width (in.)13.25
-
Width (with front cover) (in.)13.25
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty5-Year Housing and Motor Warranty
