S&P SWF 150(X) 6-inch 235 Nominal CFM Sidewall Fan
S&P SWF 150(X) 6-inch 235 Nominal CFM Sidewall Fan - SWF-150 6-Inch 235 CFM is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P SWF-150 (or SWF-150X) Sidewall Fan
- Pre-wired Junction Box
- Installation and Operation Manual
Info & Guides
Info & Guides

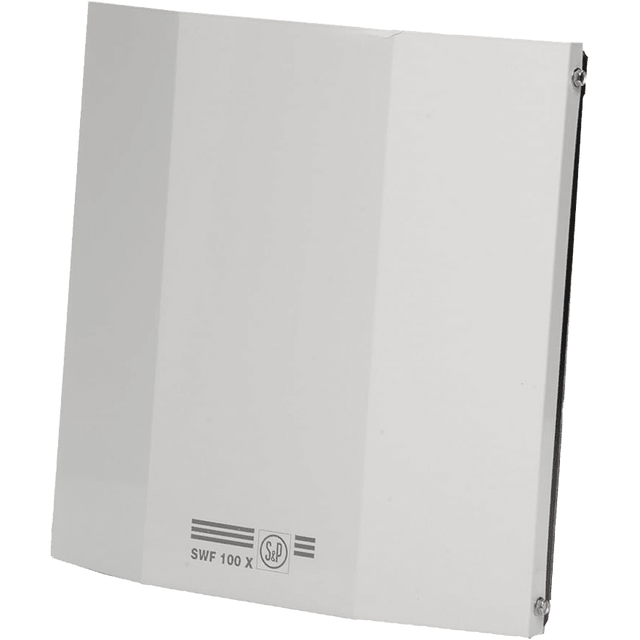

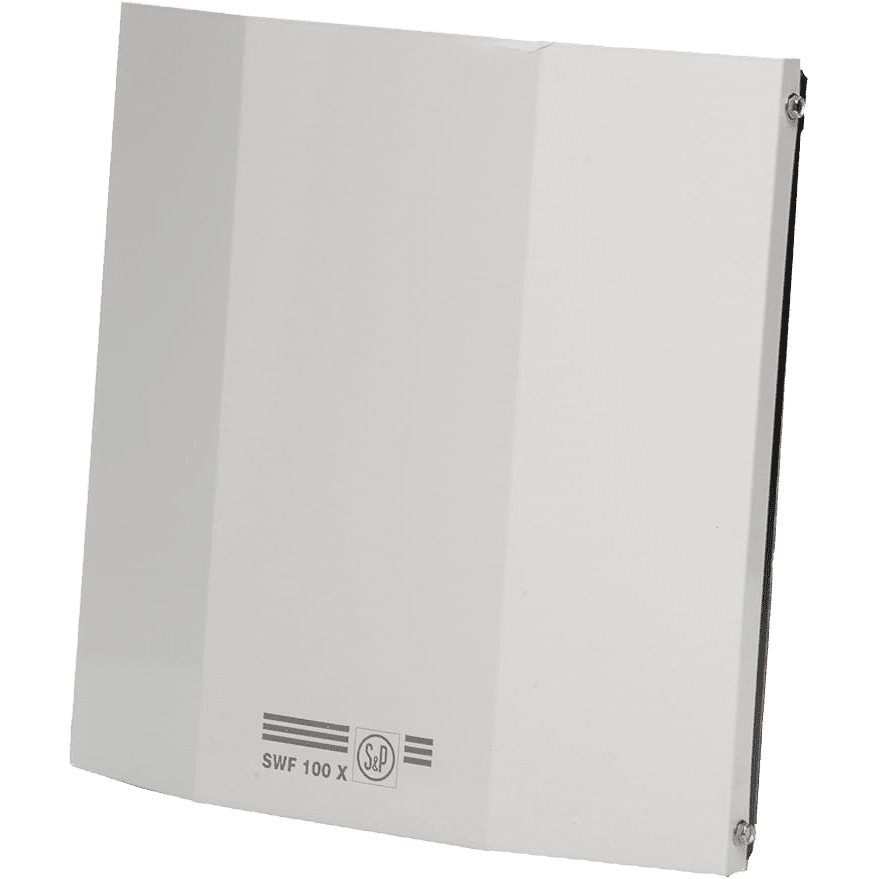

S&P SWF 150(X) 6-inch 235 Nominal CFM Sidewall Fan
Description
Description
The S&P SWF-150 and SWF-150X 6-inch Sidewall Fans provide exceptional ventilation performance in high static pressure applications. These fans are installed on exterior walls and should be used in cases where traditional inline fans are unsuitable due to space constraints.

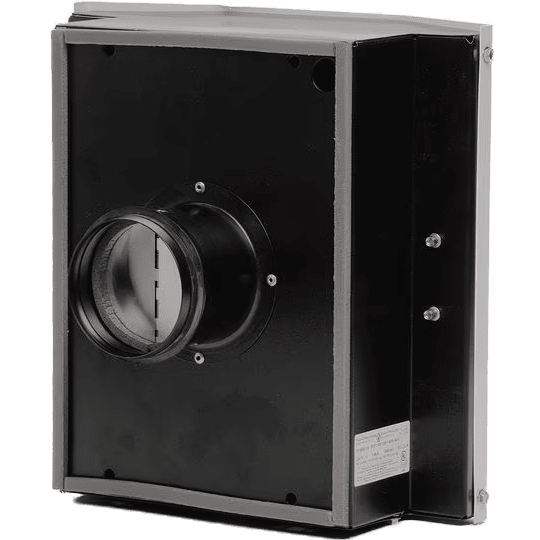

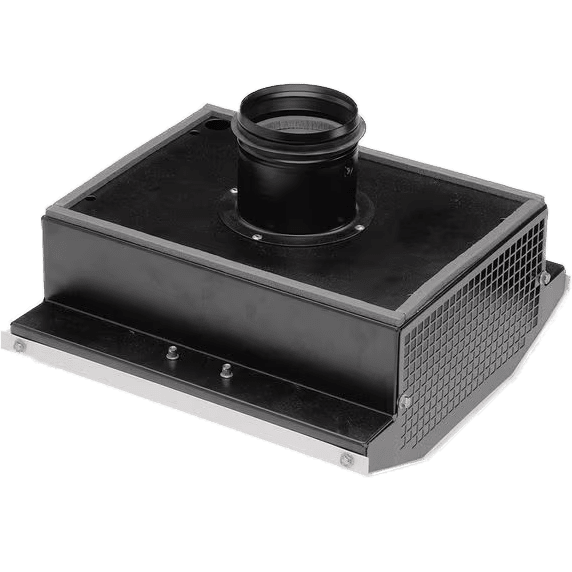

Manufactured with high-grade galvanized steel and a baked enamel coating, the SWF-150 and SWF-150X offer durability and resilience against the elements. They connect directly to 6-inch round ductwork, and because they are installed on an exterior wall, fan noise is kept out of living spaces.
Top Features
- High Static Pressure Capability: The SWF-150 and SWF-150X deliver an efficient airflow of up to 235 CFM (354 CFM for SWF-150X) in ducted systems with static pressure up to 1.5-inch w.g.
- Efficient Performance: The non-overloading backward-inclined wheel is designed for optimal efficiency at higher static pressures.
- Durable Construction: The exterior housing is outdoor rated and made from high-grade galvanized steel with a baked enamel coating for long-lasting performance.

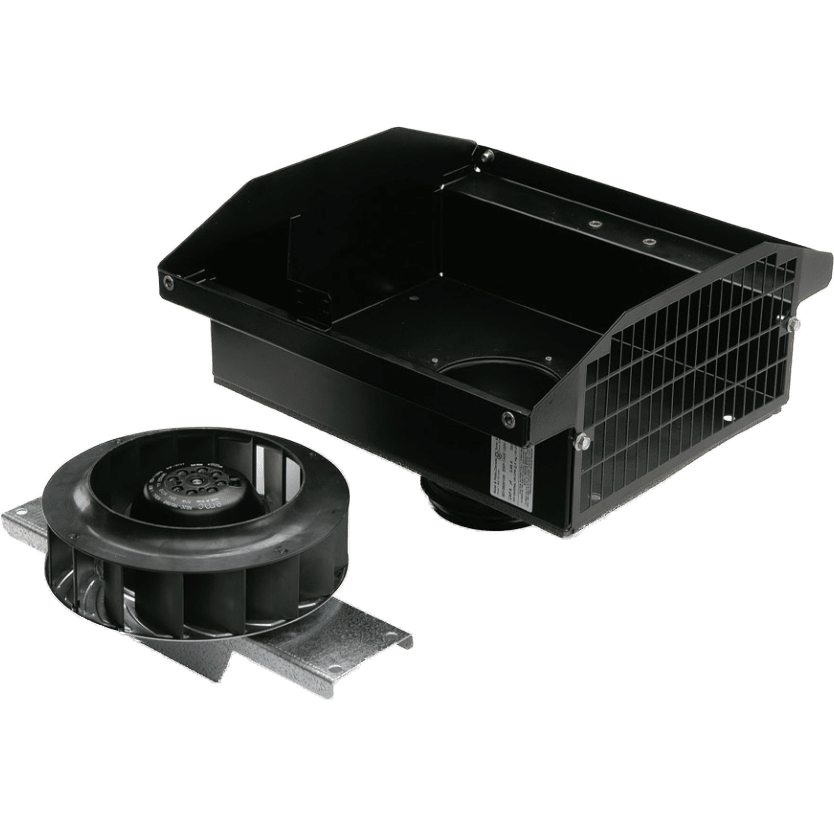

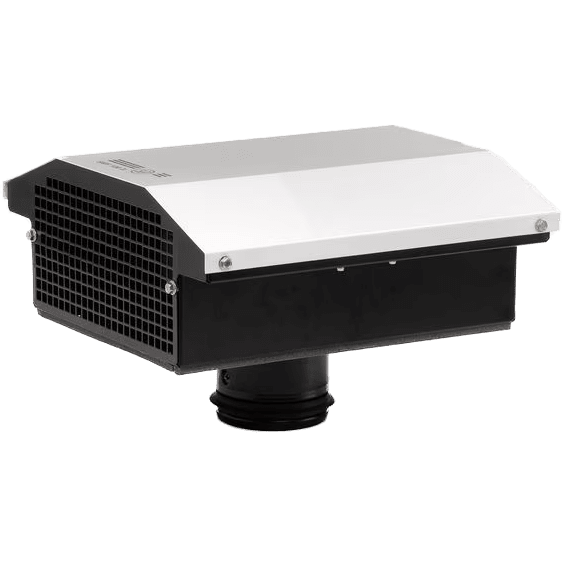

- Easy Maintenance: The removable top allows convenient access to the motor for cleaning and inspection.
Additional Features
- Powerful Motor: This model uses an enclosed permanent split capacitor external rotor motor, which allows it to operate in air with a high moisture, lint, and dust content.
- Speed Controllable: This model is compatible with voltage or frequency control regulators for adjustable speed settings.
- Thermal Overload Protection: It has an automatic reset type thermal overload protection for added safety.
- Large Grill Opening: A large grill opening facilitates the easy passing of lint and other materials, reducing clogging and maintenance needs.
- Built-in Backdraft Damper: The built-in backdraft damper prevents debris, insects, or anything else from entering the ductwork.
- Pre-wired Terminal Box: The pre-wired terminal box simplifies the electrical connection process, making installation straightforward.
Sylvane’s Expert Take
When indoor space is an issue but ventilation for a commercial or residential space is needed, S&P’s SWF-150 and SWF-150X 6-inch Sidewall Fans are the durable and space-saving solution.
- Durable Housing: The housing of this sidewall fan is built to withstand the elements and has outdoor-rated galvanized steel construction with a baked enamel coating.

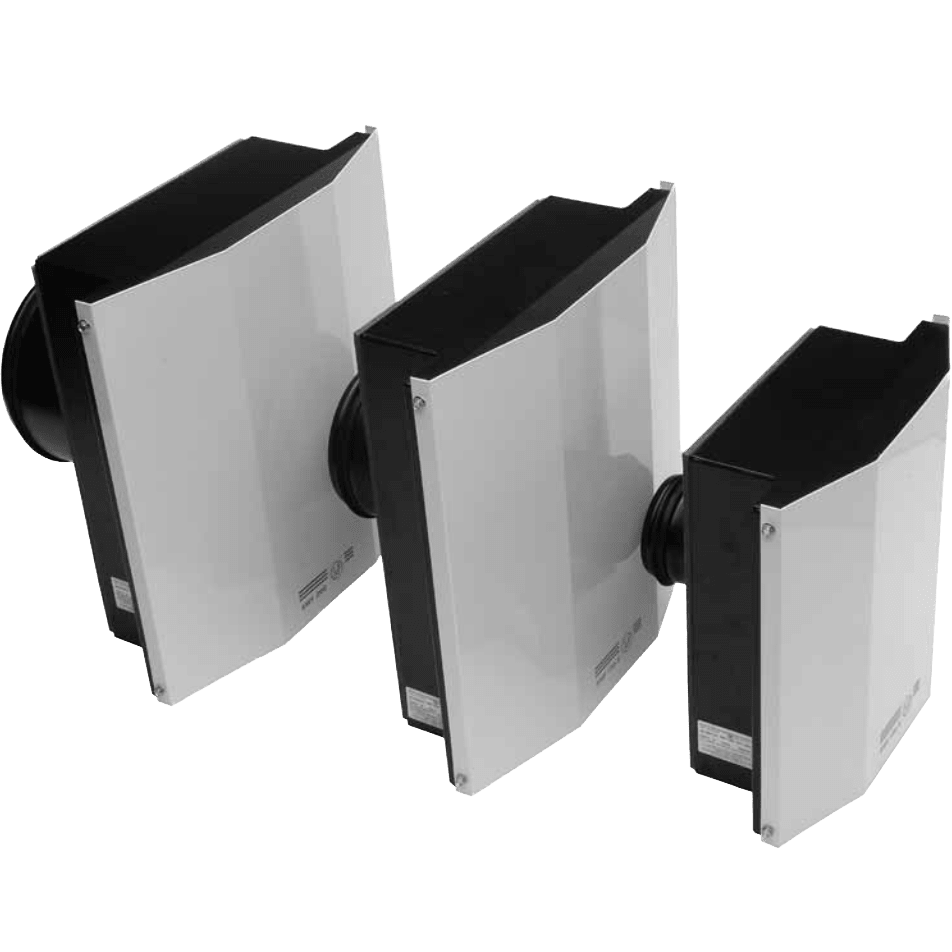

- Other Sizes: Customers should also consider the SWF-100(X) and SWF-200 Sidewall Fan.
Specifications
Specifications
-
Number of Speeds1
-
TypeSidewall Exhaust Fan
-
ApplicationResidential, Ducting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, cUL, HVI, cULus
-
ColorWhite
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)235.0354.0
-
Amperage (Amps)0.81
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)78.5111
-
Depth (in.)10.2510.0
-
Depth (with front cover) (in.)10.2510.0
-
Duct Diameter (in.)6.0
-
Height (in.)13.2516.06
-
Height (with front cover) (in.)13.2516.06
-
Weight (lbs.)1215
-
Width (in.)13.2515.56
-
Width (with front cover) (in.)13.2515.56
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty5-Year Housing and Motor Warranty
