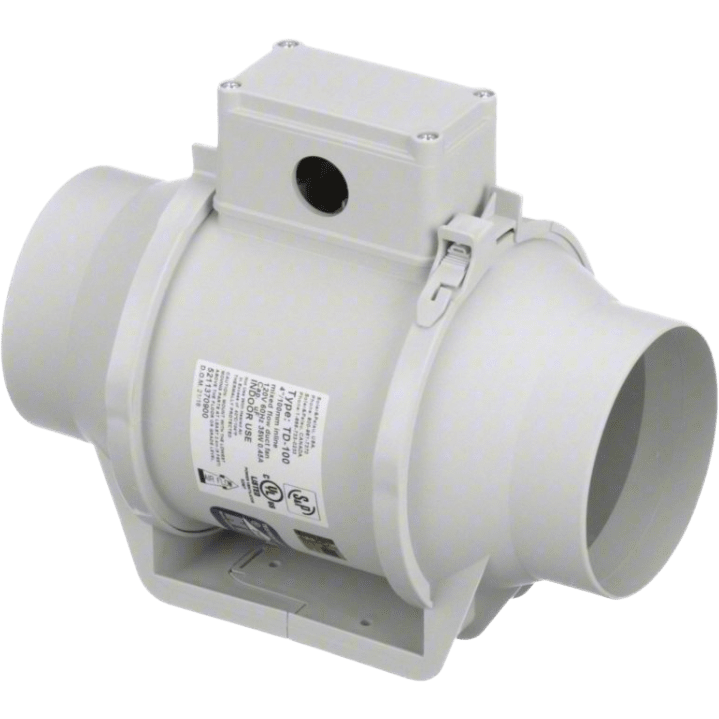

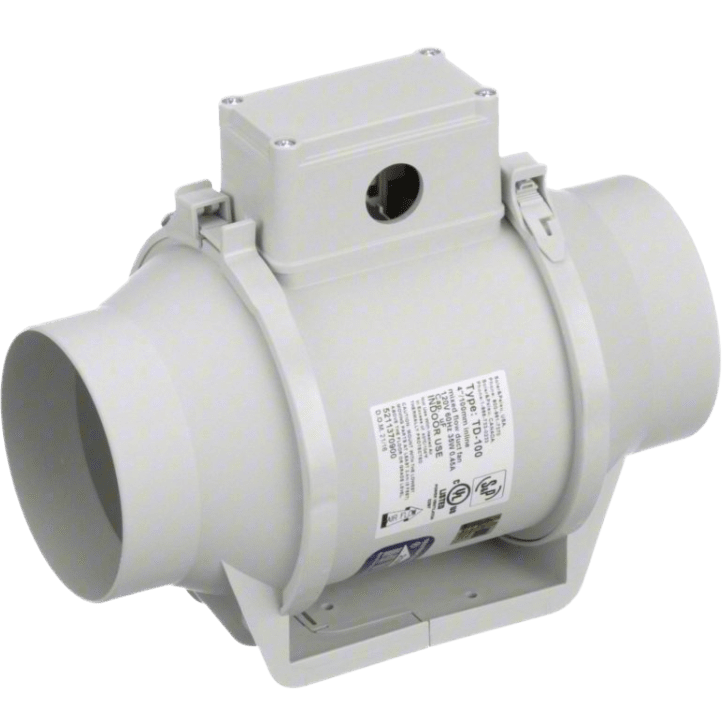

S&P TD-125 5-inch Mixed Flow Inline Duct Fan

Name: S&P TD-125 5-inch Mixed Flow Inline Duct Fan
Brand: S&P
Price: 168.0 USD
Availability: InStock

SKU: sp15735 | Model: TD-125

$168.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $24.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $250.

2-Year Replacement Extended Warranty - $29.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $250.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Fan Housing and Motor Warranty

What's In The Box?

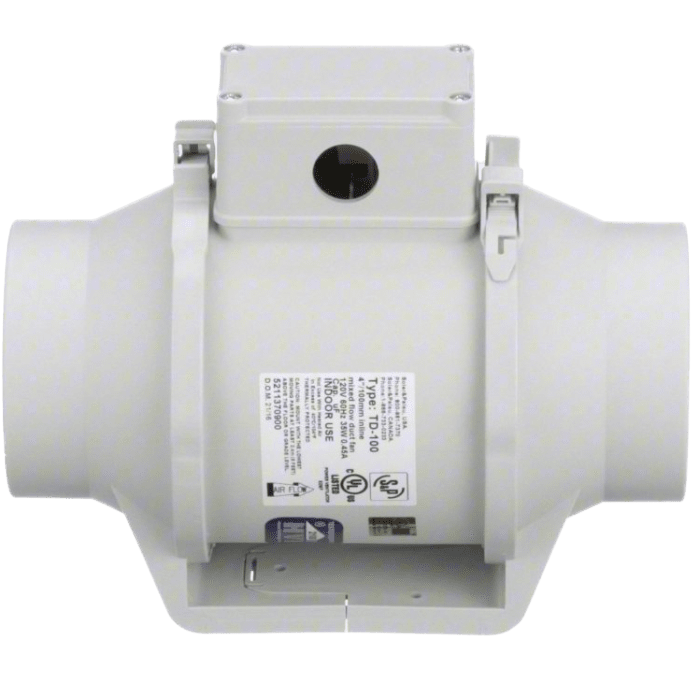

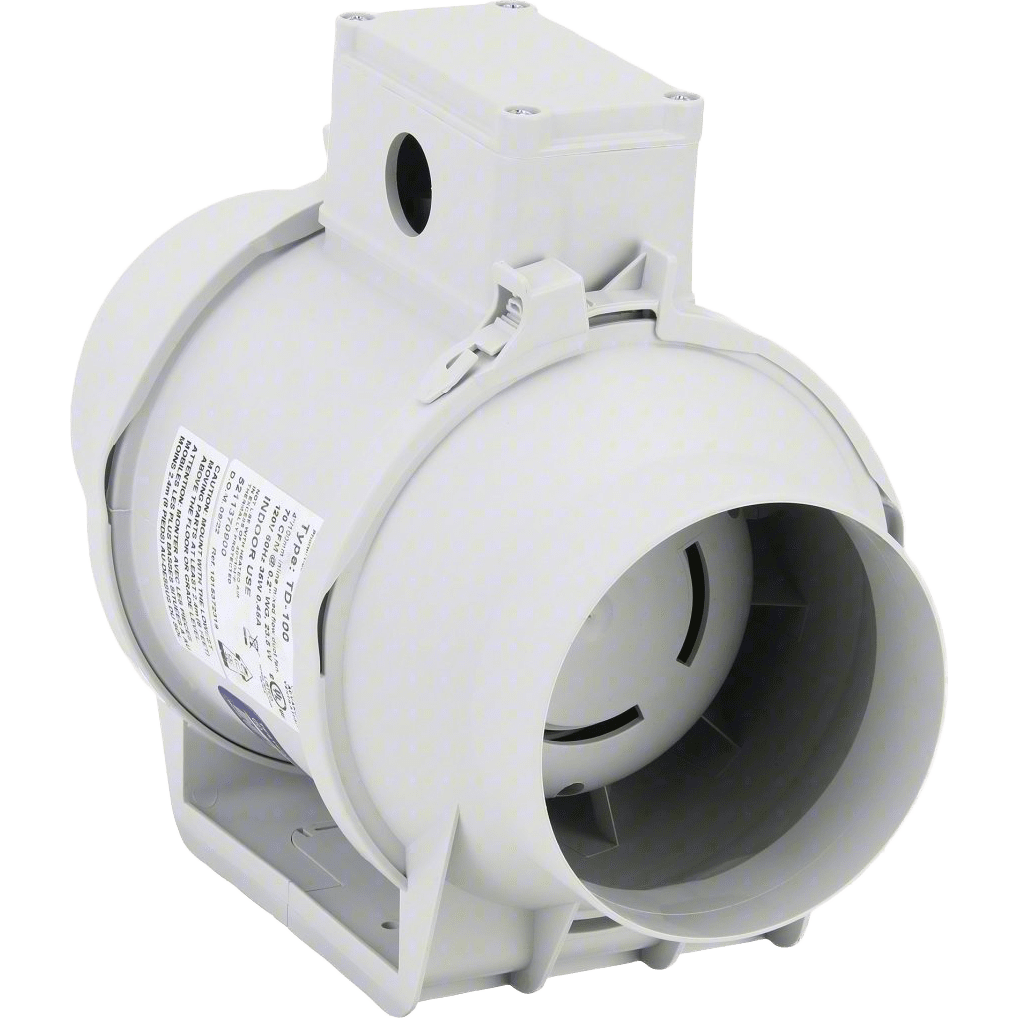

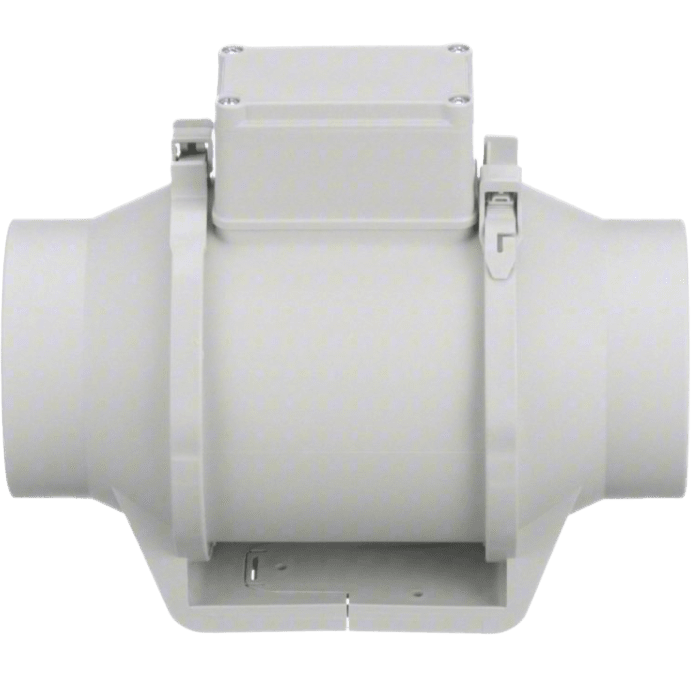

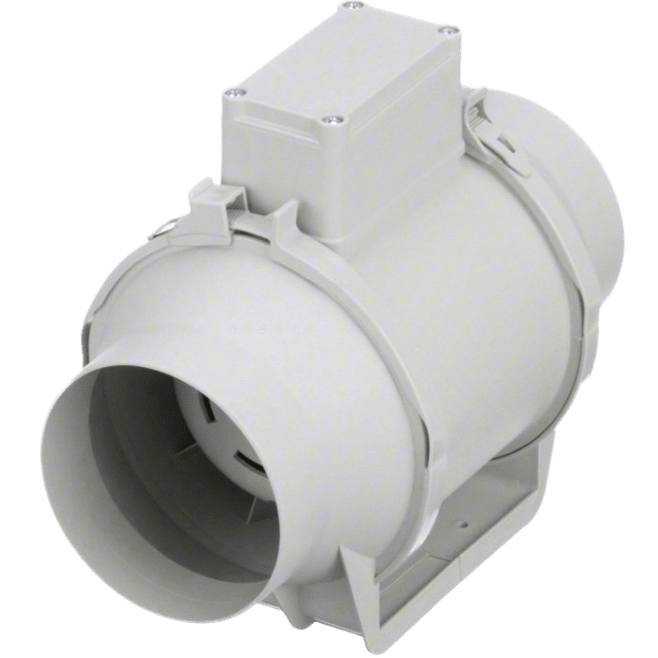

S&P TD-125 Inline Duct Fan
Mounting Brackets and Hardware
Installation and Operation Manual

Info & Guides

Description

The S&P TD-125 5-inch Mixed Flow Inline Duct Fan is engineered to offer powerful ventilation in tight spaces. It features a mixed-flow impeller and an innovative removable body design, making it perfect for small- to medium-sized applications that demand high airflow and static pressure capabilities.

Built with professional contractors and installers in mind, the TD-125 is designed to be integrated seamlessly into existing HVAC systems, offering flexibility and efficiency in any ventilation setup.

Top Features

Compact Design: The TD-125 model is lightweight and compact, making it great for installations in tight spaces like ceiling voids, cabinets, and other constrained environments.

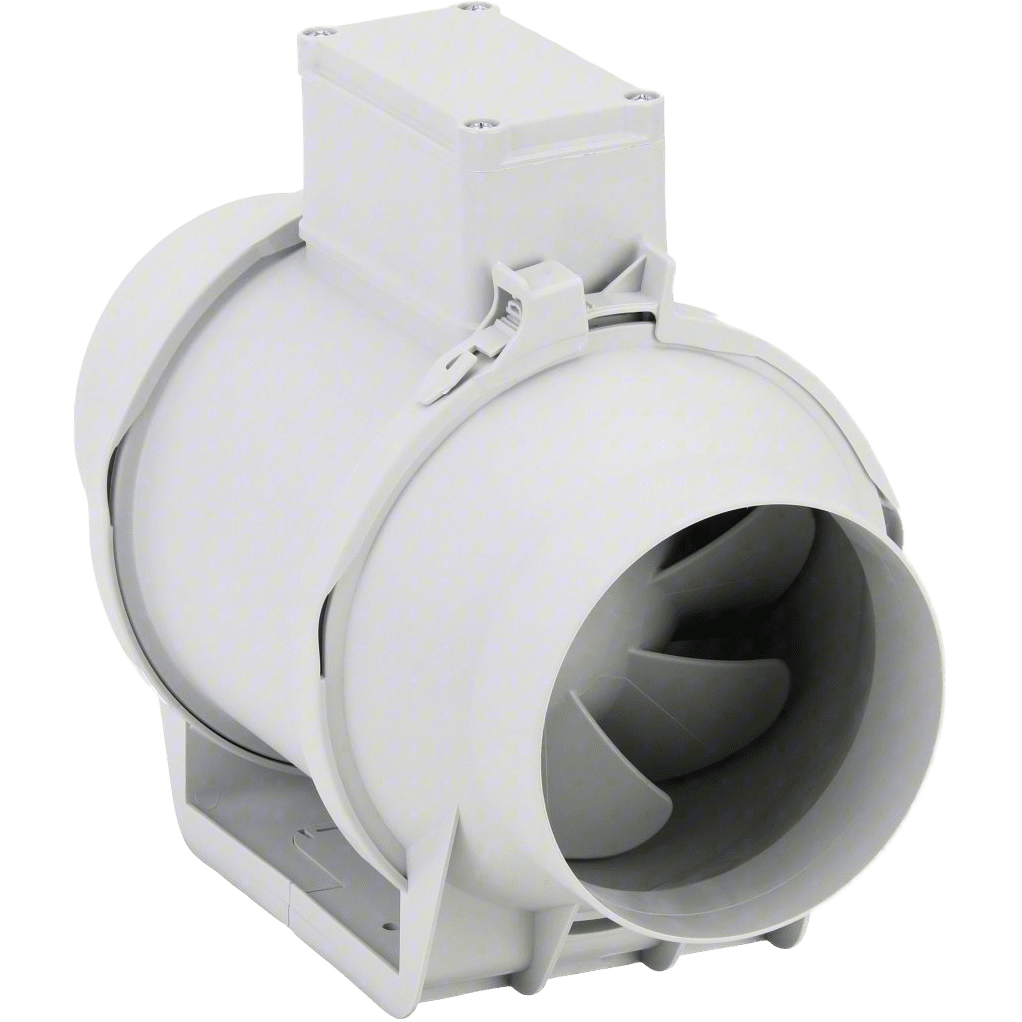

Mixed Flow Impeller: This model has a mixed flow impeller, delivering an exceptional airflow-to-pressure ratio. It can produce an airflow of up to 200 CFM and performs in static pressure conditions up to 0.5 inches w.g.
Removable Body: The motor-impeller assembly can be easily fitted or removed without disturbing the ducting, simplifying maintenance and reducing downtime.
Energy Efficiency: Models in the TD series are Energy Star qualified, reflecting their superior energy efficiency and cost-effectiveness in operation.
Safety and Durability: With IP44-rated protection and safety thermal overload protection, these fans are built to last, ensuring reliable operation under demanding conditions.

Additional Features

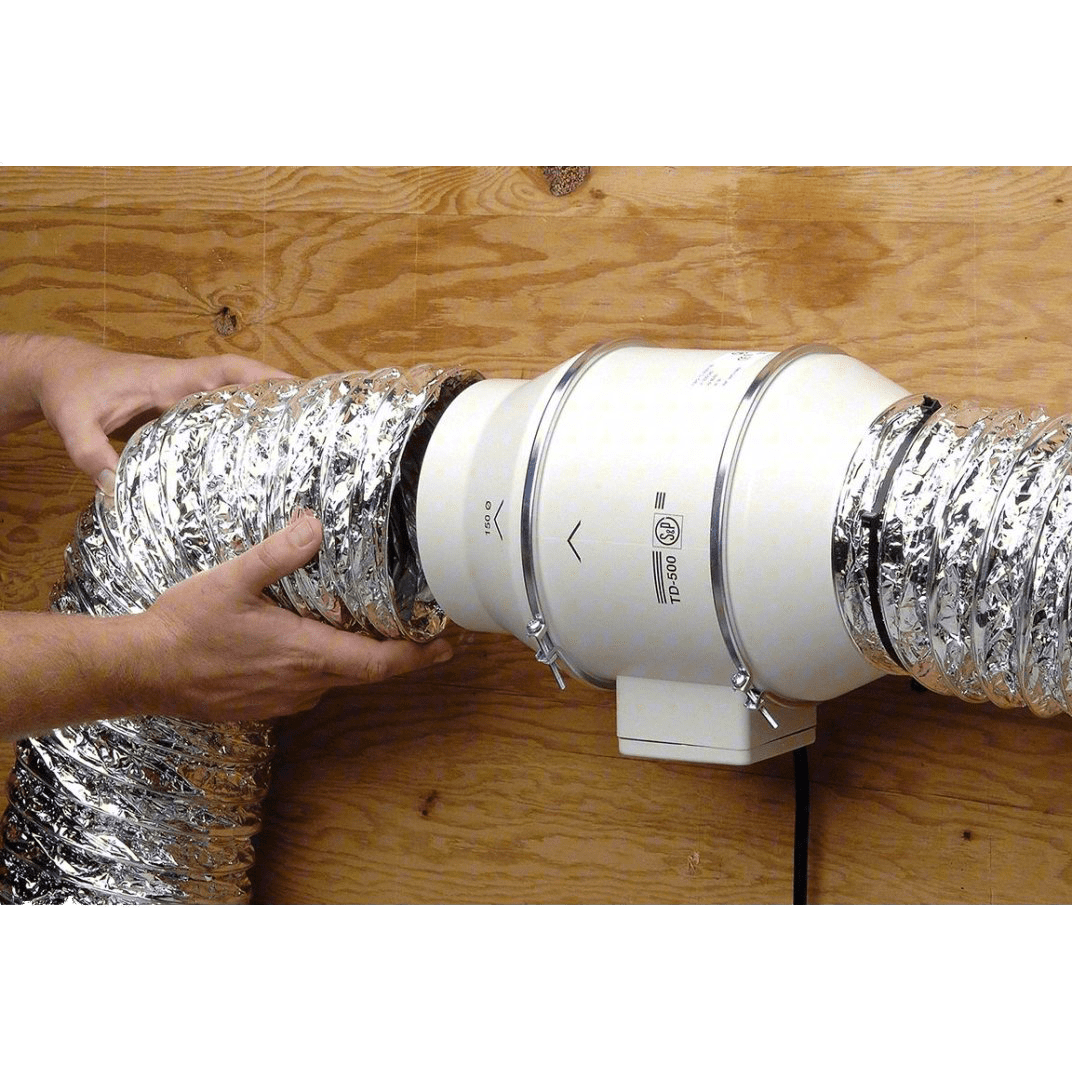

Installation Flexibility: The TD-125 can be installed in any orientation and fits 5-inch round ducts.

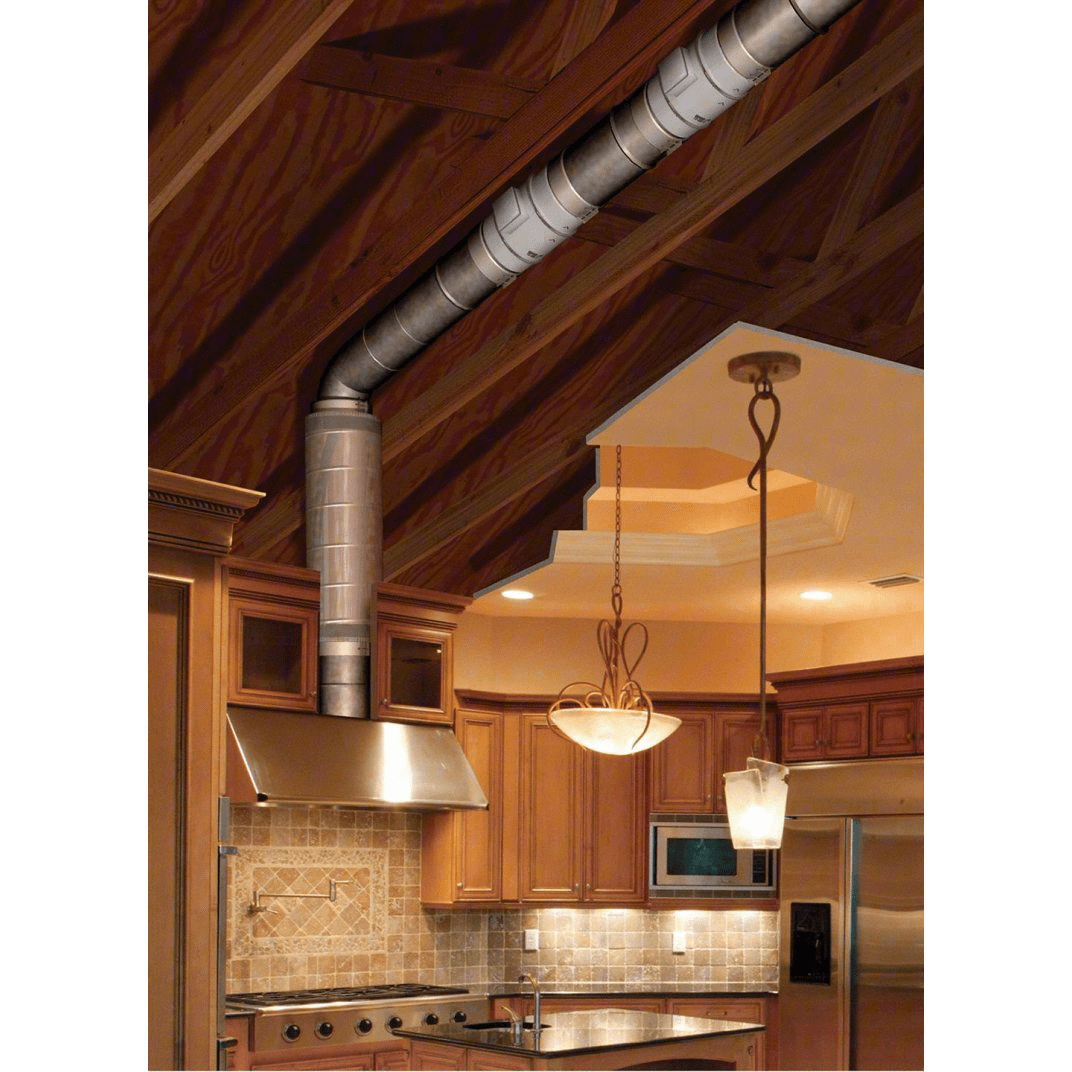

Various Applications: This fan series excels in residential and commercial kitchen, bathroom, and general ventilation applications.
Certified Performance: These models are AMCA-certified for air performance and have UL and cUL listings, ensuring compliance with industry standards.
Quiet Operation: Designed to minimize in-duct and radiated noise, these fans are ideal for applications where noise reduction is critical.
Easy Electrical Connection: These units operate on a standard 120 VAC 60Hz power supply and feature straightforward wiring requirements.

Sylvane’s Expert Take

Users of the S&P TD-125 Inline Duct Fan will love this compact model’s powerful ventilation airflow and superior design for tight spaces. It offers airflows of up to 200 CFM.

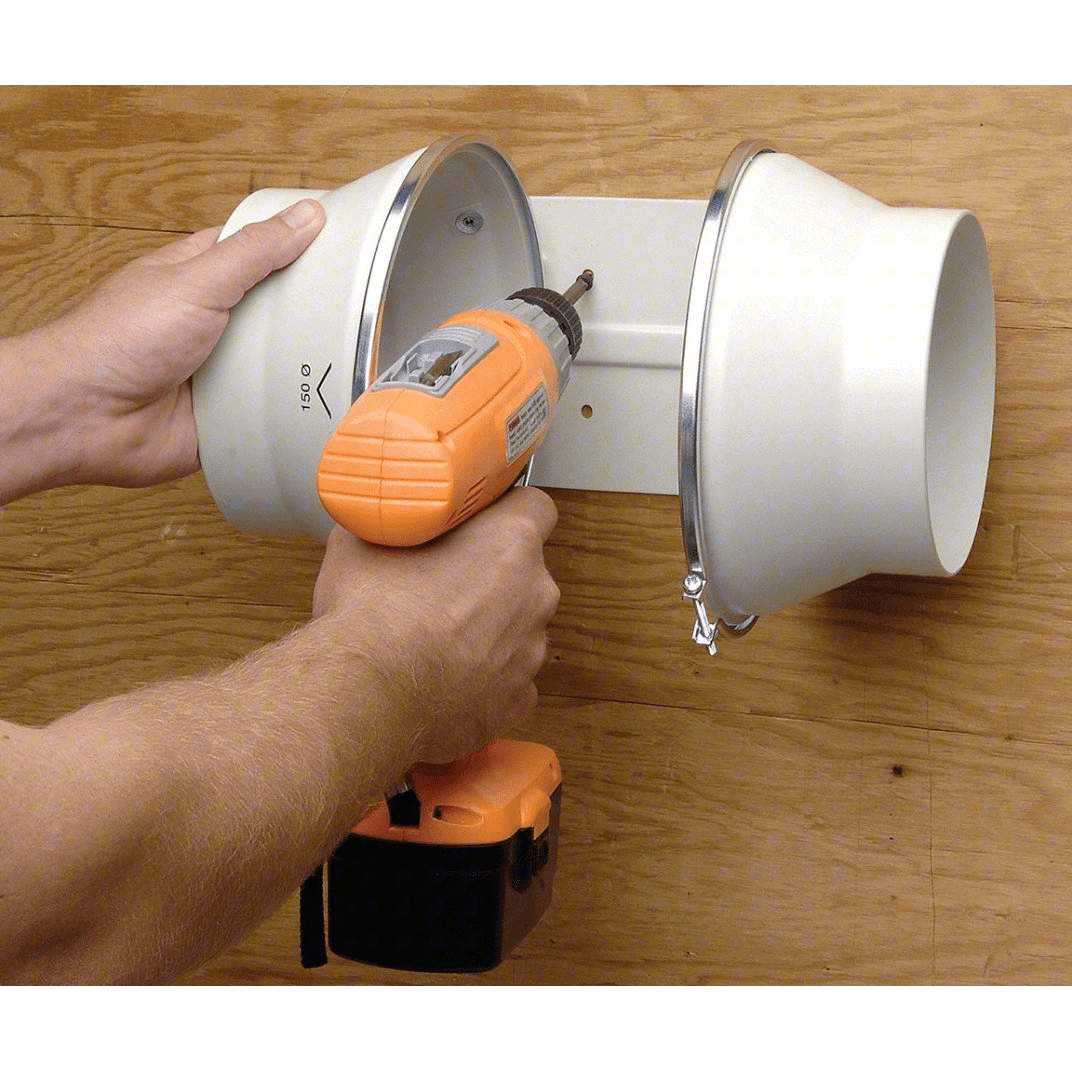

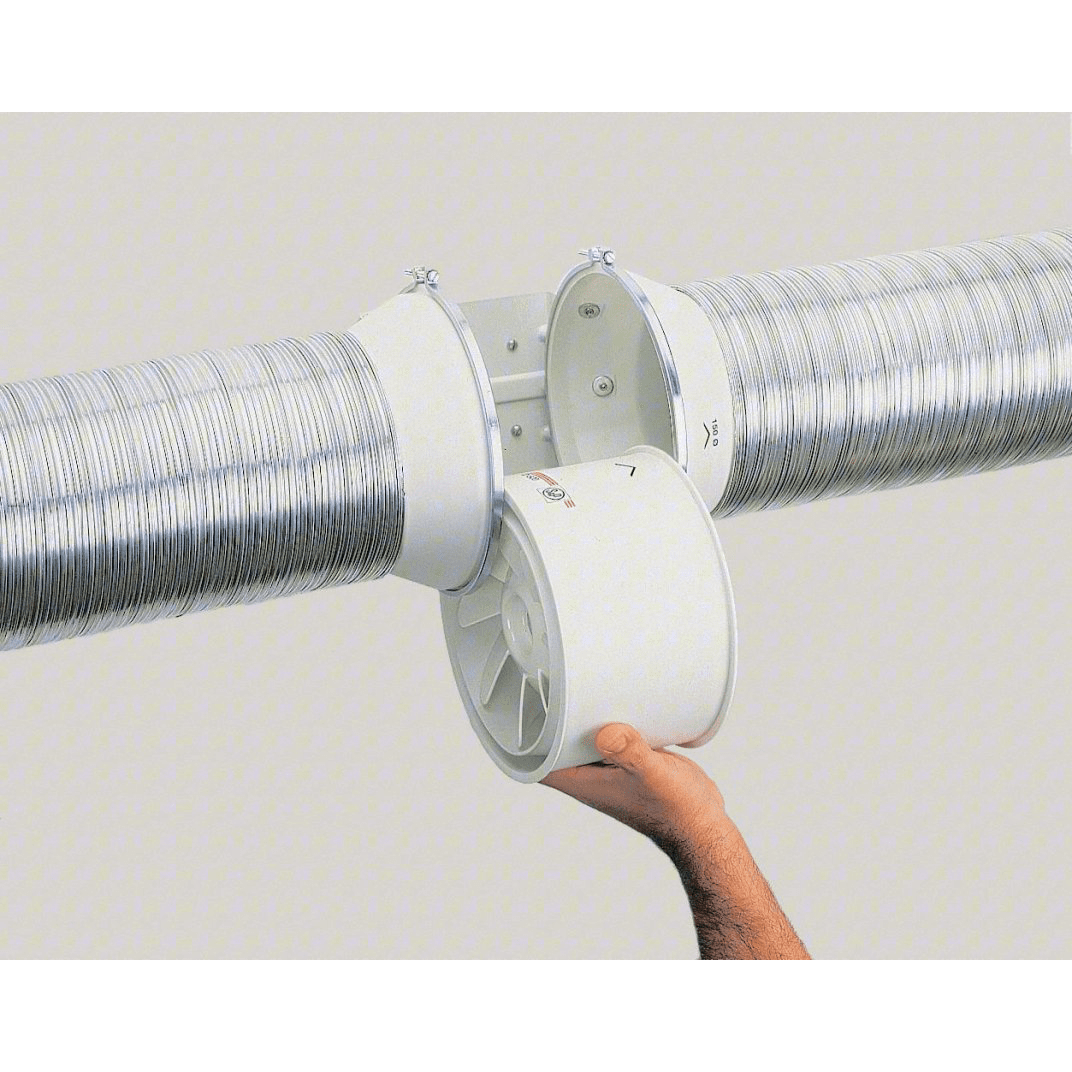

Removable Design: The unique support bracket design will allow the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting, making installation and maintenance easy.
Silent Operation: This model maximizes airflow performance while maintaining minimal noise levels.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting, Residential, Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

UL, cUL, HVI, cULus
Color

White
Controls

Electronic
Maximum Air Temperature (degrees F)

104
Maximum Cubic Feet per Minute (CFM) (CFM)

197.0
