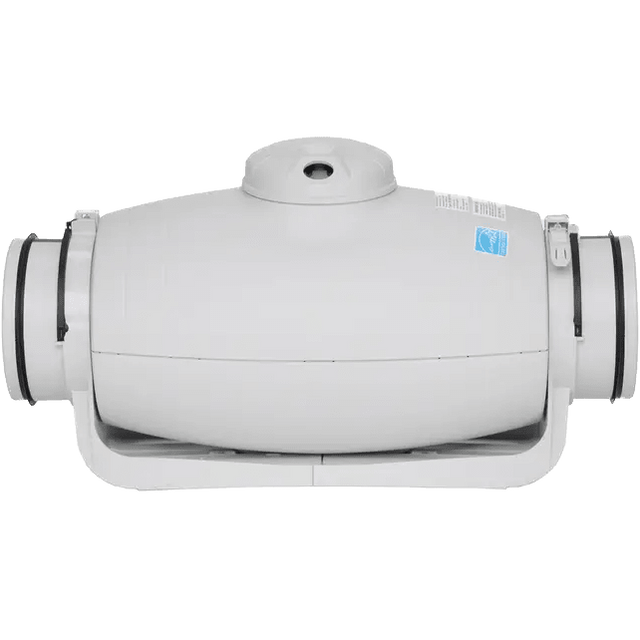

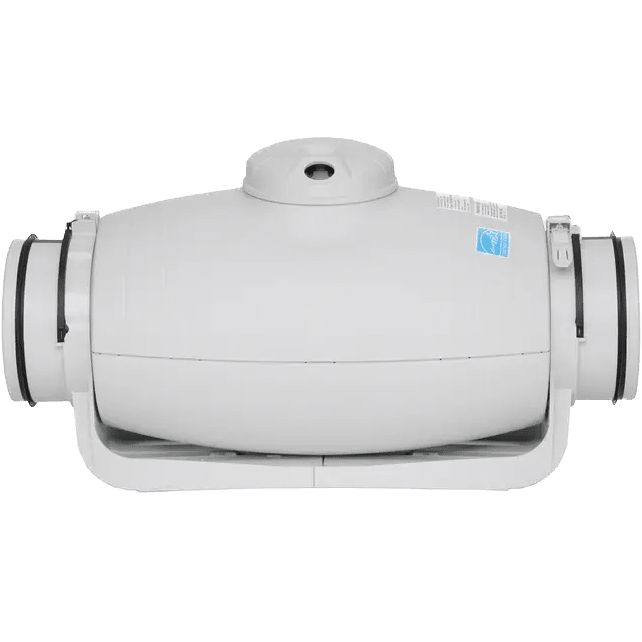

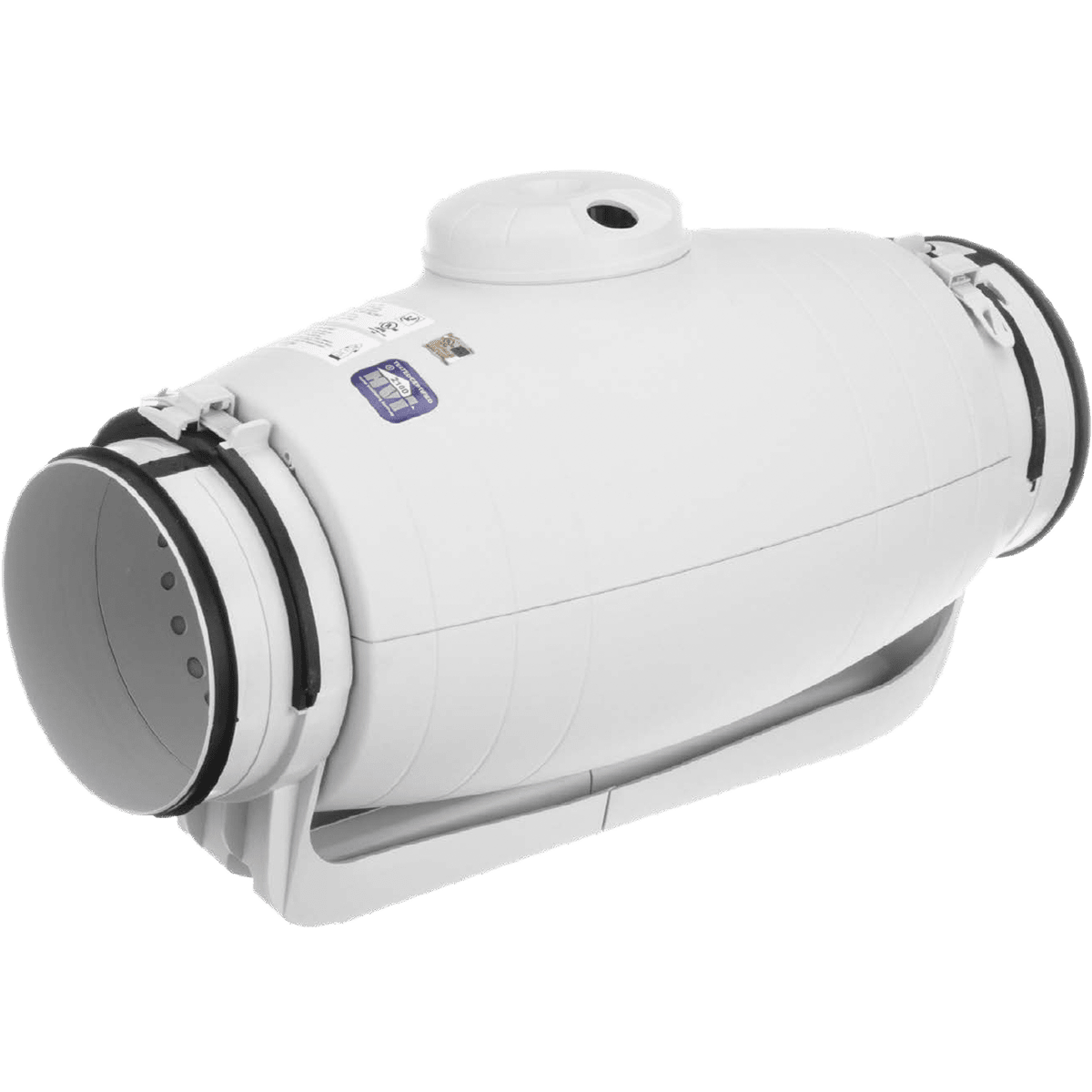

S&P TD-150S 6-inch TD-Silent Mixed Flow Inline Duct Fan
S&P TD-150S 6-inch TD-Silent Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TD-150S In-Line Mixed Flow Duct Fan
- Integral Mounting Bracket
- Installation and Operation Manual
Info & Guides
Info & Guides
S&P TD-150S 6-inch TD-Silent Mixed Flow Inline Duct Fan
Description
Description
The S&P TD-150S in-line duct fan is a standout solution for contractors seeking high-performance ventilation in tight spaces. This series of in-line duct fans is known for its quiet operation and efficient air movement capabilities. The TD-150S provides a perfect blend of power, efficiency, and low-profile design, making it suitable for residential HVAC systems, office ventilation, and light commercial projects.
Top Features

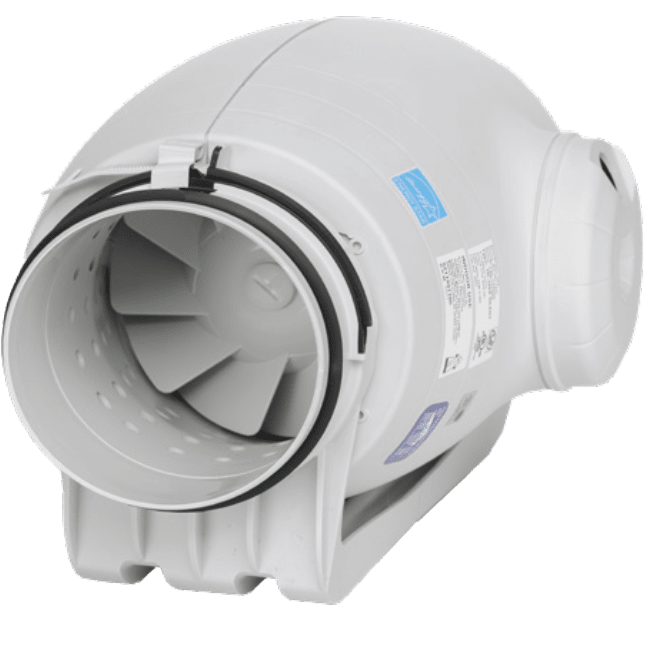

- Mixed-Flow Impeller Technology: This technology provides an optimal airflow-to-pressure performance ratio, ensuring efficient ventilation across various static pressure conditions (270 CFM at 0.2 inches w.g.)
- Direct Connection Motor: The single-speed motor ensures straightforward installation and reliable operation. It is compatible with standard 120V electrical systems for hassle-free integration into existing setups.
- Ultra-Quiet Operation: The TD-150S was designed with sound-absorbent insulation that minimizes noise levels.
- Compact Design: This fan's slim construction makes it ideal for installations where space is at a premium, such as above suspended ceilings or within wall cavities.

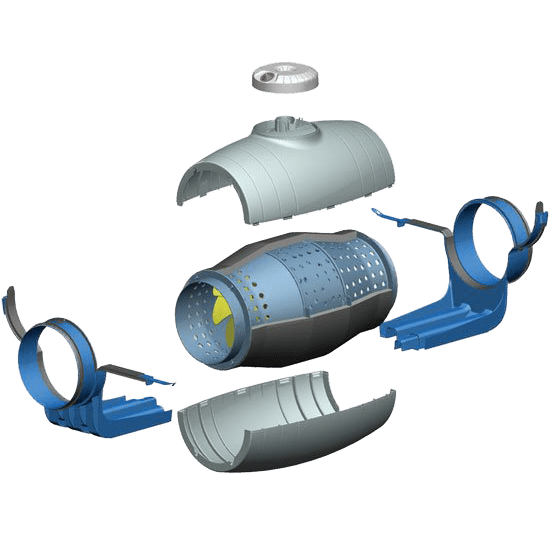

- Robust Construction: It is manufactured from reinforced plastic materials and equipped with rubber gaskets to ensure airtight seals and vibration absorption, enhancing durability and performance.
Additional Features
- Efficiency: This model has Energy Star-qualified efficiency, helping to reduce operational costs and environmental impact.
- Rotatable Terminal Box: Facilitates easy electrical connections and maintenance, allowing for flexible installation orientations.
- Static Pressure Capability: It handles static pressures up to 1.0 inch w.g., ensuring consistent performance even in demanding ventilation scenarios.
- Integral Mounting Bracket: The robust mounting bracket simplifies installation and allows for secure and stable positioning in any orientation.
- Versatile Applications: This model is suitable for many settings, including bathrooms, kitchens, office spaces, and light commercial environments.
- Air-Tight Sealing: Rubber gaskets on the inlet and outlet provide a virtually air-tight seal, minimizing leakage and maximizing efficiency.
Sylvane’s Expert Take
The mixed-flow in-line duct fan provides a powerful ventilating airflow for bathrooms, kitchens, office spaces, and light commercial environments. End users will appreciate the ultra-quiet airflow and the mounting bracket installation style.
- Flexible Orientation: This model can be installed in any orientation or position.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting, Residential, Commercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, cUL, HVI, cULus
-
ColorWhite
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)333.0
-
Amperage (Amps)0.53
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)60.9
-
Depth (in.)19.06
-
Depth (with front cover) (in.)19.06
-
Duct Diameter (in.)6.0
-
Height (in.)10.81
-
Height (with front cover) (in.)10.81
-
Weight (lbs.)13.2
-
Width (in.)8.68
-
Width (with front cover) (in.)8.68
-
Additional FeaturesEnergy Star, Thermal Cutoff Protection
-
Manufacturer's Warranty5-Year Fan Housing and Motor Warranty
