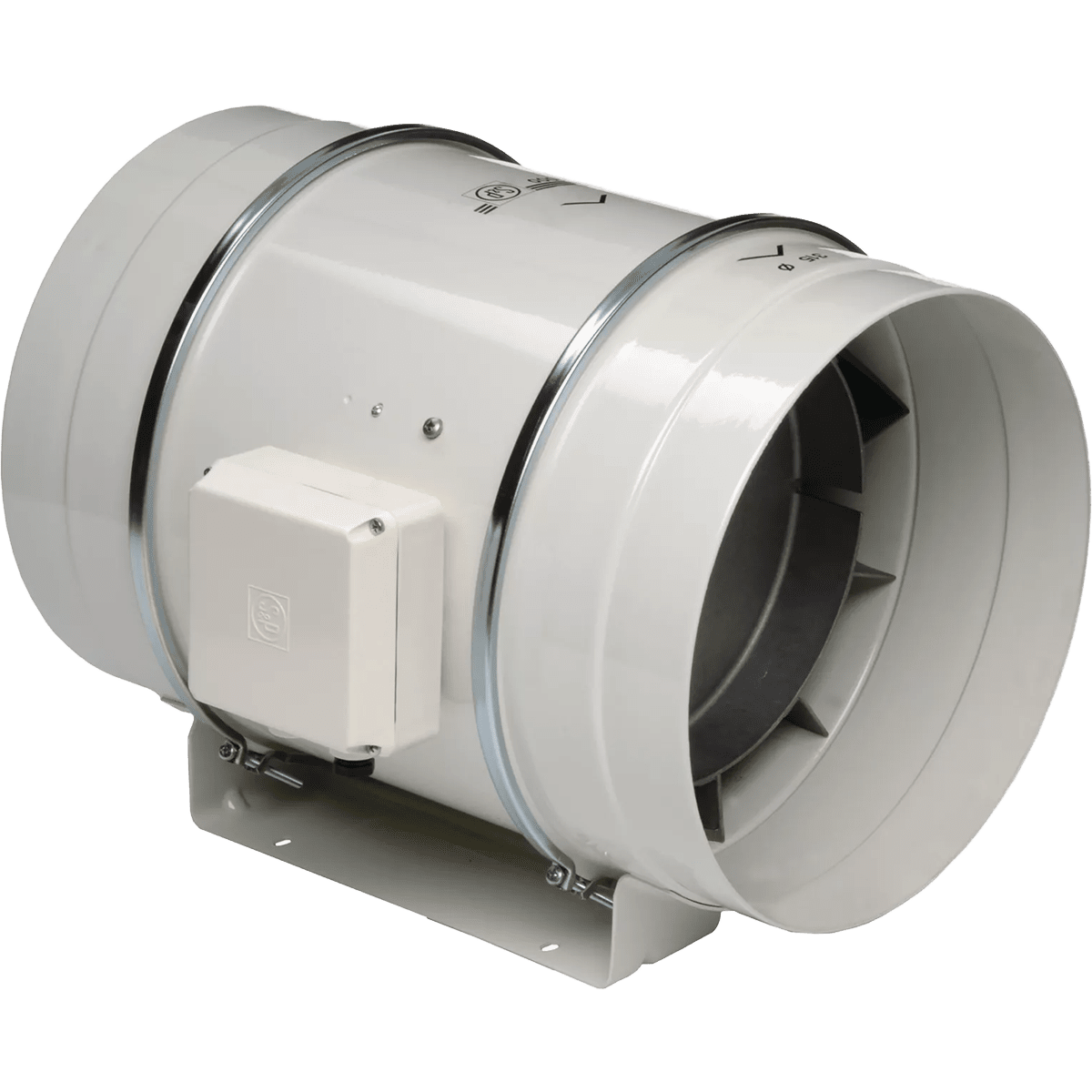

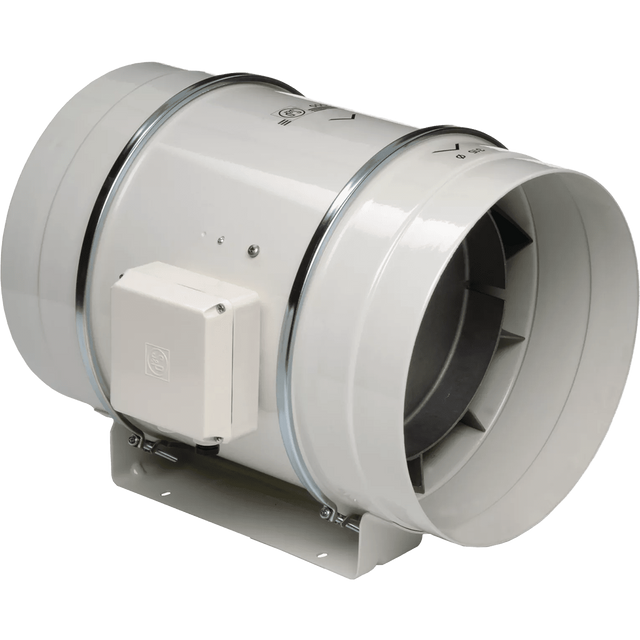

S&P TD-355 14-inch Mixed Flow Inline Duct Fan
S&P TD-355 14-inch Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TD-355 Inline Duct Fan
- Mounting Brackets and Hardware
- Installation and Operation Manual
Info & Guides
Info & Guides
S&P TD-355 14-inch Mixed Flow Inline Duct Fan
Description
Description
The S&P TD-355 14-inch Mixed Flow Inline Duct Fan is excellent when used for medium-sized applications requiring high airflow and static pressure. It has a mixed-flow impeller and an innovative removable body design.
The TD-355 integrates into existing HVAC systems, offering professional contractors and installers flexibility and efficiency during ventilation setup.
Top Features
- Energy Efficiency: This model has superior energy efficiency and cost-effectiveness and carries an Energy Star qualification.
- Compact Design: This model is a lightweight and compact solution, perfect for installations in tight spaces like ceiling voids, cabinets, and other constrained environments.

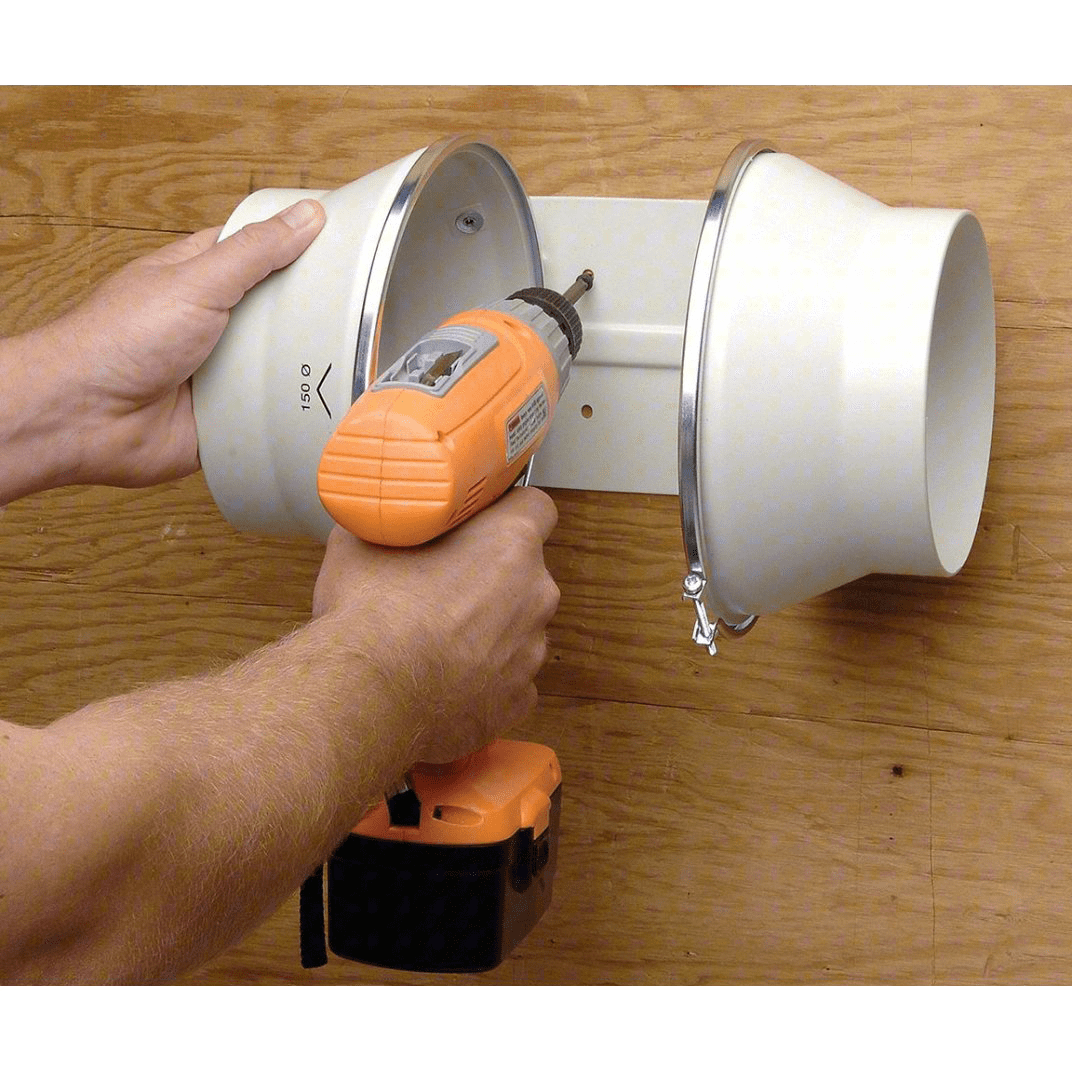

- Removable Body: The TD-355 motor-impeller assembly can be fitted or removed without disturbing the ducting, simplifying maintenance and reducing downtime.

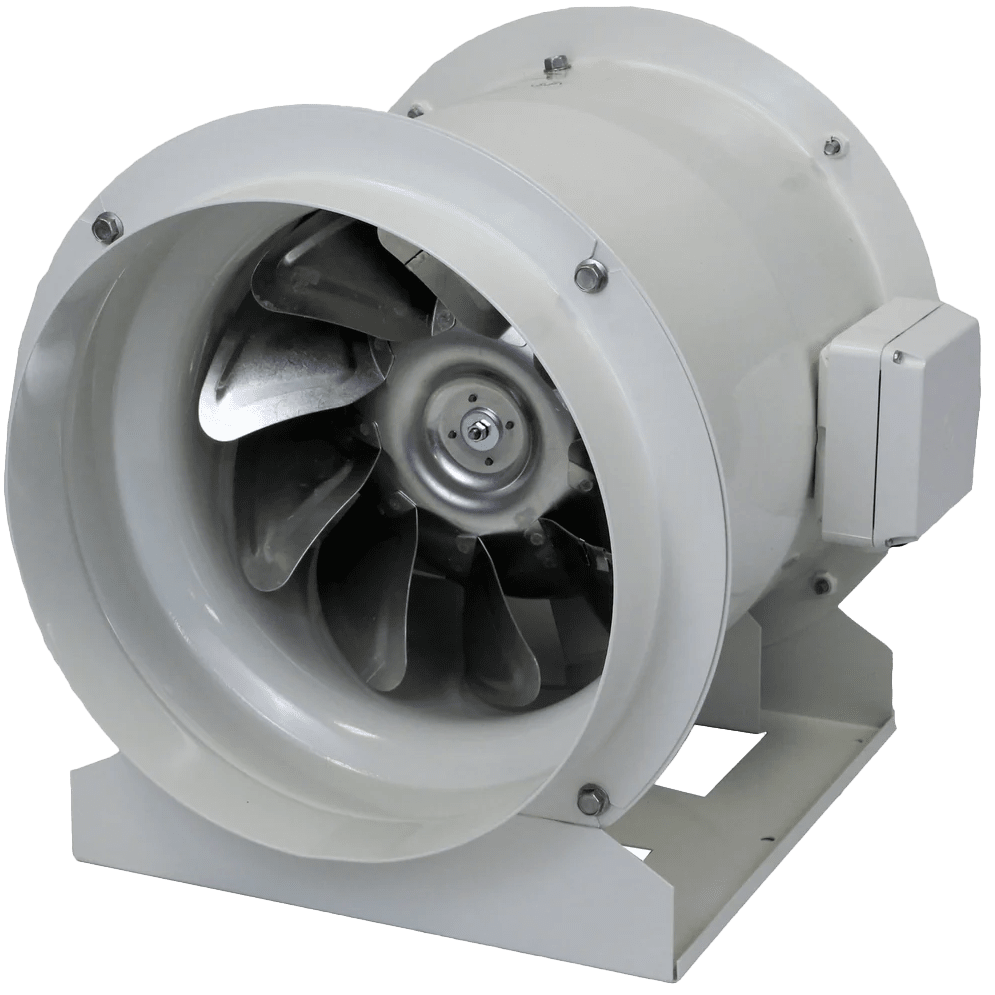

- Mixed Flow Impeller: This model features a mixed flow impeller to deliver an exceptional airflow-to-pressure ratio. It produces an airflow of up to 2089 CFM and performs in static pressure conditions up to 1.0 inches w.g.
- Safety and Durability: This fan is built to last with IP44-rated protection, safety thermal overload protection, and housed in a tough epoxy-polyester coated metal casing.
Additional Features

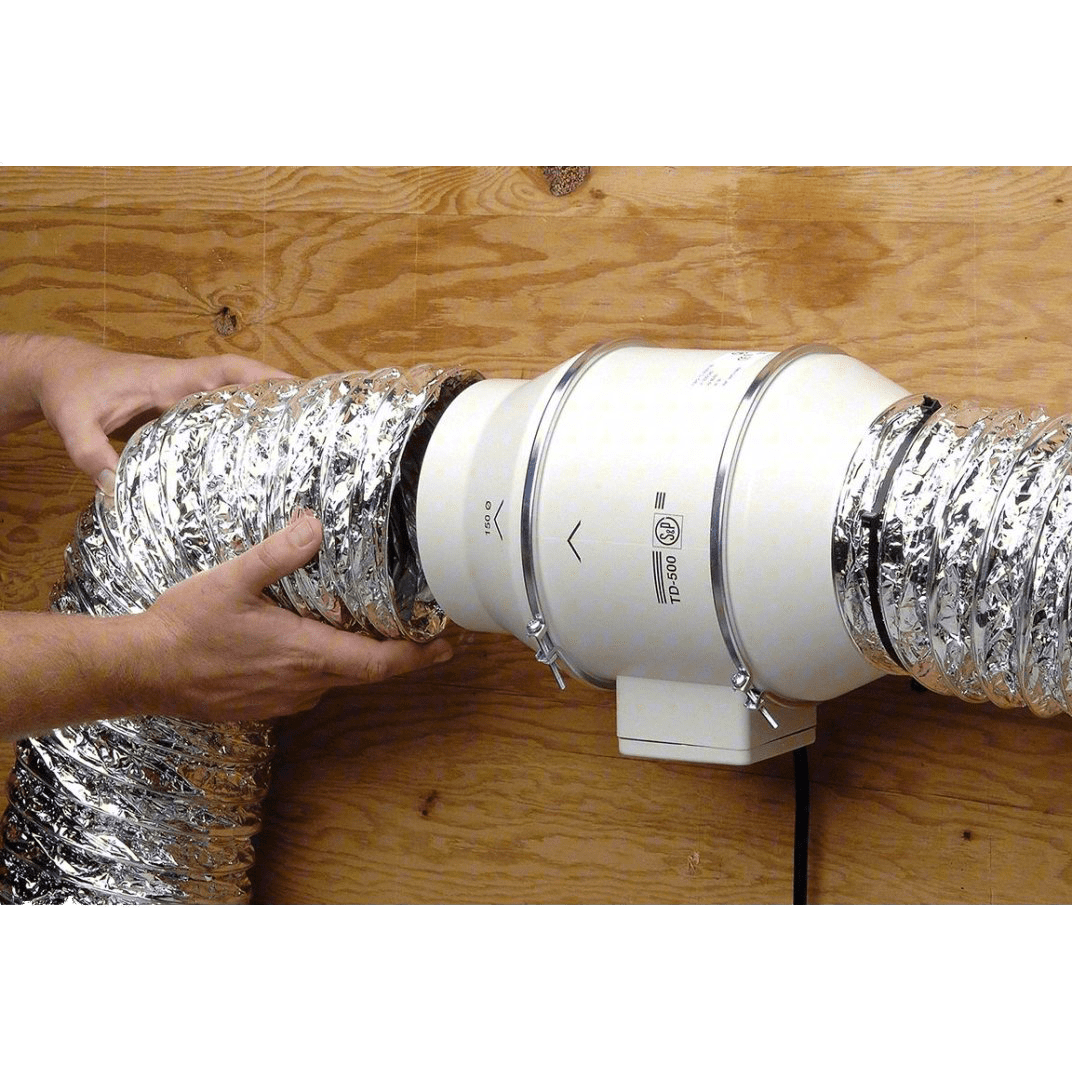

- Installation Flexibility: The TD-355 can be installed in any orientation and fits 14-inch round ducts.
- Certified Performance: These models are AMCA-certified for air performance and have UL and cUL listings, ensuring compliance with industry standards.

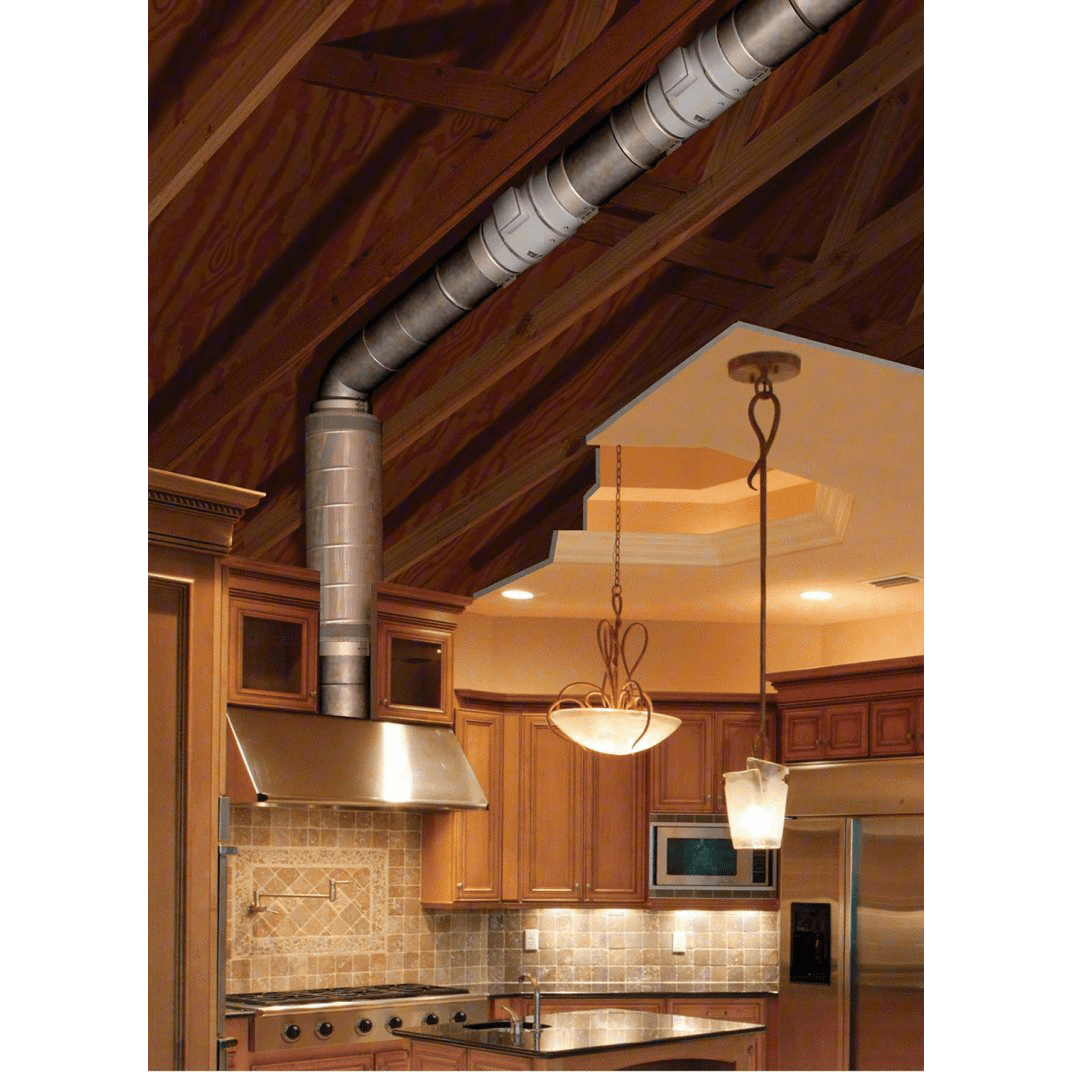

- Various Applications: This fan series excels in residential and commercial kitchen, bathroom, and general ventilation applications.
- Quiet Operation: Designed to minimize in-duct and radiated noise, these fans are ideal for applications where noise reduction is critical.
- Easy Electrical Connection: These units operate on a standard 120 VAC 60 Hz power supply and feature straightforward wiring requirements.
Sylvane’s Expert Take
Industry professionals and installers will appreciate the S&P TD-355 Inline Duct Fan’s powerful ventilation airflow and superior design for tight spaces. It provides airflows of up to 2089 CFM.

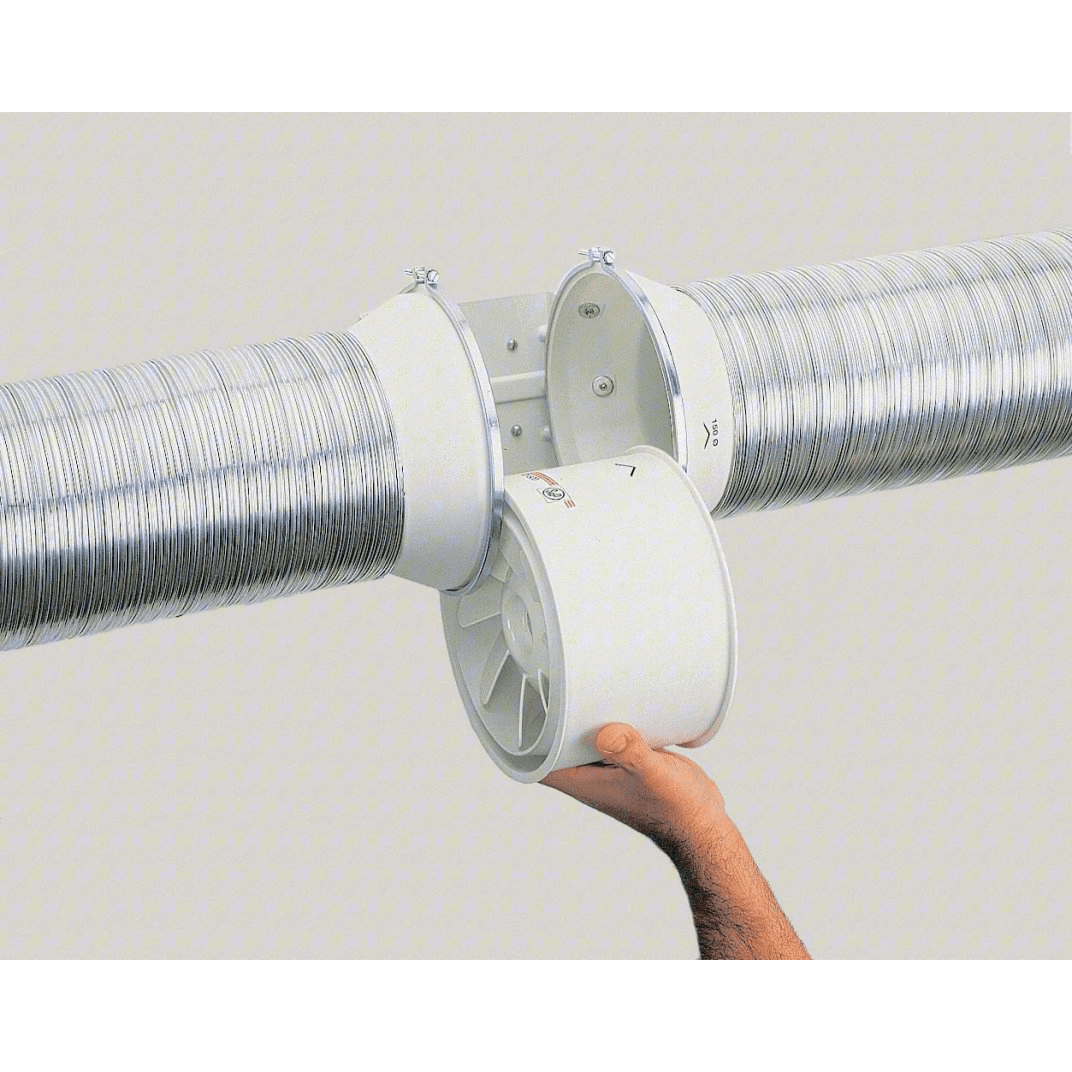

- Removable Design: This fan’s support bracket design allows the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting, making installation and maintenance easy.
- Silent Operation: This model maximizes airflow performance while maintaining minimal noise levels.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting, Residential, Commercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, cUL, HVI, cULus
-
ColorWhite
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)2089.0
-
Amperage (Amps)3.9
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)522
-
Depth (in.)18.69
-
Depth (with front cover) (in.)18.69
-
Duct Diameter (in.)14.0
-
Height (in.)16.75
-
Height (with front cover) (in.)16.75
-
Weight (lbs.)68
-
Width (in.)17.75
-
Width (with front cover) (in.)17.75
-
Additional FeaturesEnergy Star, Thermal Cutoff Protection
-
Manufacturer's Warranty5-Year Fan Housing and Motor Warranty
