S&P TR200 200 CFM Energy Recovery Ventilator

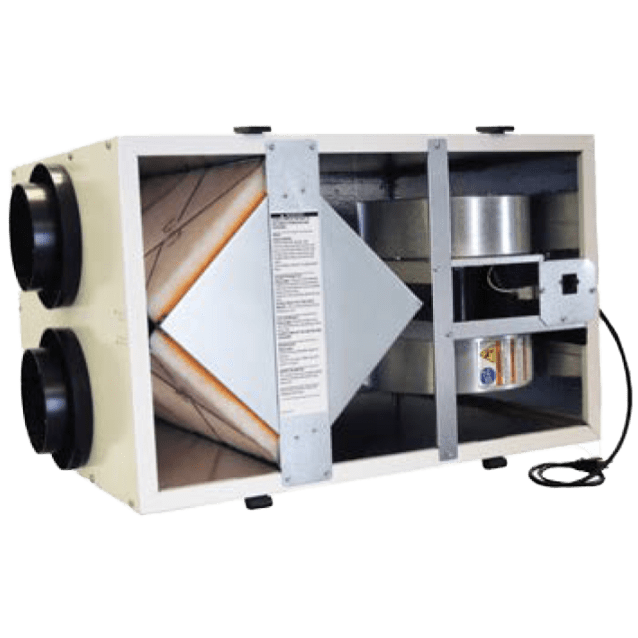

Name: S&P TR200 200 CFM Energy Recovery Ventilator
Brand: S&P
Price: 1742.0 USD
Availability: InStock

SKU: sp15638 | Model: TR200

$1,742.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Core Warranty, 5-Year Unit Warranty

What's In The Box?

S&P TR200 100-200 CFM Energy Recovery Ventilator
DoubleDuct Collars
MERV 8 filter (2) - 10 1/2 x 21 3/4 x 1 inches
Installation Manual

Info & Guides

Spec Sheet

The S&P TR200 Series 100-200 CFM Energy Recovery Ventilators effectively improve the indoor air quality of residential spaces by replacing stale room air with fresh outdoor air.

This model is rated to provide up to 78 percent energy recovery at 172 CFM and 0.5 inches w.g. (73 percent in winter and 61 percent in summer temperatures). It features flexible installation orientation options to fit any space and a highly effective “air-to-air” energy exchange core that eliminates condensation and frost build-up in many applications.

Flexible Installation Options

The TR200 was designed with mounting options for any orientation in both heated or unheated spaces. It features an integral mounting flange and hanging bracket system. This model's case door has removable slide-off hinges and 6-inch ports. It includes plastic double collars for 6-in. or 8-in. direct duct connection. This model can also swap its outside and room airstreams with its exhaust and supply airstreams for easy airflow configurations.

High-Efficiency Core

The energy recovery core of this ERV crossflows the indoor and outdoor airflows with S&P’s “air-to-air” technology, which provides the highest energy recovery possible while keeping airflows separated. The energy recovery efficiency of these models ranges from 83 percent at 95 CFM to 76 percent at 206 CFM.

Additional Features

Low Power Consumption: Draws less than 1 watt of power in standby mode.
Advanced Detection: Cross-core differential pressure ports allow this ERV to detect pressure changes automatically.
Control Requirements: Control this model using the onboard 24 VAC transformer relay package.
Powerful Motor: The TR200 features a 0.1 horsepower double-shaft motor.
Insulated Case: This ERV is fully insulated to increase efficiency and effectiveness.
Anti-Condensation and Frost: The engineered resin recovery core with unique moisture transfer capability eliminates moisture and frost build-up. These models also require no condensate pan or draining options.
Certified Performance and Safety: This model is HVI Certified and cULus Listed and meets the requirements of the Buy American Act for American-made products and parts.

Sylvane’s Expert Take

The S&P TR200 effectively and efficiently provides fresh air exchanges and provides a comfortable environment for indoor residential spaces.

Dual Filtration: Cleanable MERV 8 filters made of spun polyester media filter both exhaust and fresh air streams so homeowners get only the cleanest air entering their space.
Sizing Options: For smaller and larger spaces or spaces with different energy requirements, check out the TRe90, TR130, TRe200, TRe300, or TRLPe110.

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

95.0
Mounting Type

Suspended, Wall
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Residential
Certifications

HVI, cULus
Color

White
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

200.0
California Residents

⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
