S&P TRCeN500RT-230 431 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor

SKU: sp16274  |  Model: TRCeN500RTV-230-1P
$7,463.00
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Warranty, 10-Year Core Warranty

What's In The Box?
  • S&P TRCeN500RT-230 1 PH Rooftop Commercial ERV (Horizontal or Vertical)
  • MERV 8 Filters (2)
  • Installation Kit
  • Owner’s Manual

Info & Guides

The S&P TRCeN500RT-230 ERV is a high-performance rooftop ventilator designed for commercial applications.

It uses a premium energy recovery core to optimize indoor air quality by exchanging stale indoor air with fresh outdoor air while transferring heat and humidity between air streams. This process minimizes energy loss, making it a sustainable choice for facilities that want to maintain comfort and air quality.

The unit features electronically commutated motors for precise, energy-efficient airflow control with a high CFM (cubic feet per minute) output. The rugged, galvanized steel cabinet and weather-resistant design ensure durability in outdoor installations. It is available in either horizontal or vertical configurations.

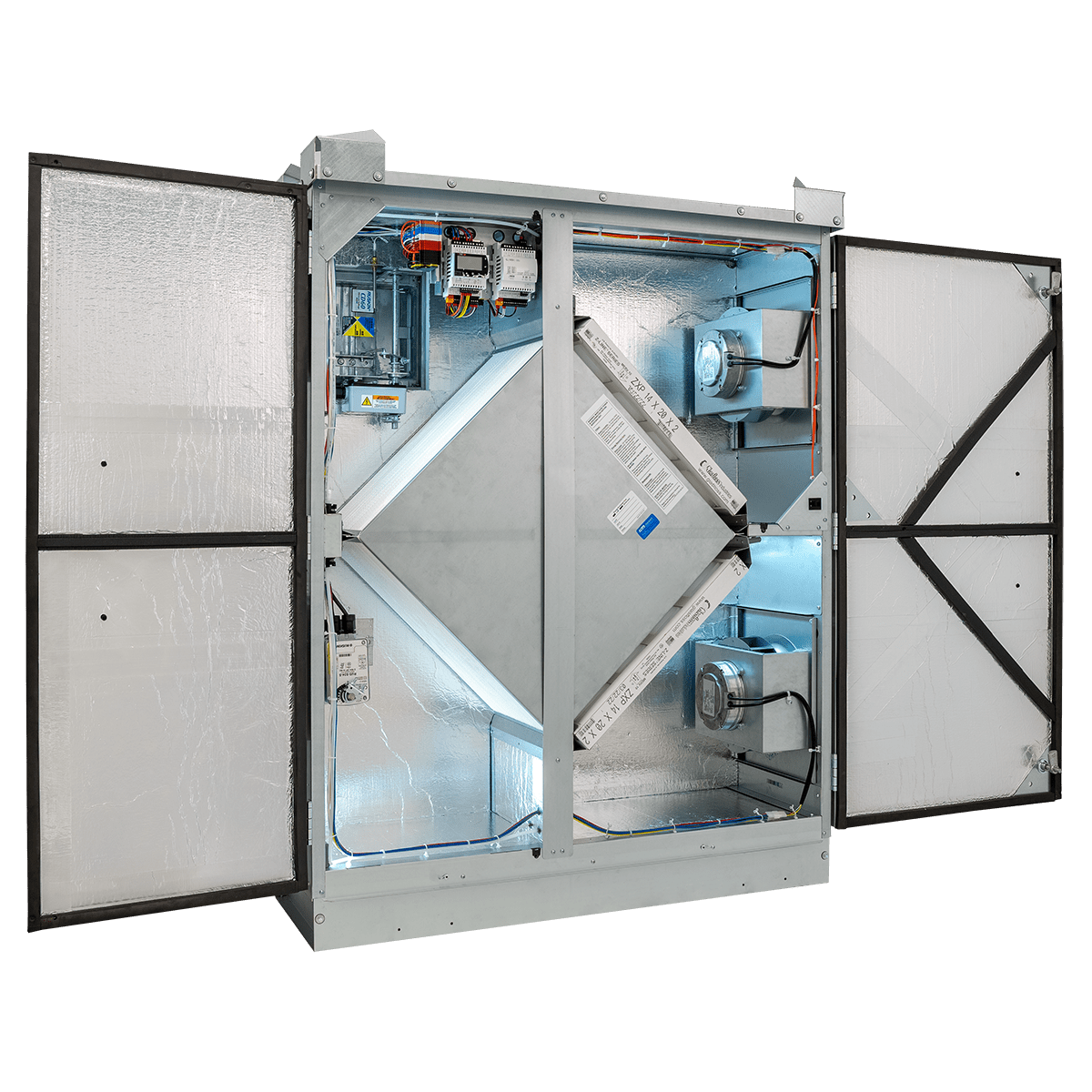

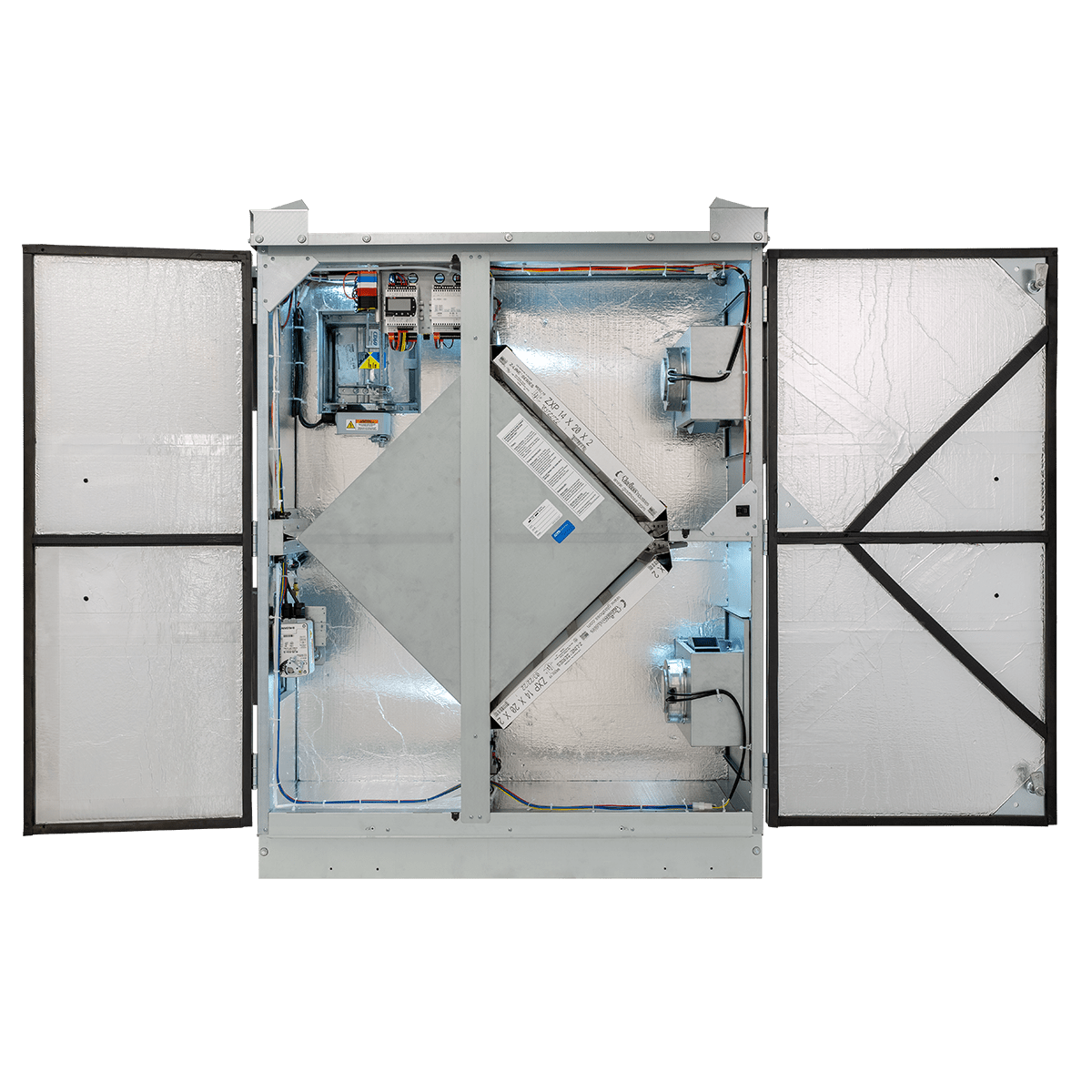

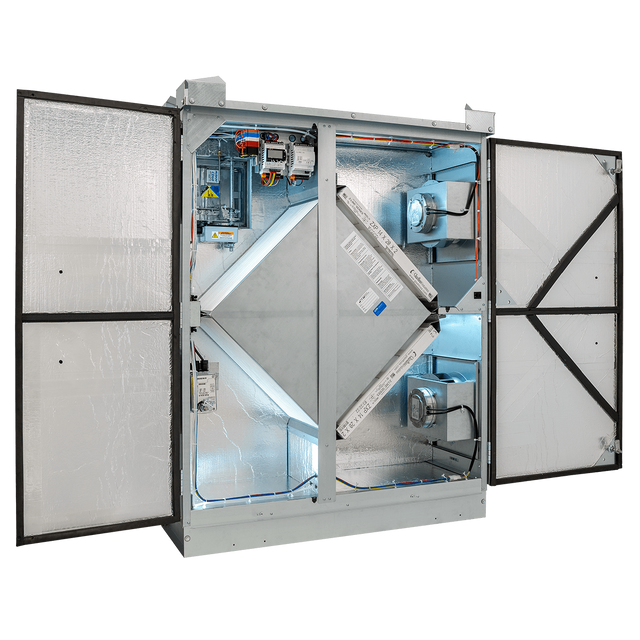

Energy Recovery Core

The TRCeN500RT-230 features an AHRI 1060-certified static plate core for efficient heat and humidity transfer, with ventilation powered by Dual 170W direct-drive motors that provide precise, energy-efficient airflow control.

  • Flexible Airflow: Operates in a wide airflow range (166 to 431 CFM) for varying ventilation needs.
  • Advanced Filtration: Two MERV 8 filters (14 x 20 x 2 inches) scrub the air before it reaches your space.

Designed for Any Environment

The ERV cabinet is designed for rooftop installation and to withstand even the harshest weather conditions. The fully insulated case measures just 73.75 x 34.625 x 58.25 inches, allowing it to fit on rooftops with limited space.

  • Durable Construction: The 20-gauge galvanized steel cabinet has high-density insulation for thermal and acoustic efficiency.
  • Integrated Controls: Includes a 24VAC transformer and relay package for seamless building management system integration.

Horizontal or Vertical Configuration

This model comes as either a horizontal (TRCeN500RTH) or vertical (TRCeN500RTV) airflow configuration. Each configuration includes attached hoods for exhaust and supply airstreams.

Additional Features

  • Ease of Installation: Includes lifting lugs, hinged doors, and a non-fused disconnect for quick setup and maintenance.
  • Buy American: Meets the requirements of Buy American (2009) and Build American, Buy America (BABA) as part of the IIJA (2022).

Sylvane's Expert Take

Enjoy efficient indoor air quality and reduced energy costs with this 431 CFM rooftop energy recovery ventilator, designed to handle challenging commercial demands. Its AHRI-certified energy recovery core and advanced EC motors work together to optimize airflow while maintaining comfortable humidity levels.

  • Moisture Control: Helps maintain a healthier indoor environment by minimizing mold risk through consistent humidity regulation and increased fresh-air exchange.
  • Energy Efficiency: Lower operational expenses by recovering energy from exhaust air, which helps stabilize indoor temperatures and humidity without overburdening the HVAC system.
