S&P TRCeN800(V) 1100 CFM Energy Recovery Ventilator w/ EC Motor

Name: S&P TRCeN800(V) 1100 CFM Energy Recovery Ventilator w/ EC Motor
Brand: S&P
Price: 6409.0 USD
Availability: InStock

SKU: sp15663 | Model: TRCeN800V-230

$6,409.00

FREE shipping on orders over $45!

In Stock Usually ships in 30 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-Year Core Warranty, 2-Year Unit Warranty

What's In The Box?

S&P TRCeN800 488 CFM Commercial Energy Recovery Ventilator
MERV 8 - 20 x 20 x 2 (2)
Installation and Operating Manual

Info & Guides

Description

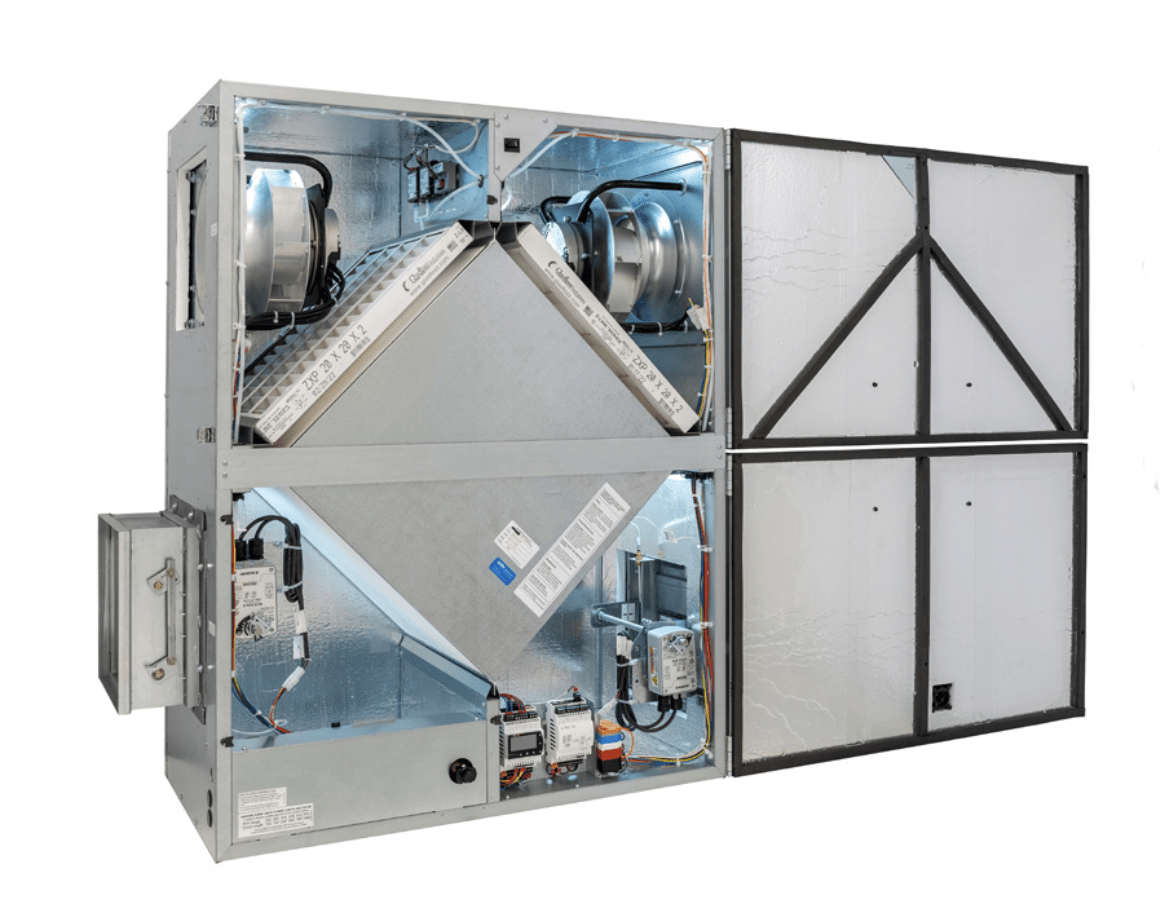

The S&P TRCeN800 Commercial Energy Recovery Ventilator provides fresh air exchanges to improve the indoor air quality of commercial spaces in any climate.

This commercial ERV uses two 370 W direct-drive electronically commutated motorized impeller packages and an AHRI 1060 certified energy recovery core to deliver an airflow of 250 to 1100 cubic feet per meter (CFM) with high efficiency and fan efficacy.

The fully insulated 20 gauge galvanized steel cabinet features access doors for quick and easy access to the unit’s blowers, core, and filter. This model uses two MERV 8 filters (20 x 20 x 2 inches) to remove impurities from outside air and room air.

Airflow Options

Customers can choose between the TRCeN800 or the TRCeN800V for different airflow and duct connection configurations that fit various spaces and applications.

TRCeN800: Return and outside airflows enter on the same side of the unit.
TRCeN800V: Return and outside airflows enter on opposite sides of the unit.

Power Specifications

The TRCeN800 and TRCeN800V feature a 208-230 V single-phase system with 1.73 FLA (per motor), 3.9 minimum circuit amps, and 20 amps MOPD. This ERV also has a non-fused disconnect and a 24 VAC transformer relay package to power and connect optional accessory controllers.

High Efficiency Cores

The TRCeN800 uses one L125-G5 core, which crossflows indoor and outdoor airflows using S&P’s “air-to-air” technology to provide the highest energy recovery possible while keeping airflows separated.

The resin recovery cores have a unique moisture transfer capability that eliminates moisture and frost build-up down to -10 degrees F and 40 percent RH, resulting in higher efficiency and more reliable operation. Additionally, this model does not require a condensate pan or draining solution.

Easy Installation

An integral mountain flange and hanging bracket system allow installers to place the TRCeN800 in any orientation required, in both heated or unheated spaces. This ERV connects to new or existing ducting with 14 x 14-inch square receiving flanges.

Differential pressure ports in the core will allow HVAC professionals to take pressure measurements and monitor the system’s operation.

Certifications

AHRI Certified
Ecowatt Certified
cETLus Listed
Buy American (2009) and Build America, Buy America (BABA) as part of IIJA (2022).

Sylvane’s Expert Take

Use the S&P TRCeN800 to provide efficient air exchanges for commercial spaces. HVAC professionals will love this unit's easy installation and maintenance, powerful airflow, and effective energy recovery cores, which improve indoor air quality as required by modern building codes.

Twin Motors: Airflow from this ERV is driven by two single-phase 370 W direct-drive EC motorized impellers with independent blower control.

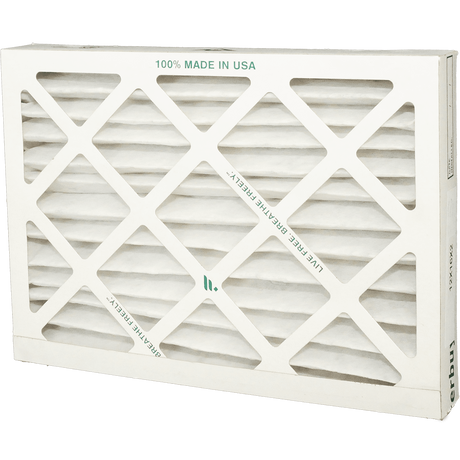

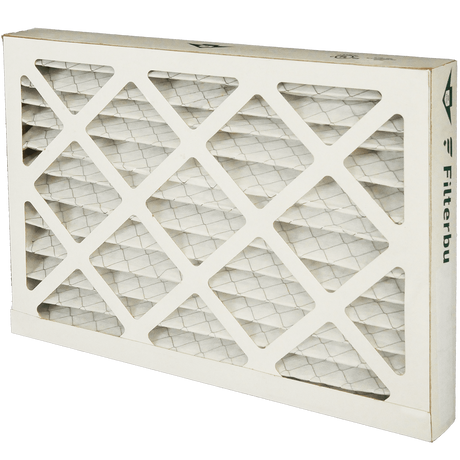

Filters: This ERV's outdoor and room airflows are filtered by MERV 8 filters, so room air stays clean and stale air impurities are removed. An optional MERV 13 filter can be found here.

Specifications

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

250.0
Mounting Type

Wall, Ceiling
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

AHRI, cETLus
Color

Gray
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

1100.0
