Description

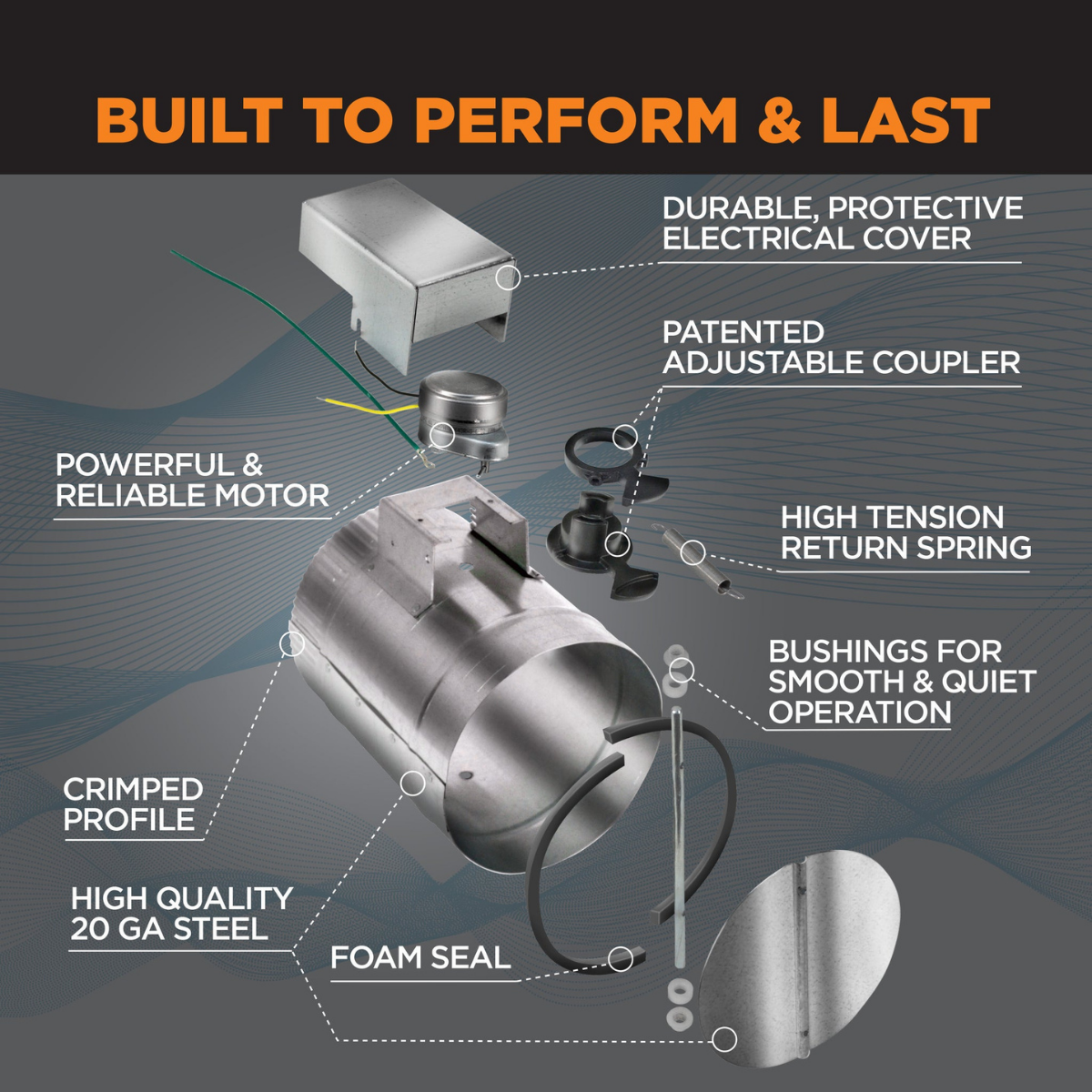

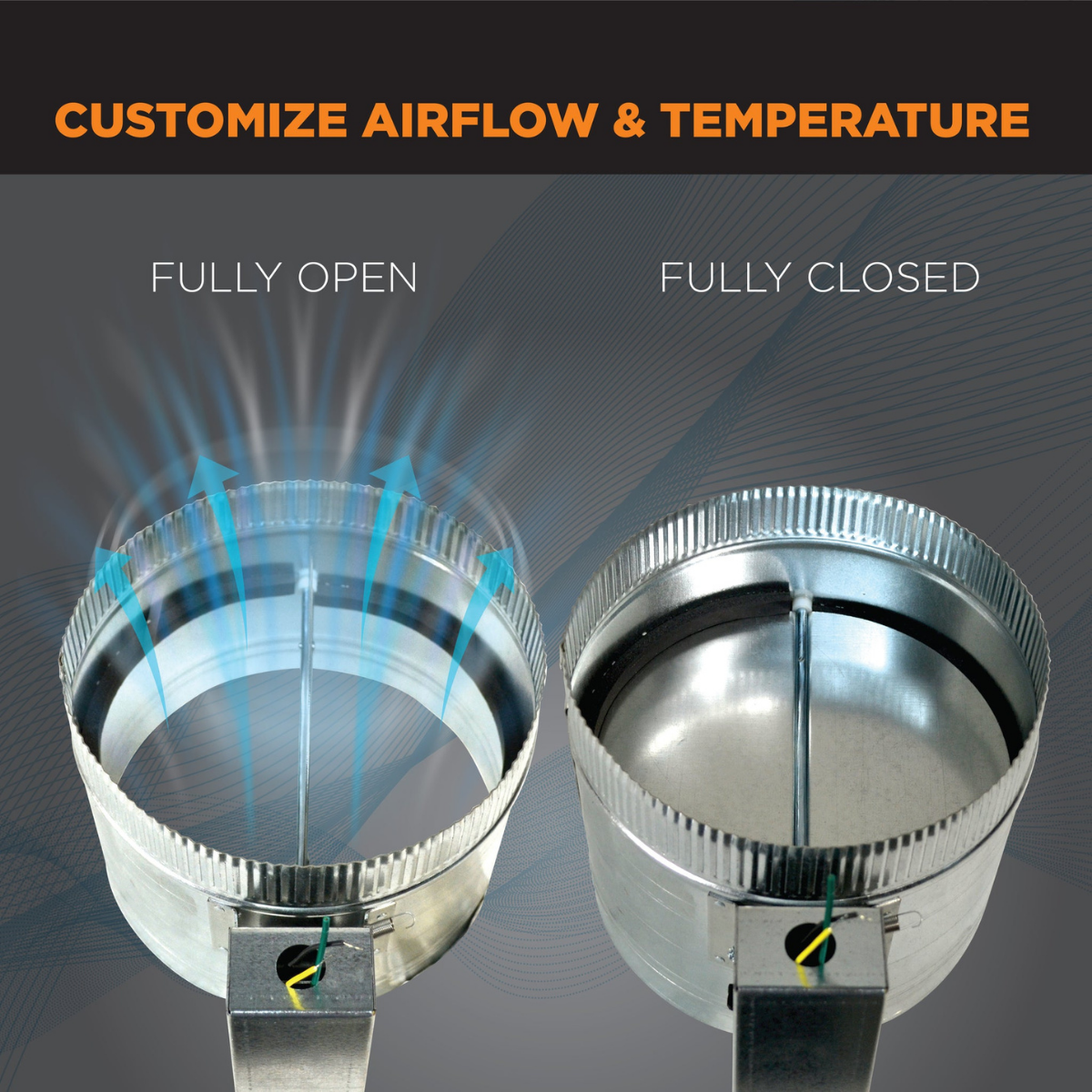

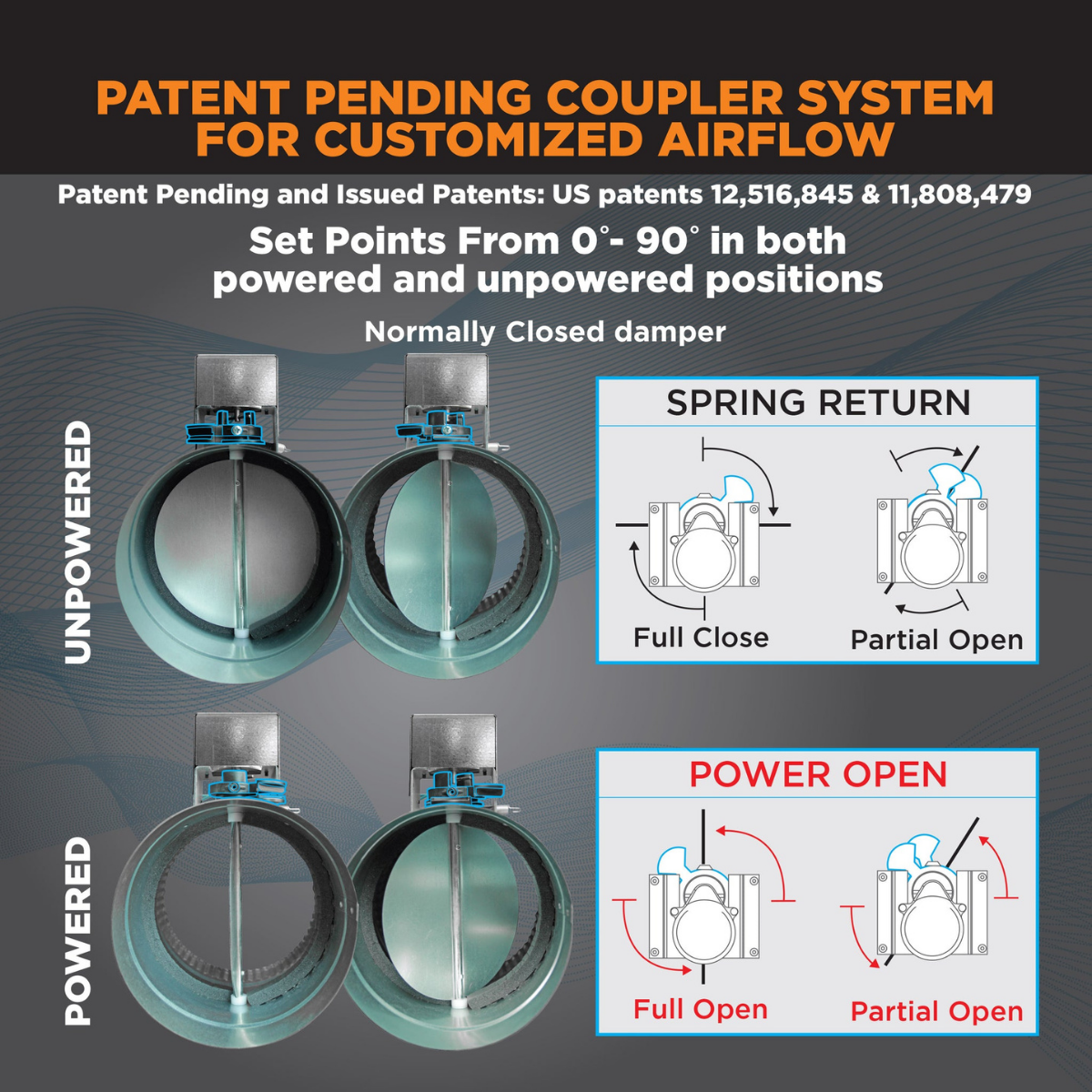

Suncourt's UL-listed 120-volt Adjustable Motorized Damper (Normally Closed) hardwires into building power with no transformer, suiting retrofit and office HVAC airflow control where no 24-volt panel exists, meeting BABA requirements. It is normally closed, power open/spring return, to bring in airflow when needed. The Adjustable Coupler has set points from 0 to 90 degrees, and a 20-gauge blade closes against a gasket, keeping leakage under 5 percent.

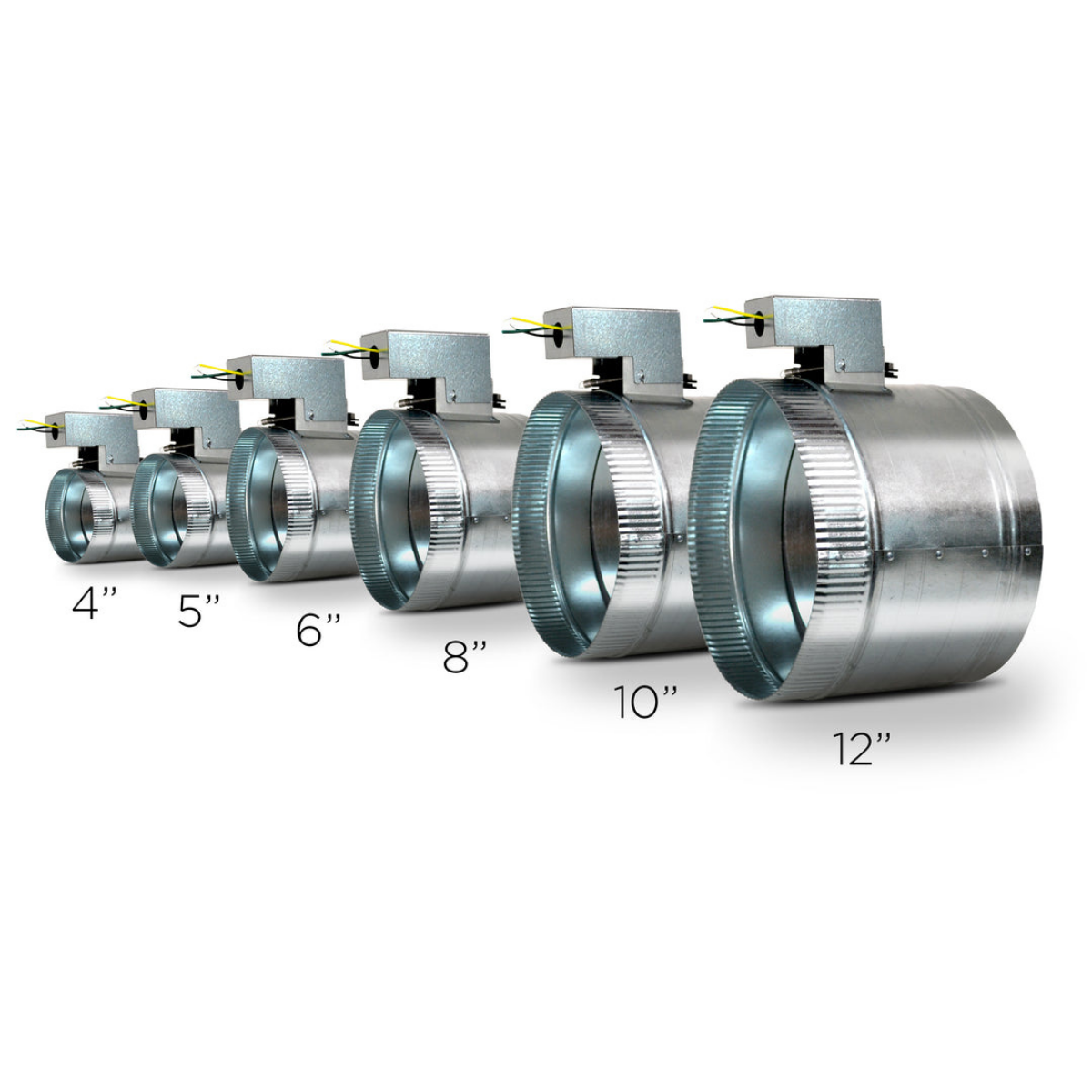

Available in six sizes for round ducts:

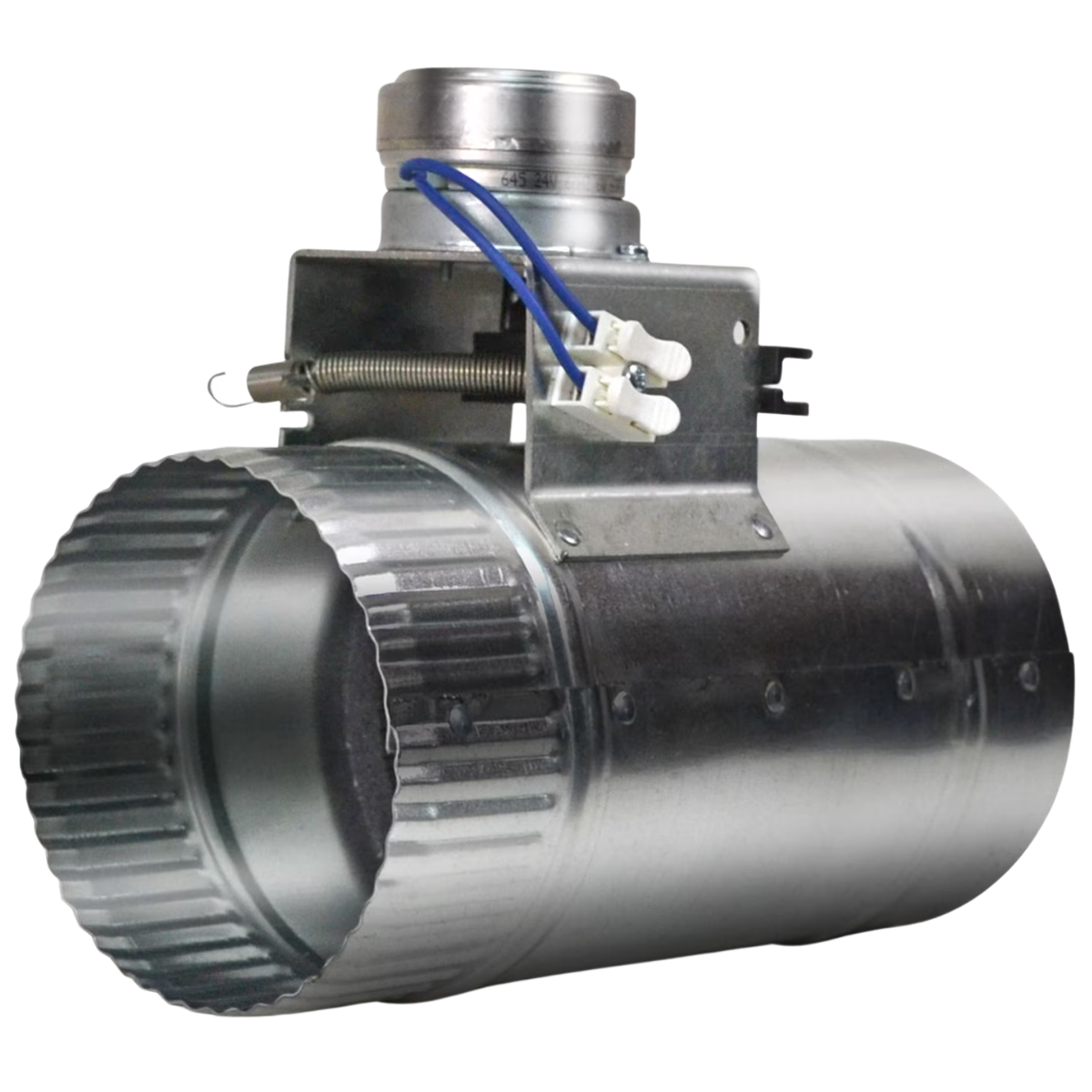

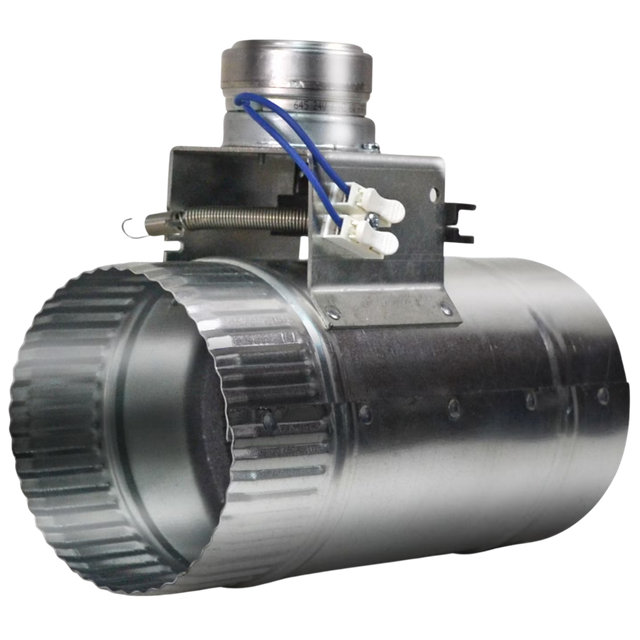

4-Inch: Measures 8 x 4 x 7.2-inches (L x W x H) and weighs 1.56 pounds. Part number ZC204X-120.

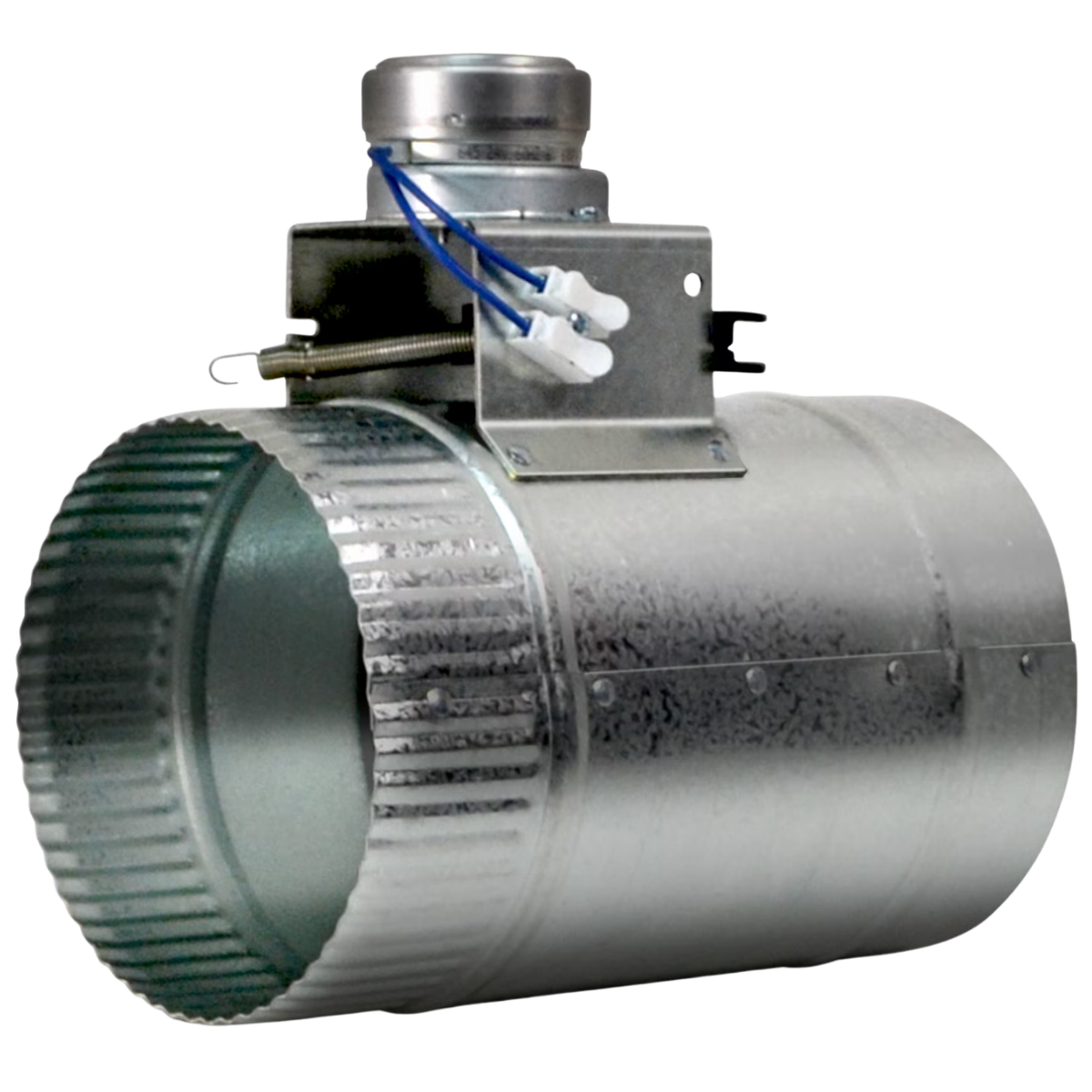

5-Inch: Measures 8 x 5 x 8.2-inches (L x W x H) and weighs 1.9 pounds. Part number ZC205X-120.

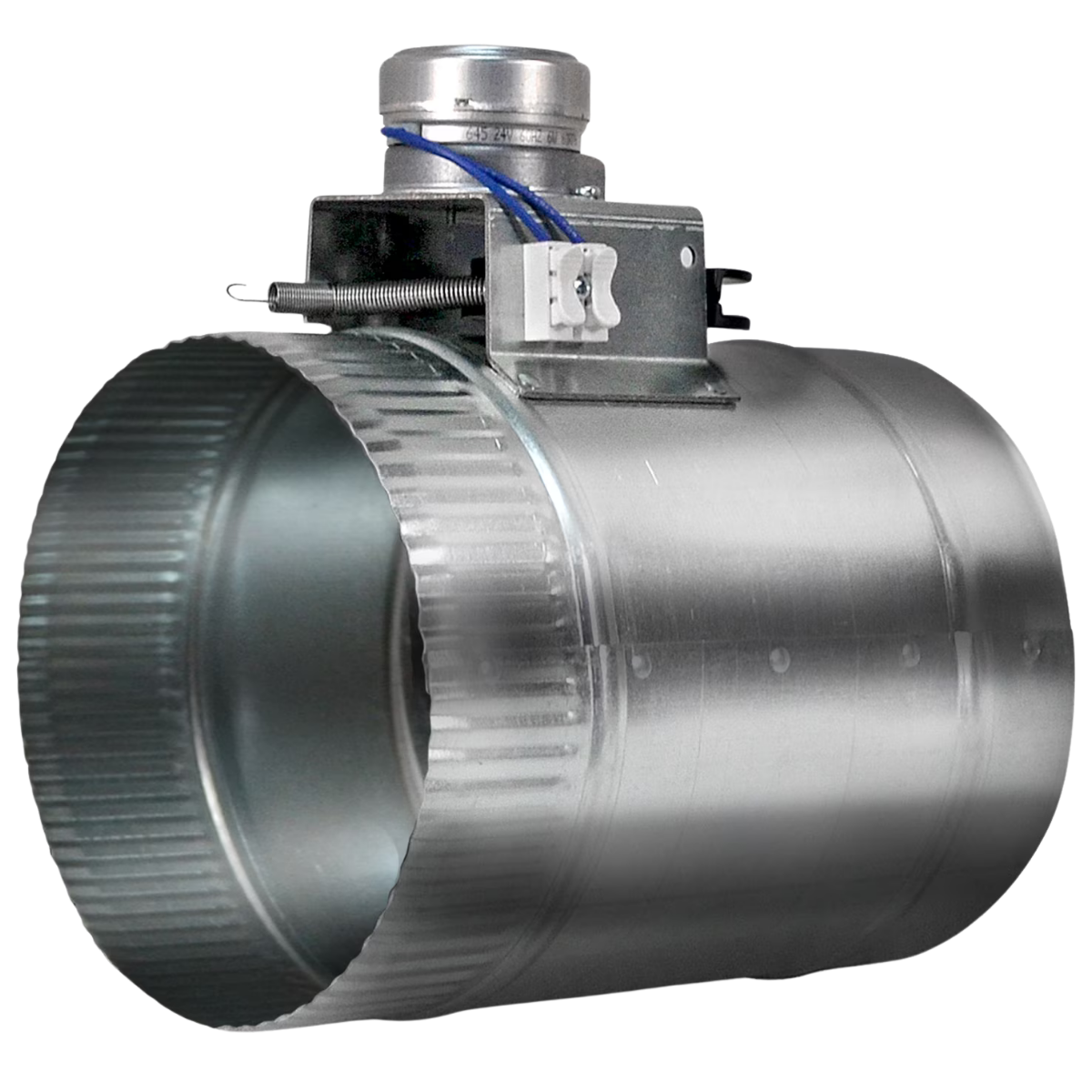

6-Inch: Measures 8 x 6 x 9.2-inches (L x W x H) and weighs 2.1 pounds. Part number ZC206X-120.

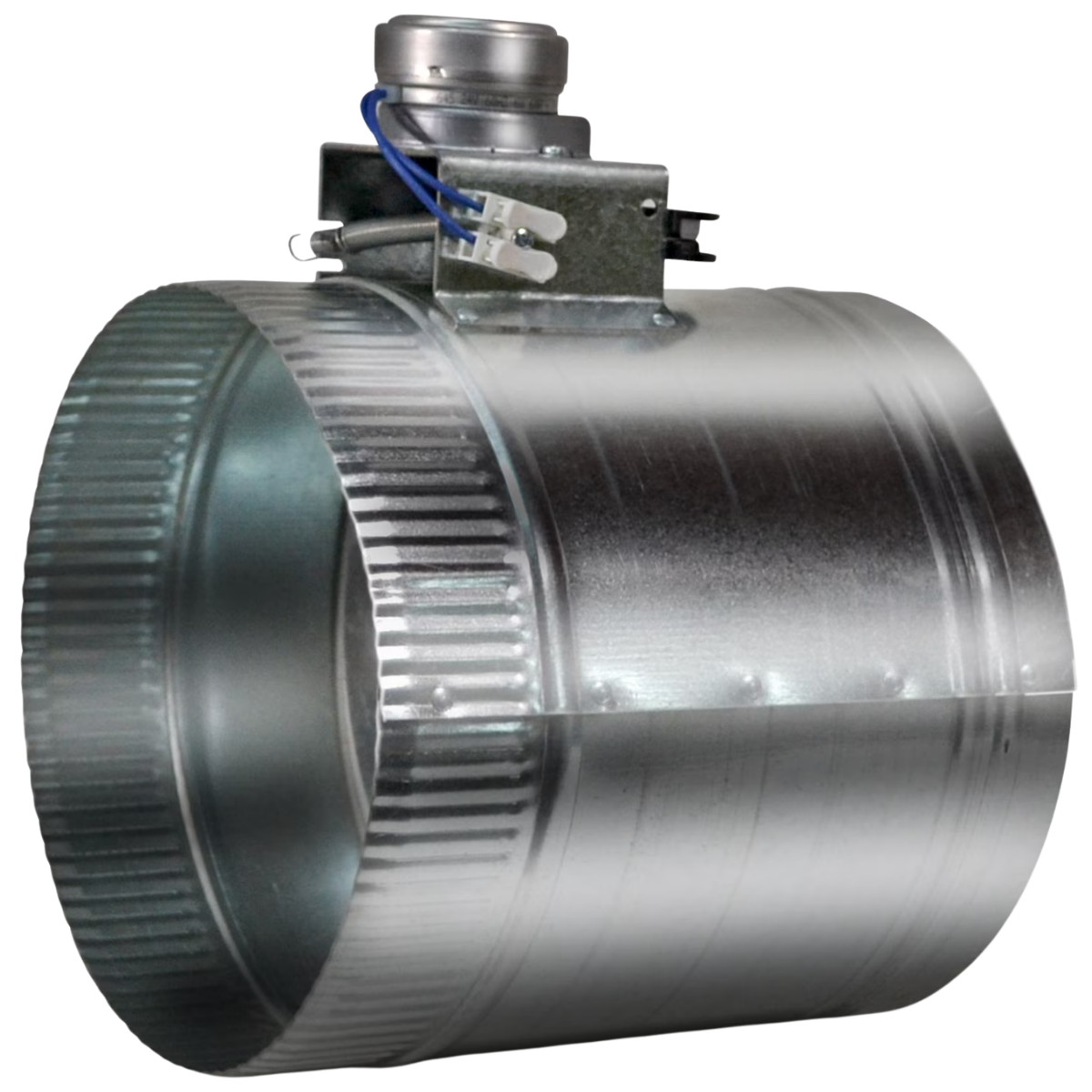

8-Inch: Measures 8 x 8 x 11.2-inches (L x W x H) and weighs 3.1 pounds. Part number ZC208X-120.

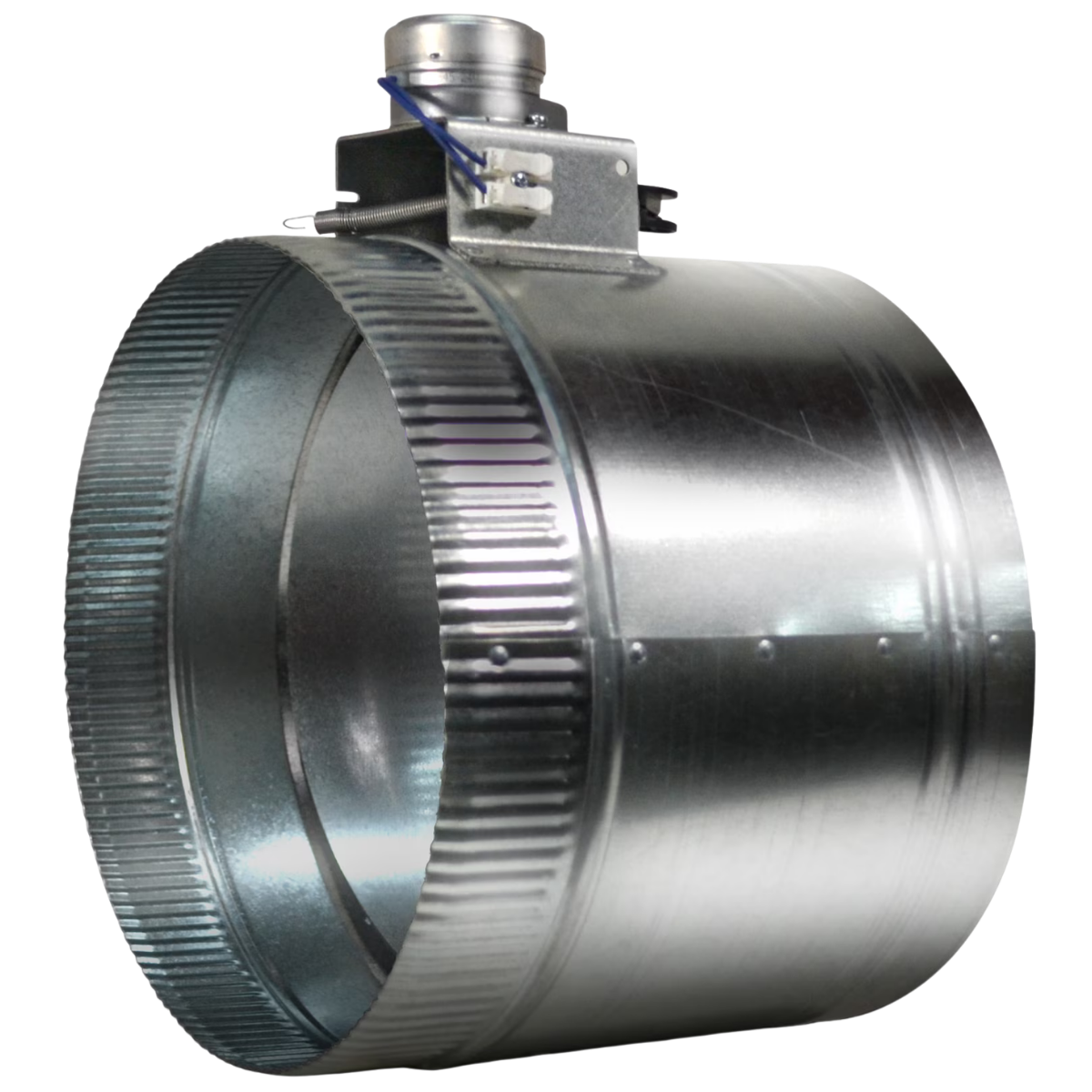

10-Inch: Measures 8 x 10 x 13.2-inches (L x W x H) and weighs 3.9 pounds. Part number ZC210X-120.

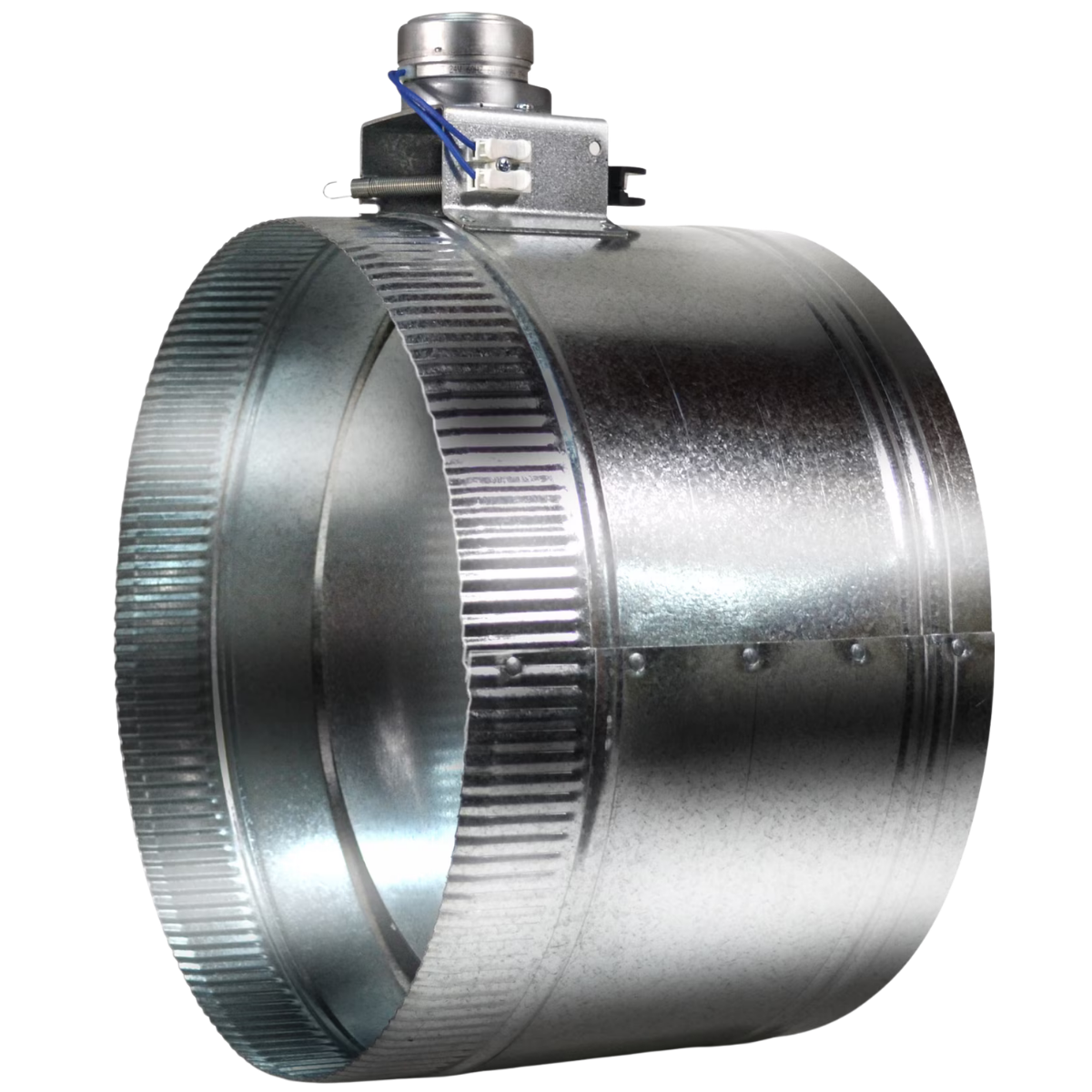

12-Inch: Measures 8 x 12 x 15.2-inches (L x W x H) and weighs 4.7 pounds. Part number ZC212X-120.

Specifications

Key Specifications

Type

Damper

General

Certifications

UL
Color

Gray
Controls

Electronic
Housing Material

Galvanized Steel
California Residents

⚠ WARNING: This product may contain a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Power

Maximum Amperage (Amps)

0.25
Power Supply

Hardwired
Voltage (V)

110-120
Watts (W)

6

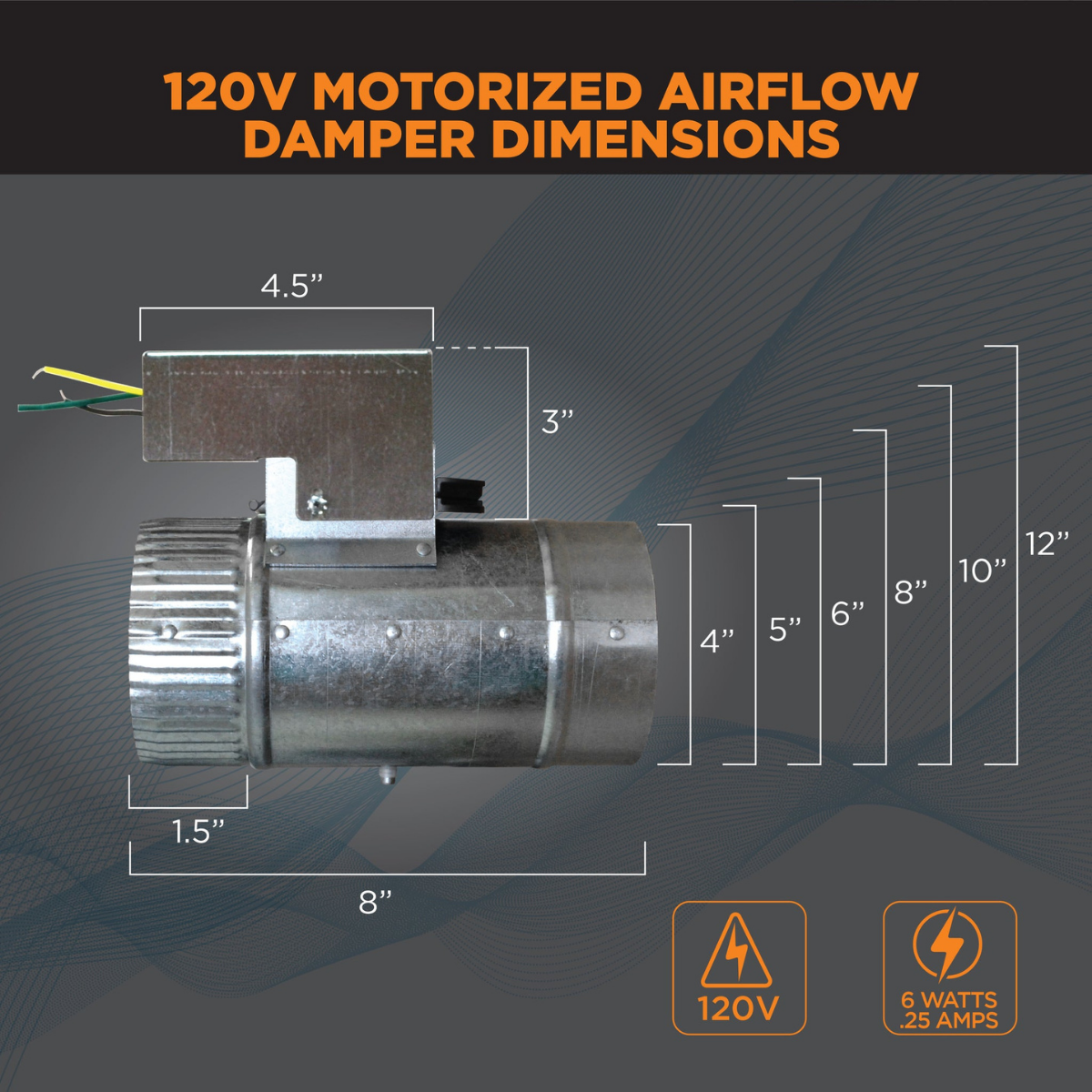

Dimensions

Depth (in.)

8.0
Duct Diameter (in.)

4-in.: 4.0

5-in.: 5.0

6-in.: 6.0

8-in.: 8.0

10-in.: 10.0

12-in.: 12.0
Height (in.)

4-in.: 7.2

5-in.: 8.2

6-in.: 9.2

8-in.: 11.2

10-in.: 13.2

12-in.: 15.2
Weight (lbs.)

4-in.: 1.56

5-in.: 1.9

6-in.: 2.1

8-in.: 3.1

10-in.: 3.9

12-in.: 4.69
Width (in.)

4-in.: 4.0

5-in.: 5.0

6-in.: 6.0

8-in.: 8.0

10-in.: 10.0

12-in.: 12.0
