Suncourt ZoneMaster 24V No Transformer Motorized Damper

SKU: sc19444  |  Model: ZC204X
$7599
Damper Size and Type

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?
  • Suncourt ZoneMaster Motorized Damper (Normally Closed)
  • #6 Sheet Metal Screws (6)
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

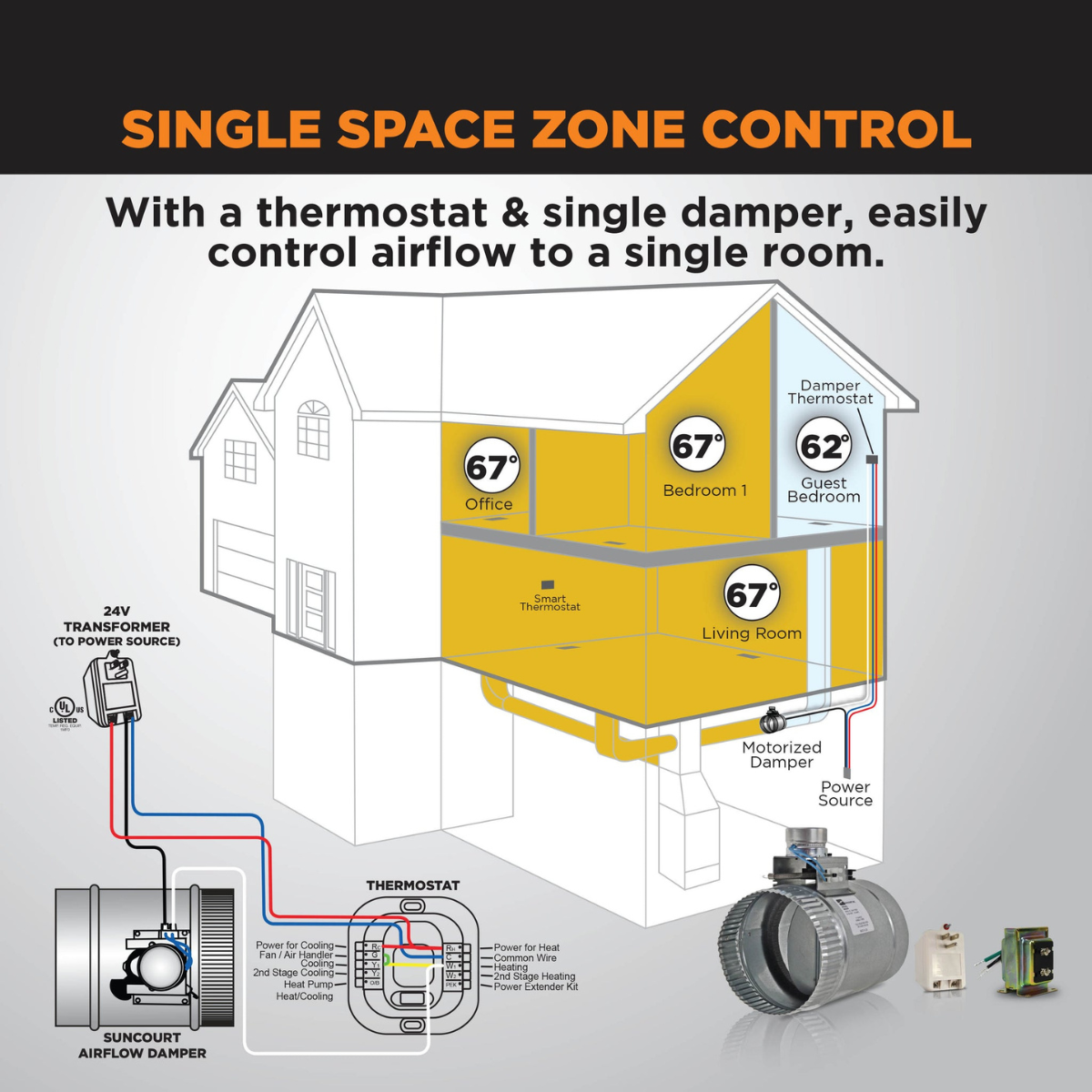

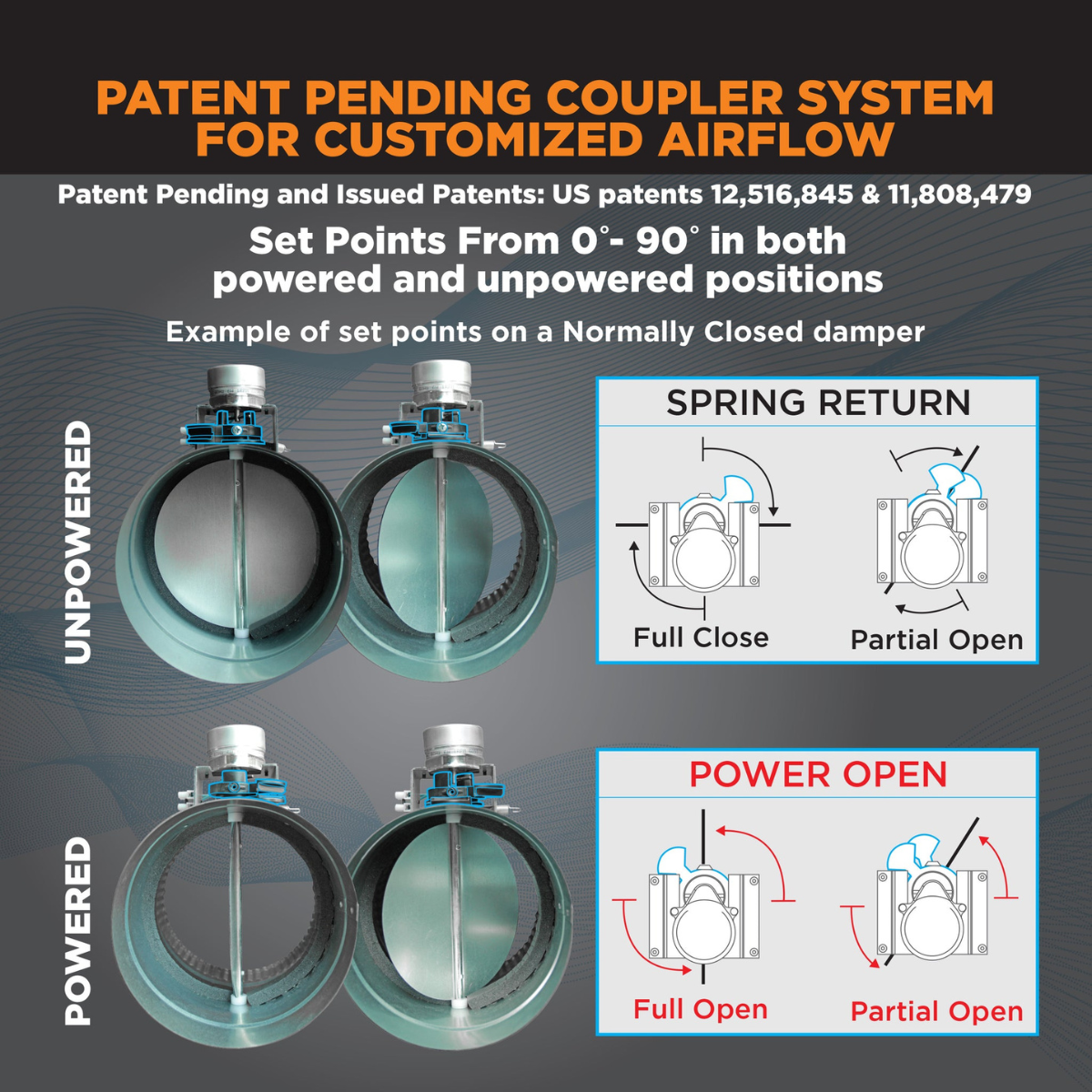

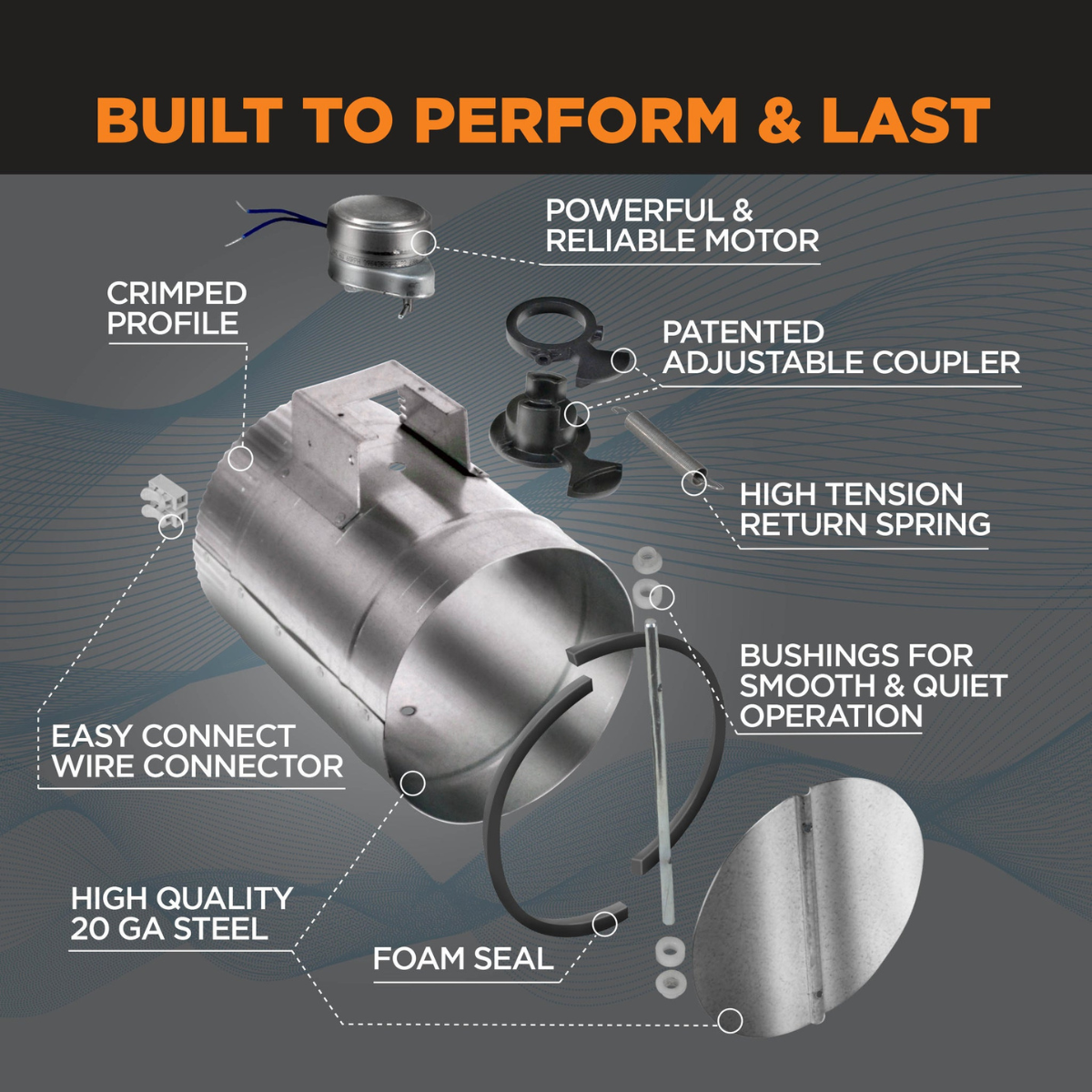

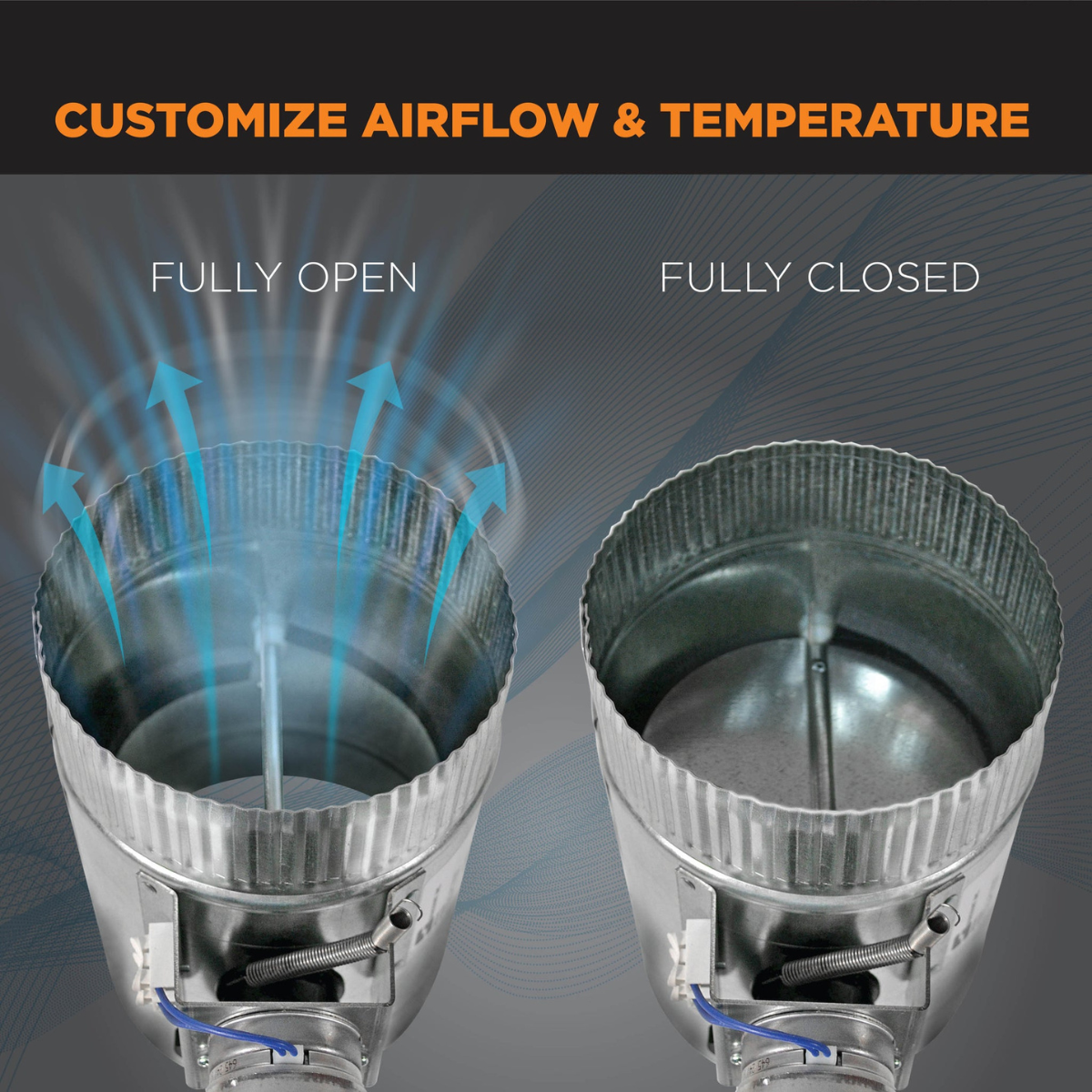

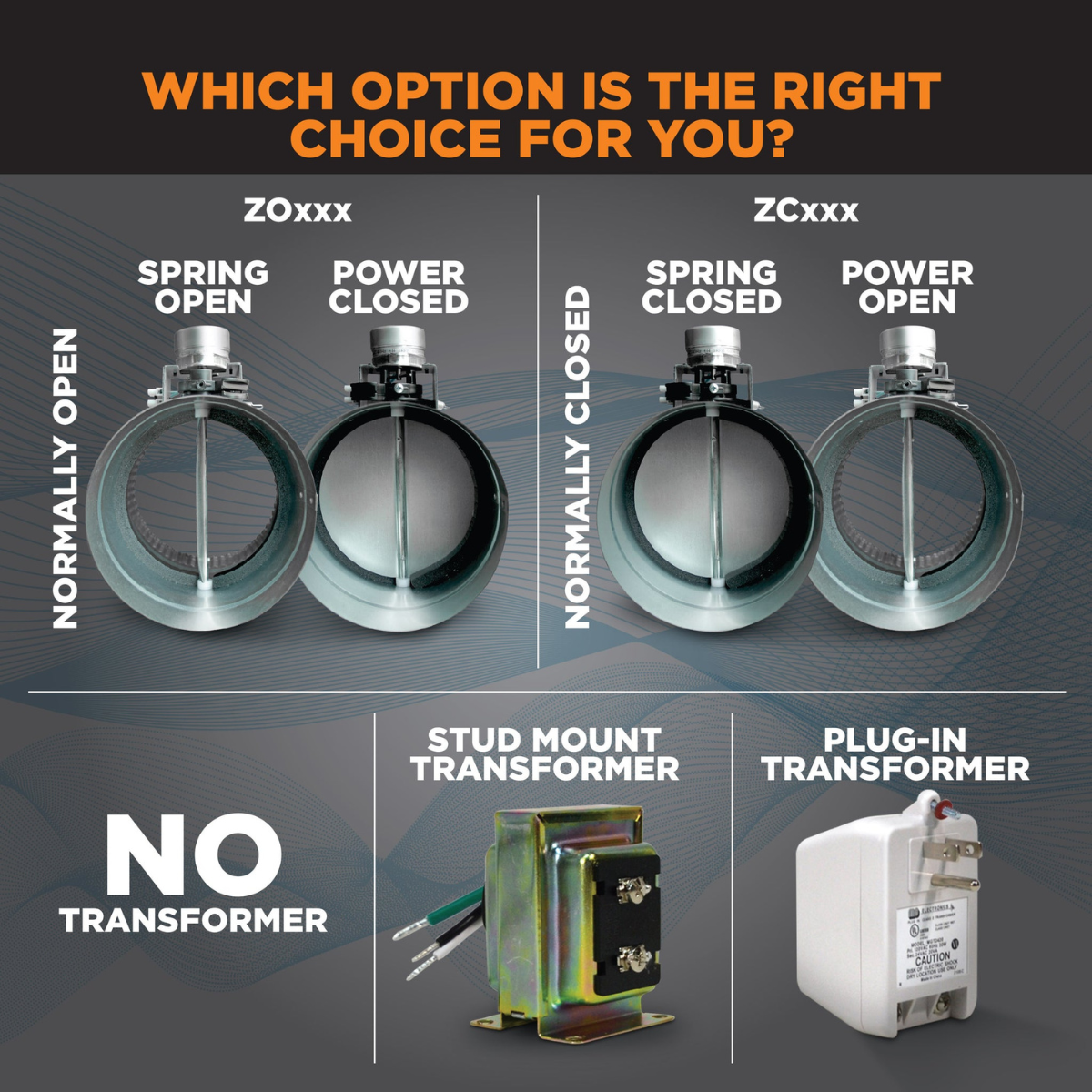

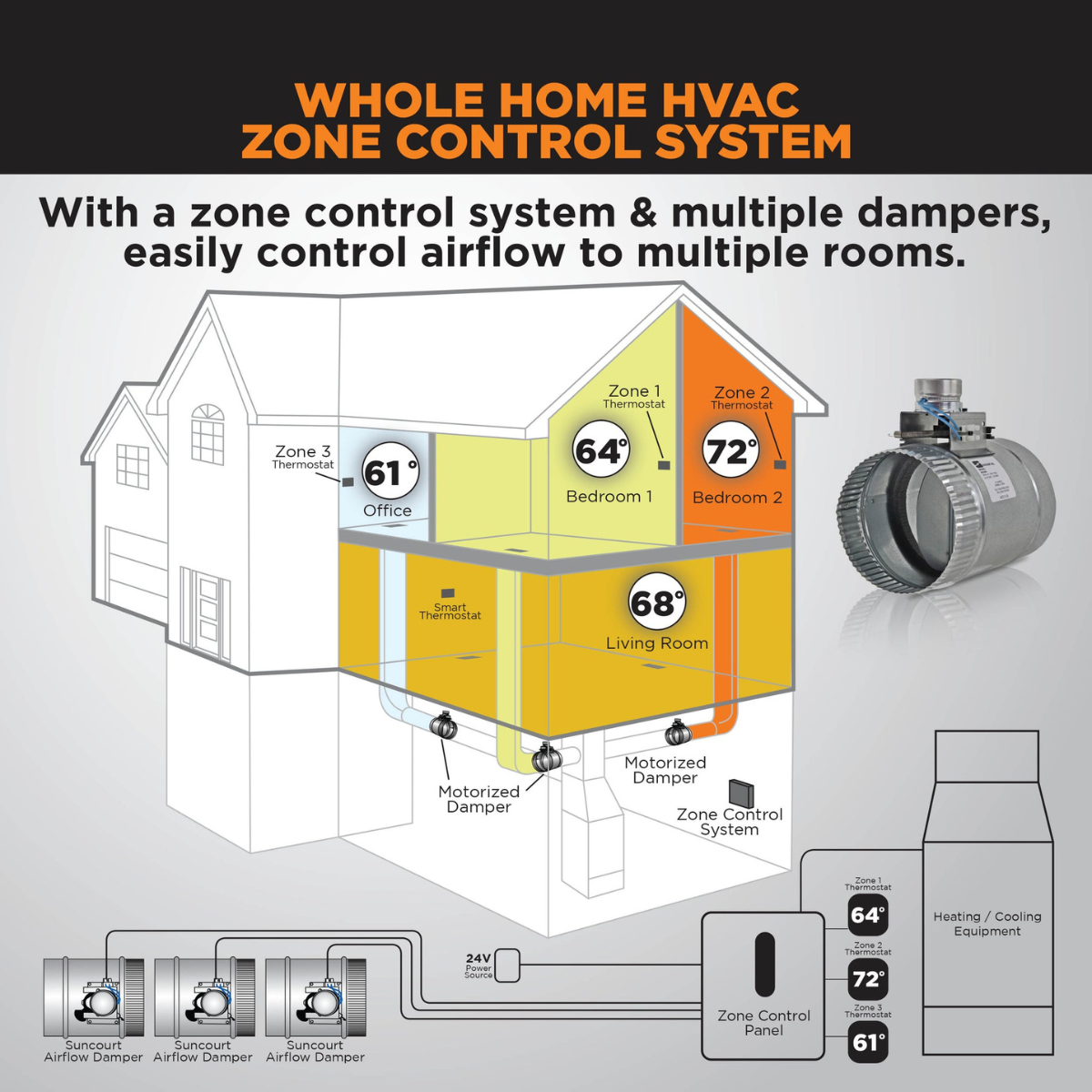

Suncourt ZoneMaster 24V No Transformer Motorized Dampers electronically open to direct conditioned airflow exactly where you need it. These UL-listed dampers have a 0 to 90 degrees adjustable coupler, to fine-tune airflow in both powered and unpowered positions. Air leakage stays under 5 percent in a fully-closed position since the 20 gauge blade closes against a gasket. For electronic control, wire the low-voltage leads directly back to an existing central 24V power source like a multi-damper system transformer. The male crimped and female uncrimped ends connect to rigid or flexible round duct.

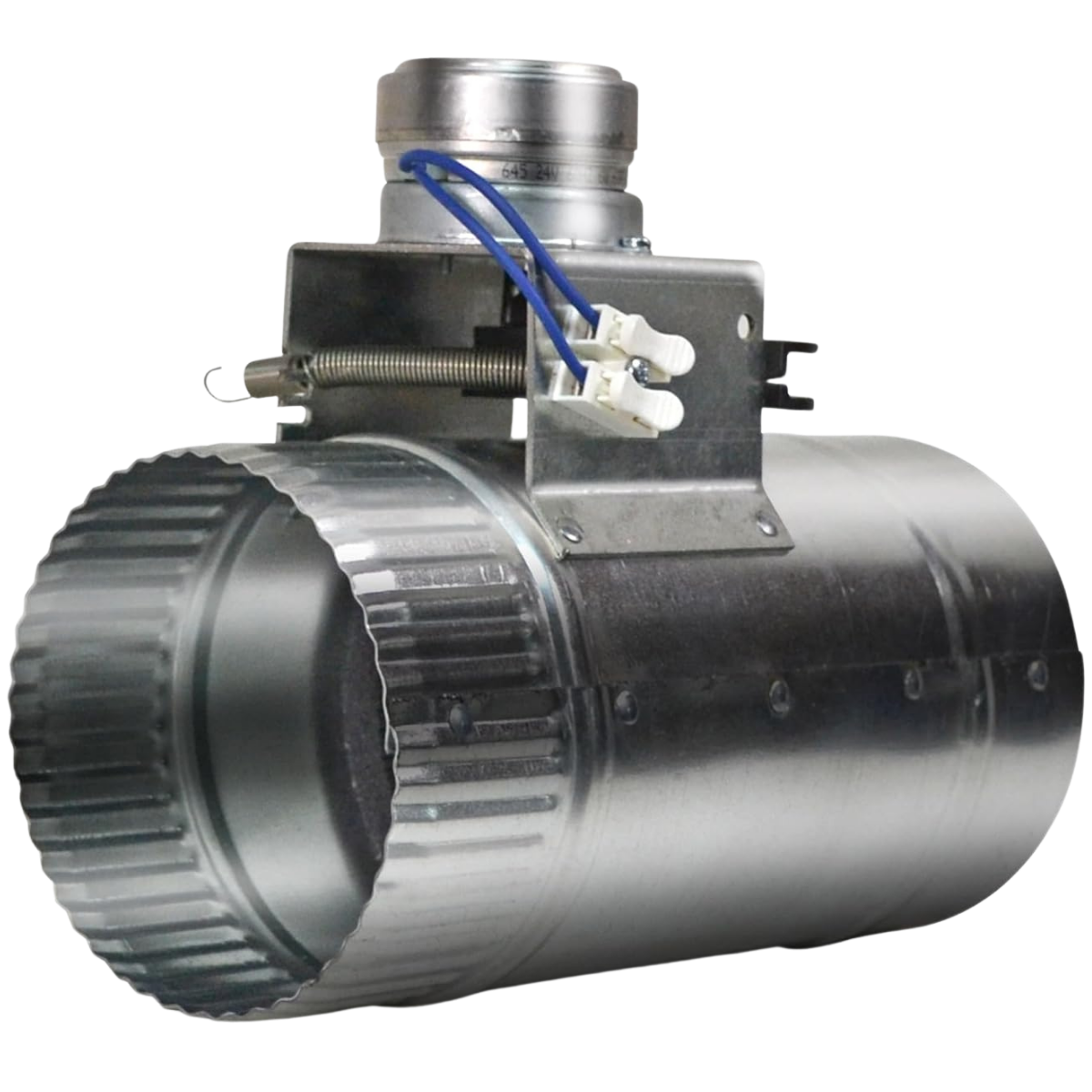

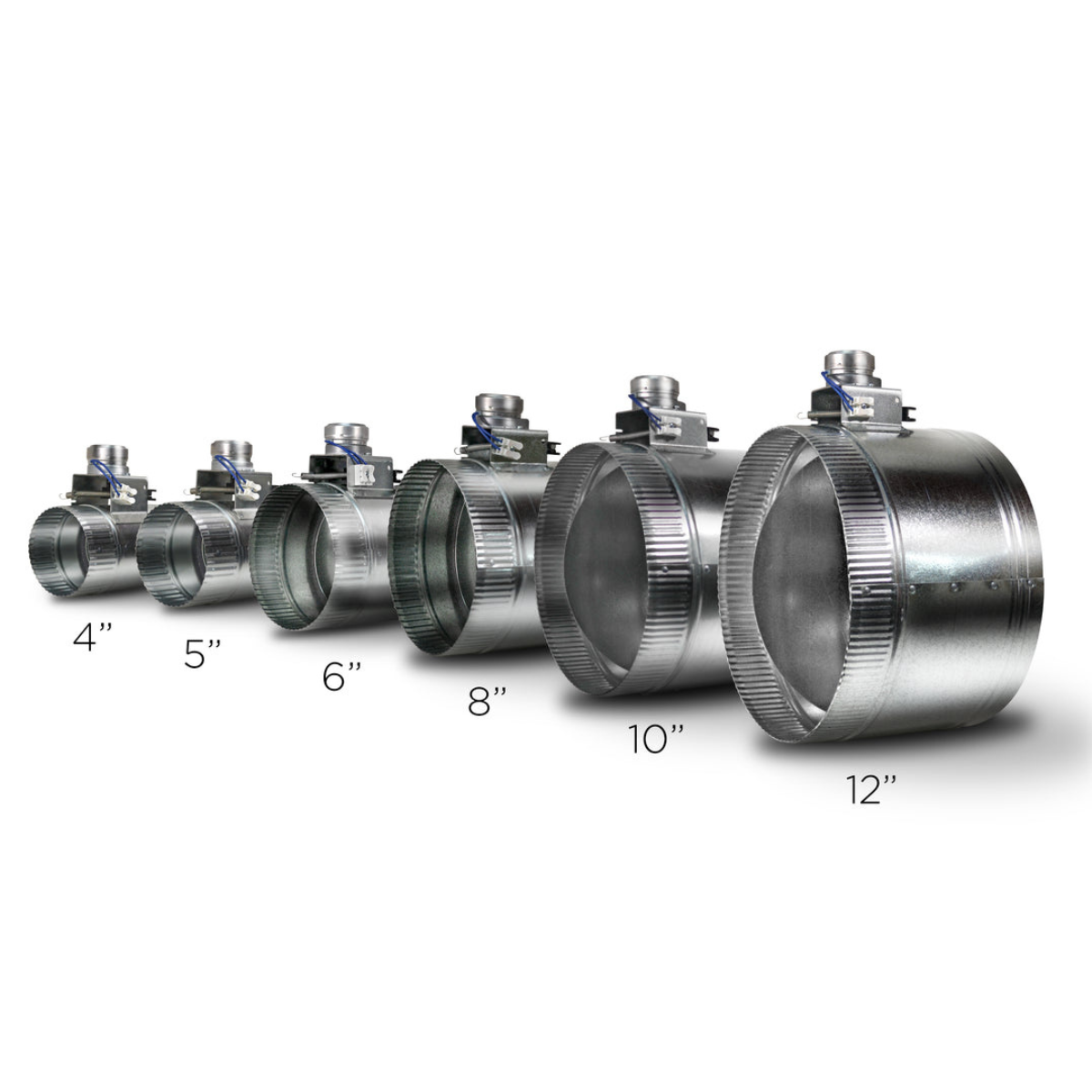

  • 4-Inch Normally Closed: It weighs 1.7 pounds, measuring 8 x 4 x 7-inches (L x W x H). Part number ZC204X.

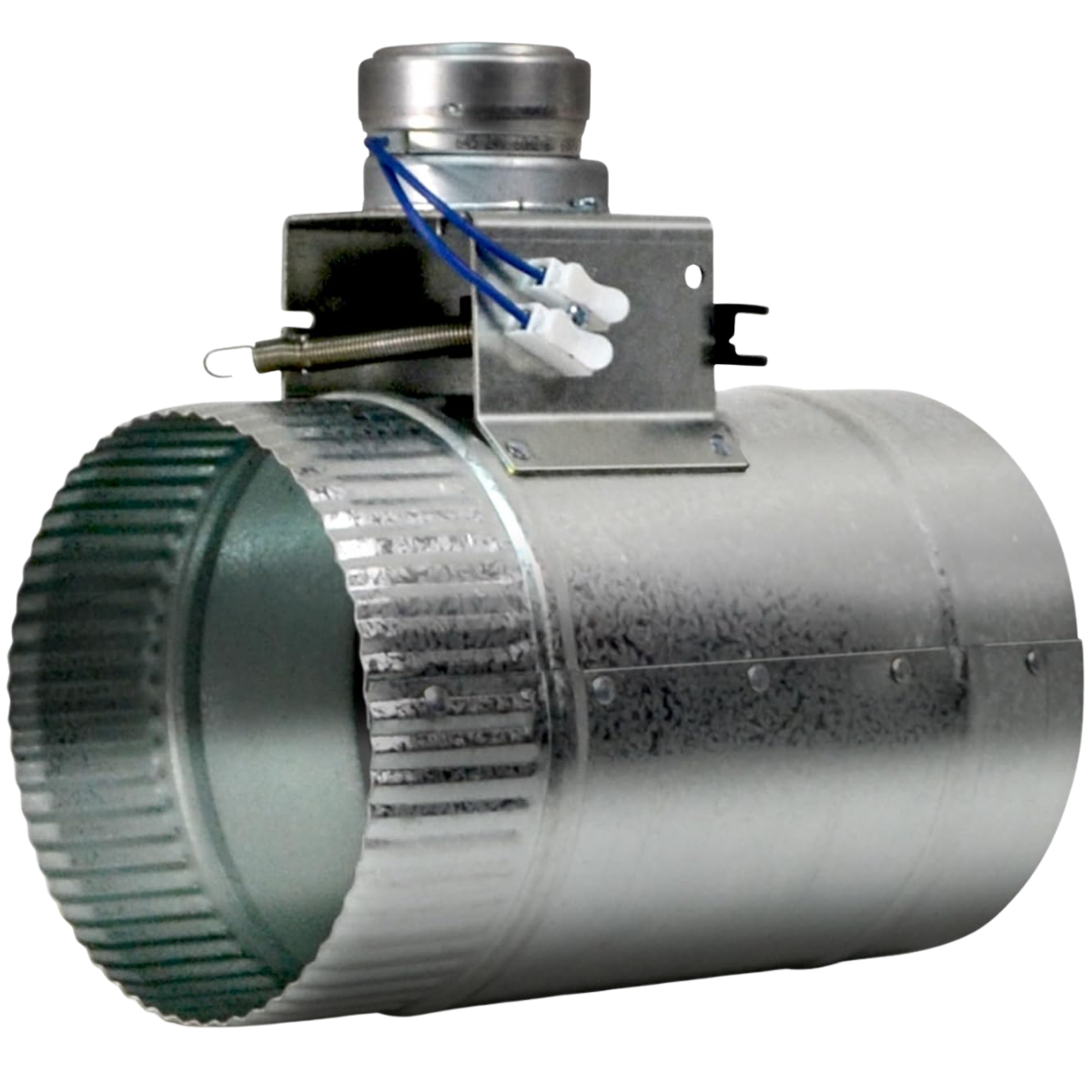

  • 5-Inch Normally Closed: It weighs 1.94 pounds, measuring 8 x 5 x 8-inches (L x W x H). Part number ZC205X.

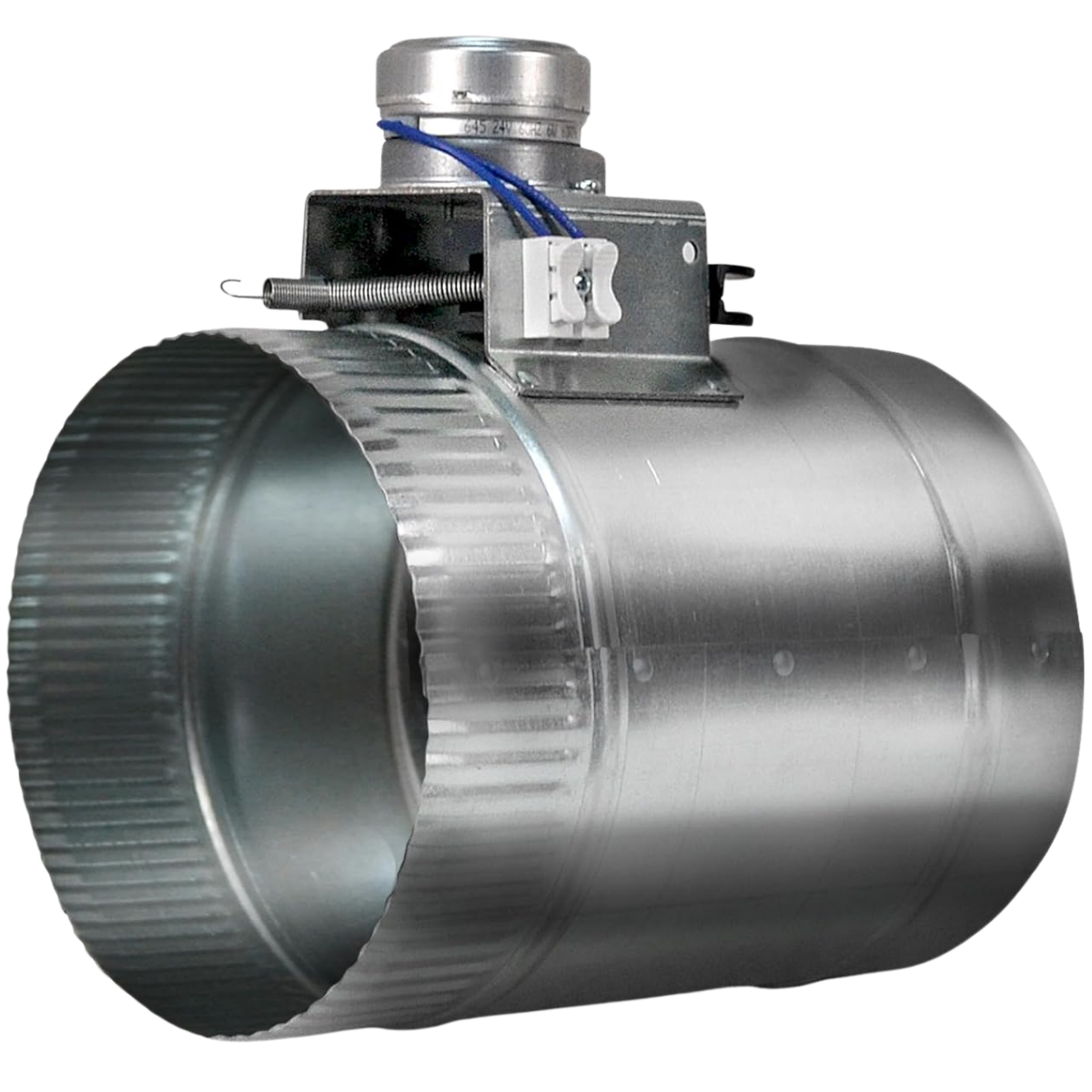

  • 6-Inch Normally Closed: It weighs 2.18 pounds, measuring 8 x 6 x 9-inches (L x W x H). Part number ZC206X.

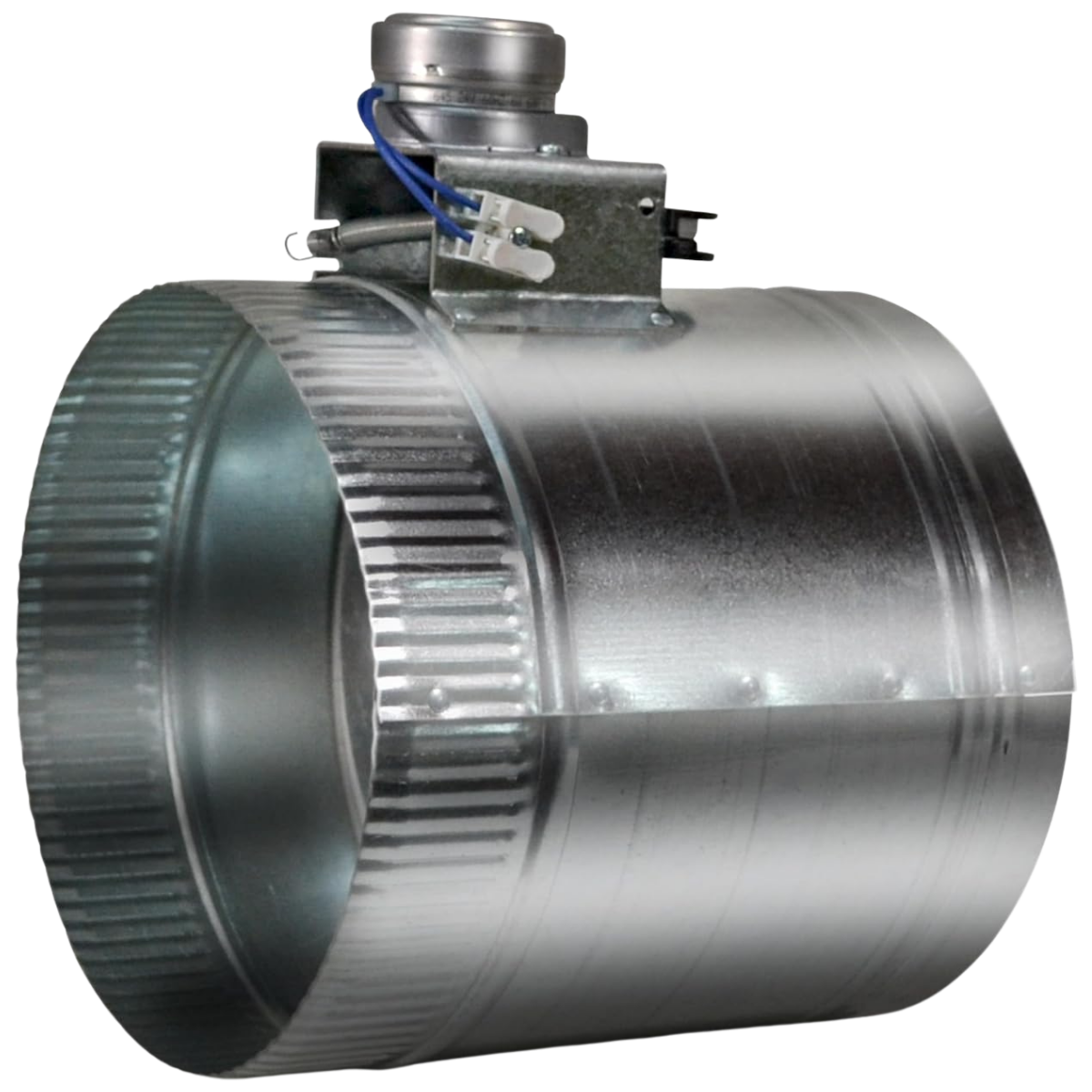

  • 8-Inch Normally Closed: It weighs 3.15 pounds, measuring 8 x 8 x 11-inches (L x W x H). Part number ZC208X.

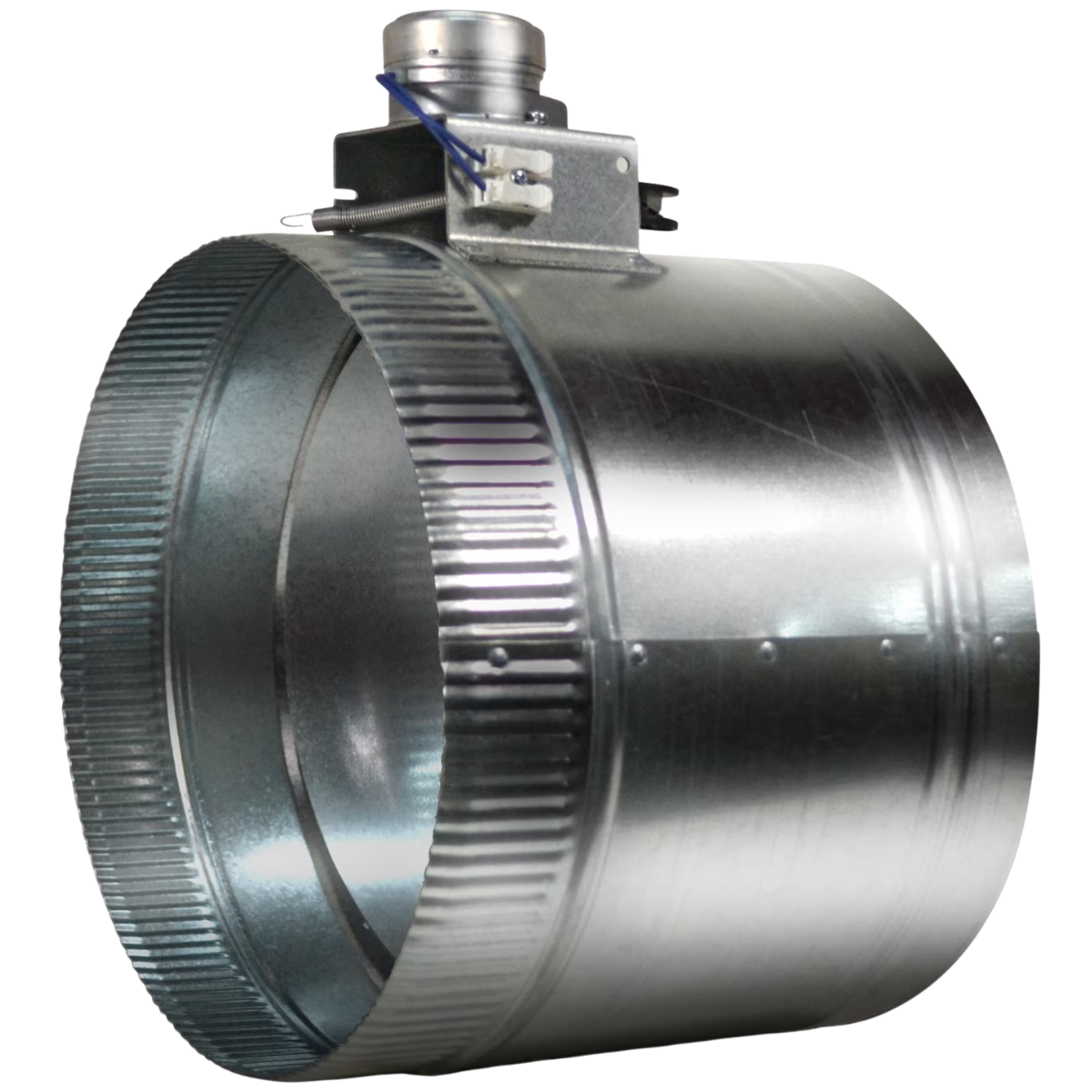

  • 10-Inch Normally Closed: It weighs 3.78 pounds, measuring 8 x 10 x 13-inches (L x W x H). Part number ZC210X.

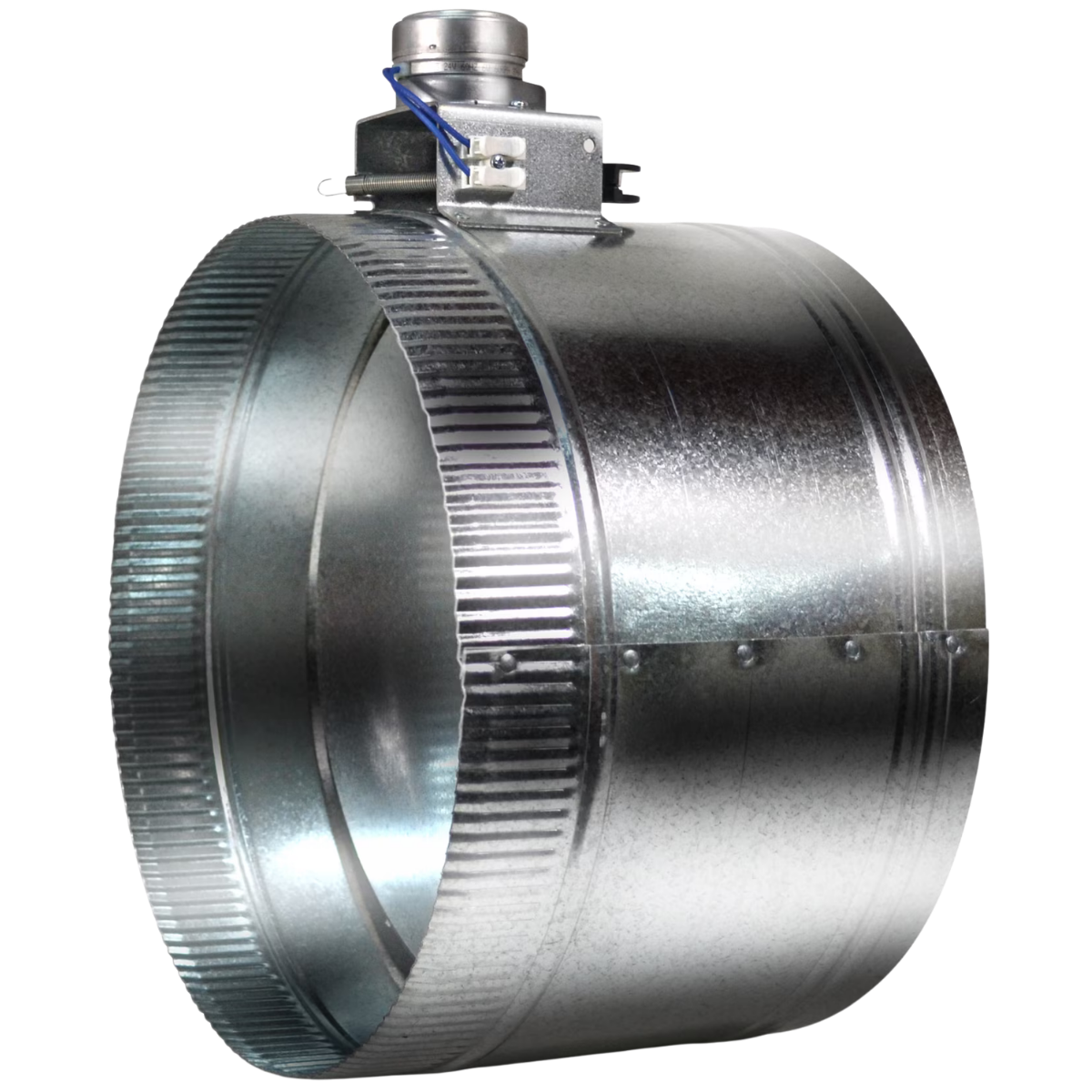

  • 12-Inch Normally Closed: It weighs 4.56 pounds, measuring 8 x 12 x 15-inches (L x W x H). Part number ZC212X.

Specifications

    Key Specifications

    • Type
      Damper

    General

    • Certifications
      UL
    • Color
      Gray
    • Controls
      Electronic
    • Housing Material
      Galvanized Steel
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      0.25
    • Power Supply
      Hardwired
    • Voltage (V)
      24
    • Watts (W)
      6.0

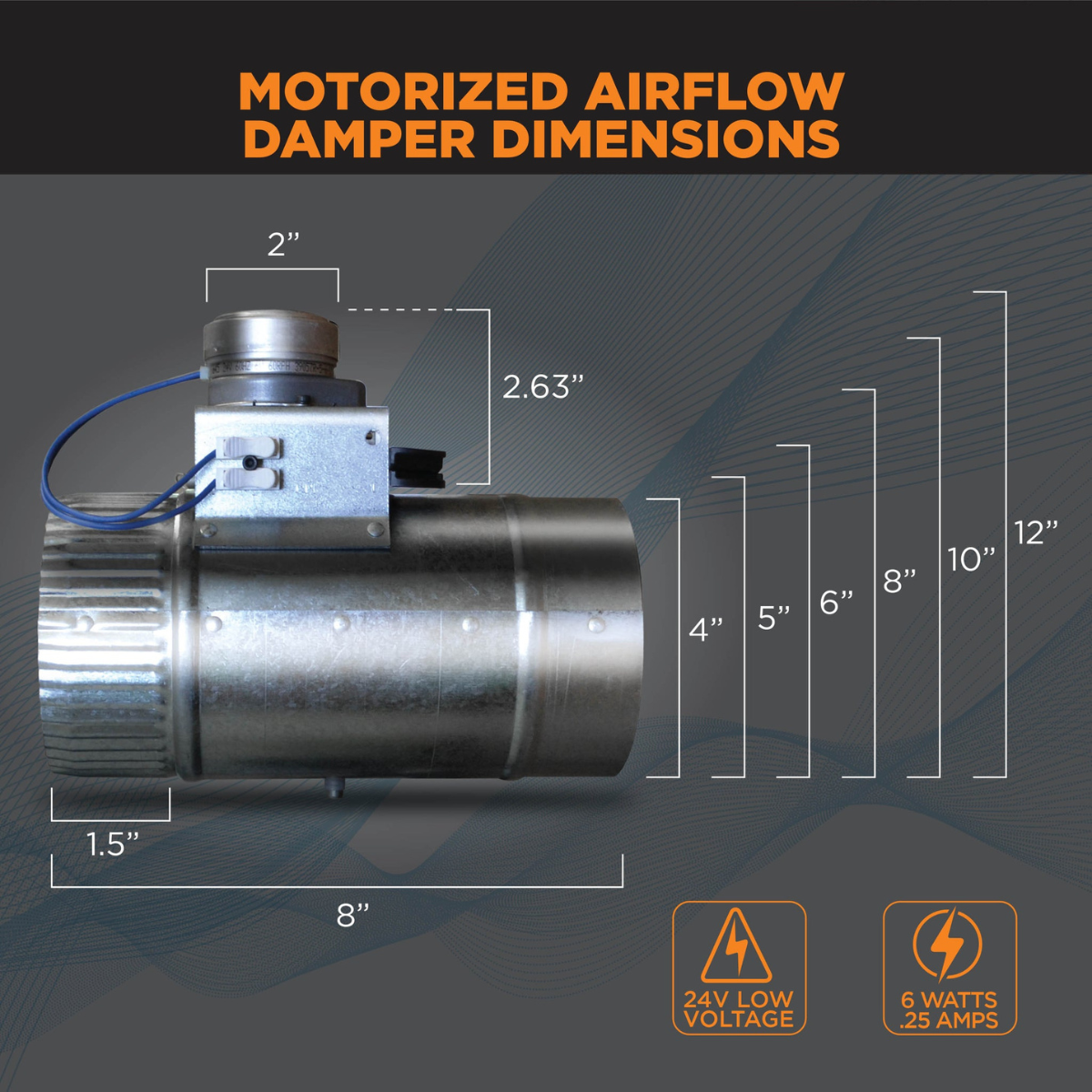

    Dimensions

    • Depth (in.)
      8.0
    • Duct Diameter (in.)
      4" Normally Closed: 4.0
      5" Normally Closed: 5.0
      6" Normally Closed: 6.0
      8" Normally Closed: 8.0
      10" Normally Closed: 10.0
      12" Normally Closed: 12.0
    • Height (in.)
      4" Normally Closed: 7.0
      5" Normally Closed: 8.0
      6" Normally Closed: 9.0
      8" Normally Closed: 11.0
      10" Normally Closed: 13.0
      12" Normally Closed: 15.0
    • Weight (lbs.)
      4" Normally Closed: 1.7
      5" Normally Closed: 1.94
      6" Normally Closed: 2.18
      8" Normally Closed: 3.15
      10" Normally Closed: 3.78
      12" Normally Closed: 4.56
    • Width (in.)
      4" Normally Closed: 4.0
      5" Normally Closed: 5.0
      6" Normally Closed: 6.0
      8" Normally Closed: 8.0
      10" Normally Closed: 10.0
      12" Normally Closed: 12.0

    Warranty

    • Manufacturer's Warranty
      3-Year Limited Warranty
