Suncourt ZoneMaster Adjustable Motorized Dampers
Suncourt ZoneMaster Adjustable Motorized Dampers - 12" Diameter Normally Open Damper is backordered and will ship as soon as it is back in stock.
Save! Shop this product Open-Box & Used
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

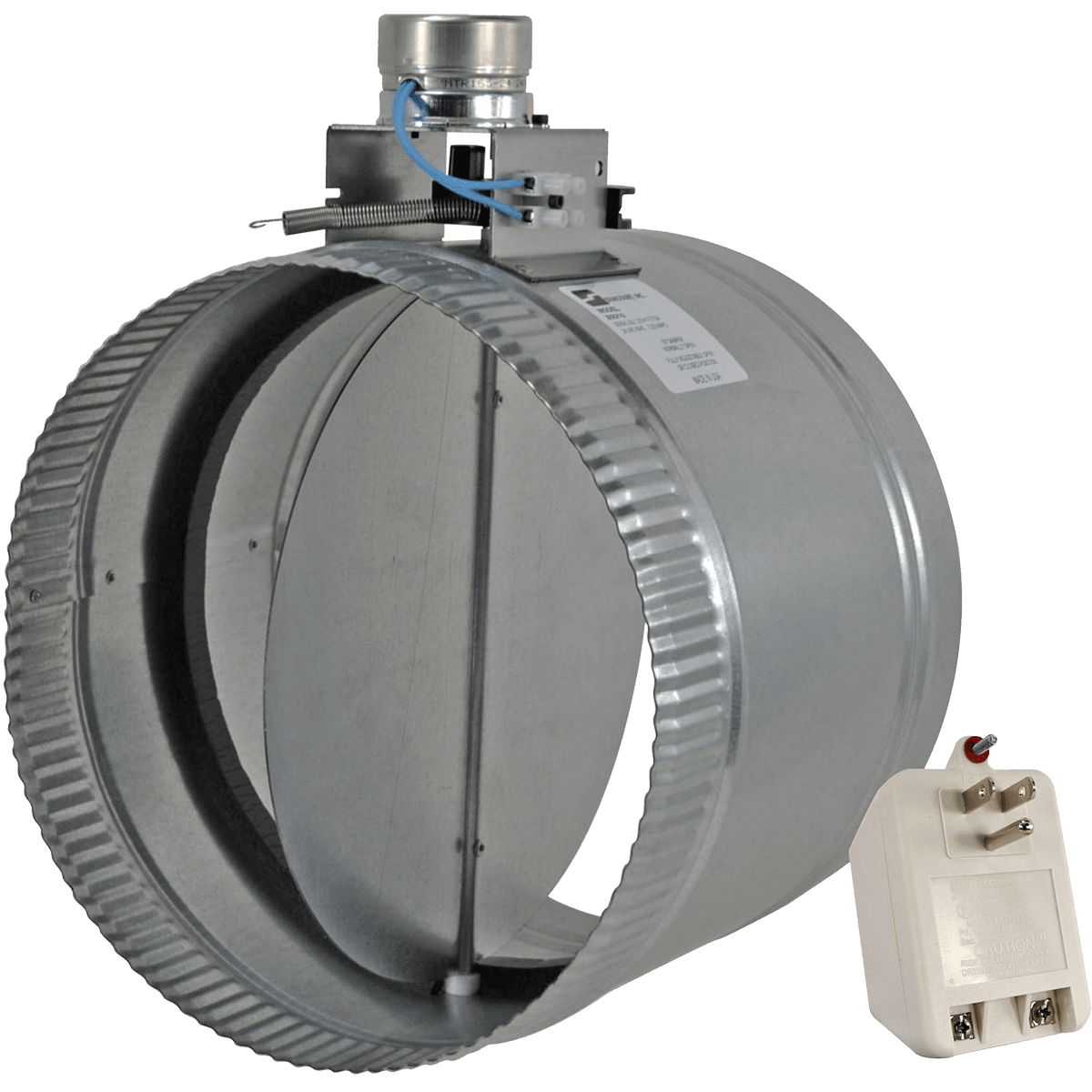

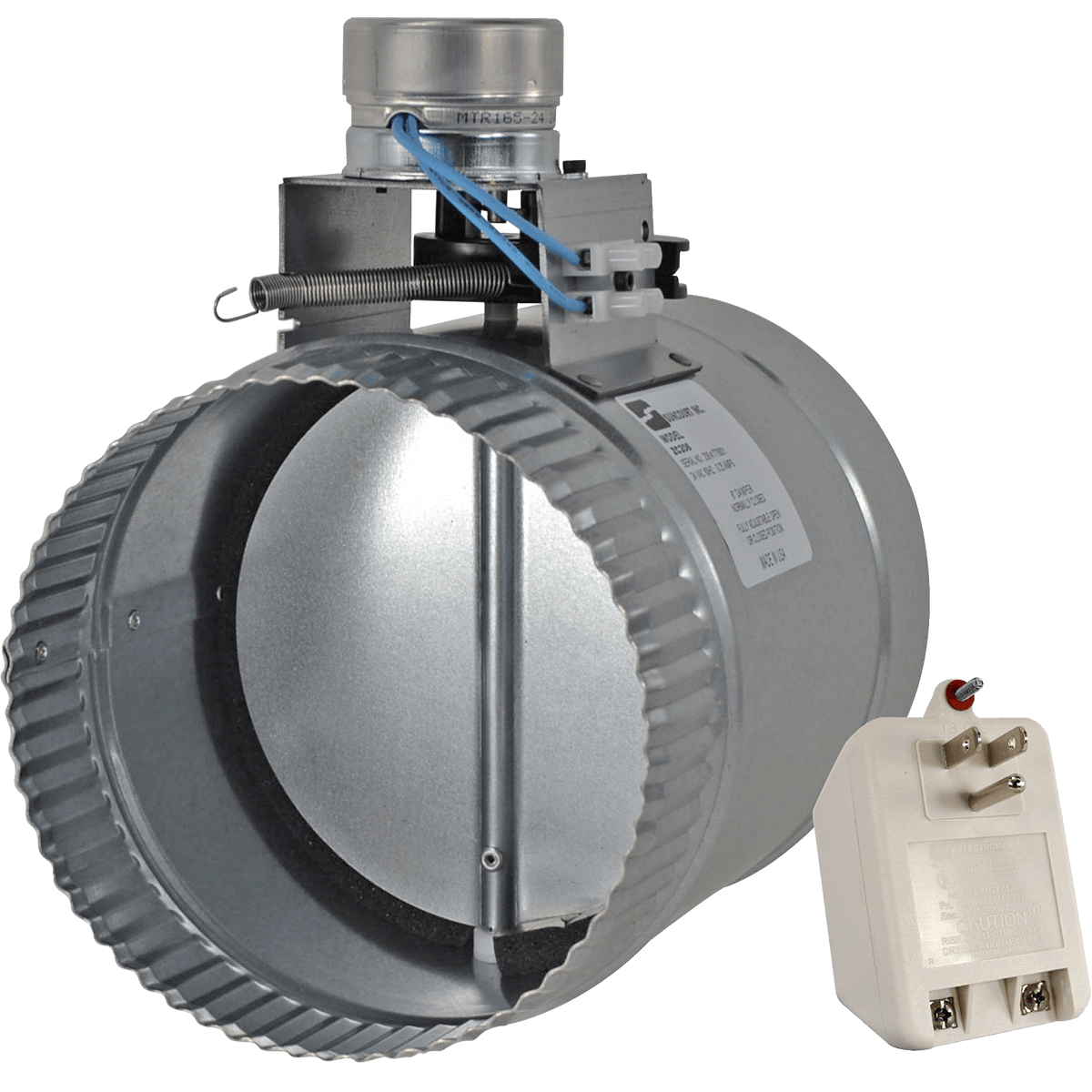

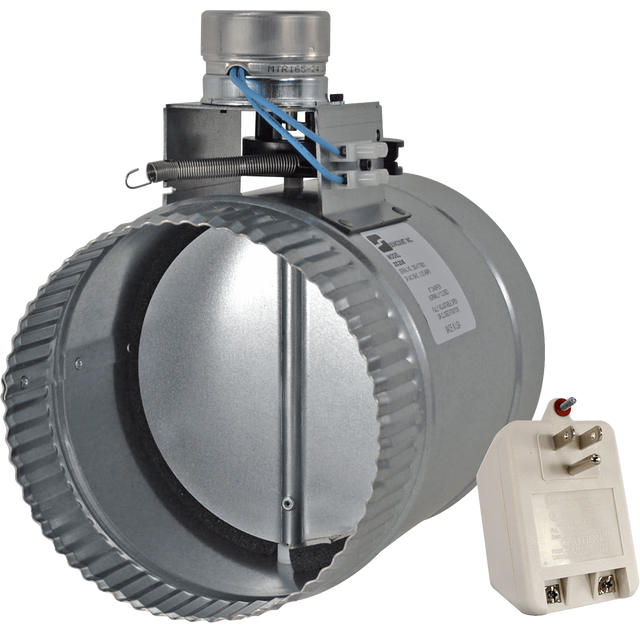

- Suncourt ZoneMaster Adjustable Motorized Damper
- 24V Plug-in Transformer
- Owner's Manual
Info & Guides
Info & Guides

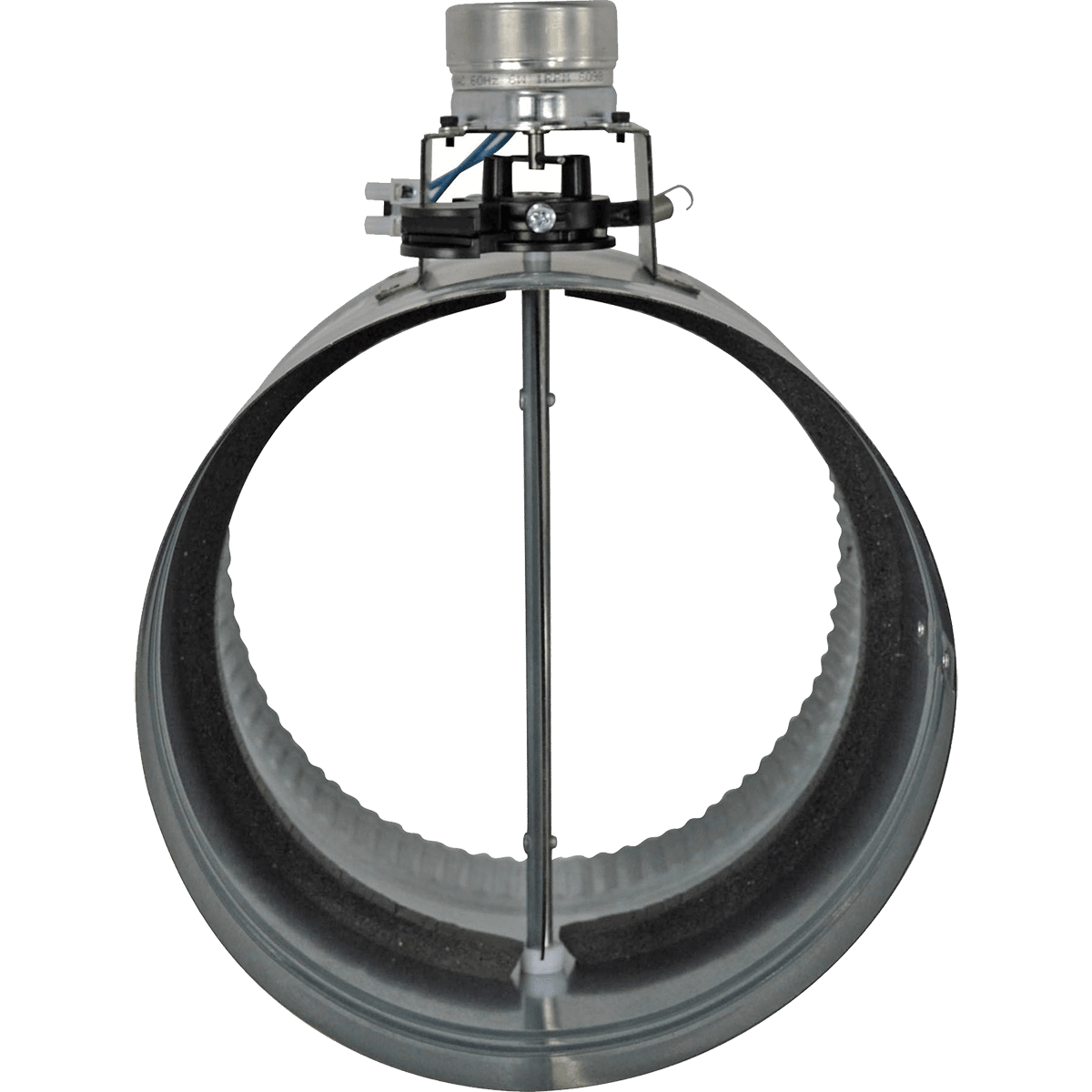

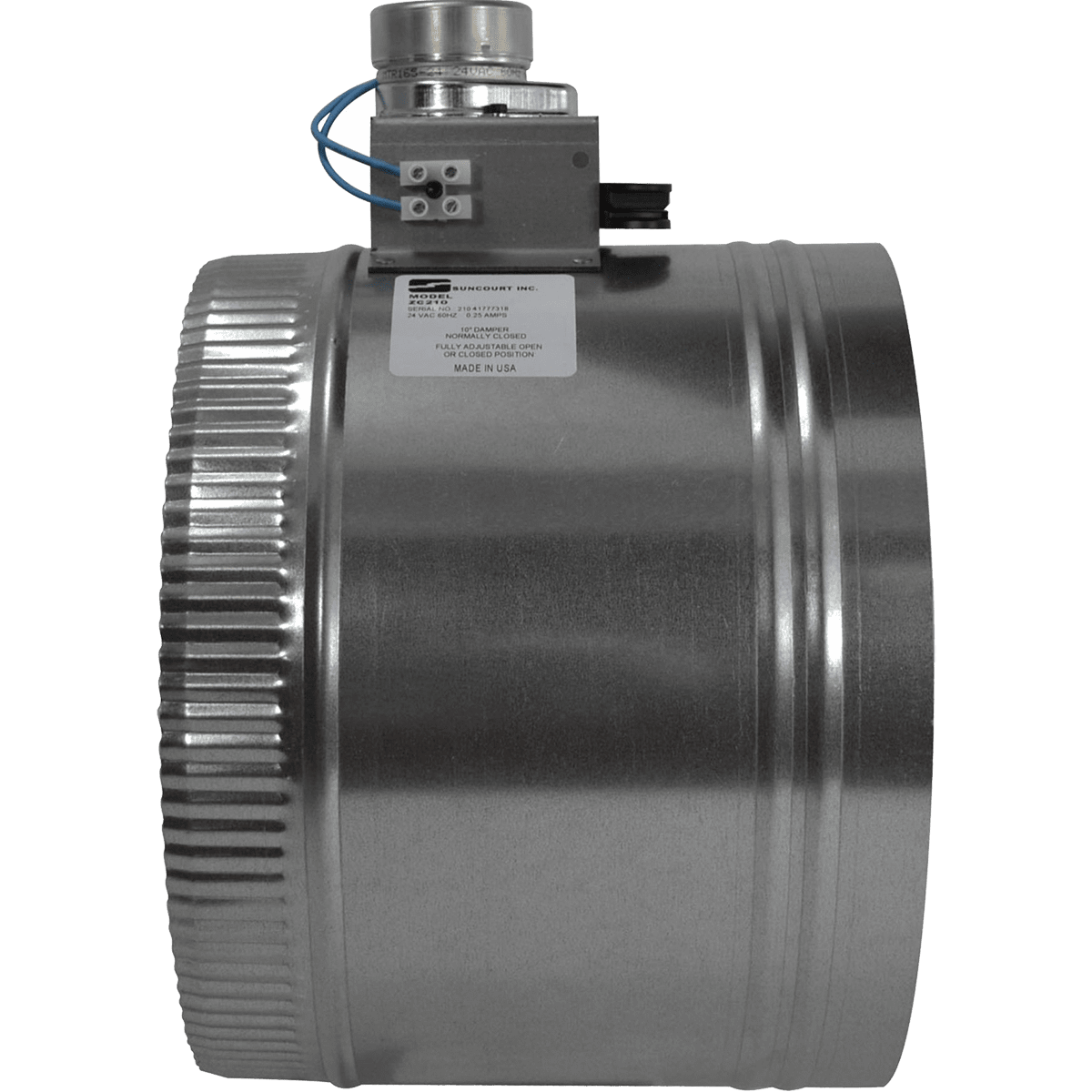

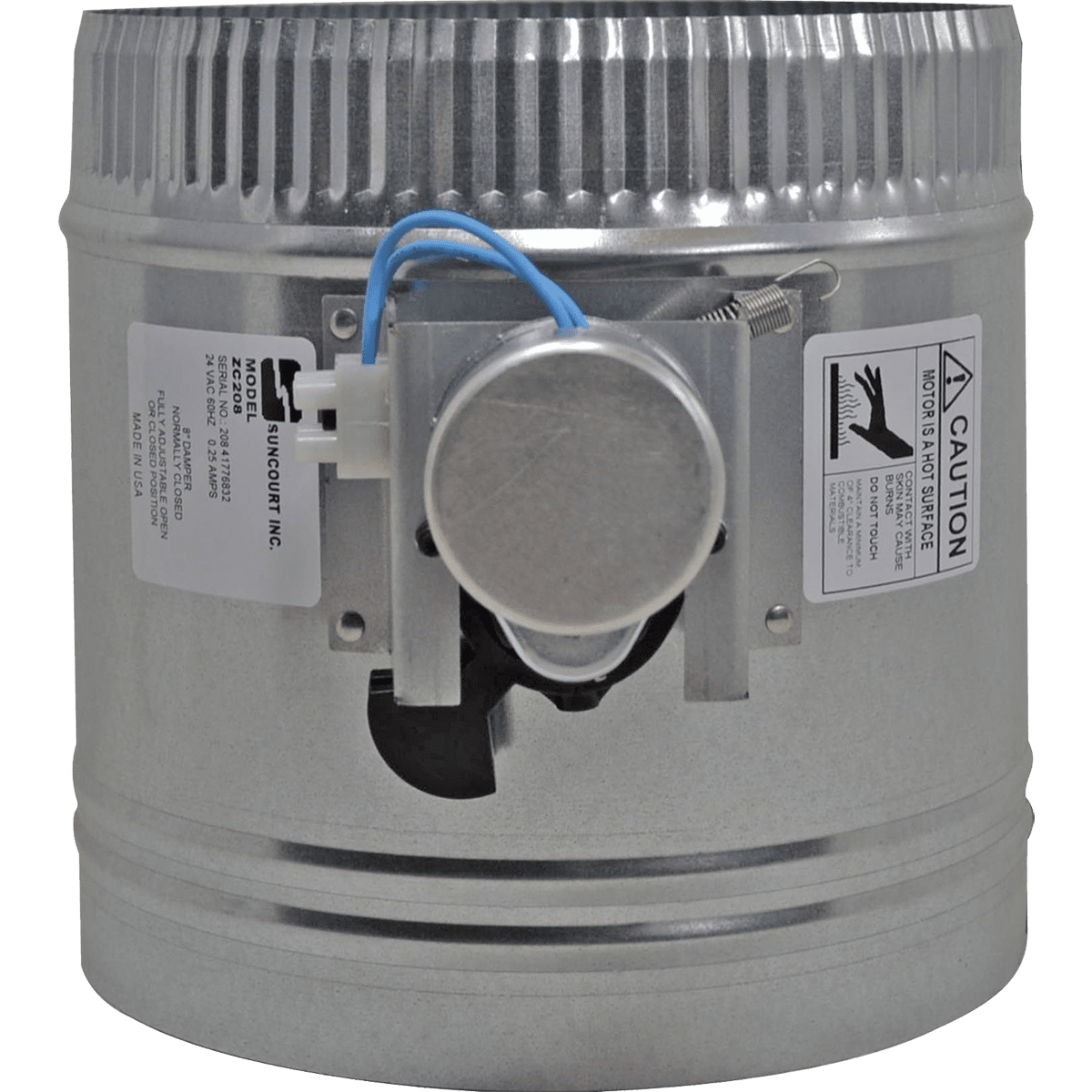

Suncourt ZoneMaster Adjustable Motorized Dampers
Description
Description
Regulate airflow to specific rooms with Suncourt ZoneMaster Adjustable Motorized Dampers. These handy products help you save on cooling and heating costs by controlling temperatures in individual rooms. Available in 6, 8, 10 and 12-inch diameters and normally open and normally closed configurations, this money saver is designed for years of use.
Top Benefits
Sometimes you don’t want to cool rooms you aren’t using or maybe you want to keep a room, like a nursery, a little warmer than the rest of the home. That’s where a damper comes in. You’ll save money and increase comfort by controlling the airflow of your cooling or heating system to specific rooms with these Suncourt Adjustable Dampers.
Key Components
Several key parts and features make Suncourt adjustable motorized dampers a needed feature for adding money-saving capabilities to your home or business.
- Safe Operation: Includes a safe, low voltage stud mount transformer and motor.
- Long Lifespan: A free-wheeling coupling between the motor and the damper shaft extends the unit’s lifespan.
- Housing Length: 8-inch housing length.
Multiple Configurations to Choose From
Suncourt ZoneMaster Dampers are available in multiple configurations so you can choose the option that works best for you. Normally open dampers are great for having a continuous airflow to your room while normally closed models are great for the spaces where you want to limit the flow of air. Available options:
- 6” Diameter Normally Closed Damper
- 6” Diameter Normally Open Damper
- 8” Diameter Normally Closed Damper
- 8” Diameter Normally Open Damper
- 10” Diameter Normally Closed Damper
- 10” Diameter Normally Open Damper
- 12” Diameter Normally Closed Damper
- 12” Diameter Normally Open Damper
Summary
Lower energy costs by only cooling or heating the rooms you need to when you control your room’s temperature with a Suncourt motorized damper.
Things to Consider
To properly install the damper, the following items are required.
- A standard low voltage Heat-Cool wall thermostat, designed for gas furnaces.
- Electrical wire, 2-conductor, 20 Gauge (CL-2 or Bell Wire) to connect the Transformer to the Damper via the wall thermostat. If the total length of wire exceeds 80 feet (25 m), use 18 Gauge wire.
- A cover plate with knockout for the electrical box that the Transformer will be mounted on.
- If you are mounting the Damper between floor joists in flexible duct, you will need two duct supports.

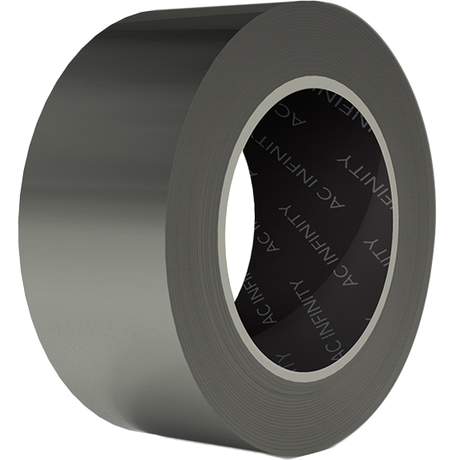

- Aluminum foil duct tape.
Specifications
Specifications
-
TypeDamper
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsElectronic, Manual
-
Housing MaterialGalvanized Steel
-
Amperage (Amps)0.25
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)6
-
Depth (in.)8.0
-
Depth (with front cover) (in.)8.0
-
Duct Diameter (in.)12.012.010.010.08.08.06.06.0
-
Height (in.)14.6314.6312.6312.6310.6310.638.638.63
-
Height (with front cover) (in.)14.6314.6312.6312.6310.6310.638.638.63
-
Weight (lbs.)4.94.94.34.3332.32.3
-
Width (in.)12.012.010.010.08.08.06.06.0
-
Width (with front cover) (in.)12.012.010.010.08.08.06.06.0
-
Manufacturer's Warranty3-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
AC Infinity

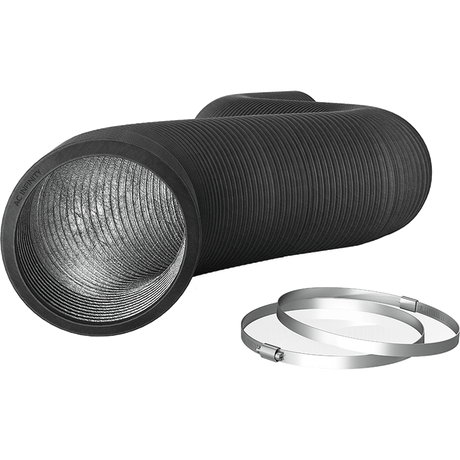

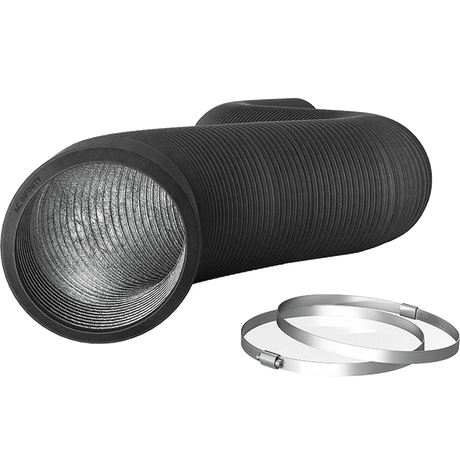

Flexible 10-in. 4-Layer Heavy Duty Aluminum Ducting
From $23.99Unit price /Unavailable -
-
-
- GGaryVerified BuyerReviewingSuncourt ZoneMaster Adjustable Motorized DampersI recommend this productRated 5 out of 5 stars2 years agoI would buy from this company again
My motorized damper was the best price I found and works as it should. Thank you!
- NNathanielVerified BuyerReviewingSuncourt ZoneMaster Adjustable Motorized DampersI recommend this productRated 4 out of 5 stars6 months agoWorks but check the connections.
Works as intended, nice that it includes a transformer, even though I didn't need it. The damper didn't work at first, it appears the (factory) connection from the motor to the connection block was loose - it just uses spring clips. A little wiggle and it started working. A screw terminal block would be preferable though, and I may just replace it with crimped connections or something. #sweepstakes
- CCaraVerified BuyerReviewingSuncourt ZoneMaster Adjustable Motorized DampersI recommend this productRated 4 out of 5 stars5 years agoI would buy this again
Installed and is working great, no issues, item was shipped extremely fast!
- JJeffreyVerified BuyerReviewingSuncourt ZoneMaster Adjustable Motorized DampersI recommend this productRated 5 out of 5 stars5 years agoI recommend these dampers for this purpose
Perfect setup for my Garage. Bought 2 dampers, spliced into spare room duct with y pipe. Tied the power to a remote controlled relay, room is normally open and garage normally closed. Open garage damper and close room damper to work in my garage during hot summers. Added insulation that was missing in the attic and garage door.
