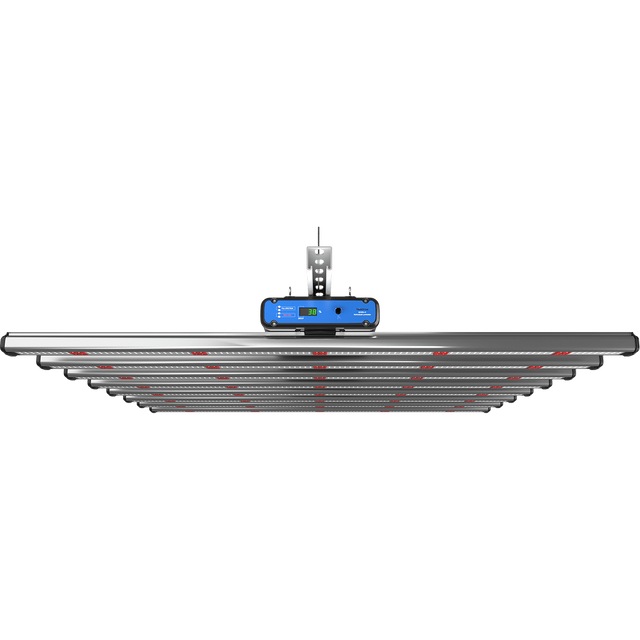

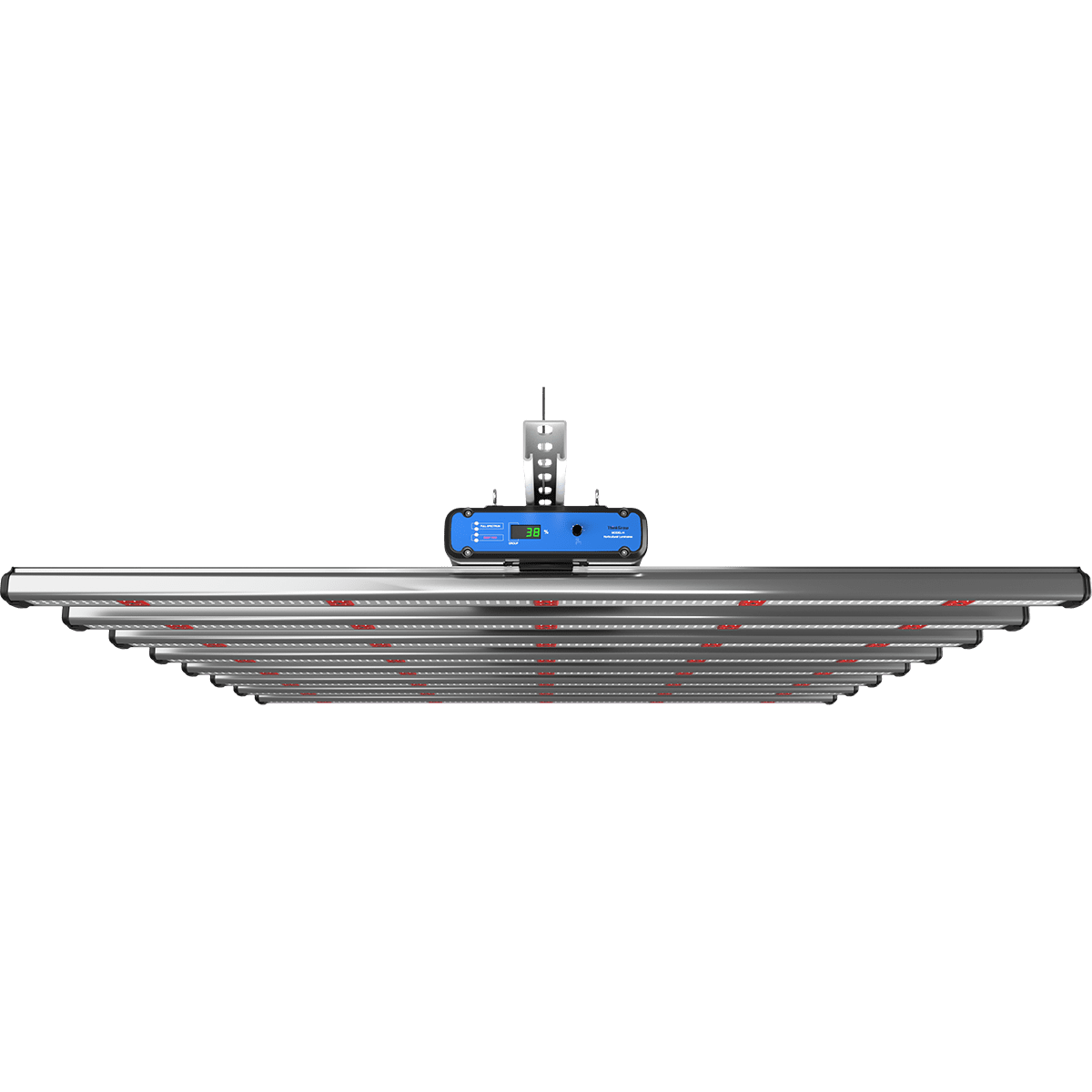

ThinkGrow Model-H Horticulture Full Spectrum LED Grow Light
ThinkGrow Model-H Horticulture Full Spectrum LED Grow Light - Model-H Plus is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- ThinkGrow Model H or Model H-Plus LED Grow Light
- Driver
- 8 LED Light Bars
- 12-ft. 240V Power Cord

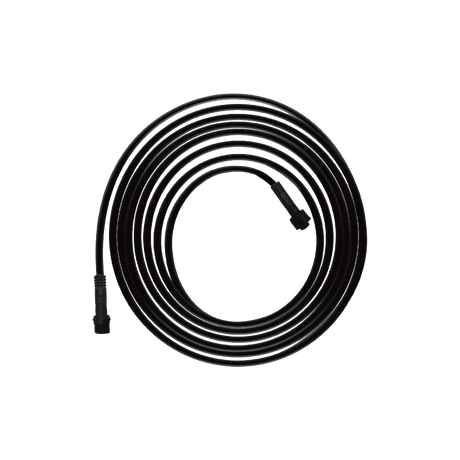

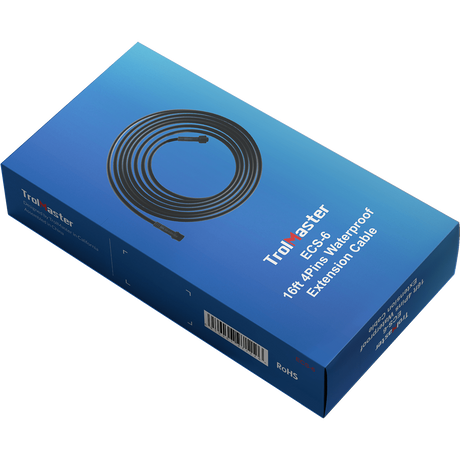

- 16-ft. 4Pins Waterproof Extension Cable
- 2 Driver Hangers
- Owner's Manual
Info & Guides
Info & Guides
ThinkGrow Model-H Horticulture Full Spectrum LED Grow Light
Description
Description
ThinkGrow’s Model H & Model H-Plus LED Grow Light is specifically designed for high PPFD cultivation practices in vertical farming. These full-spectrum LED grow lights feature an adjustable spectrum design for enhanced production at every stage of plant growth.

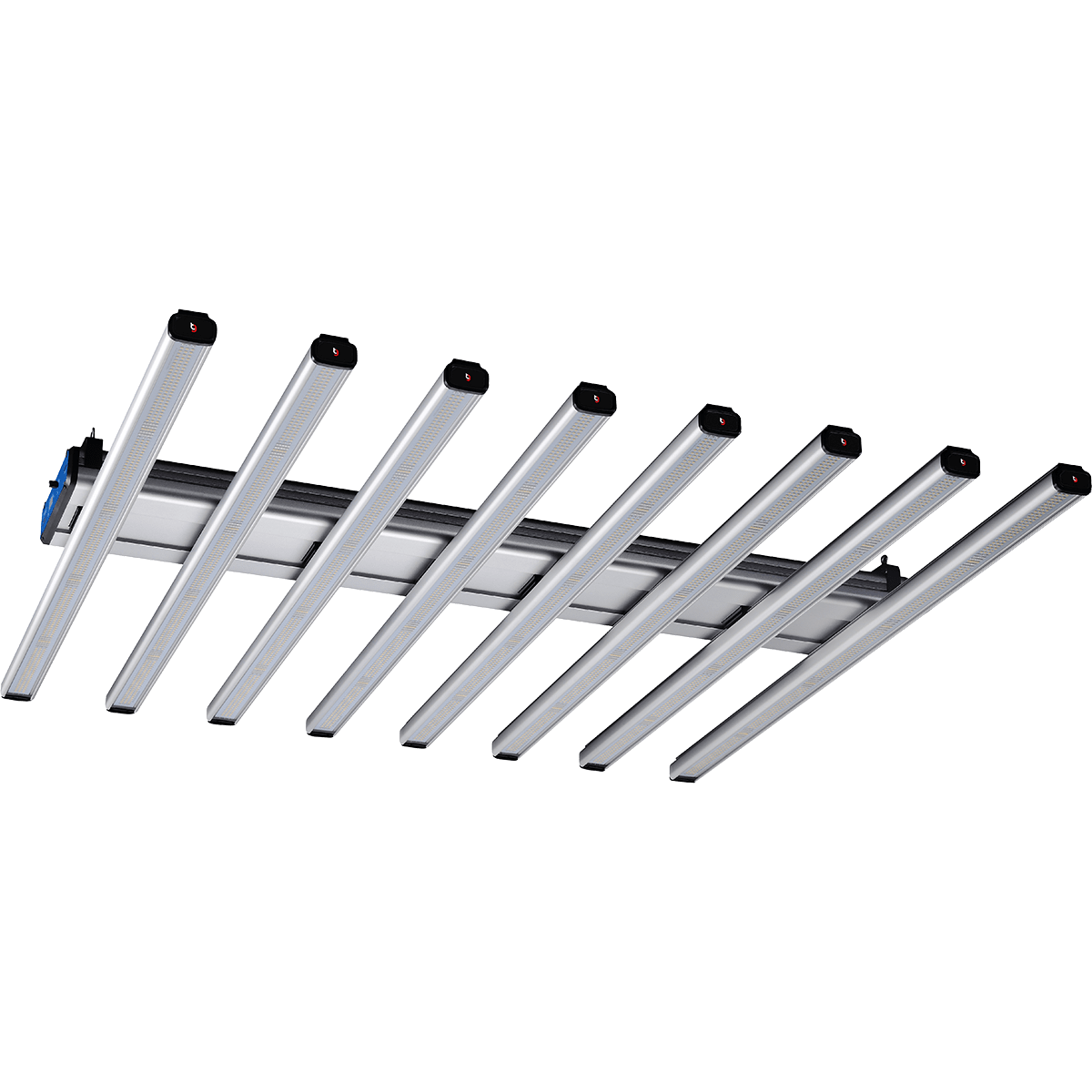

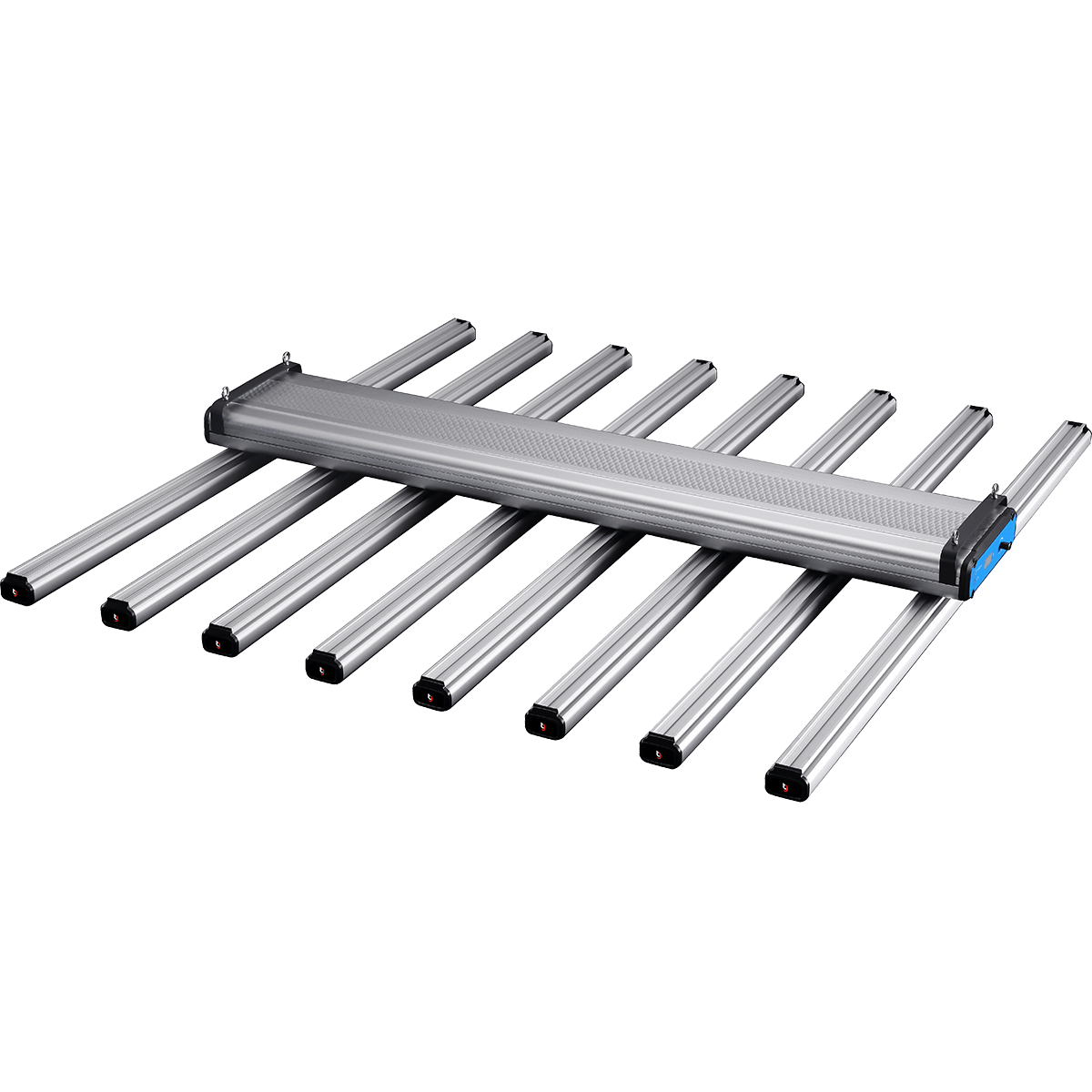

Both models are designed with a single Driver bar cross-connecting 8 LED light bars and includes a 12-foot 240V power cord and 16-foot extension cable.
High Performance
Both ThinkGrow Models are equipped with 8 LED light bars which can be suspended only 6 inches above the canopy, and feature Samsung full-spectrum LEDs which most closely replicate natural sunlight.
- Model H generates a PPF of 1700 and an efficacy rating of 2.7 μmole/J using 630 watts of power.

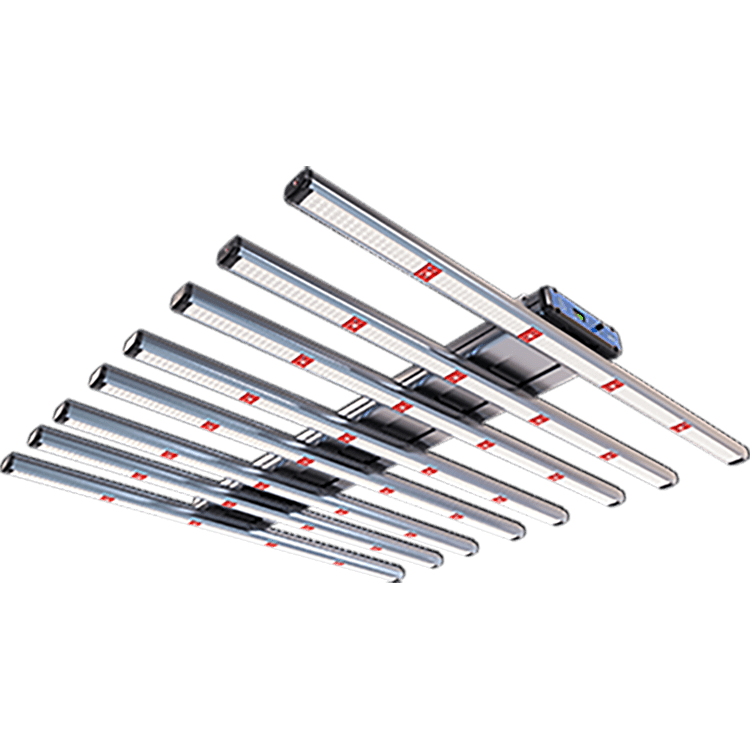

- Model H-Plus is a true 5-foot-wide fixture with 720 watts to power both full-spectrum and Samsung 660nm Deep-red LEDs, creating an 18% increase in PPF of greater than 2016 μmole/s, with 2.8 μmol/J efficacy.

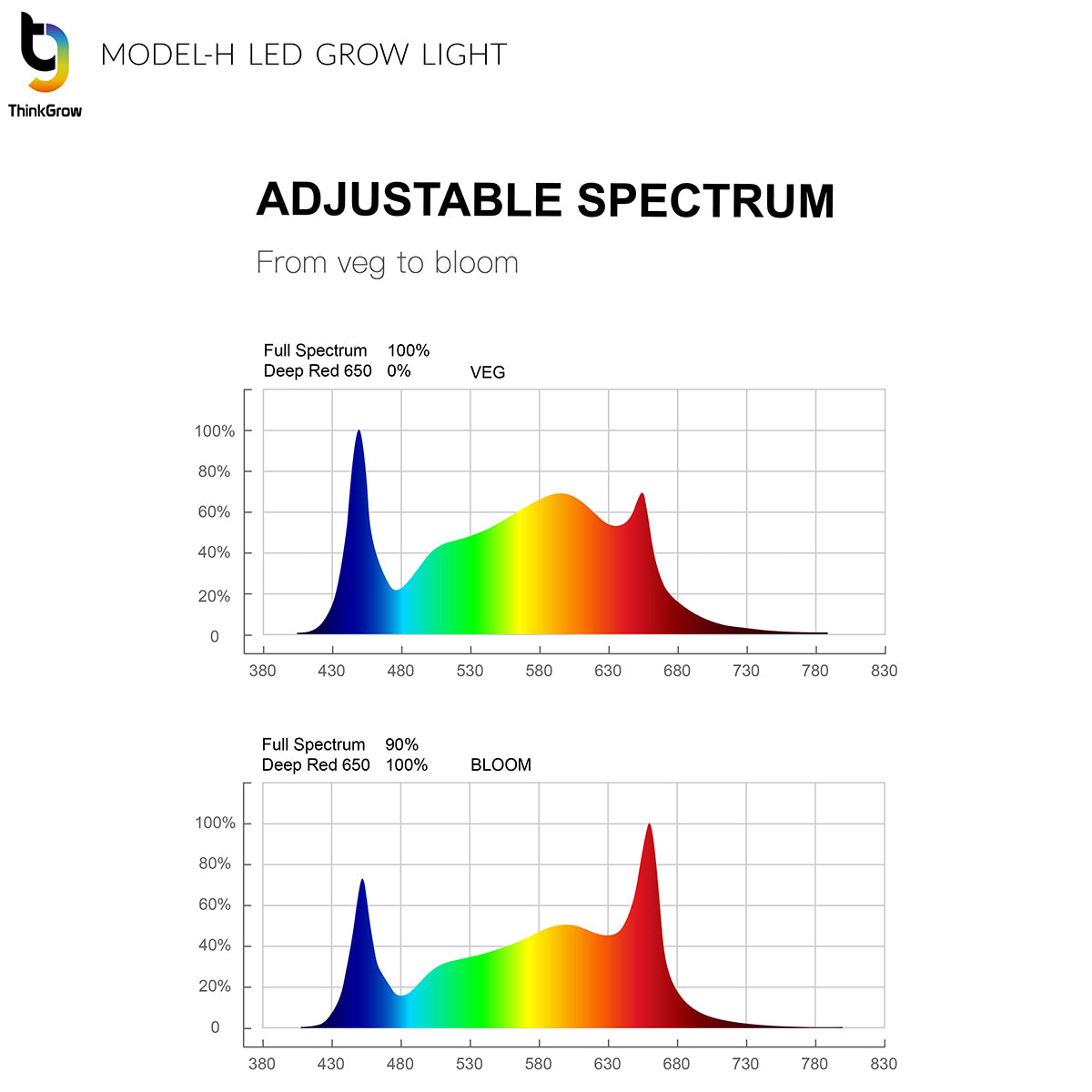

Adjustable Spectrum

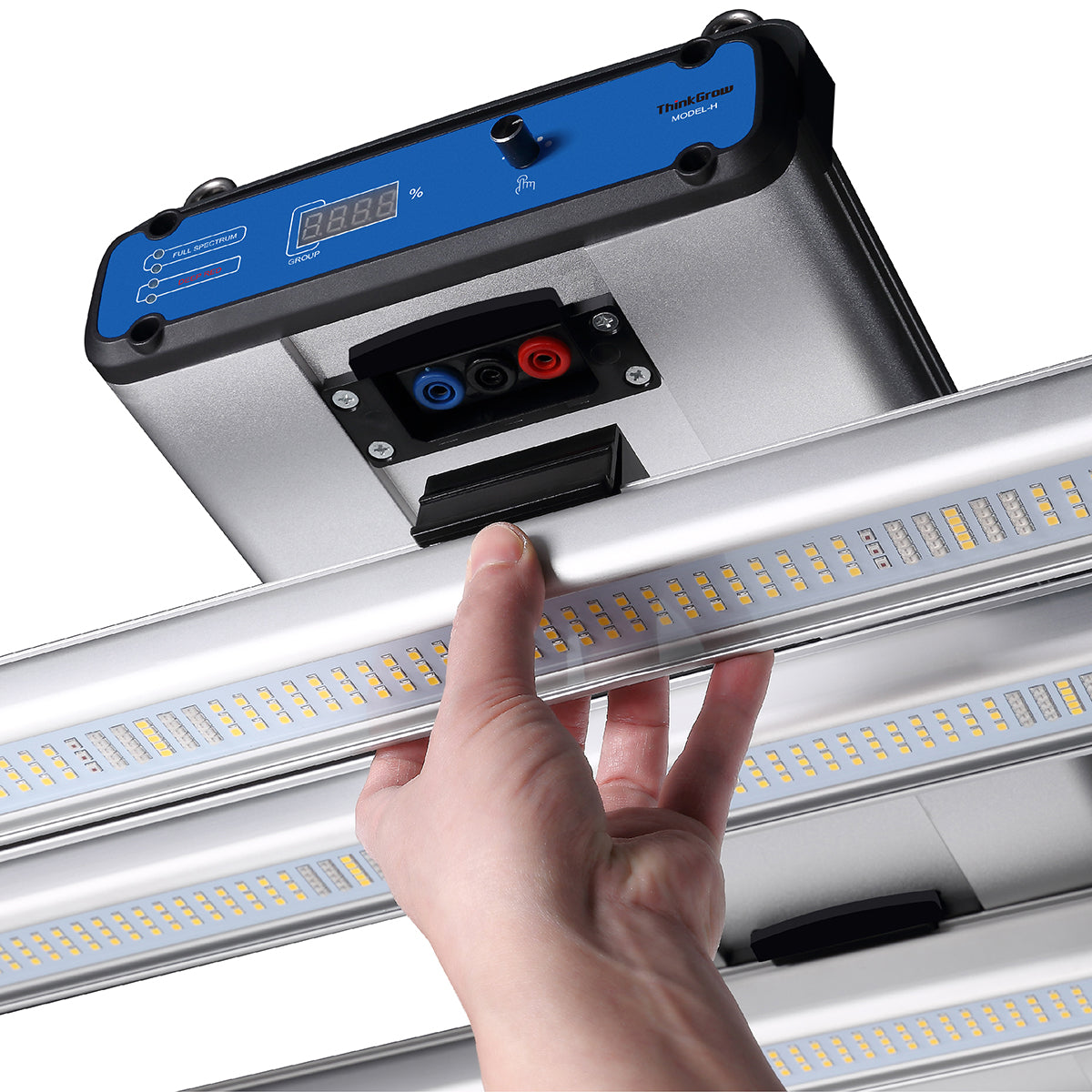

The ThinkGrow Model H & Model H-Plus drivers have on-board dimming with digital display for accurate control of light intensity during different growth stages.

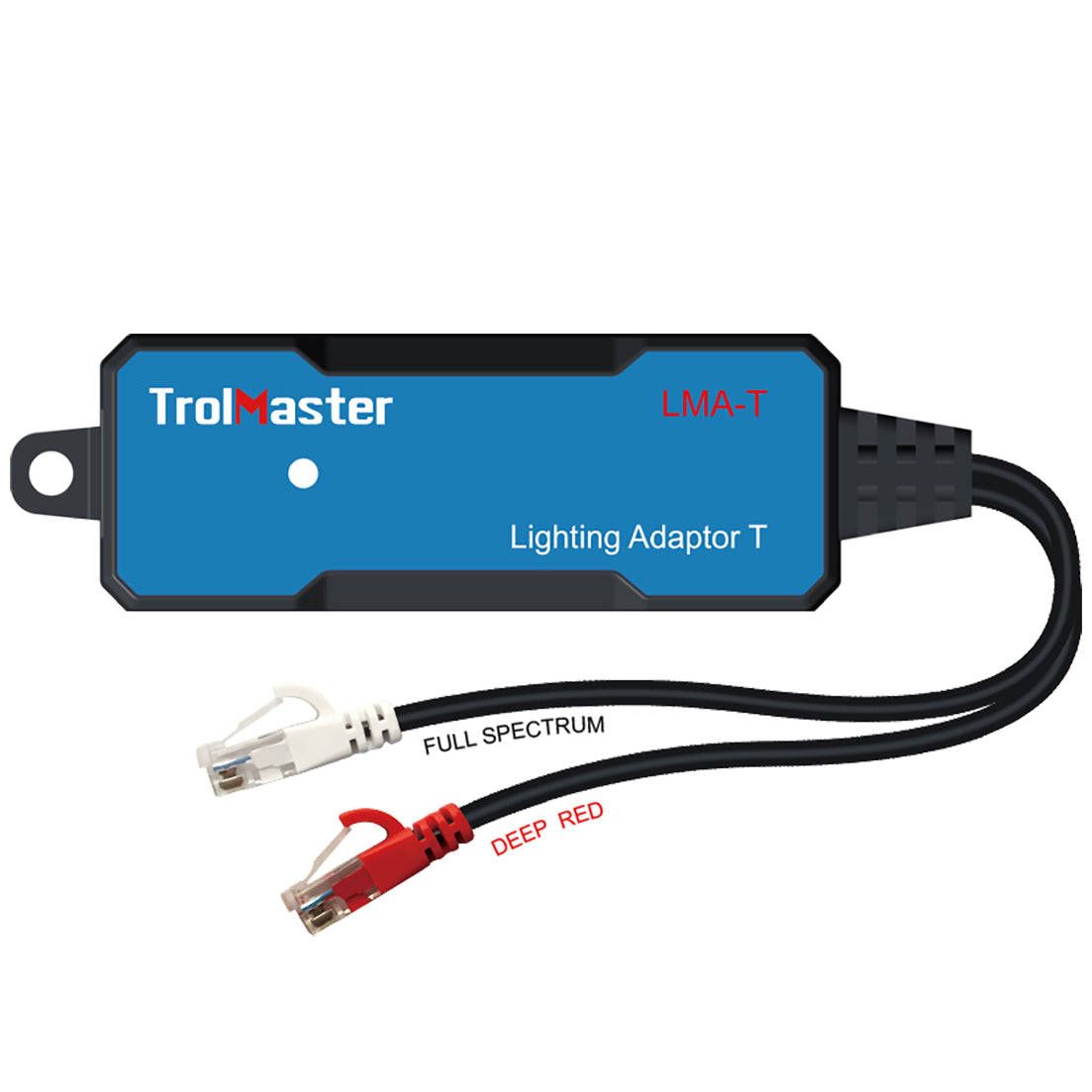

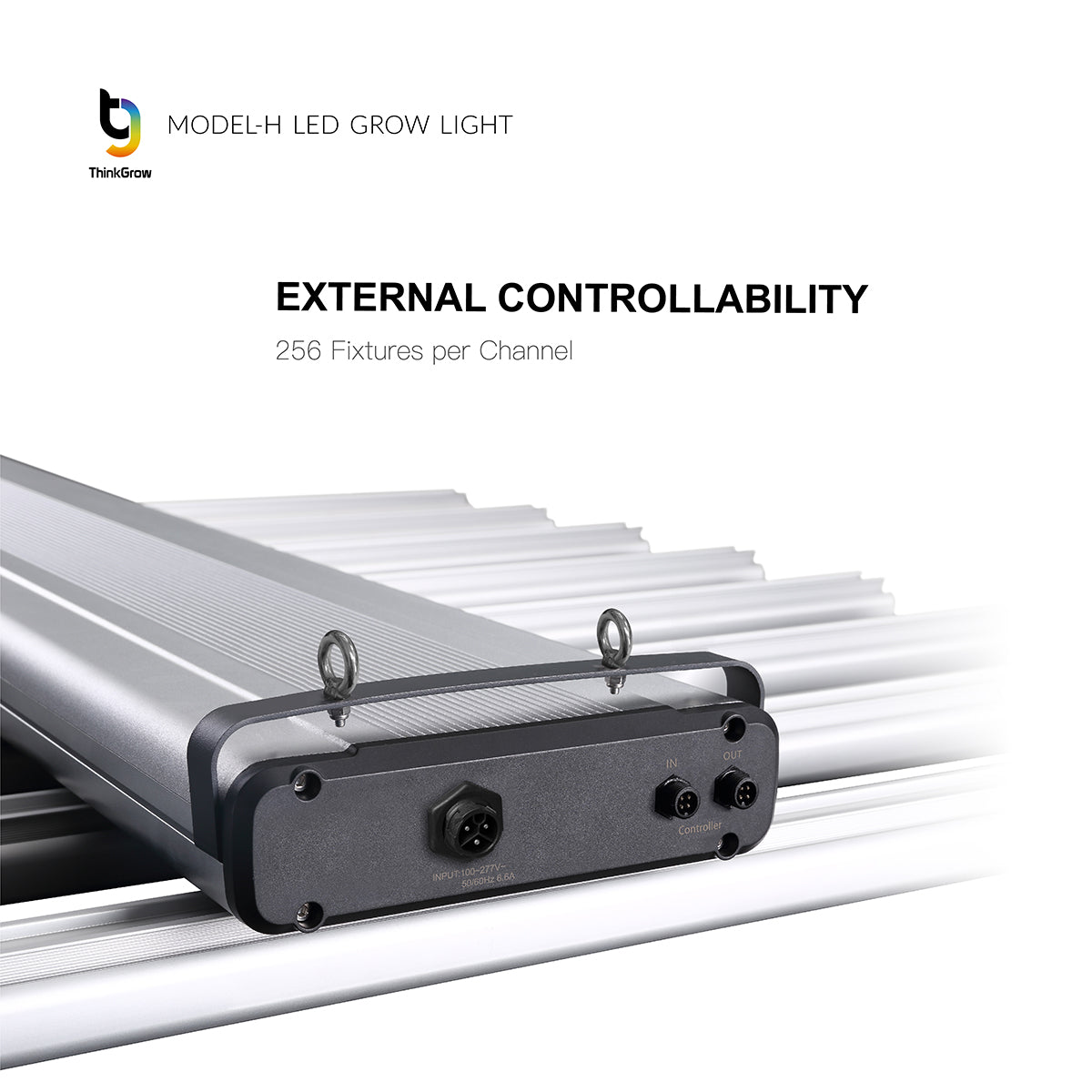

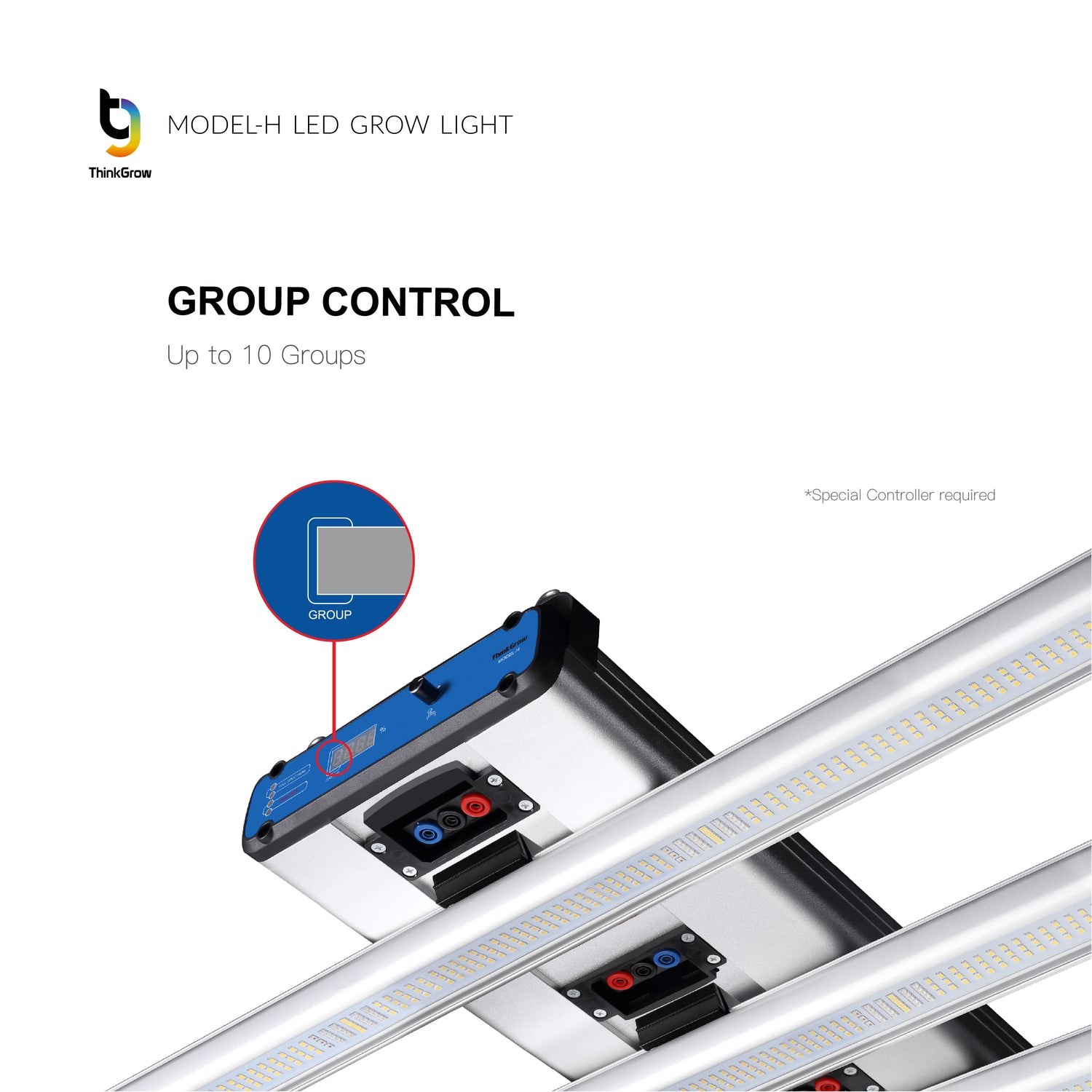

Group up to 10 multi-bar LED lights together and control simultaneously or individually with the TrolMaster Hydro-X Pro controller, or use the LMA-T lighting adapter to control full spectrum and deep red output levels. These adapters are daisy-chainable for up to 256 fixtures.
With the ability to fine-tune the spectrum, growers can experiment with different spectrum “recipes” to get the most produce from their efforts.
Specification Highlights
- Total Output: Model H: 1700 PPF; Model H-Plus: 2016 PPF
- Efficacy: Model H: 2.7 μmole/J; Model H-Plus: 2.8 μmole/J
- Mounting Height: Both Models: 6 inches
- Heat Output: Model H: 2149.65 BTU/H; Model H-Plus: 2456.74 BTU/H
- Ratings: IP56, DLC Hort Listed
- Safety Certifications: ETL, CE
Summary
The ThinkGrow Model H & Model H-Plus LED Grow Light are multi-bar high-efficiency grow lights designed for high PPFD cultivation in vertical farming, with adjustable spectrum capability. Features on-board dimmer.
What Customers Love
- Vertical Farming: Designed for suspension only 6 inches above the plant canopy, this is a highly efficient LED for vertical farmers.
- Controllability: When combined with TrolMaster Hydro-X Pro controller, multiple units can be controlled simultaneously or individually to customize the light spectrum.
Something to Consider
Home Grower: For small home-growing operations, the ThinkGrow Model-I is a single LED light bar for single-level, compact indoor cultivation.
Specifications
Specifications
-
Heat Output (BTUs)2456.742150
-
Total Output (PPF)20161700
-
CertificationsETL, CE
-
Flowering Footprint (ft.)4.5 x 4.5
-
Lighting TypeLED
-
System PPF Efficacy (μmol/joule)2.7
-
Veg Footprint (ft.)4.5 x 4.5
-
Maximum Amperage (Amps)6.235.24
-
Plug Face Type6-15P
-
Power Cord Length (ft.)12
-
Voltage (V)110-120, 220-240, 260-280
-
Watts (W)720630
-
Depth (in.)57.045.0
-
Depth (with front cover) (in.)57.045.0
-
Height (in.)4.446.46
-
Height (with front cover) (in.)4.446.46
-
Weight (lbs.)41.838.8
-
Width (in.)44.6
-
Width (with front cover) (in.)44.6
-
Additional FeaturesFull Spectrum, Dimmable, Applicable for Indoor Growing
-
Manufacturer's Warranty5-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty

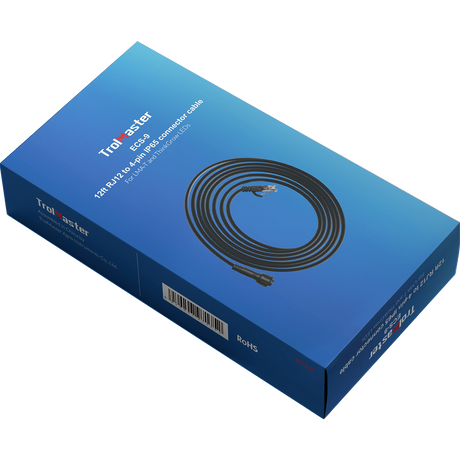

Recommended Accessories
-
Up to 7% off -
Up to 14% off -
33% off -
17% off -
Up to 11% off
- JJustonVerified BuyerReviewingThinkGrow Model-H Horticulture Full Spectrum LED Grow LightI recommend this productRated 5 out of 5 stars3 years agoWonderful dual circuit LED
I have been running the Model-H for a month now in it's testing environment. Power draw and PPFD is accurate. The extra red circuit is wonderful, two months away from harvest and everything is running smoothly. Low heat output compared to a 720 watt LED. Build and knobs are high quality. Setup was fast. The snap one LED rows are tight fitting and hold without any concern of accidental release. Controlled by Trolmaster and interfaces easily and has not had a single problem or failure. So far I am in love with it.
