Tjernlund AUTO-DRAFT Wood & Coal Stove Blower
Tjernlund AUTO-DRAFT Wood & Coal Stove Blower is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

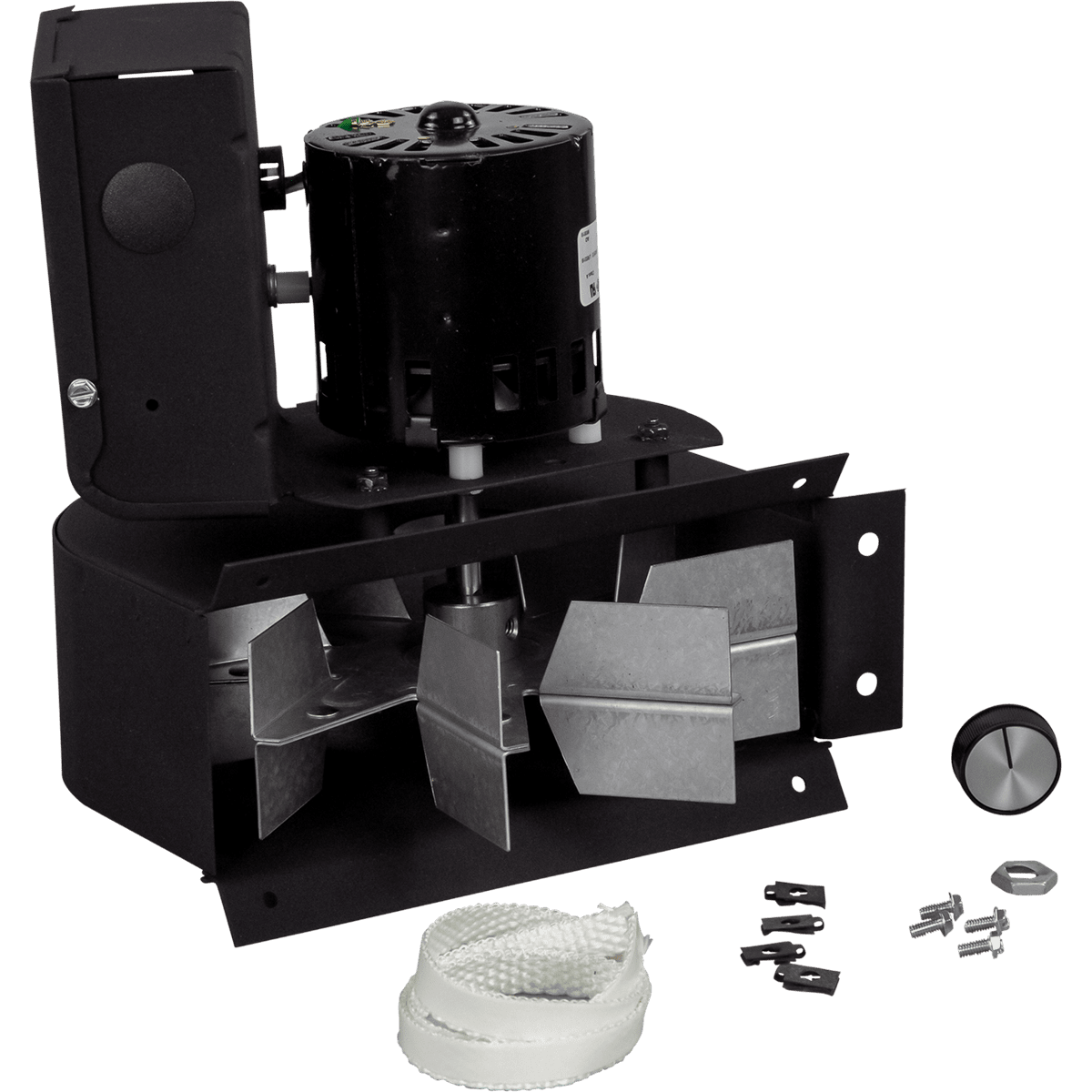

What's In The Box?
What's In The Box?
- Tjernlund AD-1
- Screws (x 4)
- Template
- Speed Control Knob
- White Fiberglass Gasket Seal
- Owner's Manual
Info & Guides
Info & Guides
Tjernlund AUTO-DRAFT Wood & Coal Stove Blower
Description
Description
The hardwired Tjernlund AD-1 makes building and maintaining a fire inside any wood or coal burning stove easier. Adjust fan speed with the variable speed control knob to light and maintain fire flames. Designed for any five to eight-inch diameter pipe, it lights any hard-lighting wood burning or coal stoves with a broad range of fuels without adding height or diameter to the chimney pipe.
With a 15-minute install time, can be hardwired onto any 115-volt AC circuit and the entire motor removes for easy cleaning.
How It Works

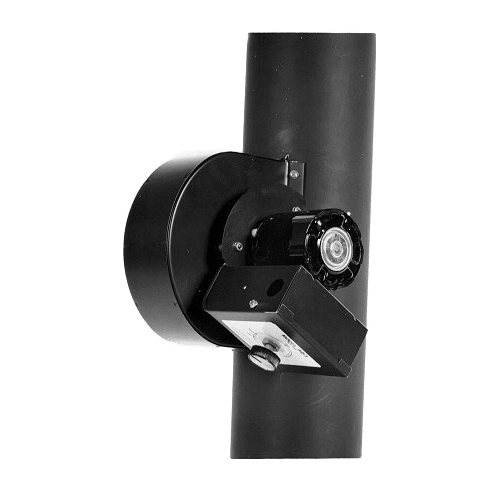

The Tjernlund Stove Blower immediately pulls adequate air supply to help ignite wood burning or coal burning stoves while reducing smoke backdrafts. Mount one to two feet above the stove on the stove pipe using the included 3 1/8 W x 8 5/8 H-inch template and screws.
Switch on the low to high variable speed fan control to generate an automatic draft for lighting hard-starting stoves and a broad range of fuels, including coal and moist wood.
Easy Installation + Construction
For quick installation, the included rectangular template makes it easy to effortlessly mount the blower housing and motor. Other features include:
- Easy Install: Install horizontally, vertically, or on an inclined five to eight-inch diameter pipe in a matter of minutes.
- Heavy-Duty Construction: Flat black, heat-resistant finish, so it won’t destroy the paint finish.
- Minimal Maintenance: Remove once per year to clean and remove soot build-up inside fan wheel and housing.
- Sealed Motor Housing: The sealed motor never needs to be oiled.
Additional Features
- Reduces Backdraft: Eliminate smoke that creeps into the room with the powerful 1,200 – 1,600 RPM fan.
- Limited Amps: The fan motor only pulls one-amp of power.
- Fuel Utilization: Sufficient airflow maximizes coal and wood fuel, reducing to a fine ash.
- ETL-Certification: Designed for safety, this fan carries an ETL-Intertek certification.
Summary
Keep fires going longer with less coal or wood usage with the Tjernlund AUTO-DRAFT Stove Blower.
What Customers Love
- Complete, Longer Burns: This variable speed fan ensures fires won’t snuff out due to lack of draft, resulting in less coal or wood use.
Things to Consider
- Fire Starters + Resinous Wood: Not intended for use with resinous woods. Artificial logs or paper log rolls should be used one at a time to prevent large volumes of smoke.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)1.4
-
TypeFireplace & Stove Blowers
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorBlack
-
ControlsManual
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)75.0
-
Amperage (Amps)1
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)35
-
Depth (in.)7.0
-
Depth (with front cover) (in.)7.0
-
Duct Diameter (in.)8.0
-
Height (in.)9.5
-
Height (with front cover) (in.)9.5
-
Weight (lbs.)9
-
Width (in.)9.0
-
Width (with front cover) (in.)9.0
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- JJerryVerified BuyerReviewingTjernlund AUTO-DRAFT Wood & Coal Stove BlowerI recommend this productRated 5 out of 5 stars5 years agoYes I would buy it again
It works great. Us to smoke come back in house. It stopped it and make it a lot easier to start a fire.
