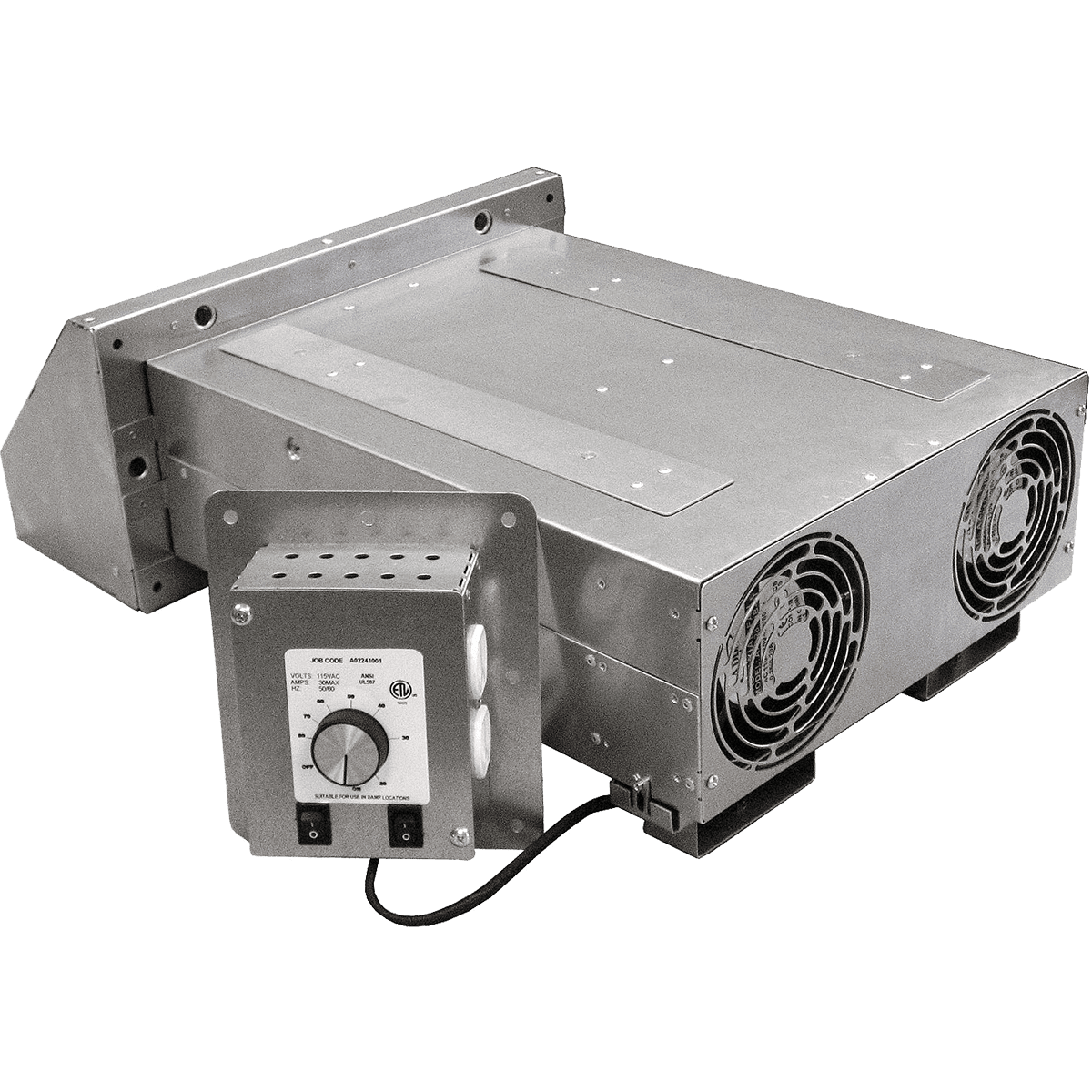

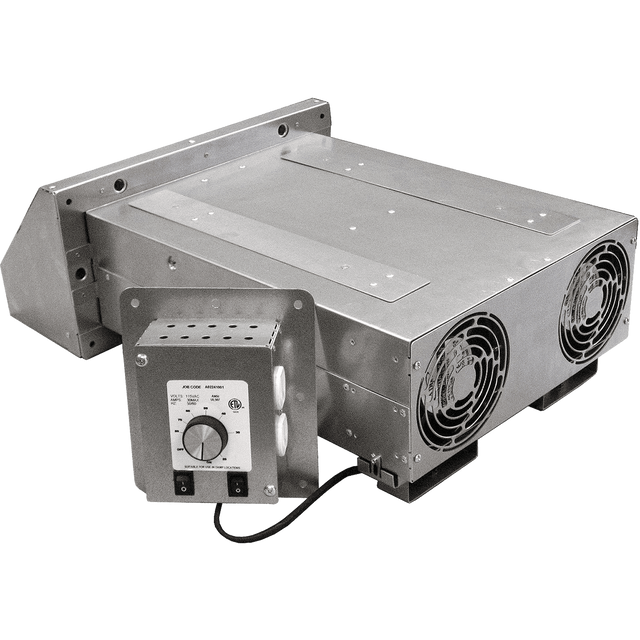

Tjernlund XchangeR X2D Reversible Basement Fan
Tjernlund XchangeR X2D Reversible Basement Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Tjernlund X2D Fan
- Wall Controller
- Magnetic Drafts to Change AirFlow
- External Hood
- Owner's Manual
Info & Guides
Info & Guides
Tjernlund XchangeR X2D Reversible Basement Fan
Description
Description
Basements with damp, musty air are common because of seasonal water issues and lack of air exchange or ventilation. The Tjernlund X2D is an XCHANGER basement fan is an affordable way to ventilate your basement to keep humidity and other issues at bay.
Two fans are on each model and can be set to supply fresh air into your basement or exhaust musty air out of it. The fans each offer up to 90 CFM of for a total of 180 CFM of ventilation power.
Common Uses
- Exhaust musty air or air contaminated by wood off-gassing or radon
- Supply fresh air in tight homes
- Create a balanced fresh air exchange
- Ventilate hot garages, storage areas and workshops
Installation
Unlike many ventilation fans, you can install this model yourself easily through a 12.25 x 5.25 inch vent opening to the outside in your basement. The wall-mount controller is included, along with mounting materials, and then simply plug the controller into a standard 120-volt outlet.
How Tjernlund XCHANGER X2D Works
A control box connects to the two fans and easily attaches to your wall. Then you can set the direction of each fan to supply or exhaust. Both fans can be set to one direction (in or out) or opposite directions. Once you’re setup, choose a humidity level for your basement on the dehumidistat, and the ventilator will kick on when the humidity is higher than your set humidity. You can also turn the control knob all the way to the right for continuous operation.
Simultaneously bring in fresh air and exhaust musty air by reversing one of the exhaust fan’s operating direction. This form of operation tends to yield the best results for our customers.
If you need to duct fresh air to another room, you can add 6-inch ducts and drive air to another location or adjoining room.
Additional Features
- Galvanized Steel Construction: This ventilation fan will stand up to the test of time in any tough basement conditions.
- Made in America: This product is proudly made in America.
- Built-in Thermostat: The fan only starts operating when its thermostat hits 40 degrees F.
Summary
Avoid mold issues and other problems associated with damp basements by adding an inexpensive Tjernlund X2D reversible basement fan.
What Customers Love
- Reversible Design: Whether you want to exhaust moist air, bring in fresh air or both, you can easily set each fan to work independently to operate as you’d like.
- Onboard Dehumidistat: Set your dehumidistat from 20 to 80%, and this fan will only run when it’s needed.
- Made in America: This model is proudly made in America and backed with a one-year warranty.
Things to Consider
- Installation Instructions: Follow the included installation instructions for the interior fans and exterior hood when installing this product.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.0
-
ApplicationBasement, Crawlspace
-
California Residents⚠ WARNING: This product can expose you to some chemicals, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)180.0
-
Amperage (Amps).6
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)40
-
Ceiling or Wall Cutout Length (in.)16.25
-
Ceiling or Wall Cutout Width (in.)12
-
Depth (in.)22.0
-
Depth (with front cover) (in.)22.0
-
Height (in.)4.875
-
Height (with front cover) (in.)4.875
-
Weight (lbs.)18
-
Width (in.)14.25
-
Width (with front cover) (in.)14.25
-
Additional FeaturesHumidity Sensor
-
Manufacturer's Warranty1-Year Warranty
