TPI 24-In. 1/4 HP Unassembled Standard Industrial Fan
Description
Description
These 24-inch Standard Industrial Fans from TPI are unassembled, shipped as packaged kits which include the motor, blade, guards, and your choice of either a pedestal mount or a wall mount.
ACU24 model fans feature steel construction with silver/gray powder coated grill and mount, with a steel motor housing painted in black.
Select Mounting Style
TPI ACU24 unassembled fans give you a choice of either a pedestal stand mount or a wall mount assembly.

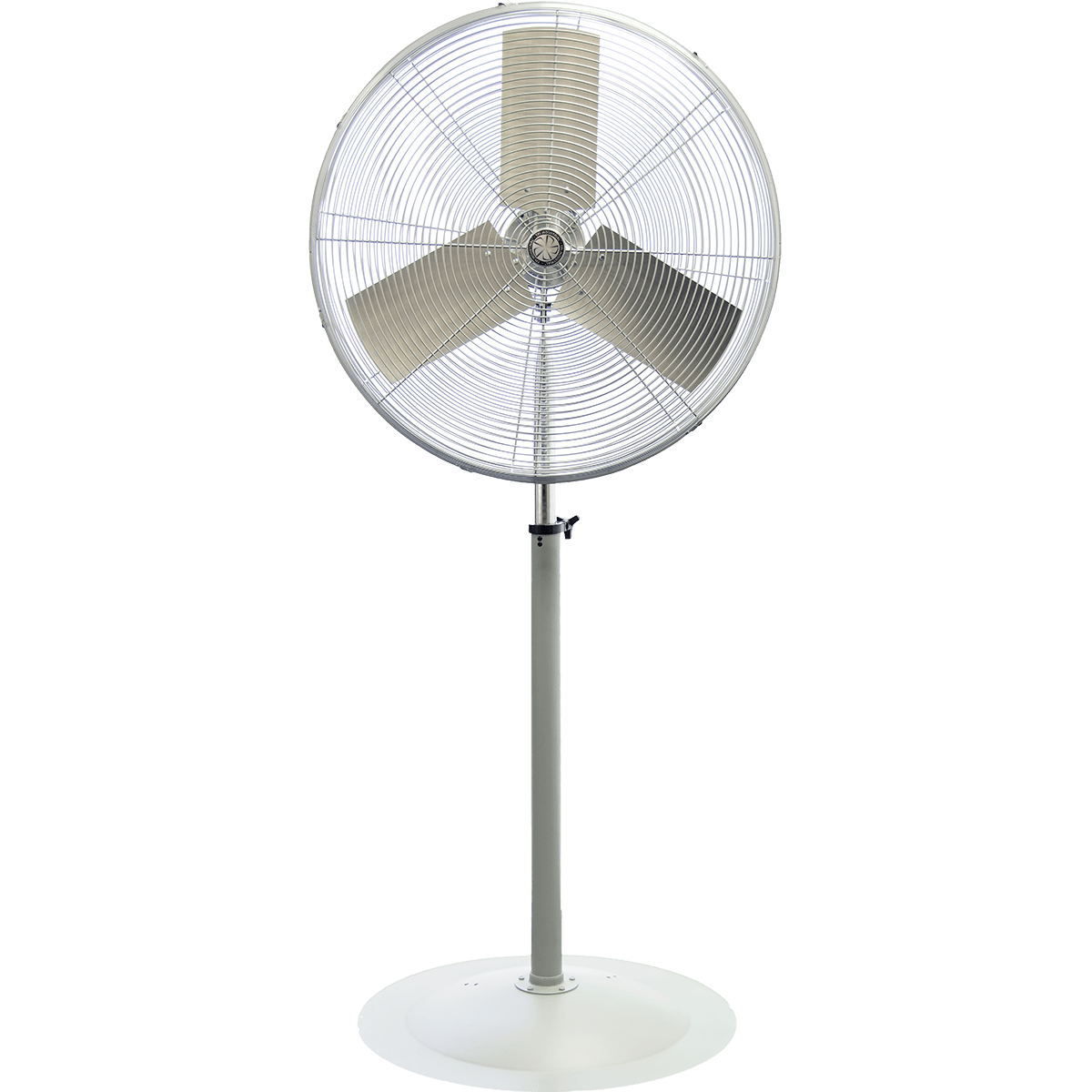

- Stand/Pedestal: Pole bolts to the 27-inch diameter steel dome with 5 bolts and adjusts the center of the fan head from 48 inches to 67 inches tall.

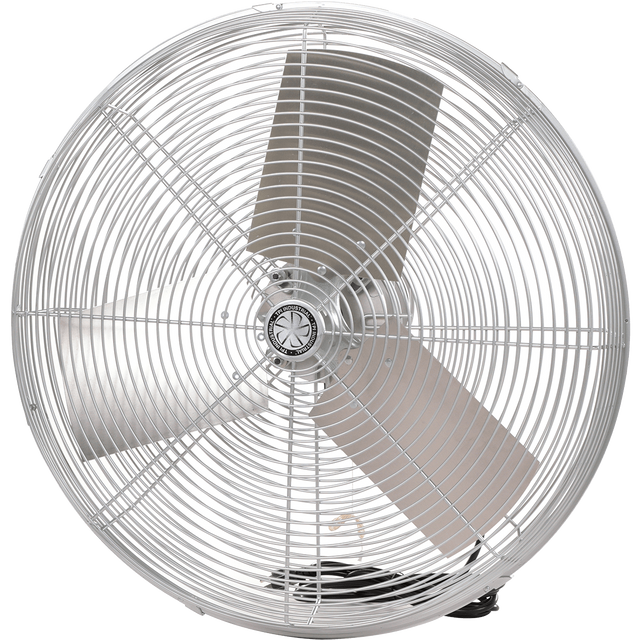

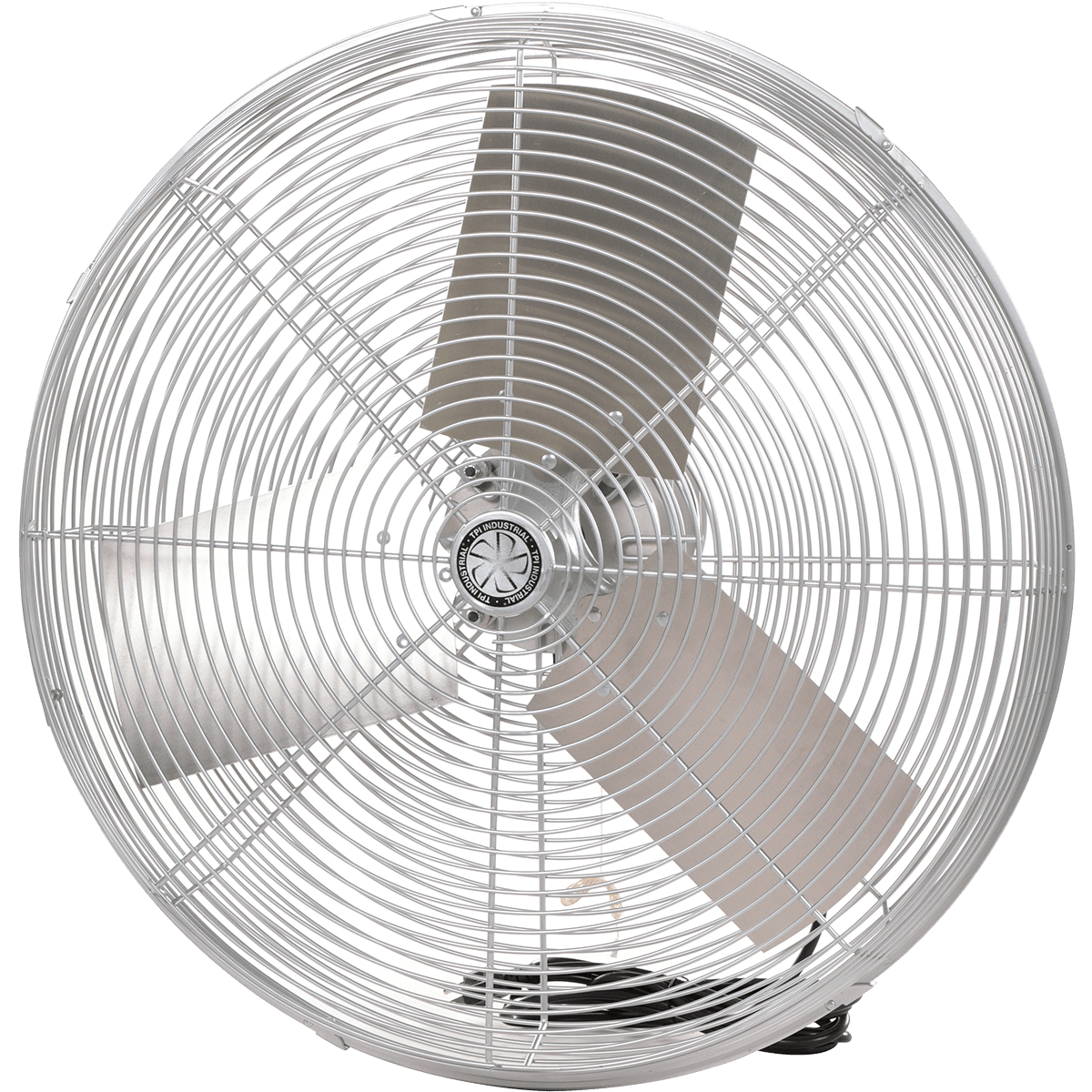

- Wall Mount: Steel wall mount attaches to the wall with 5 bolts and to the fan on the extension at the bottom of the motor housing.
These fans are equipped with an aluminum 3-paddle blade system with steel hub and cast aluminum spider connections. Their self-locking retaining clips secure the front and rear grills, meeting OSHA safety requirements.
Reliable, Low-Maintenance Motor
The ¼ HP motor is designed and constructed for reliable operation with little maintenance. Both ACU24 fans use a pull chain switch to power on/off the fan and select fan speed.
- Direct drive, 120V, single phase, 2-speed
- Totally Enclosed Air Over (TEAO)
- Ball Bearing
- Permanently Lubricated
- Permanent Split Capacitor
- ½-inch Shaft
Additional Features
- Made in the USA: These TPI industrial circulators are made in the US with domestic and foreign components
- Power Cord: SJT-Type 12-foot power cord with grounded plug.
- Safety Certifications: ETL CUS certified, meets OSHA safety standards.
- Unassembled: The TPI ACU24 fans are unassembled and come as a kit with a choice of mounting option.
Summary
The TPI ACU24 Industrial Unassembled Circulators have a 24-inch fan diameter, a direct drive TEAO ¼ HP motor, steel construction and choice of either pedestal mount or wall mount assembly. Made in the USA with domestic and foreign components.
Specifications
Specifications
-
Number of Speeds2
-
TypeWall-MountableStand/Pedestal
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorGray
-
ControlsToggle Switch
-
Indoor/OutdoorIndoor
-
Maximum Cubic Feet per Minute (CFM) (CFM)3800.0
-
Maximum Amperage (Amps)2.5
-
Power Cord Length (ft.)12
-
Power SupplyPlug
-
Voltage (V)110-120
-
Depth (in.)14.5
-
Depth (with front cover) (in.)14.5
-
Weight (lbs.)4575
-
Additional FeaturesWall-Mountable
-
Manufacturer's Warranty1-Year Warranty
