TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
- Owner's Manual

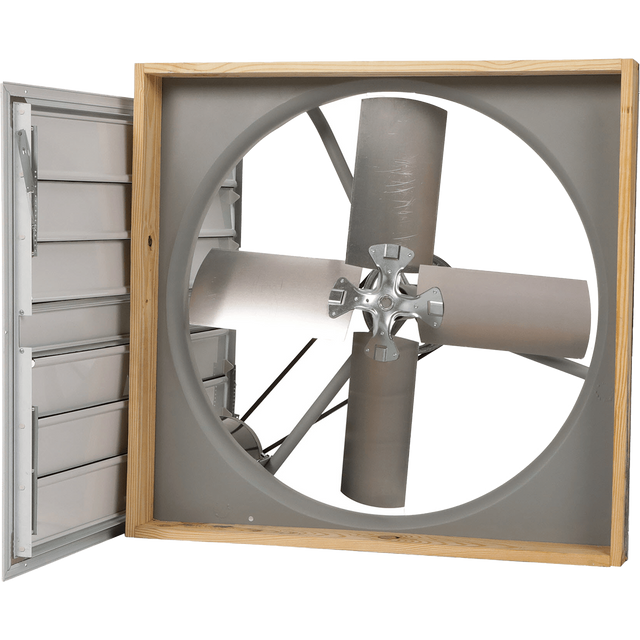

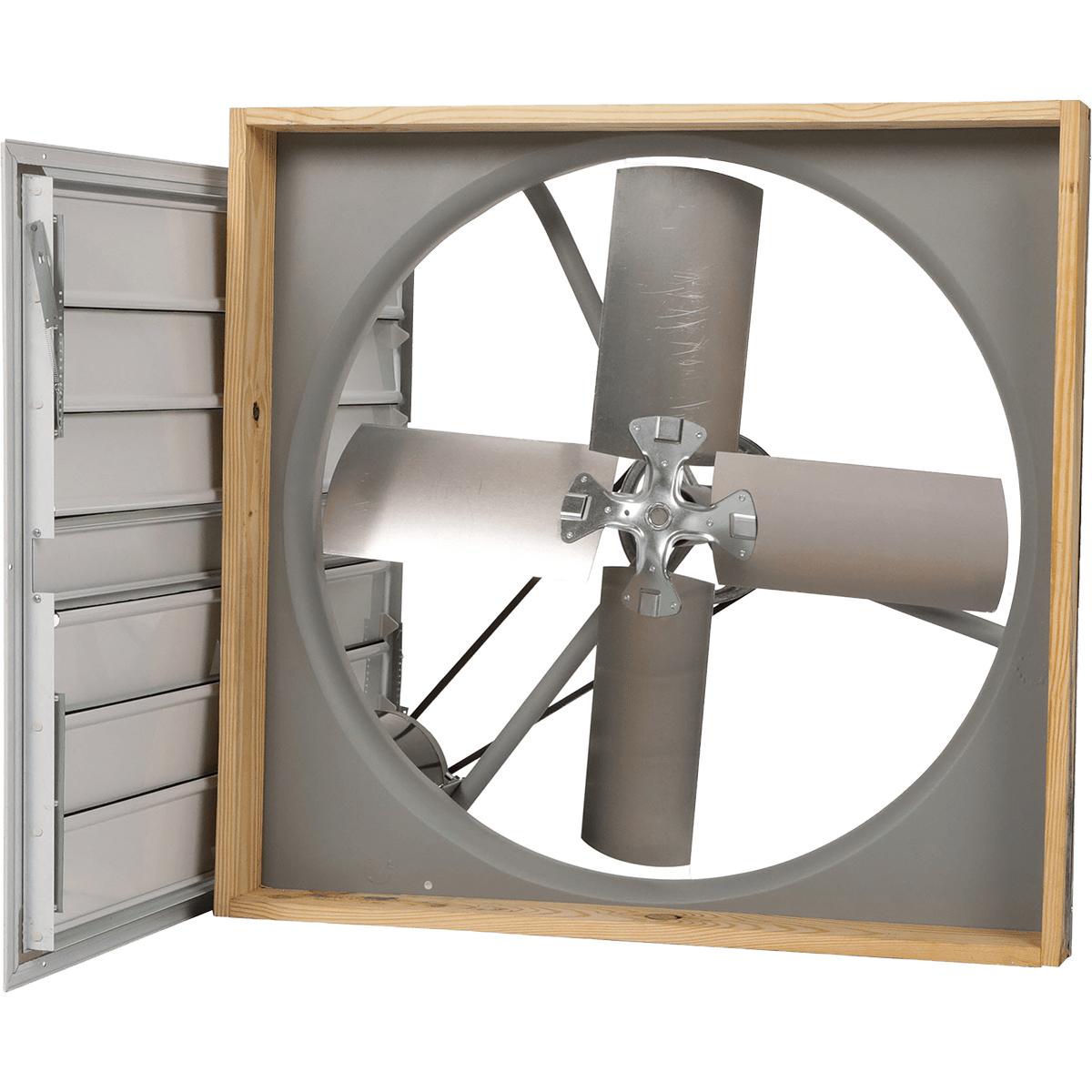

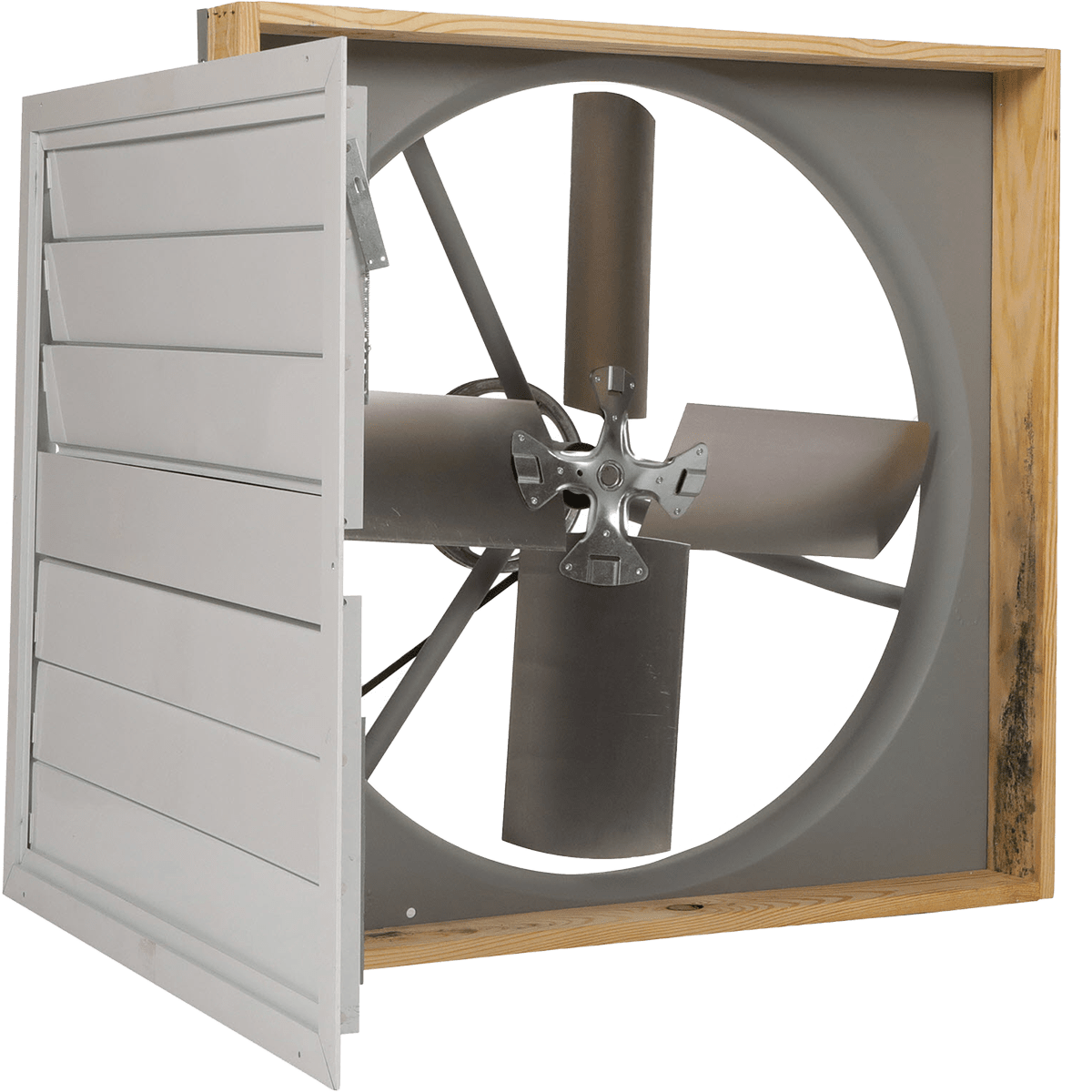

TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
Description
Description
Delivering superior ventilation and airflow control to commercial applications, the TPI 30-Inch. 2-Speed Heavy Duty Belt Drive Whole House Fan is a must-have. Installing to the ceiling of attics, it brings outside air into your space to temper the air in your facility. Featuring two fan speeds and a powerful performance, it's a reliable indoor air quality solution.
Key Features Of The TPI BD302WHS
- Automatic Shutter: The no joist cut shutter automatically opens when the fan is turned on and tightly shuts when the fan is turned off.
- 1/3 Horsepower Motor: Features a powerful 1/3 horsepower motor delivering a performance of up to 520 RPMs.
- Dual Speeds: Choose from two fan speeds - Low (5,800 CFM) or High (7,600 CFM) with the TPI 2-SW two-speed controller (sold separately)..
- Durable Fan Blade: Its 30-inch fan blade lets this unit move a high volume of air.
- Hardwired Design: This unit uses a 120-volt, single-phase electrical connection.
- American-Made: It's made in the U.S.A. with domestic and foreign components.
Overall Dimensions
- Height: 14.5 inches
- Width: 35.5 inches
- Length: 34 inches
Summary
Delivering superior ventilation and airflow control to commercial applications, the TPI BD302WHS is a must-have.
Specifications
Specifications
-
Number of Speeds2
-
TypeWhole House Fan
-
ApplicationAttic, Residential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsElectronic
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)7600.0
-
Maximum RPM520
-
Type of FanWhole House Fan
-
Amperage (Amps)6.9
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Depth (in.)34.0
-
Depth (with front cover) (in.)34.0
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)50
-
Width (in.)35.5
-
Width (with front cover) (in.)35.5
-
Manufacturer's Warranty1-Year Limited Warranty
