TPI BD362WHS 36-In. 2-Speed Heavy-Duty Belt Drive Whole House Fan
TPI BD362WHS 36-In. 2-Speed Heavy-Duty Belt Drive Whole House Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI BD362WHS 36-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
- Owner's Manual

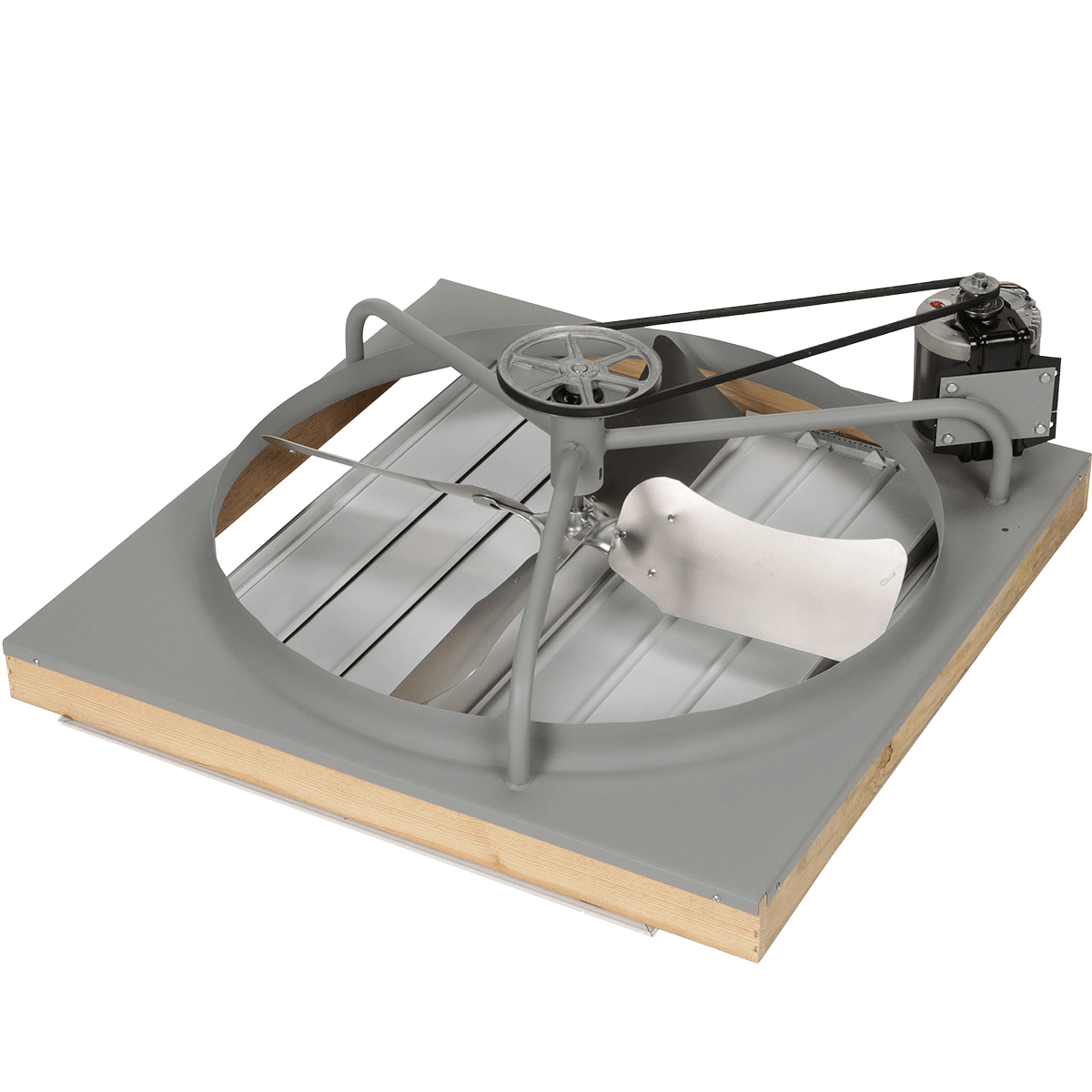

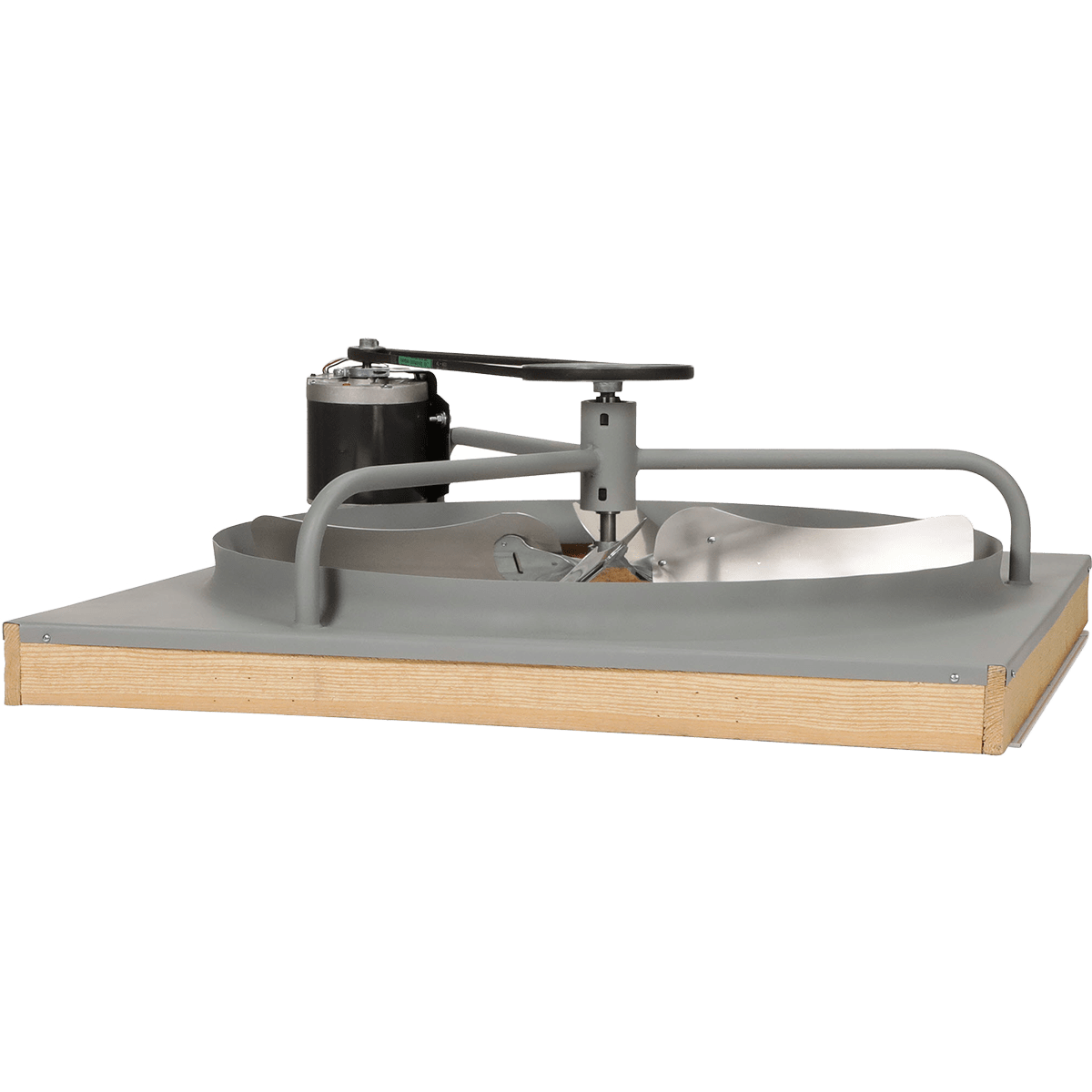

TPI BD362WHS 36-In. 2-Speed Heavy-Duty Belt Drive Whole House Fan
Description
Description
One of their most powerful belt drive fan options, the TPI BD362WHS is a 36-inch, 2-speed industrial-grade attic fan that delivers a performance few other options can match. Perfect for commercial applications, this space-saving fan installs on your attic's ceiling. Bringing air in from the outside, it helps to regulate temperature control and leave your space feeling more comfortable.
Key Features Of This TPI Belt Drive Fan
- No Joist Cut Shutter: Automatically opens when the fan is turned on and closes when the fan is turned off.
- Powerful Performance: This multi-speed, 1/3 horsepower fan provides up to 395 RPMs.
- Two Speeds: Choose from two fan speeds - Low (6,400 CFM) or High (9,675 CFM) with the TPI 2-SW two-speed controller (sold separately).
- Durable Fan Blade: Its 36-inch fan blade lets this unit move a high volume of air.
- Hardwired Design: This unit uses a 120-volt, single-phase electrical connection.
- American-Made: It's made in the U.S.A. with domestic and foreign components.
Overall Dimensions
- Height: 14.5 inches
- Width: 41.5 inches
- Length: 40 inches
Summary
Provide reliable and effective attic ventilation with the American-made TPI 36-Inch. 2-Speed Heavy Duty Belt Drive Whole House Fan.
Specifications
Specifications
-
Number of Speeds2
-
TypeWhole House Fan
-
ApplicationAttic, Residential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsElectronic
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)9675.0
-
Maximum RPM395
-
Type of FanWhole House Fan
-
Amperage (Amps)6.3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Depth (in.)40.0
-
Depth (with front cover) (in.)40.0
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)64
-
Width (in.)41.5
-
Width (with front cover) (in.)41.5
-
Manufacturer's Warranty1-Year Limited Warranty
