TPI CACU 3-Speed 1/4 HP Fixed Commercial Fan
TPI CACU 3-Speed 1/4 HP Fixed Commercial Fan - 30-in. / Wall-Mountable is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI CACU 3-Speed 1/4 HP Fixed Commercial Fan
- Pedestal or Wall Mount Assembly
- Owner's Manual
Info & Guides
Info & Guides
TPI CACU 3-Speed 1/4 HP Fixed Commercial Fan
Description
Description
These TPI ¼ HP Fixed Commercial Fans are ideal for use in clean and dry commercial applications such as schools, shops, offices, warehouses, and more.
Available in two fan diameters, you can select either a pedestal mount or wall mount assembly for ultimate convenience.
Designed for Commercial Spaces
TPI CACU Fixed Commercial Fans feature a black semi-gloss powder coated finish which allows them to fit easily into a number of office spaces, school rooms & cafeterias, gyms, groomers, and other commercial areas.
Operated with a simple pull chain switch, these fans are both equipped with powerful ¼ HP motors that are easy to maintain. Motor features include:
- 120V, Single-Phase, 3-speed
- Ball Bearing
- Permanently Lubricated
- Permanent Split Capacitor
- Open Ventilated
Two Sizes Available
Depending on your space, you can choose one of two available fan diameter sizes to fit the need. Take a look at the specs for each size to help determine which is best for you.
- 24-inch: CFM: High-3400, Medium-3100, Low-2800; Coverage Area: 220 sq. ft.
- 30-inch: CFM: High-4200, Medium-3800, Low-3500; Coverage Area: 240 sq. ft.
Mounting Options
These commercial circulators from TPI feature aluminum paddle blades with a steel hub and cast aluminum spider connections.

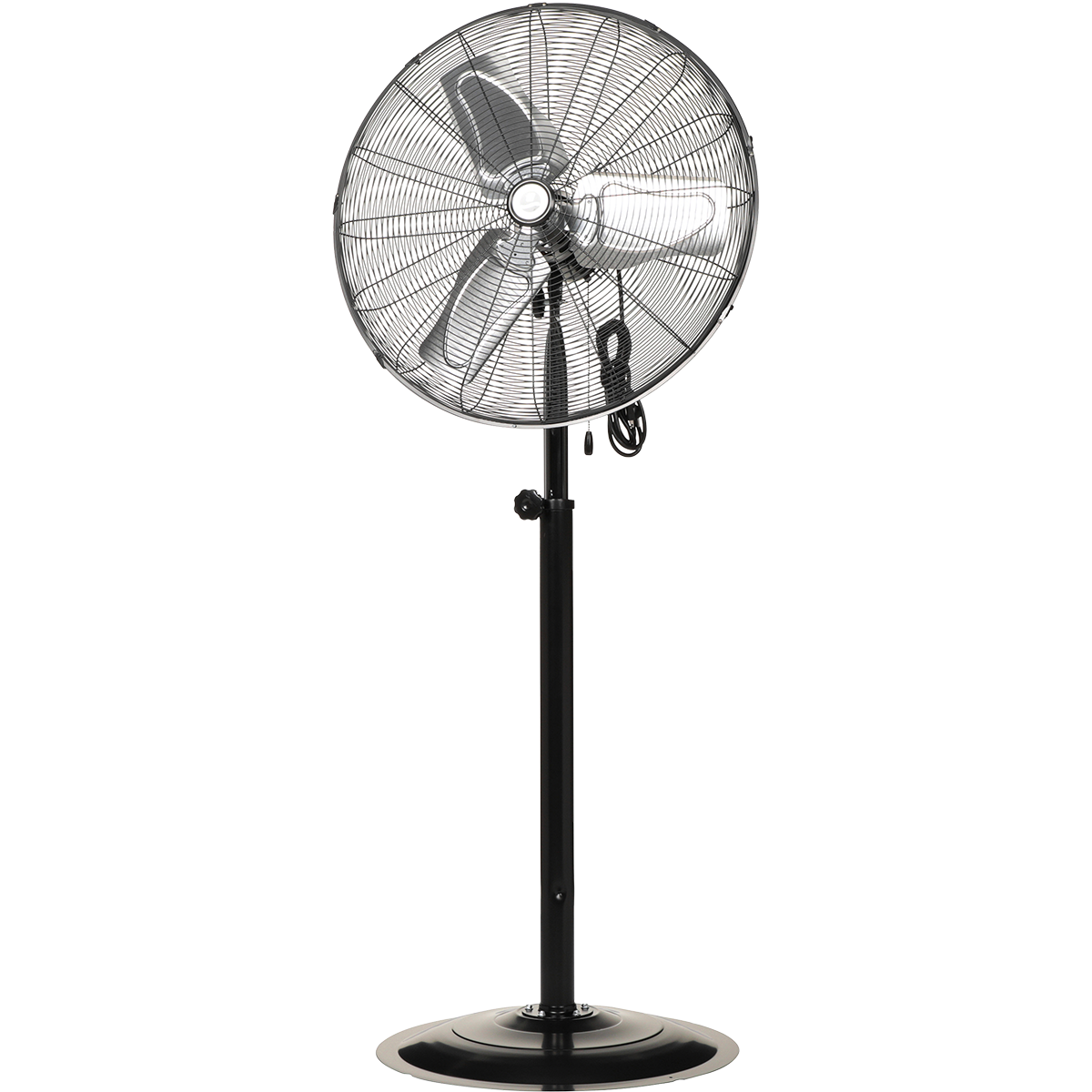

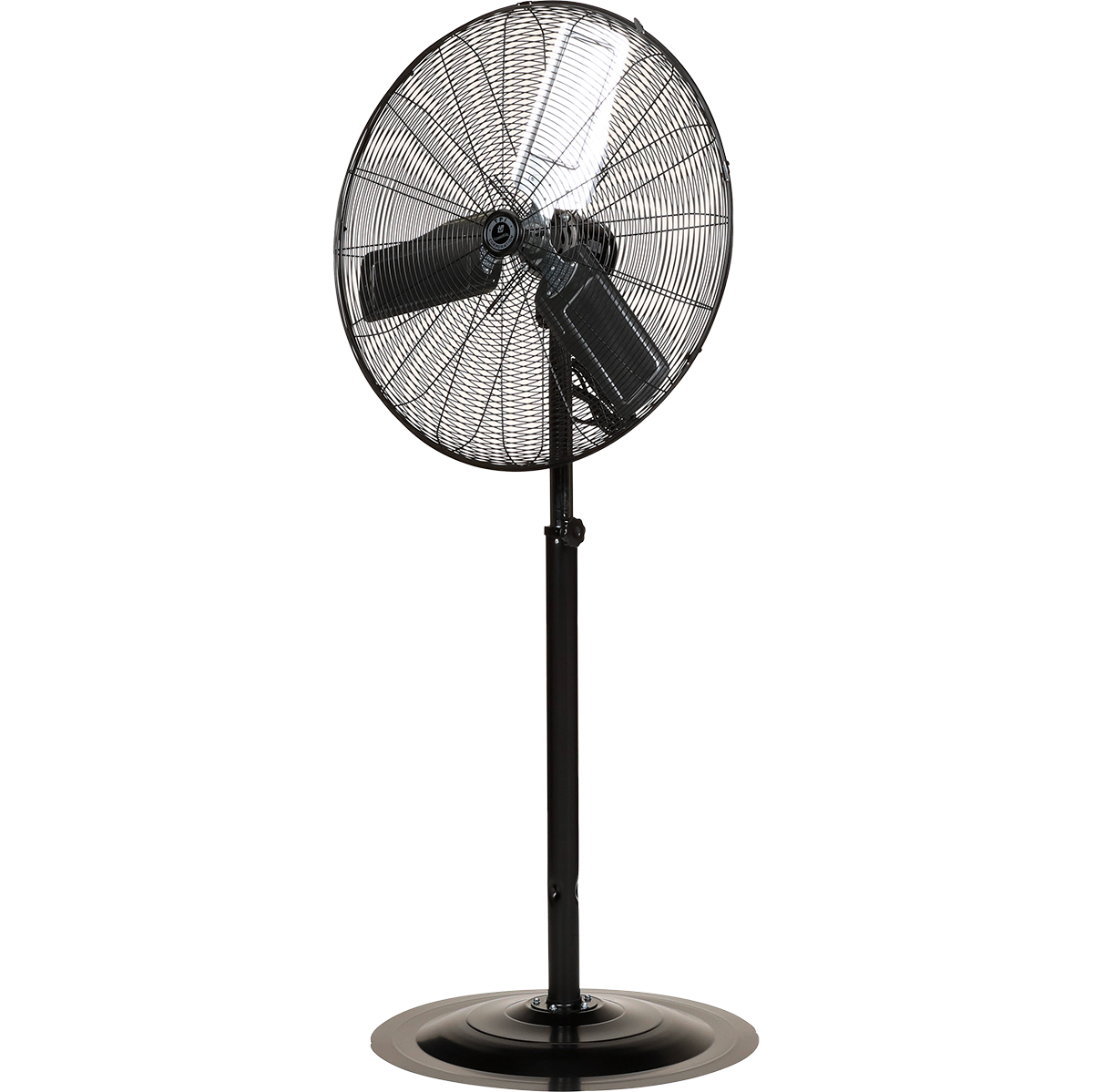

- Pole Mount: Center pole attaches to the steel dome and adjusts the center of the fan from 43 inches to 60 inches.

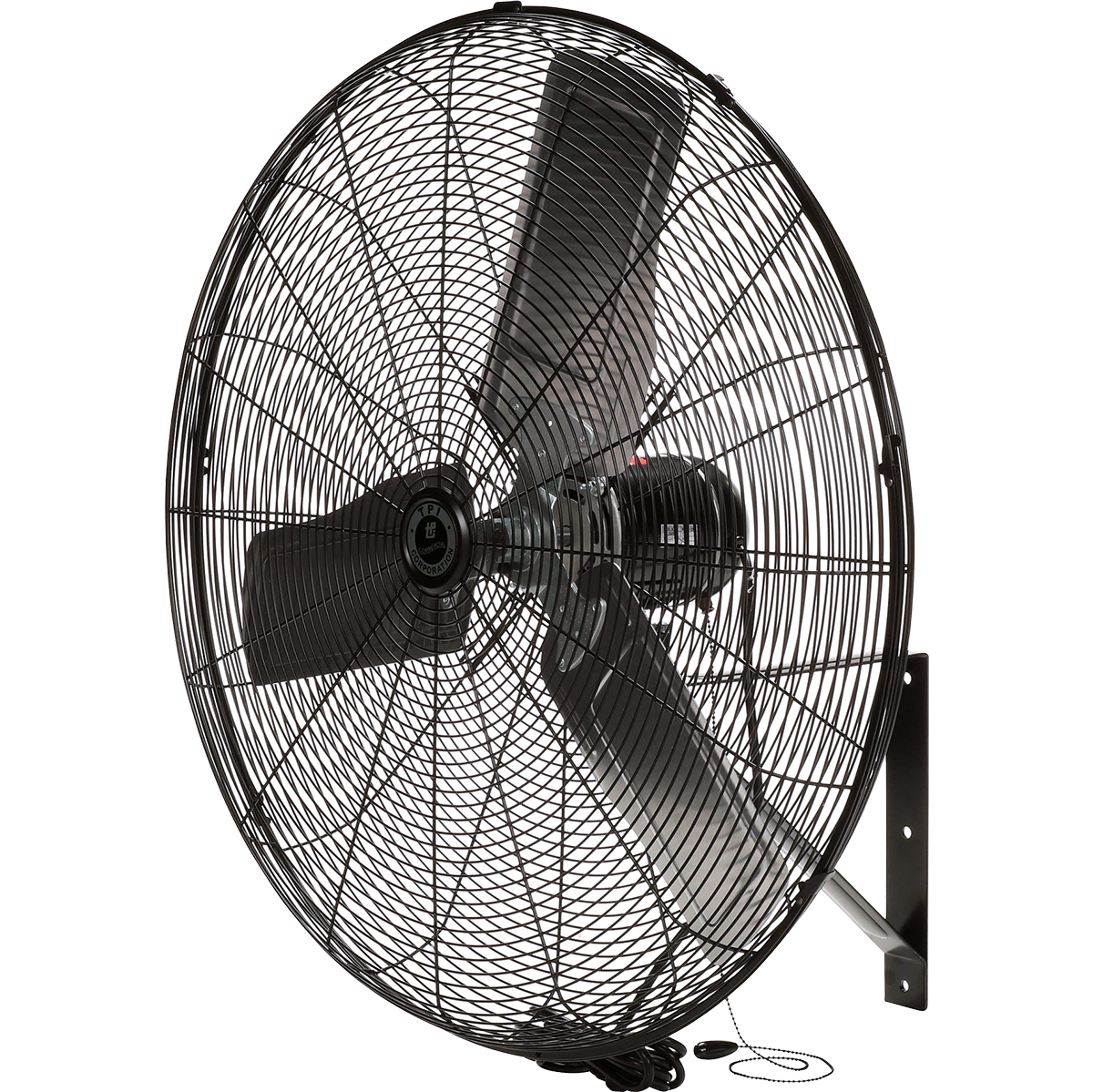

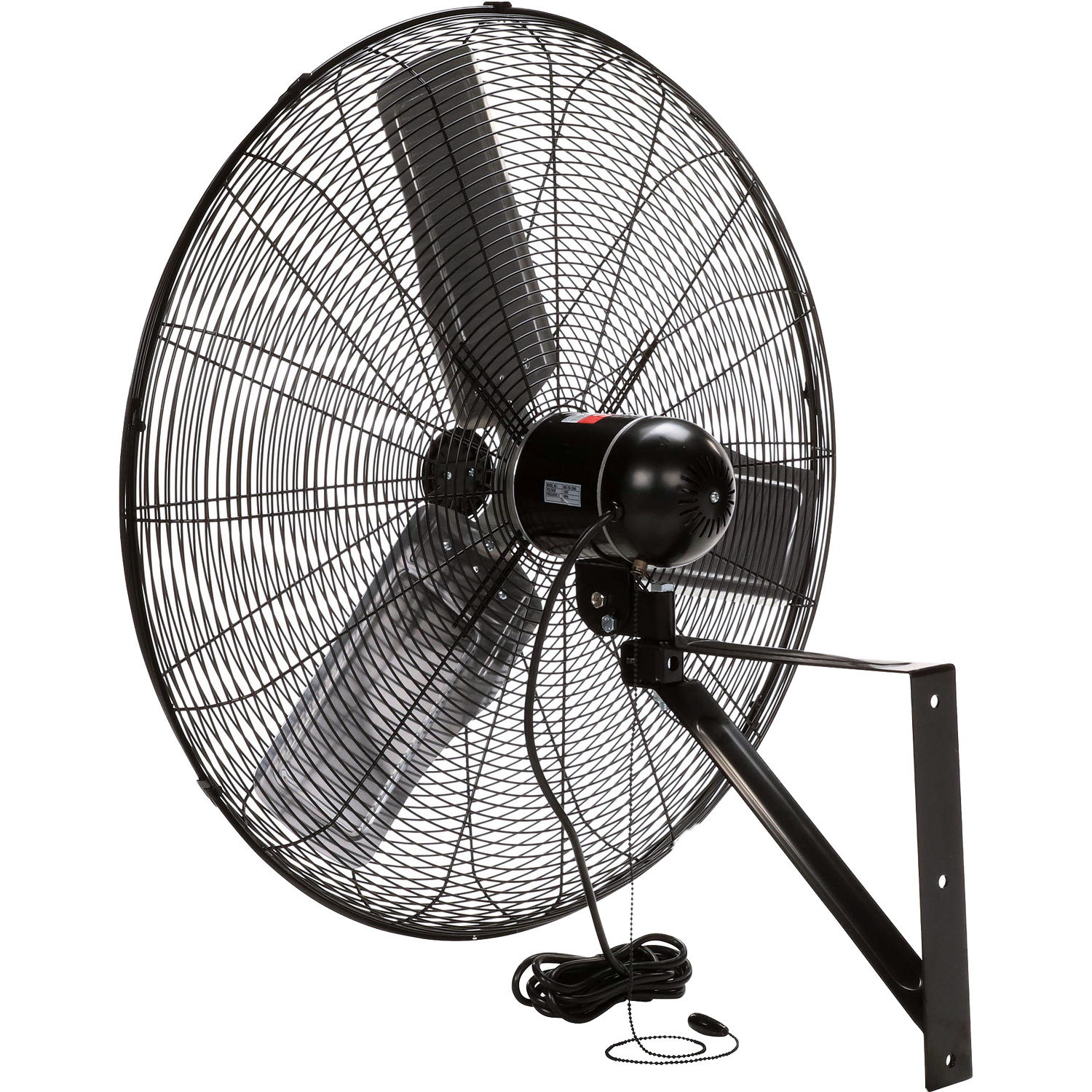

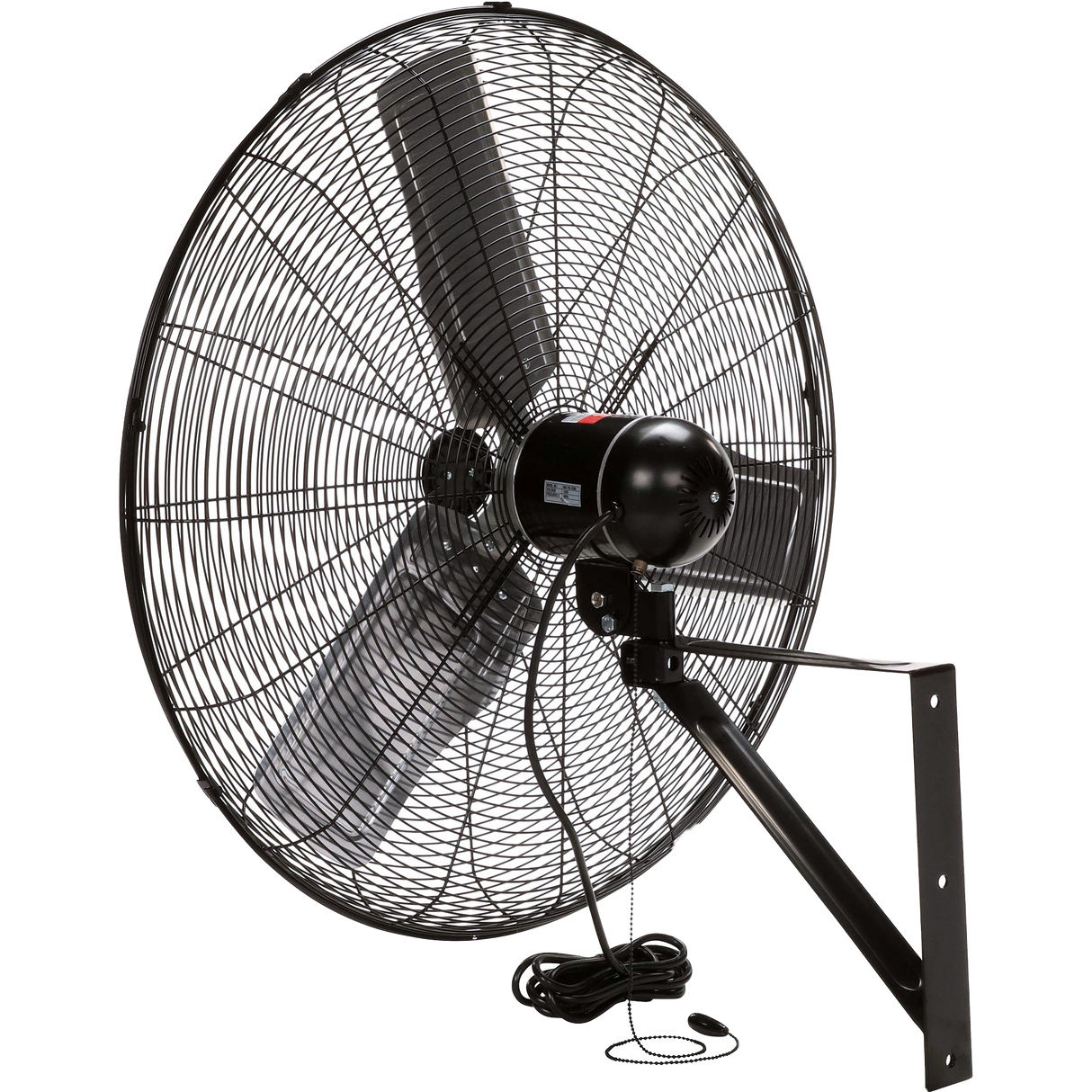

- Wall Mount Assembly: Steel wall mount attaches to the wall with 3 bolts and to the fan on the extension on the bottom of the motor housing.
Additional Features
- Power Cord: SJT Type 3 conductor, 9-foot power cord.
- Safety Certifications: UL CUS Listed and meets OSHA safety requirements.
- Safe Grill: All fans include coated steel guards with retaining clips.
Summary
The TPI CACU Fixed Commercial Fans feature a black semi-gloss finish that makes them a great addition for power cooling in a variety of commercial spaces. Select 24- or 30-inch model and either a pole mount or wall mount assembly for more convenient operation.
Specifications
Specifications
-
Number of Speeds3
-
TypeWall-MountableStand/PedestalWall-MountableStand/Pedestal
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscULus
-
ColorBlack
-
ControlsToggle Switch
-
Indoor/OutdoorIndoor
-
Maximum Cubic Feet per Minute (CFM) (CFM)4200.04200.03400.03400.0
-
Recommended Coverage Area (sq. ft.)240240220220
-
Maximum Amperage (Amps)2.42.42.32.3
-
Power Cord Length (ft.)9
-
Power SupplyPlug
-
Voltage (V)110-120
-
Weight (lbs.)63666363
-
Additional FeaturesWall-Mountable
-
Manufacturer's Warranty1-Year Warranty
