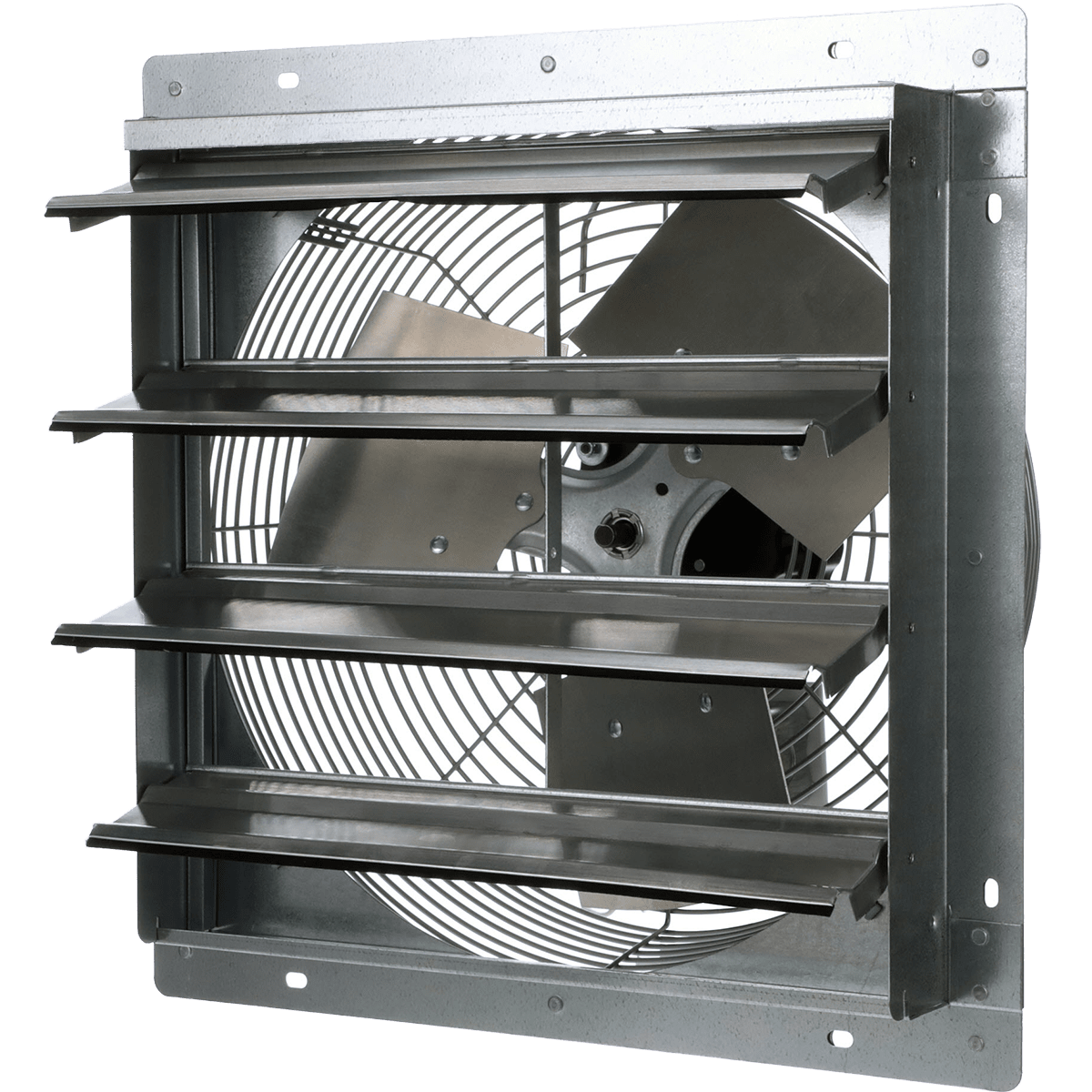

TPI CE18DS 18-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan

Name: TPI CE18DS 18-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan
Brand: TPI
Price: 478.0 USD
Availability: InStock

SKU: tp13501 | Model: CE 18-DS

$478.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $39.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

2-Year Replacement Extended Warranty - $49.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

TPI CE18DS 18-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan
Owner's Manual
No-Cord Junction Box

Description

For safe and effective ventilation in commercial and industrial applications, turn to the TPI 18-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan. This workhorse multi-speed fan delivers a powerful performance of up to 1,660 RPMs. Easy to install and use, it can be set up from an inside wall, eliminating the need for external framing or shutters.

Top Features Of The TPI CE18DS

Powerful Performance: This multi-speed, 1/8 horsepower fan provides up to 1,660 RPMs.
Three Speeds: Choose from three fan speeds - Low (1,850 CFM), Medium (2,100 CFM), or High (2,300 CFM).
Pull Chain: Use the pull chain to easily select from this fan's speed settings.
Fan Blade Protection: Its 18-inch aluminum fan blades are protected by steel spiral wire guards.
Easy Installation: Can be installed from inside the wall, eliminating the need for external framing or shutters.
Hardwired: This fan requires a 120V, 1 phase electrical connection and it must be hardwired. A no-cord junction box is provided for direct wiring.
American-Made: It's made in the U.S.A. with domestic and foreign components.

Overall Dimensions

Height: 21.125 inches
Width: 21.125 inches
Depth: 7.18 inches

Summary

Use this 18-inch TPI Shutter Exhaust Fan to effectively ventilate commercial and industrial facilities.

Specifications

Key Specifications

Number of Speeds

3
Type

Shutter Exhaust Fan

General

Application

Garage/Workshop, Commercial/Industrial
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Color

Gray
Controls

Toggle Switch
Housing Material

Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

2300.0
Maximum RPM

1660

Power

Amperage (Amps)

2.2
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

18.5
Ceiling or Wall Cutout Width (in.)

18.5
Depth (in.)

7.18
Depth (with front cover) (in.)

7.18
Height (in.)

21.125
Height (with front cover) (in.)

21.125
Shutter Fan Size (in.)

18
Weight (lbs.)

25
Width (in.)

21.125
Width (with front cover) (in.)

21.125

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
