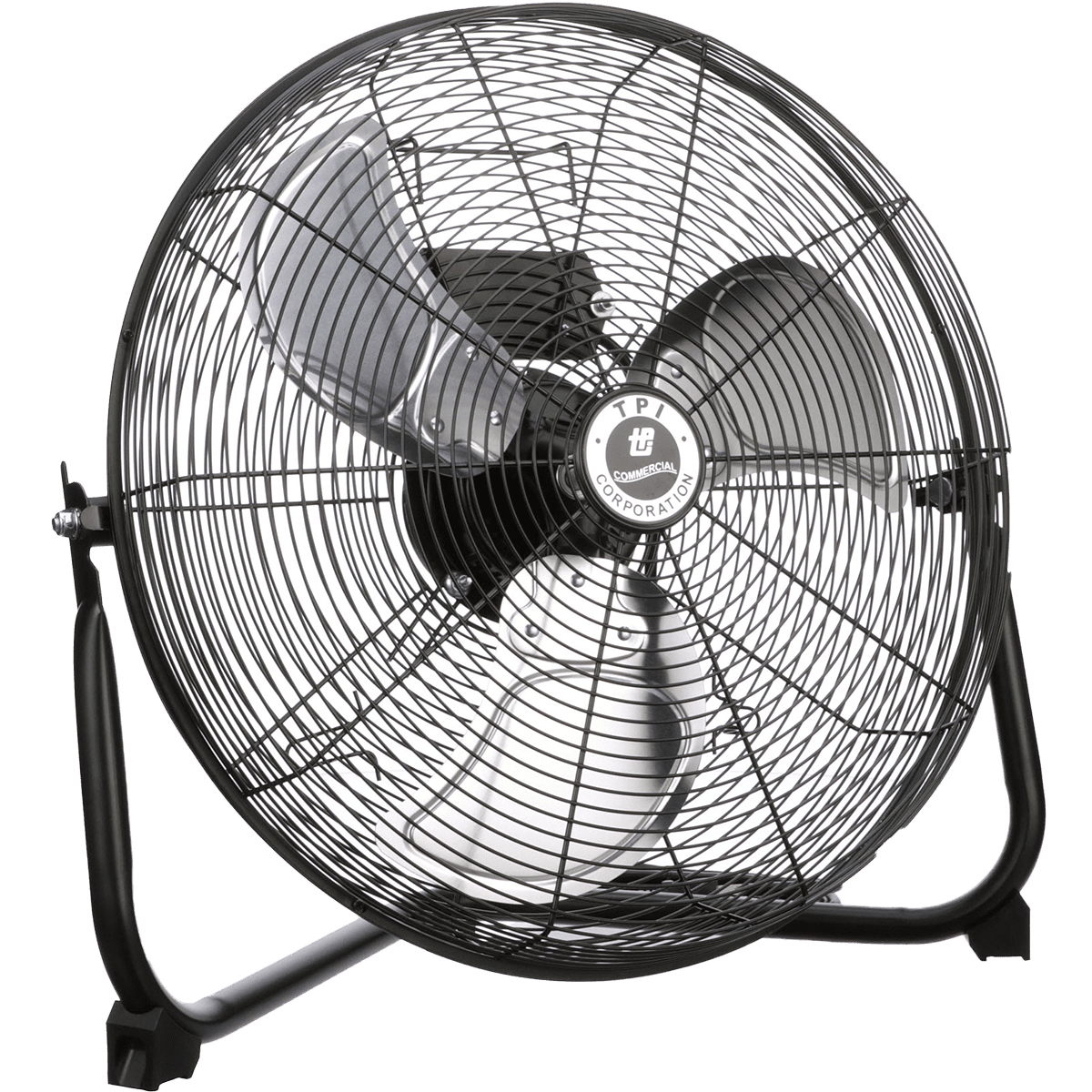

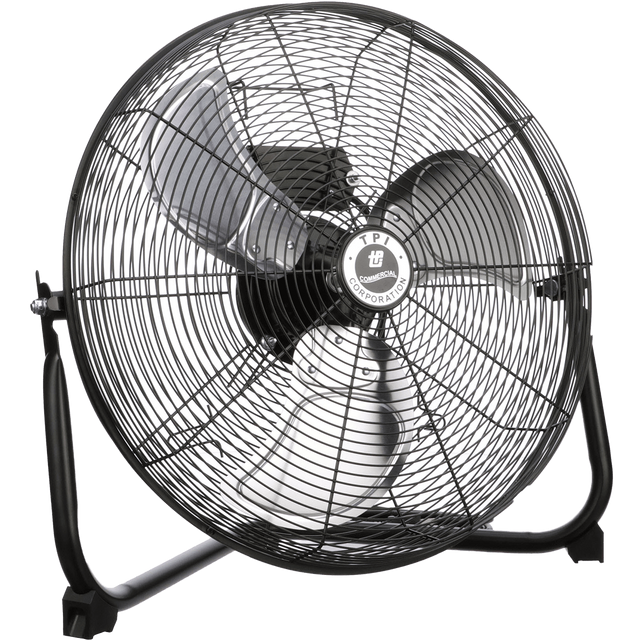

TPI CF 3-Speed 1/5 HP Commercial Floor Fan

SKU: tp13487 | Model: CF-20

$172.80

Option

20-in. 18-in.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?

TPI CF Commercial Floor Fan
Floor Stand
Owner's Manual

Info & Guides

Owner's Manual

TPI CF Commercial Floor Fans feature three fan speeds, aluminum fan blades, and are available in two sizes to fit your space.

These versatile stationary fans are ideal for a wide variety of commercial spaces, including offices, shops, pet groomers, and more. The black powder coated finish is unobtrusive, and the black floor stand is included.

Powerful Motors

TPI 3-speed CF Floor Fans are equipped with 1/5 horsepower direct drive motors controlled by a rotary switch. Both fans feature these specifications.

Three speed, 120V, Single Phase
Sleeve Bearing
Permanently Lubricated
Open Ventilated

Two Available Sizes

These commercial floor fans can be used almost anywhere to provide cooling airflow with powerful CFM.

18-inch: 1/5 HP motor; CFM High-1600, Medium-1480, Low-1380
20-inch: 1/5 HP motor; CFM High-1725, Medium-1600, Low-1480

Both fans have aluminum fan blades, coated steel guards with retaining clips and a black powder coated finish.

Additional Features

Power Cord: SJT type grounded 3-conductor, 7-foot power cord.
Safety Certifications: UL CUS Listed and meets OSHA standards for safe operation.
Floor Stand: Black powder coat finished floor stand is included.

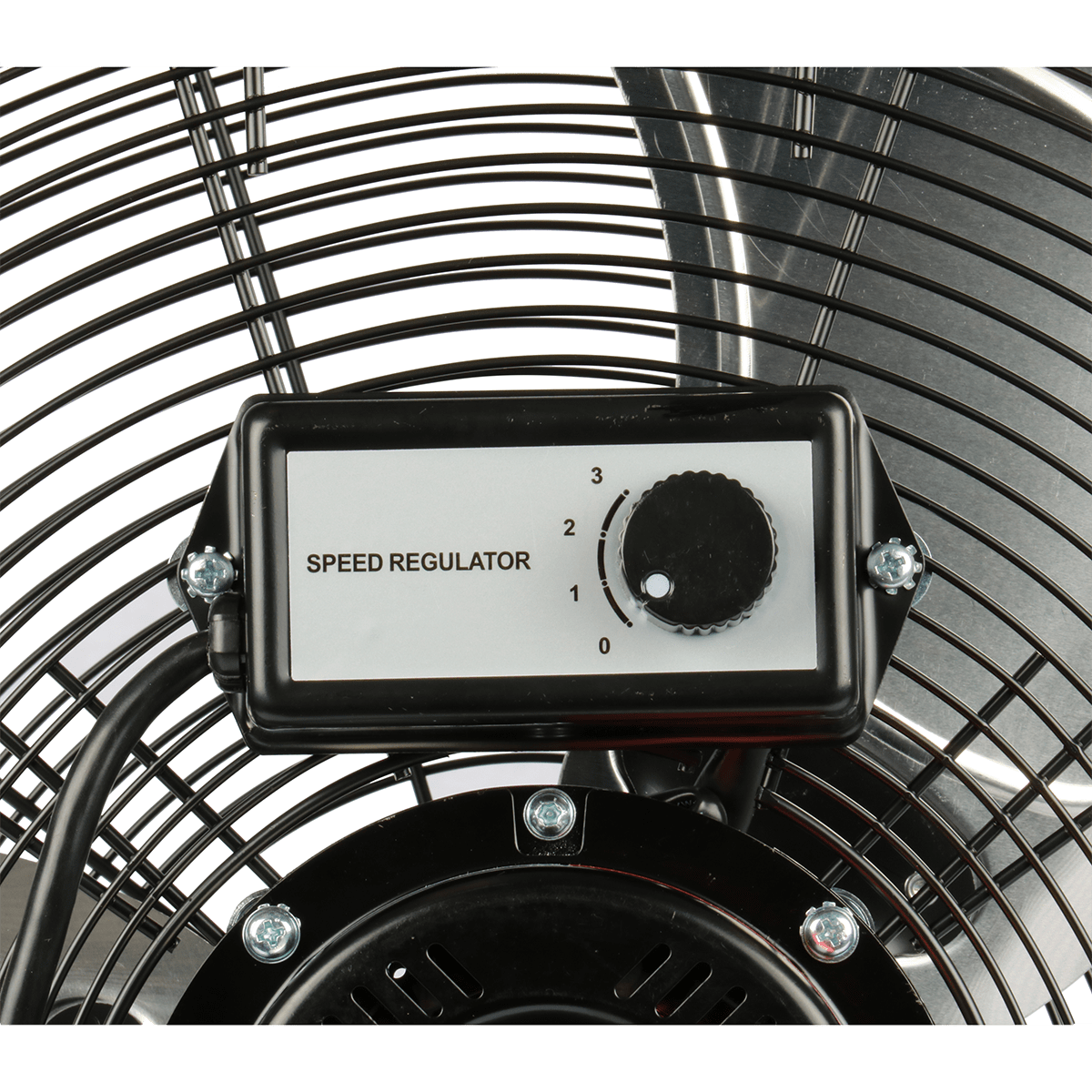

Controls: Simple rotary switch for on/off and 1-3 fan speeds.

Summary

TPI CF Commercial Floor Fans are ideal for a variety of spaces, available in 18-inch or 20-inch sizes. Direct drive, 3-speed motors provide powerful airflow to provide cooling comfort to work areas.

Key Specifications

Number of Speeds

3
Type

Floor

General

Certifications

cULus
Color

Black
Controls

Toggle Switch
Indoor/Outdoor

Indoor
Maximum Cubic Feet per Minute (CFM) (CFM)

20-in.: 1725.0

18-in.: 1600.0
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.p65warnings.ca.gov.

Power

Maximum Amperage (Amps)

20-in.: 1.9

18-in.: 1.4
Power Cord Length (ft.)

7
Power Supply

Electric
Voltage (V)

110-120
Wiring Style

Plug
