TPI CPB 2-Speed Direct Drive Commercial Portable Drum Fan

SKU: tp13512  |  Model: CPB 36-D
$546.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?

  • TPI Commercial Direct Drive Portable Drum Fan (Blower)
  • Owner's Manual

Description

For large work areas such as warehouses, assembly lines, or anywhere cooling comfort is needed for employees or materials, the TPI CPB Commercial Portable Drum Fans deliver up to 4600 CFM of airflow.

These portable direct drive fans are available with a 30-inch or 36-inch fan diameter mounted on a steel frame with heavy-duty wheels for easy transport and placement.

Designed for Durability

The TPI Commercial direct drive portable blowers have a rugged black powder coated 20-gauge steel housing and frame, with spiral wire front and rear guards. The 30-inch diameter fans feature aluminum fan blades, while the 36-inch diameter fan has steel fan blades.

All three fans have durable direct drive, 2-speed, single phase, ball bearing motors that are permanently lubricated and open ventilated.

Versatile Selection & Operation

Choose the TPI direct drive drum fan that best suits your needs.

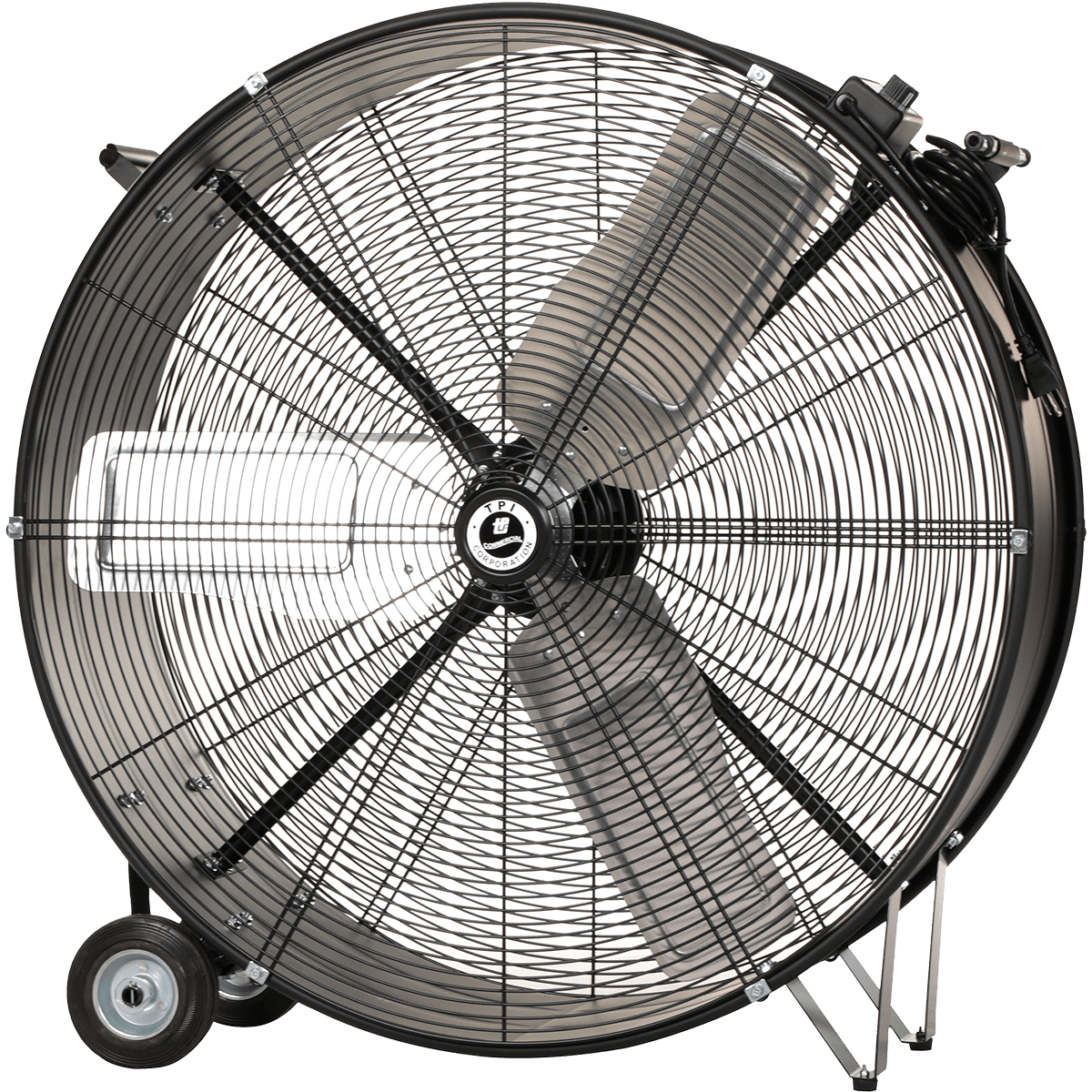

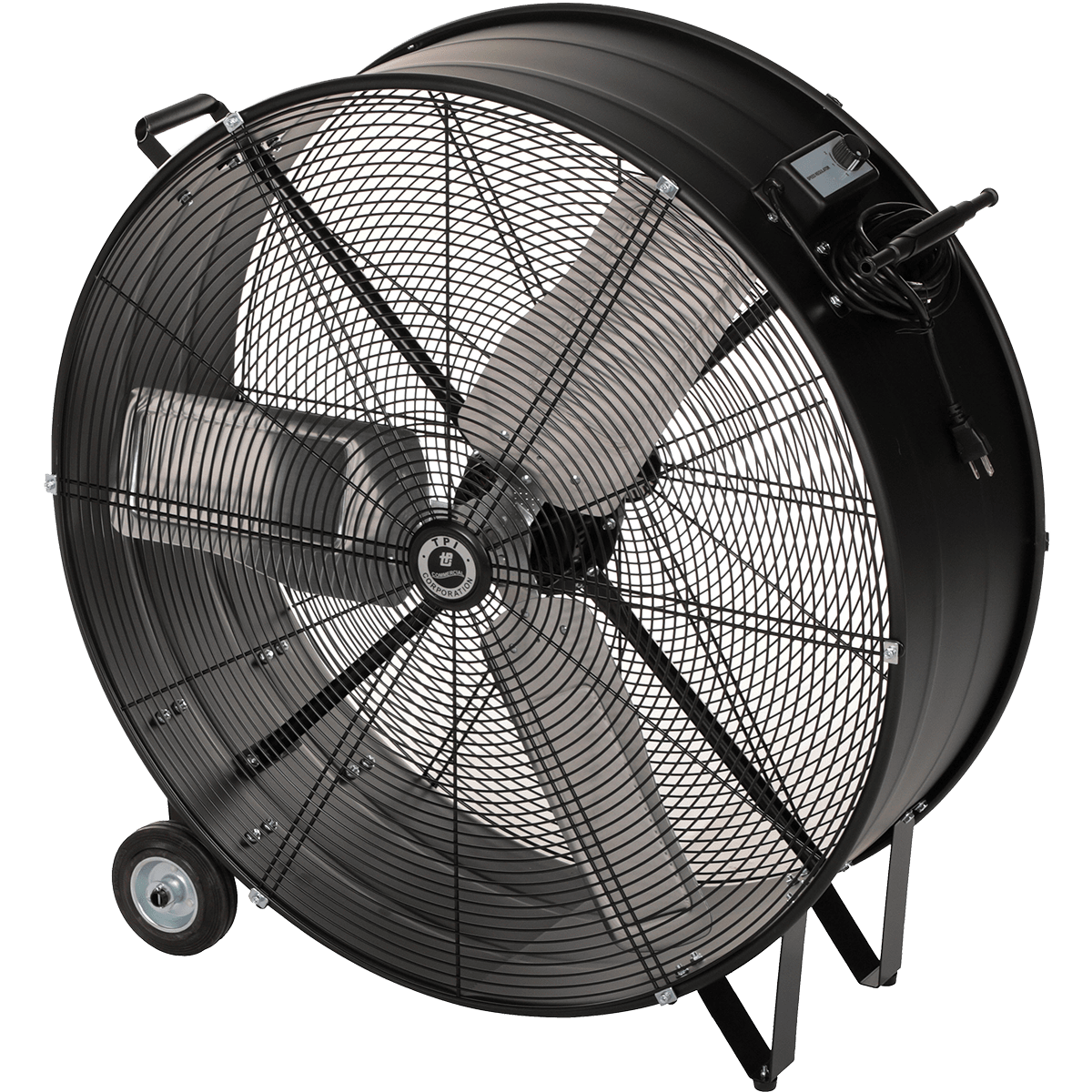

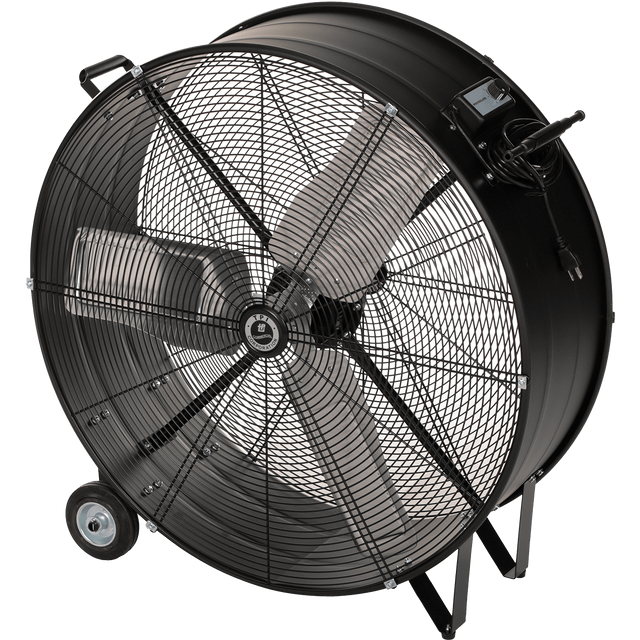

  • CPB30D: Equipped with 1/5 horsepower motor mounted on two 5-inch rubber wheels and support legs, with a sturdy handle for positioning and transporting. 30-inch fan diameter.

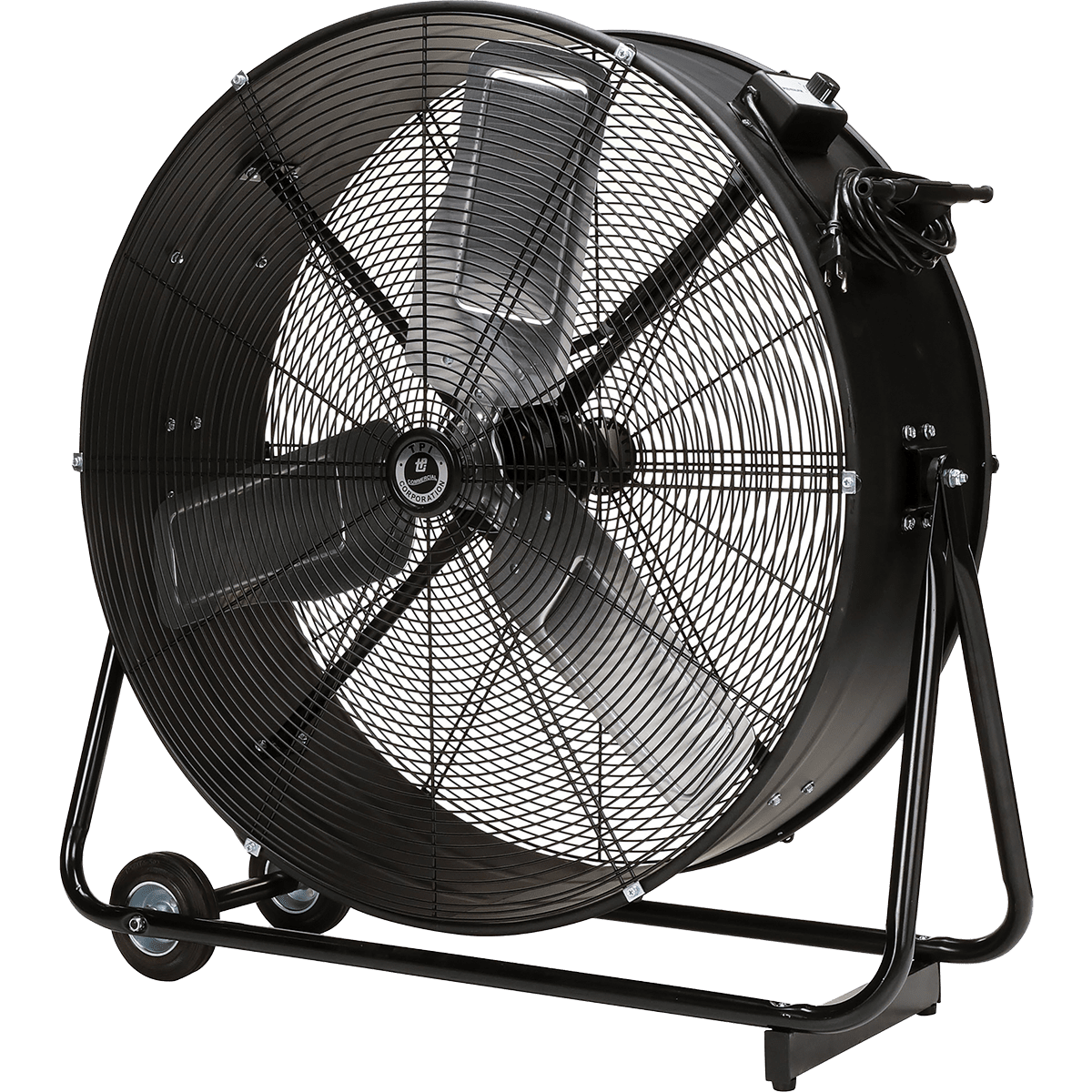

  • CPBS30-D: This model also has a 1/5 HP motor, and is mounted on a portable, wheeled frame, which enables the fan head to be swiveled/tilted to direct airflow where it’s most needed. 30-inch fan diameter.

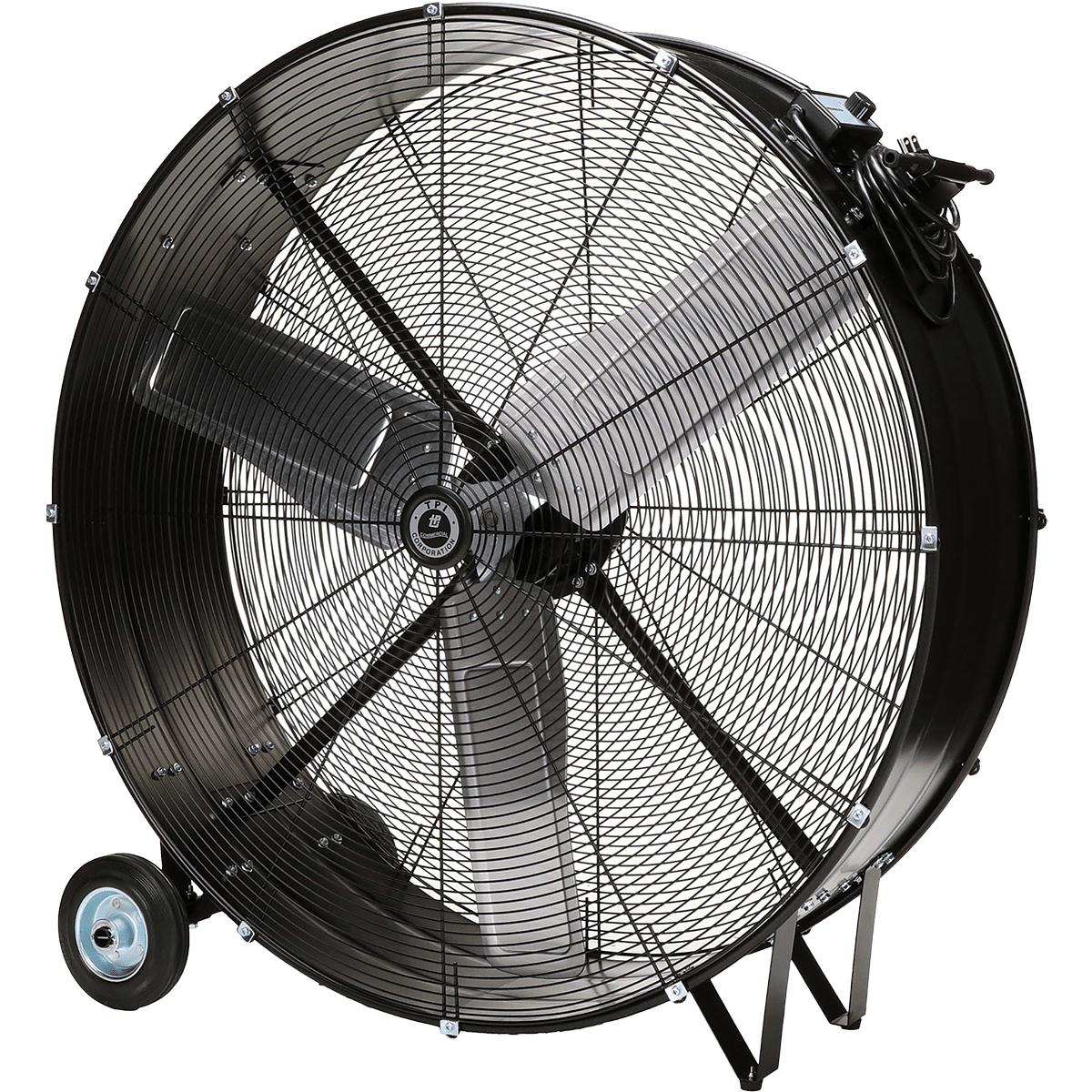

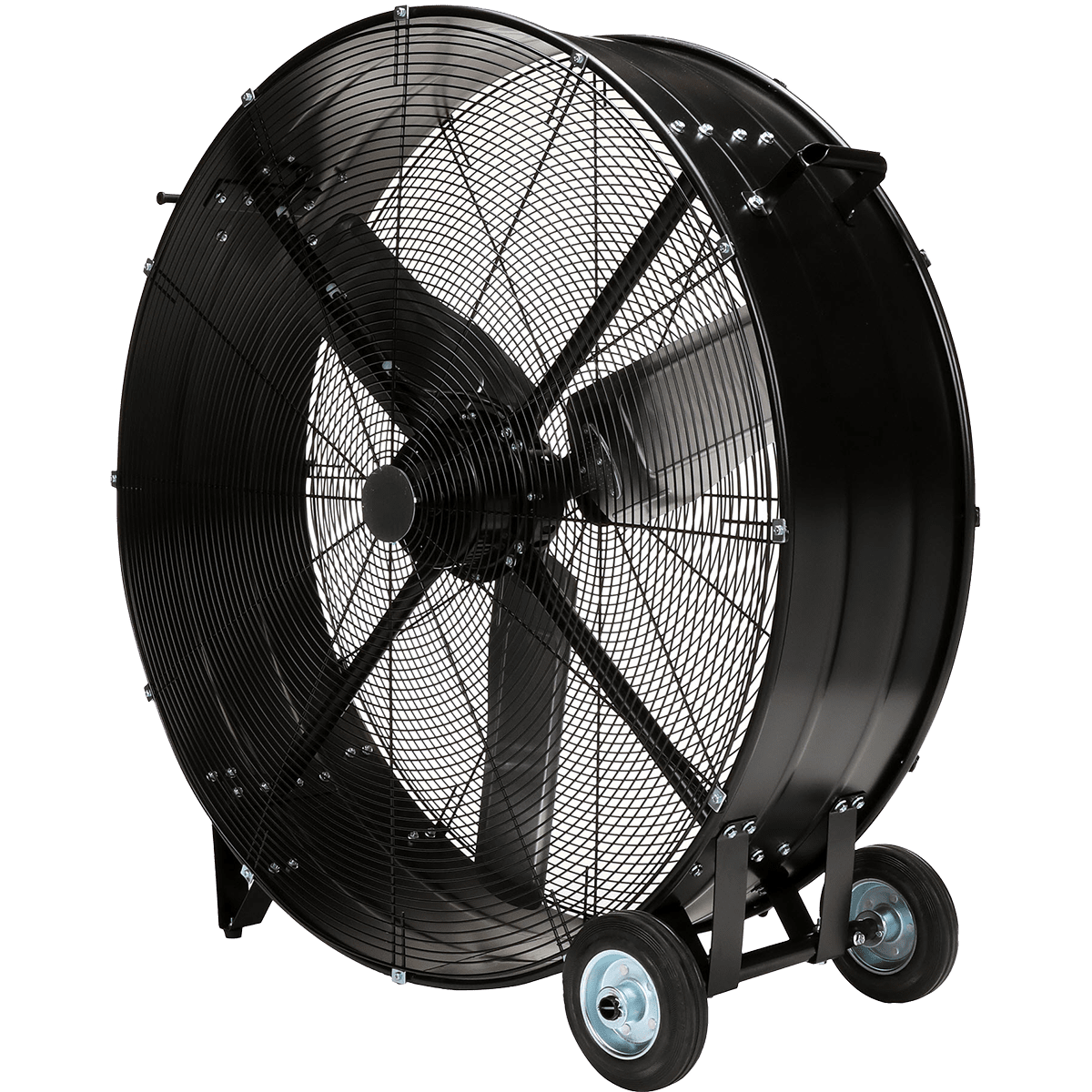

  • CPB36-D: This model is equipped with a 1/3 HP motor which can deliver a maximum airflow of 4600 CFM, and has a fan diameter of 36 inches. Mounted on two 5-inch rubber wheels and support legs, and includes a handle for easy transporting and positioning.

Additional Features

  • Controls: The 30-inch fans feature a simple rocker switch for operation, while the 36-inch fan has a rotary dial to control on/off and fan speed.
  • Safety Certifications: All fans are UL & cUL Listed, and meet OSHA standards for safe operation.
  • Power Cord: 30-inch fans have a 6-foot power cord, the 36-inch fan has a 10-foot cord, all are a SJT type-3 conductor cable.
  • Finish: All fans are finished with a black powder coat to resist marring and provide durability for years.

Summary

TPI Portable Direct Drive Drum Fans are high-quality, durable blowers featuring direct drive, 2-speed permanently lubricated motors in 1/5 HP or 1/3 HP options. All have steel construction and heavy-duty wheels & handles for easy transporting and placement. Select stationary or swivel option for the 30-inch fan, or choose the 36-inch fan for greater airflow in larger spaces.

Specifications

    Key Specifications

    • Number of Speeds
      2
    • Type
      Drum Blower, Portable

    General

    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      cULus
    • Color
      Black
    • Controls
      Toggle Switch
    • Indoor/Outdoor
      Indoor
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      36-in. Fixed: 5400.0
      30-in. Tilt: 4400.0
      30-in. Fixed: 4400.0
    • Recommended Coverage Area (sq. ft.)
      36-in. Fixed: 300
      30-in. Tilt: 250
      30-in. Fixed: 250

    Power

    • Maximum Amperage (Amps)
      3.6
    • Power Cord Length (ft.)
      36-in. Fixed: 10
      30-in. Tilt: 6
      30-in. Fixed: 6
    • Power Supply
      Plug
    • Voltage (V)
      110-120

    Dimensions

    • Weight (lbs.)
      36-in. Fixed: 70
      30-in. Tilt: 60
      30-in. Fixed: 52

    Additional Features

    • Additional Features
      Adjustable Head

    Warranty

    • Manufacturer's Warranty
      1-Year Warranty
