TPI F-TE 3-Speed 1/8 HP Tilt Head Industrial Floor Fan

SKU: tp13485  |  Model: F-24-TE
$249.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1- Year Warranty

What's In The Box?

  • TPI F-TE Industrial Workstation Floor Fan
  • Floor Stand
  • Owner's Manual

Description

TPI Industrial Workstation Floor Fans feature a tilting fan head for directed airflow, three fan speeds, and include the floor stand.

These multi-functional fans are available in 18-inch and 24-inch sizes to fit a variety of work areas up to 150 square feet.

Versatile Use

The TPI F-TE floor fans are ideal for many applications in commercial and industrial, as well as residential spaces. With powerful motors (60Hz/1660 RPM), and adjustable fan heads, they add cool comfort with directed airflow to offices, work stations, shops, garages, auto repair shops, and more. Just choose the size that best fits your area.

  • 18-inch: 1/8 HP motor; Coverage Area-125 sq. ft.; CFM High-1800, Medium-1500, Low-1300
  • 24-inch: 1/8 HP motor; Coverage Area-150 sq. ft.; CFM High-2100, Medium-1900, Low-1600

Both fans have a 360-degree tilting fan head and are finished with a silver grill and black stand and motor cover.

Durable Motor & Blades

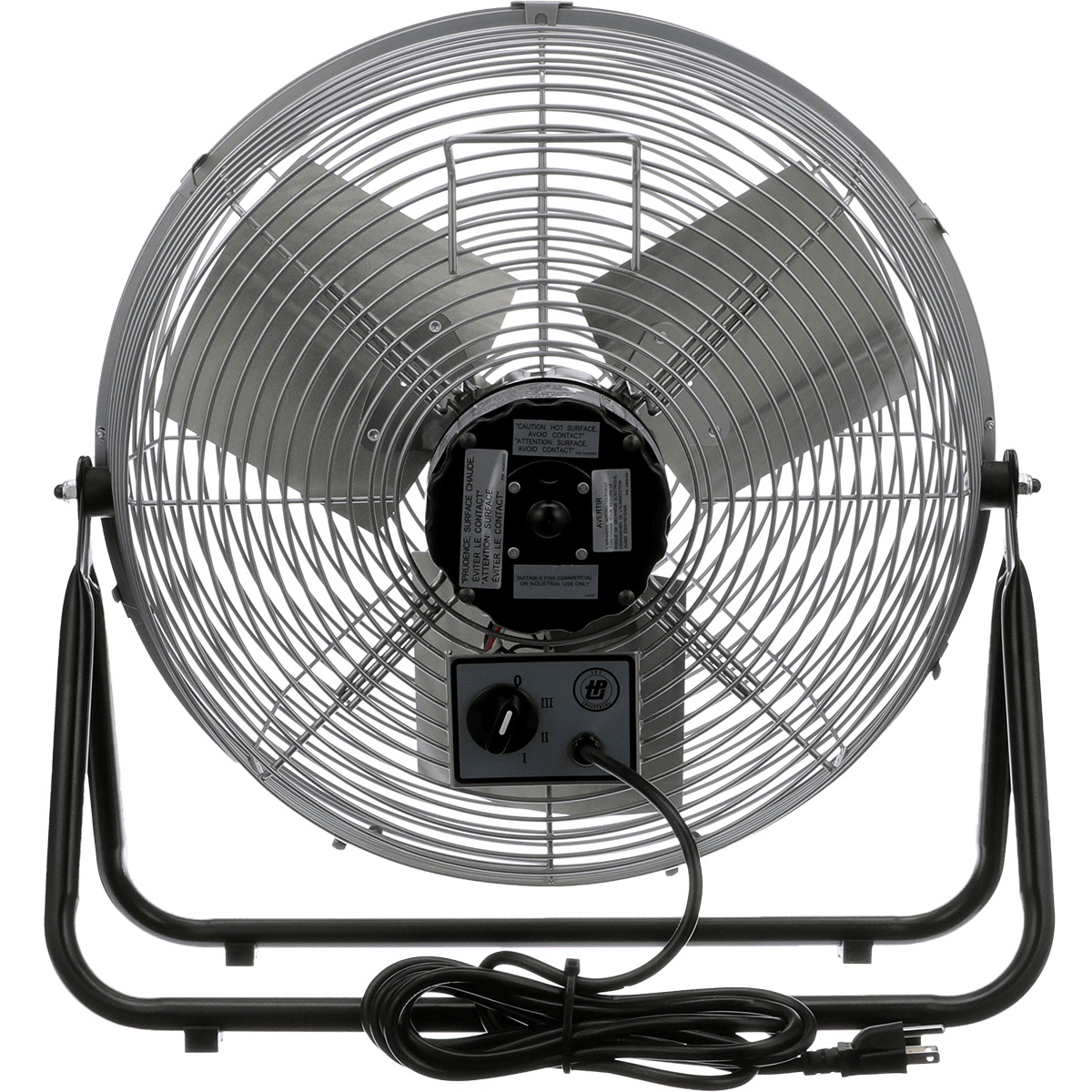

Constructed to last for years, the F-TE workstation floor fans have 1/8 horsepower direct drive motors controlled by a rotary switch located on the back grill. Check out these motor specifications.

  • Three speed, 120V, Single Phase
  • Sleeve Bearing
  • Permanently Lubricated
  • Totally Enclosed Air Over (TEAO)
  • Aluminum 3-Paddle Blade System with Steel Hub & Cast Aluminum Spider Connections

Additional Features

  • Power Cord: SJT type grounded 3-conductor, 10-foot power cord.
  • Safety Certifications: ETL CUS Listed and meets OSHA standards for safe operation.
  • Floor Stand: Black powder coat finished floor stand is included.
  • Finish: The fan is finished in a silver powder coated finish

Summary

TPI F-TE Industrial Workstation Floor Fans are ideal for a variety of spaces, available in 18-inch or 24-inch sizes. Direct drive, TEAO motors provide powerful cooling airflow, and 360-degree tilting head allows for directed airflow.

Specifications

    Key Specifications

    • Number of Speeds
      3
    • Type
      Floor

    General

    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      cETLus
    • Color
      Gray, Black
    • Controls
      Toggle Switch
    • Indoor/Outdoor
      Indoor
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      24-in.: 2100.0
      18-in.: 1800.0
    • Recommended Coverage Area (sq. ft.)
      24-in.: 150
      18-in.: 125

    Power

    • Maximum Amperage (Amps)
      24-in.: 2.4
      18-in.: 2.2
    • Power Cord Length (ft.)
      10
    • Power Supply
      Plug
    • Voltage (V)
      110-120

    Dimensions

    • Depth (in.)
      10.5
    • Depth (with front cover) (in.)
      10.5
    • Height (in.)
      24-in.: 26.0
      18-in.: 20.5
    • Height (with front cover) (in.)
      24-in.: 26.0
      18-in.: 20.5
    • Weight (lbs.)
      24-in.: 23
      18-in.: 20
    • Width (in.)
      24-in.: 26.0
      18-in.: 20.5
    • Width (with front cover) (in.)
      24-in.: 26.0
      18-in.: 20.5

    Additional Features

    • Additional Features
      Adjustable Head

    Warranty

    • Manufacturer's Warranty
      1- Year Warranty
