Triangle Engineering GPX Series 12 Inch Shutter Mounted Exhaust Fan
Triangle Engineering GPX Series 12 Inch Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Triangle Engineering GPX Series 12 Inch Shutter Mounted Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides

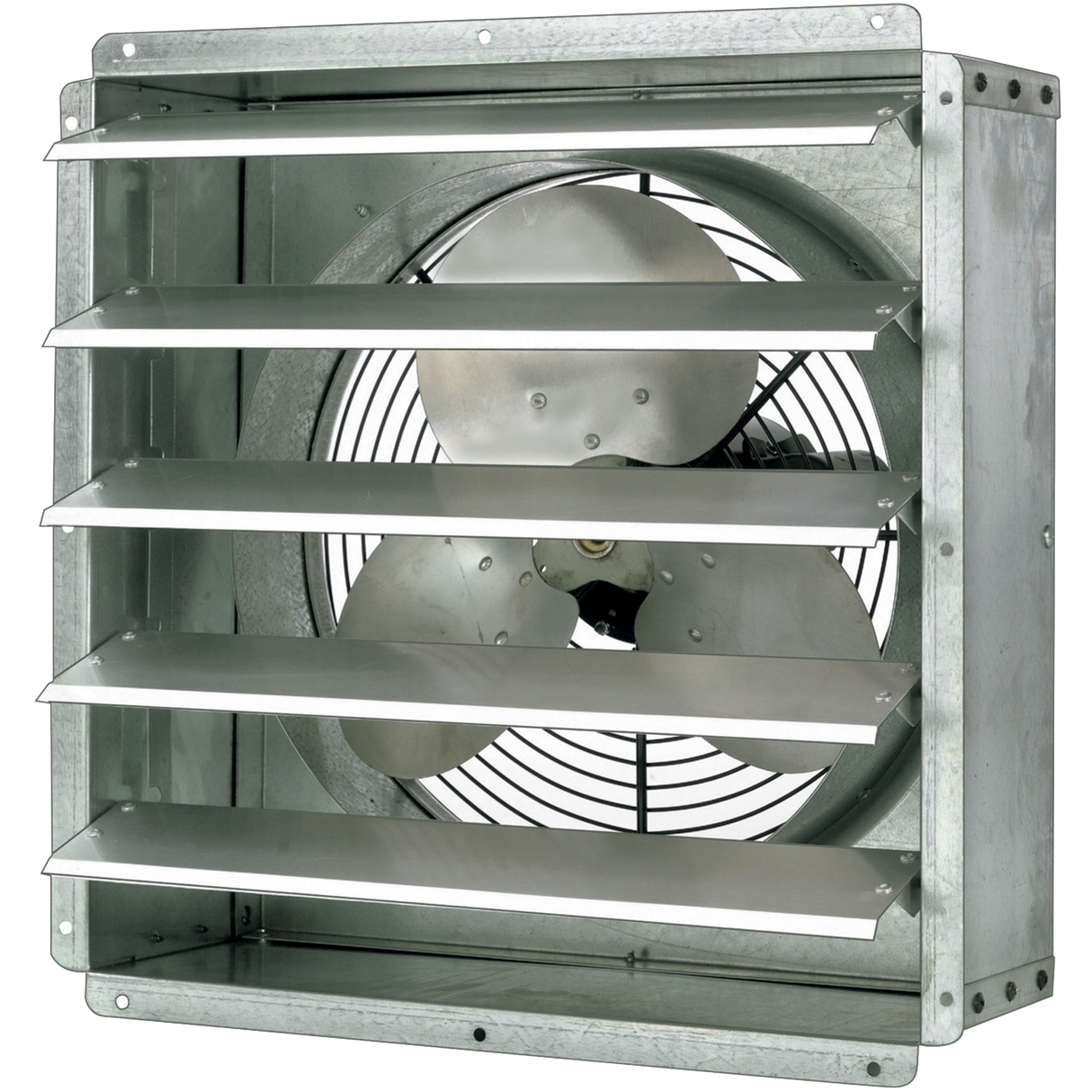

Triangle Engineering GPX Series 12 Inch Shutter Mounted Exhaust Fan
Description
Description
The Triangle Engineering GPX Series 12 Inch Shutter Mounted Exhaust Fan quickly removes heat, odors, fumes from workshops, barns, poultry houses, greenhouses, garages, and more. Shipping fully assembled and ready to install, it's the perfect choice for quick set up. Built to last, it features a galvanized steel finish and with its maximum 1,580 cubic feet per minute (CFM) airflow is ideal for smaller spaces.
Triangle Engineering GPX1210 Top Features
With its impressive features, this Triangle Engineering exhaust fan is the ideal option for your ventilating needs.
- Ready to Install: The fan ships fully assembled and ready to install for fast and easy setup.

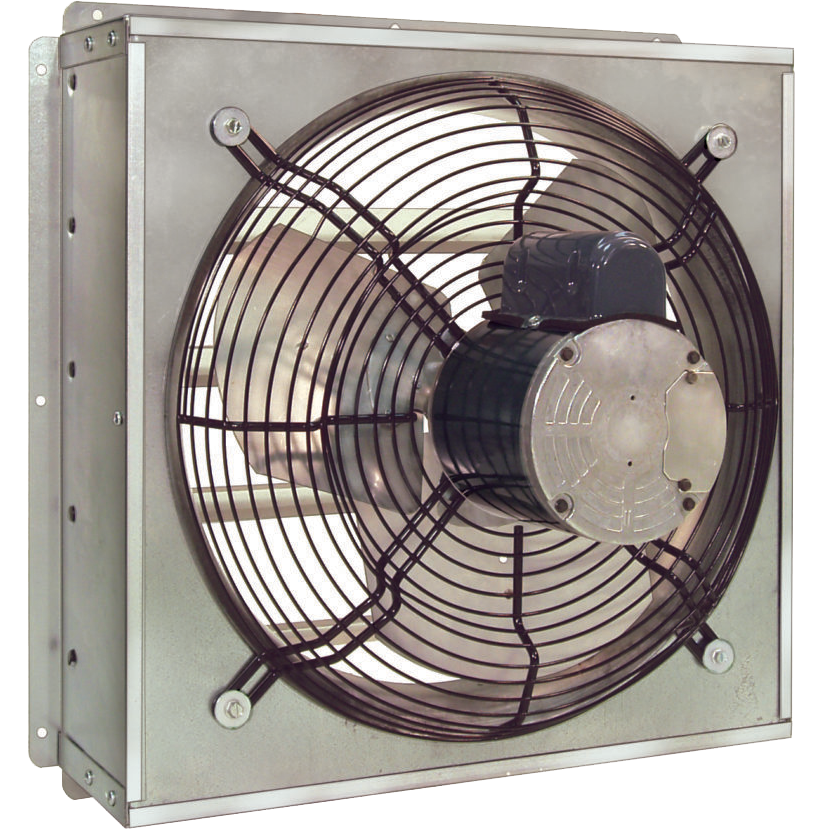

- Thermally Protected Motor: Designed with a totally enclosed 115-volt motor.
- Built to Last: Features a heavy galvanized steel frame to reduce rust and corrosion.
- Built-In Shutter: It’s equipped with a built-in shutter with rigid blades for continuous operation.
- OSHA Compliant: The spiral guard has an OSHA-compliant polyester powder coat finish.

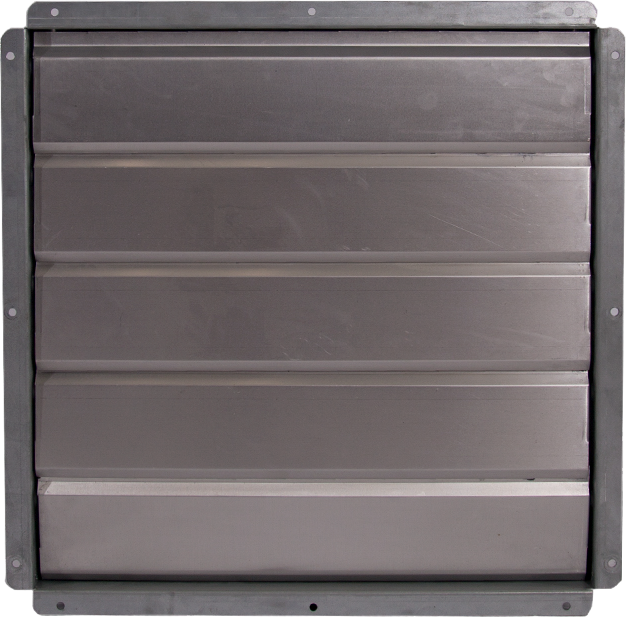

- Automatic Shutter: Its shutter automatically opens and closes when the unit is turned on or off.
Optional Thermostat Control
With the addition of the Triangle Engineering Single Phase Motor Thermostat, you’ll have a hard-wired thermostat for controlling 1/6 horsepower Triangle Engineering Shutter Mounted Exhaust Fan.
Summary
Quickly ventilate smaller garages, workshops, and other industrial settings with the GPX1210 Exhaust Fan from Triangle Engineering.
What Customers Love
- Fully Assembled: This fan is ready for installation right out of the box.
- Maximum Airflow: Features a 1,580 CFM airflow for controlling condensation and eliminating stagnant air.
Things to Consider
- Thermostat Control: To control this fan with a thermostat, the Triangle Engineering Single Phase Motor Thermostat must be purchased separately.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationResidential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)1580.0
-
Maximum RPM1625
-
Amperage (Amps)2.2
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)253
-
Ceiling or Wall Cutout Length (in.)17.38
-
Ceiling or Wall Cutout Width (in.)17.38
-
Depth (in.)13.25
-
Depth (with front cover) (in.)13.25
-
Height (in.)18.75
-
Height (with front cover) (in.)18.75
-
Shutter Fan Size (in.)12
-
Weight (lbs.)35
-
Width (in.)17.125
-
Width (with front cover) (in.)17.125
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty
1-Year Limited Warranty
