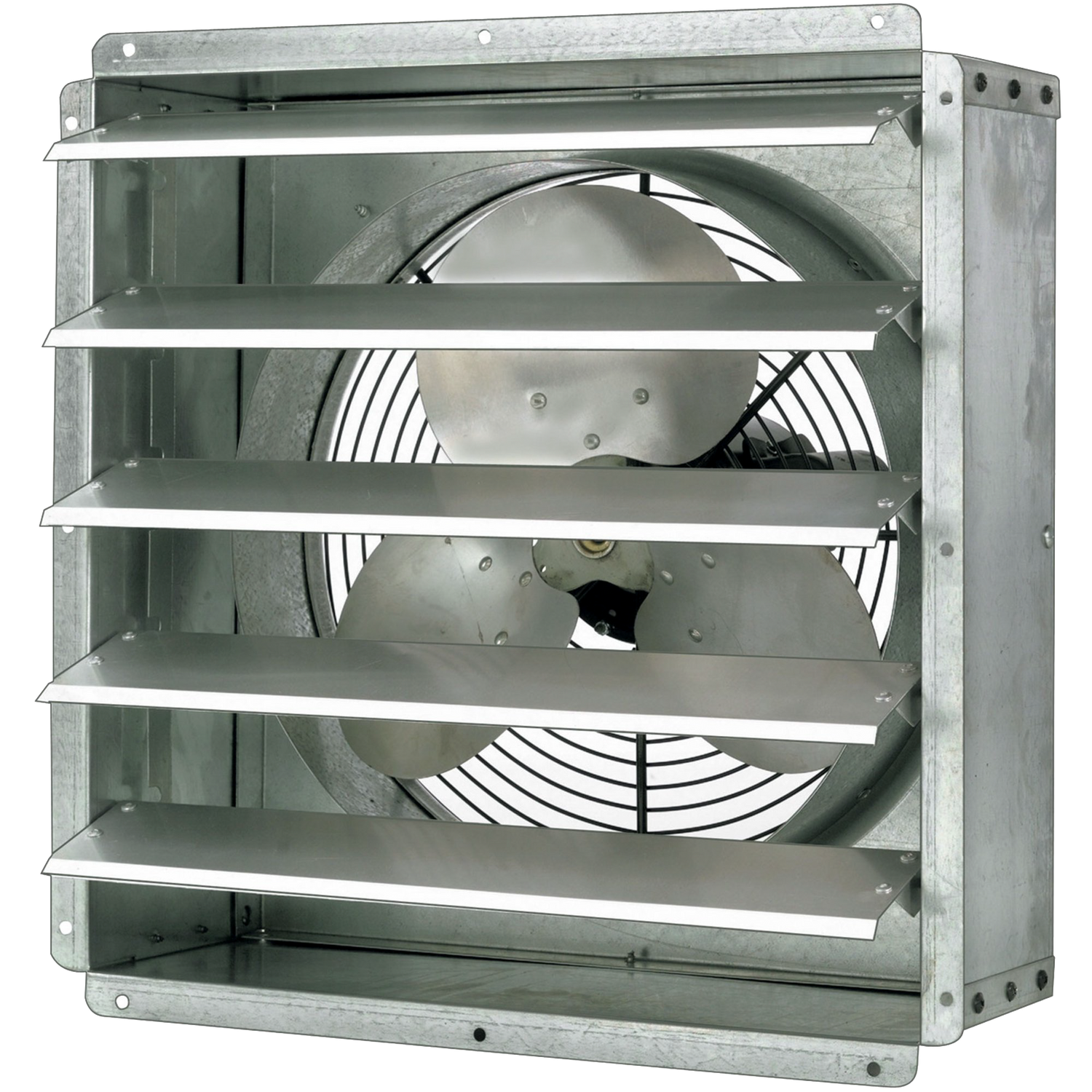

Triangle Engineering GPX Series 16 Inch Shutter Mounted Exhaust Fan
Triangle Engineering GPX Series 16 Inch Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Triangle Engineering GPX Series 16 Inch Shutter Mounted Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Triangle Engineering GPX Series 16 Inch Shutter Mounted Exhaust Fan
Description
Description
Perfect for small-to-medium commercial spaces, the Triangle Engineering GPX Series 16 Inch Shutter Mounted Exhaust Fan ventilates barns, workshops, poultry houses, garages, greenhouses, and more with a maximum airflow of 2,600 cubic feet per minute (CFM). It's ready to install out of the box since it ships fully assembled. Built to last, this unit features a galvanized steel finish.
Impressive User-Friendly Features
Designed with the end-user in mind, the Triangle Engineering GPX1611 is packed with features that building owners are sure to love.
- Ships Fully Assembled: This Triangle Engineering exhaust fan ships fully assembled and ready to install out of the box.

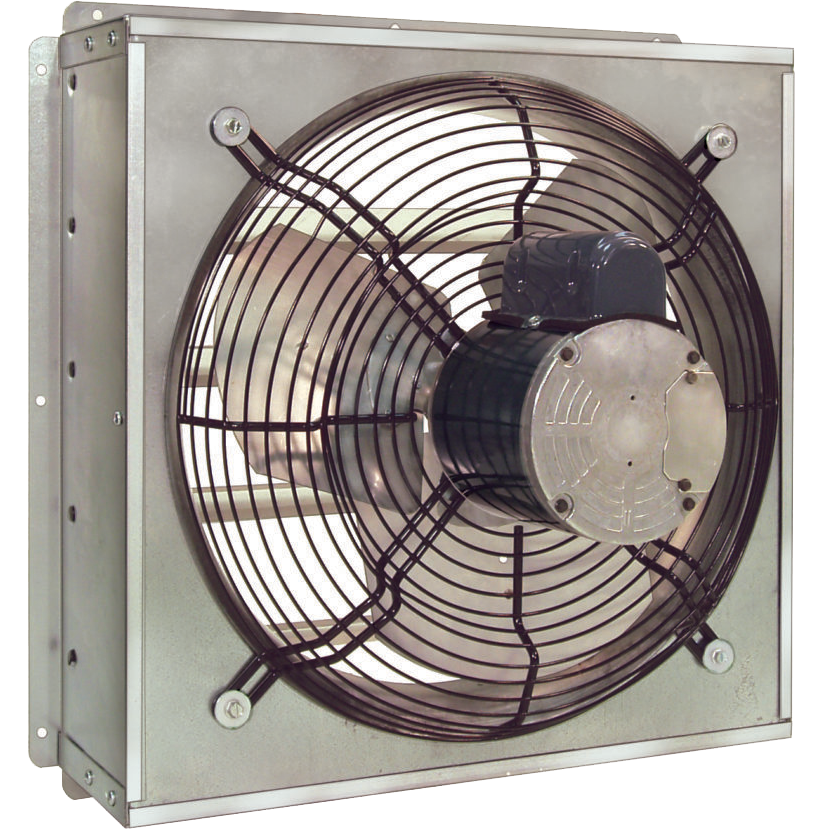

- Enclosed Motor: Features a totally-enclosed 115-volt motor.
- Galvanized Steel Construction: This fan is protected against rust and corrosion thanks to its heavy galvanized steel frame.
- Continuous Operation: The GPX Series fan from Triangle Engineering is equipped with a built-in shutter with rigid blades.
- Spiral Guard: Its spiral guard is coated in OSHA-compliant polyester powder.

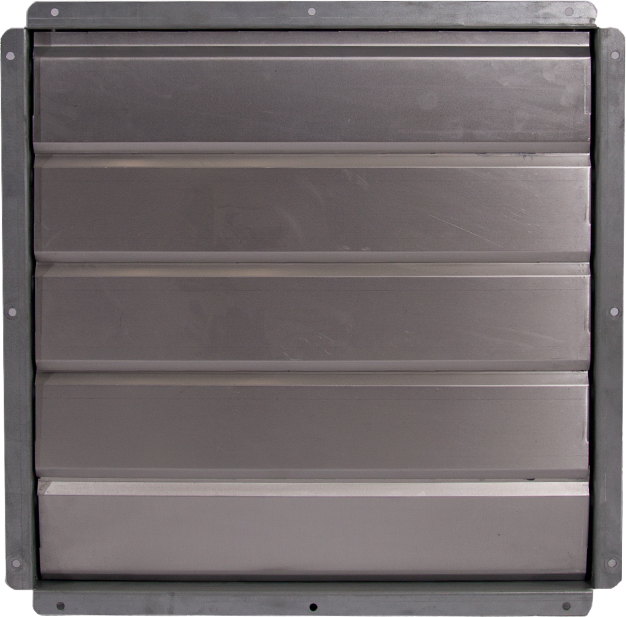

- Shutter Opens Automatically: The shutter opens and closes automatically when the unit is turned on and off.
For Thermostat Control
To control this ¼ horsepower shutter exhaust fan with a thermostat, choose the Triangle Engineering Single Phase Motor Thermostat.
Summary
Designed for workshops, greenhouses, poultry houses, and more, the Triangle Engineering Shutter Mounted Exhaust Fan is the perfect choice for your commercial ventilating needs.
What Customers Love
- Ships Fully Assembled: The fan ships fully assembled and ready to install for fast and easy setup.
- Powerful Performance: Features a maximum airflow of 2,600 cubic feet per minute.
Things to Consider
- Optional Thermostat Control: To control this fan with a thermostat, the compatible Triangle Engineering Single Phase Motor Thermostat must be purchased separately.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationResidential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)2600.0
-
Maximum RPM1650
-
Amperage (Amps)2.3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)264.5
-
Ceiling or Wall Cutout Length (in.)21.38
-
Ceiling or Wall Cutout Width (in.)21.38
-
Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Height (in.)22.75
-
Height (with front cover) (in.)22.75
-
Shutter Fan Size (in.)16
-
Weight (lbs.)43
-
Width (in.)21.125
-
Width (with front cover) (in.)21.125
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty
1-Year Limited Warranty
