Triangle Engineering GPX Series 20 Inch Shutter Mounted Exhaust Fan
Triangle Engineering GPX Series 20 Inch Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Triangle Engineering GPX Series 20 Inch Shutter Mounted Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Triangle Engineering GPX Series 20 Inch Shutter Mounted Exhaust Fan
Description
Description
Quickly ventilate workshops, greenhouses, poultry houses, garages, barns, and more with the powerful Triangle Engineering GPX Series 20 Inch Shutter Mounted Exhaust Fan. With its 3,200 cubic feet per minute (CFM) maximum airflow, it's the perfect option for medium-sized industrial settings. Durable, it has a galvanized steel finish and ships fully assembled for fast and easy setup.
Customer Favorite Features
The Triangle Engineering GPX2011 was carefully engineered with user-friendly features that are designed to allow this ventilation fan to effectively remove stagnant air, odors, and more.
- Fast and Easy Set-Up: The Triangle Engineering Exhaust Fan ships fully assembled and ready to install.
- Enclosed Motor: Features a totally-enclosed 115-volt motor.
- Durable Design: Built to last, this unit features a heavy galvanized steel frame to reduce corrosion and rust.
- Shutter Design: This unit features a built-in shutter with rigid blades for continuous operation.
- OSHA Compliant: Its spiral guard features an OSHA-compliant polyester powder coat finish.

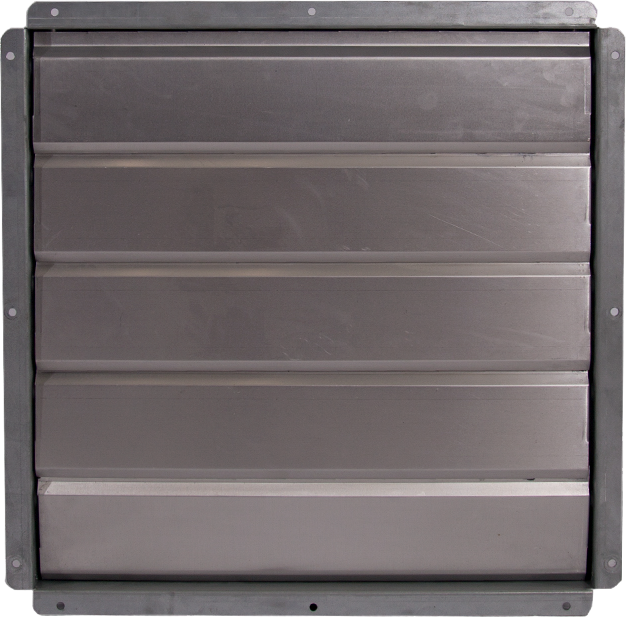

- Auto Shutter: The shutter automatically opens and closes when the unit is powered on or off.
Thermostat Control
Add the optional Triangle Engineering Single Phase Motor Thermostat for hard-wired thermostat control of this ¼ horsepower Triangle Engineering Shutter Mounted Exhaust Fan.
Summary
Designed for use in greenhouses, poultry houses, warehouses, and more, this shutter fan from Triangle Engineering is an effective option for industrial ventilation needs.
What Customers Love
- Powerful Airflow: Features a 3,200 maximum airflow for powerful ventilation
- Ready to Install: This unit ships fully assembled and ready to install.
Things to Consider
- Thermostat Control: To control this fan with a thermostat, the compatible Triangle Engineering Single Phase Motor Thermostat must be purchased separately.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3200.0
-
Maximum RPM1650
-
Amperage (Amps)2.3
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)264.5
-
Ceiling or Wall Cutout Length (in.)25.38
-
Ceiling or Wall Cutout Width (in.)25.38
-
Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Height (in.)26.75
-
Height (with front cover) (in.)26.75
-
Shutter Fan Size (in.)20
-
Weight (lbs.)55
-
Width (in.)25.125
-
Width (with front cover) (in.)25.125
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty
1-Year Limited Warranty
