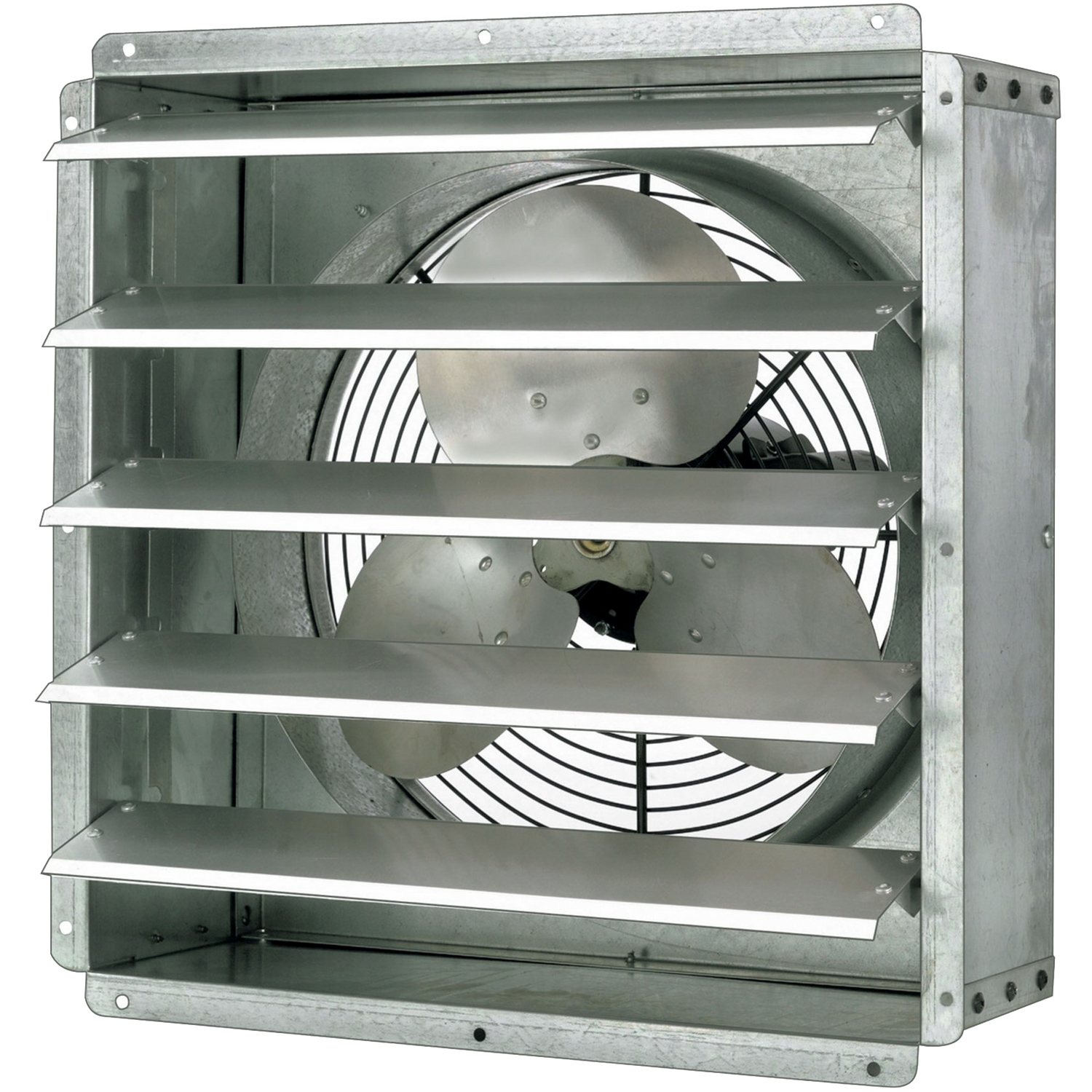

Triangle Engineering GPX Series 24 Inch Shutter Mounted Exhaust Fan
Triangle Engineering GPX Series 24 Inch Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Triangle Engineering GPX Series 24 Inch Shutter Mounted Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Triangle Engineering GPX Series 24 Inch Shutter Mounted Exhaust Fan
Description
Description
Featuring a maximum airflow of 5,460 cubic feet per minute (CFM), the Triangle Engineering GPX Series 24 Inch Shutter Mounted Exhaust Fan is the medium-to-large-sized space ventilating option you've been looking. This fan ships fully assembled, so set up is quick and easy. Thanks to its galvanized steel finish, it's able to withstand the rigors of use in settings like garages, warehouses, poultry houses, greenhouses, and more.
Top Features of the Triangle Engineering GPX2413
Equipped with numerous user-friendly features and careful engineering, this Triangle Engineering exhaust fan is built to last.
- Ready to Install: The fan ships fully assembled and ready to install for fast and easy setup.

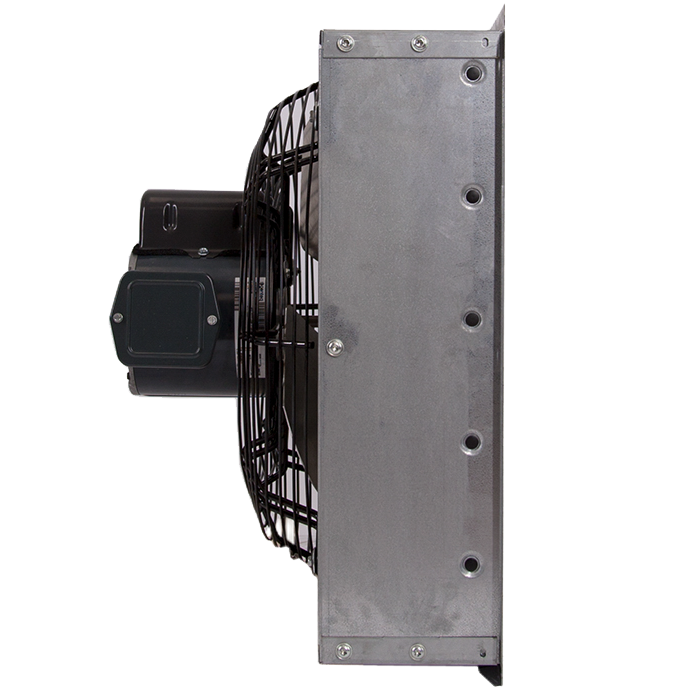

- Enclosed Motor: Features a totally-enclosed 115-volt motor.
- Durable Design: Built to last, this unit features a heavy galvanized steel frame to reduce corrosion and rust.

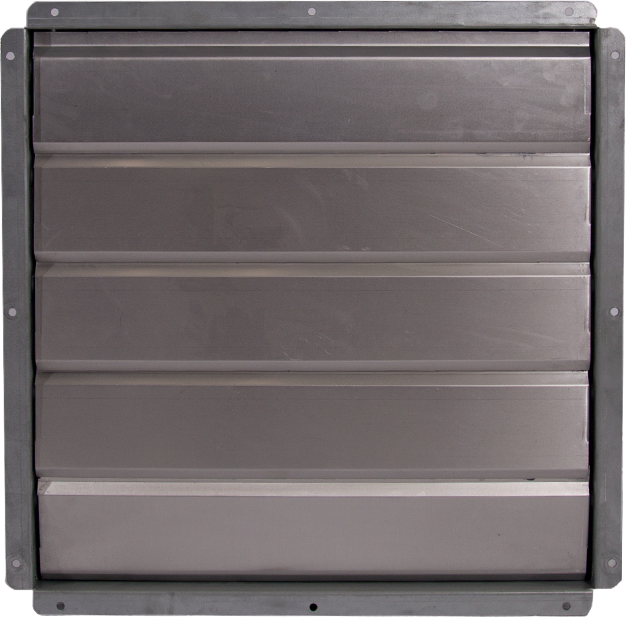

- Built-In Shutter: It’s equipped with a built-in shutter with rigid blades for continuous operation.

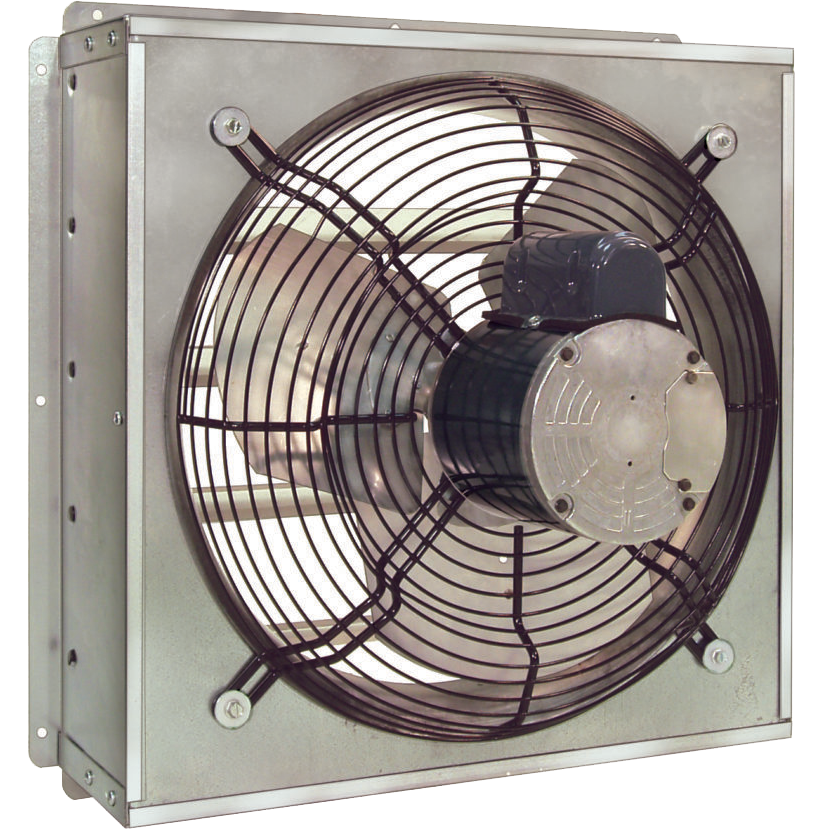

- Spiral Guard: Its spiral guard is coated in OSHA-compliant polyester powder.
- Auto Shutter: The shutter automatically opens and closes when the unit is powered on or off.
Optional Thermostat Control
With the addition of the Triangle Engineering Single Phase Motor Thermostat, you’ll have a hard-wired thermostat for controlling 1/2 horsepower Triangle Engineering Shutter Mounted Exhaust Fan.
Summary
For ventilating medium-to-large industrial spaces, turn to the Triangle Engineering Shutter Mounted Exhaust Fan to remove odors, heat, and more.
What Customers Love
- Fully Assembled: This fan is ready for installation right out of the box.
- Maximum Airflow: Features a 5,460 CFM airflow for controlling condensation and eliminating stagnant air.
Things to Consider
- Thermostat Control: To control this fan with a thermostat, the compatible Triangle Engineering Single Phase Motor Thermostat must be purchased separately.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)5460.0
-
Maximum RPM1100
-
Amperage (Amps)6.1
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)701.5
-
Ceiling or Wall Cutout Length (in.)29.38
-
Ceiling or Wall Cutout Width (in.)29.38
-
Depth (in.)14.25
-
Depth (with front cover) (in.)14.25
-
Height (in.)30.75
-
Height (with front cover) (in.)30.75
-
Shutter Fan Size (in.)24
-
Weight (lbs.)66
-
Width (in.)29.125
-
Width (with front cover) (in.)29.125
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
