Triangle Engineering GPX Series 30 Inch Shutter Mounted Exhaust Fan
Triangle Engineering GPX Series 30 Inch Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Triangle Engineering GPX Series 30 Inch Shutter Mounted Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides

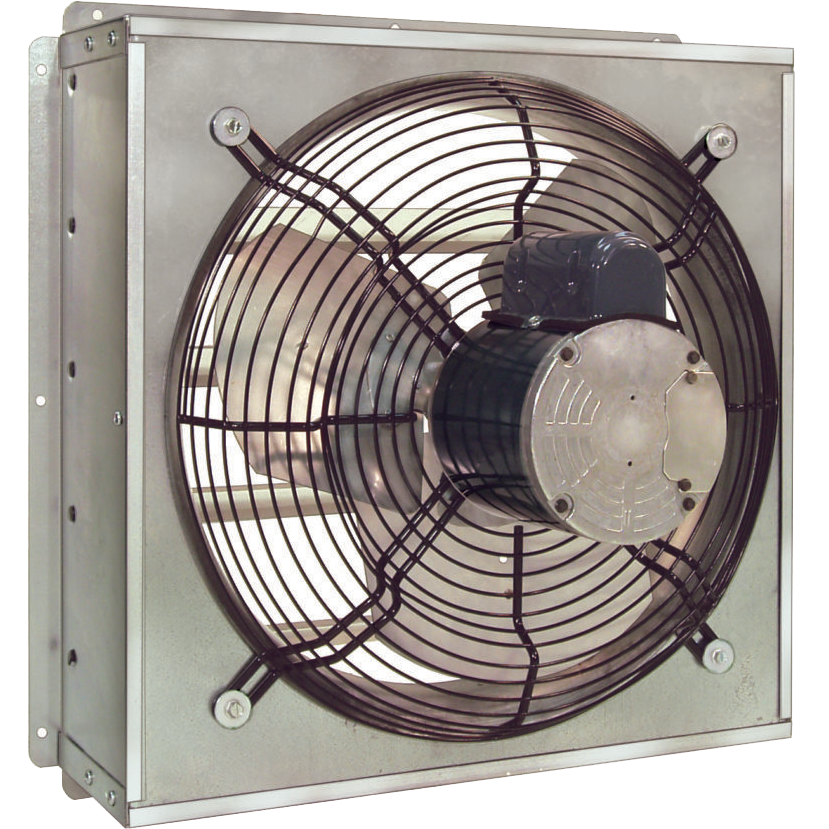

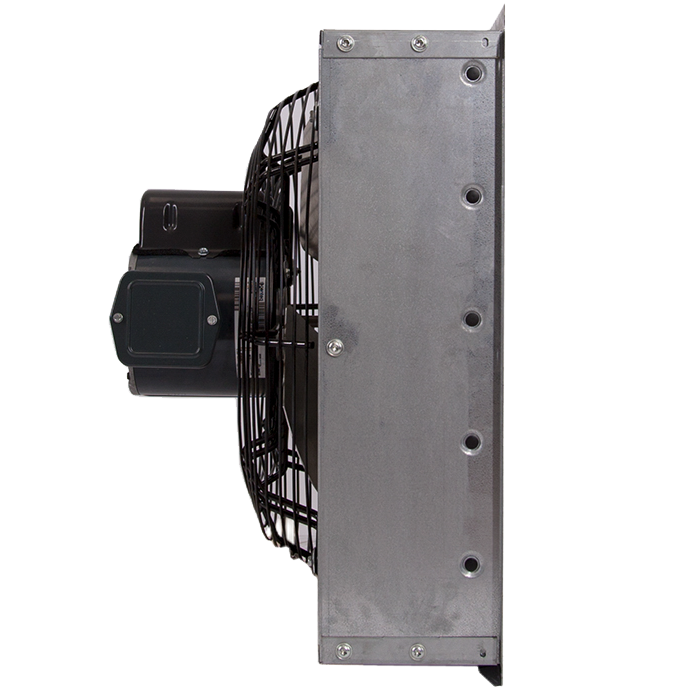

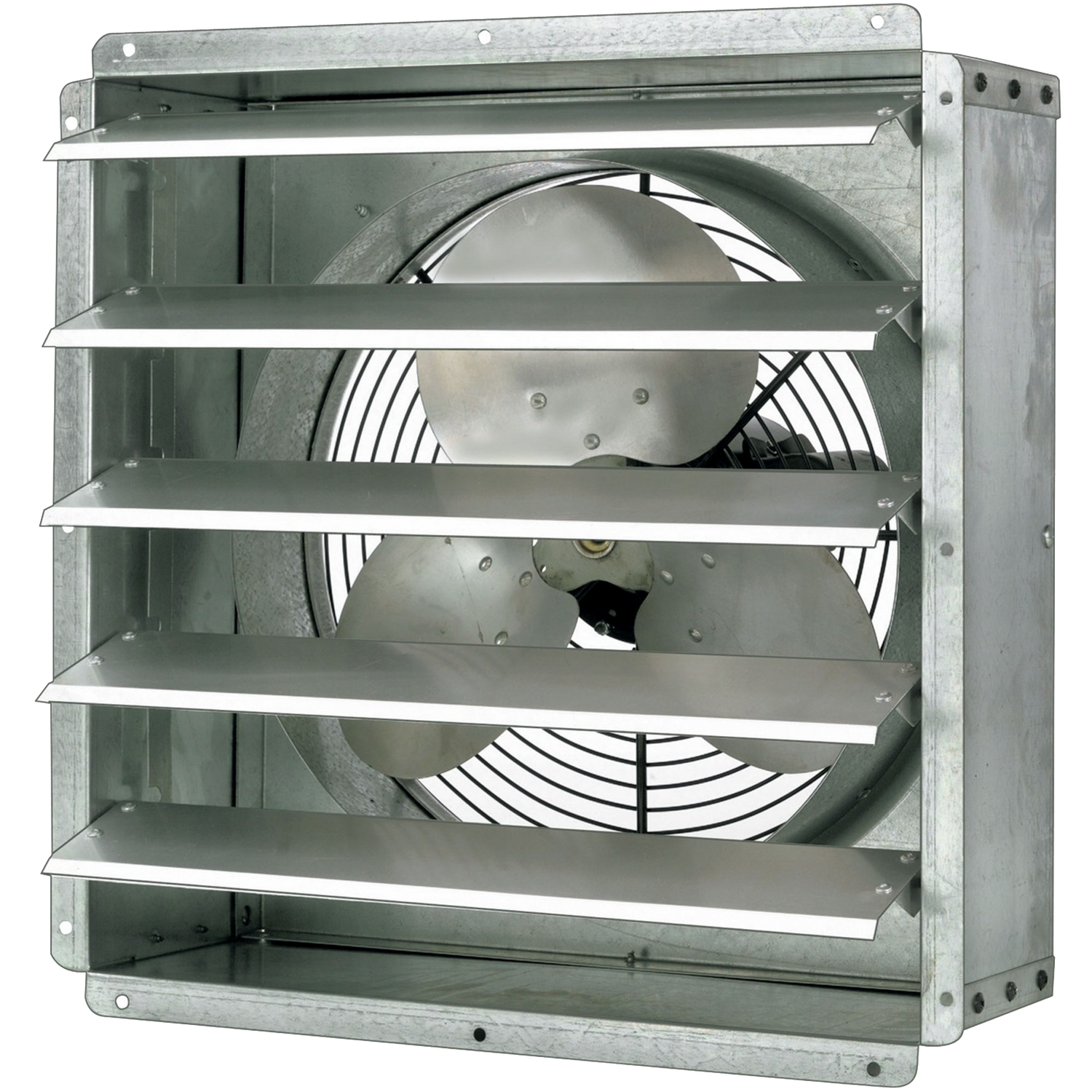

Triangle Engineering GPX Series 30 Inch Shutter Mounted Exhaust Fan
Description
Description
Ventilate the largest industrial settings with the Triangle Engineering GPX Series 30 Inch Shutter Mounted Exhaust Fan. With its 6,800 cubic feet per minute (CFM) maximum airflow, it’s ideal for greenhouses, poultry houses, greenhouses, warehouses, and more. User-friendly, this galvanized steel finished fan ships fully assembled and ready to install.
Powerful Exhaust Fan
Thanks to user-friendly features and its powerful performance, the Triangle Engineering GPX3013 is the perfect choice for all of your industrial ventilation needs.
- Fast and Easy Set-Up: The Triangle Engineering Exhaust Fan ships fully assembled and ready to install.
- Enclosed Motor: Features a totally-enclosed 115-volt motor.
- Built to Last: Features a heavy galvanized steel frame to reduce rust and corrosion.

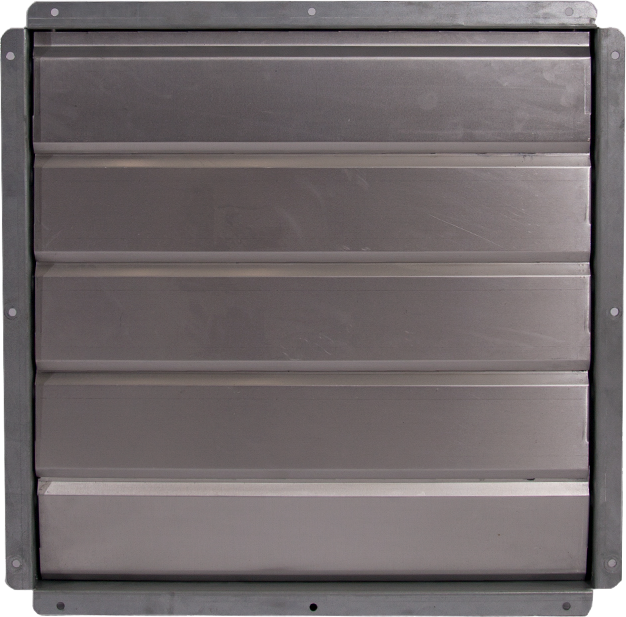

- Shutter Design: This unit features a built-in shutter with rigid blades for continuous operation.
- Spiral Guard: Its spiral guard is coated in OSHA-compliant polyester powder.
- Automatic Shutter: Its shutter automatically opens and closes when the unit is turned on or off.
Thermostat Control

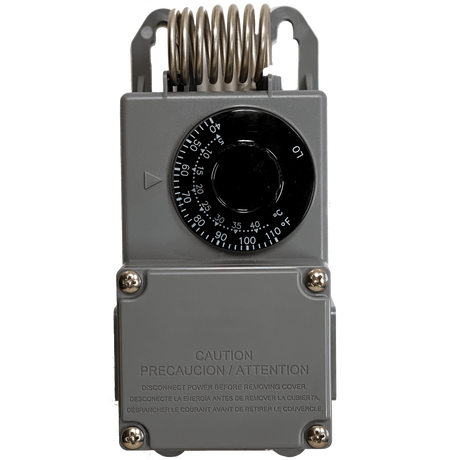

Add the optional Triangle Engineering Single Phase Motor Thermostat for hard-wired thermostat control of this 1/2 horsepower Triangle Engineering Shutter Mounted Exhaust Fan.
Summary
With its 6,800 CFM airflow, the Triangle Engineering Shutter Mounted Exhaust Fan is the perfect choice for ventilating greenhouses, poultry houses, warehouses, garages, and more.
What Customers Love
- Fully Assembled: This fan is ready for installation right out of the box.
- Maximum Airflow: Features a 6,800 CFM airflow for controlling condensation and eliminating stagnant air.
Things to Consider
- Thermostat Control: To control this fan with a thermostat, the compatible Triangle Engineering Single Phase Motor Thermostat must be purchased separately.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)6800.0
-
Maximum RPM1100
-
Amperage (Amps)6.1
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)701.5
-
Ceiling or Wall Cutout Length (in.)35.38
-
Ceiling or Wall Cutout Width (in.)35.38
-
Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Height (in.)36.75
-
Height (with front cover) (in.)36.75
-
Shutter Fan Size (in.)30
-
Weight (lbs.)70
-
Width (in.)35.125
-
Width (with front cover) (in.)35.125
-
Additional FeaturesMeets OSHA Standards, Applicable for Indoor Growing
-
Manufacturer's Warranty
1-Year Limited Warranty
