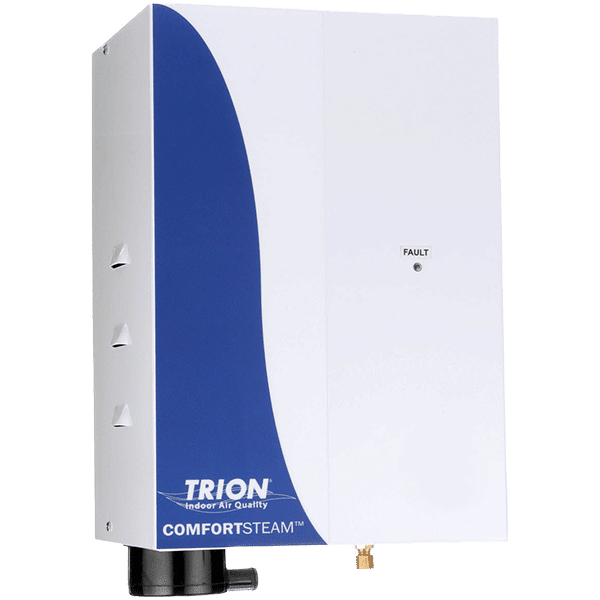

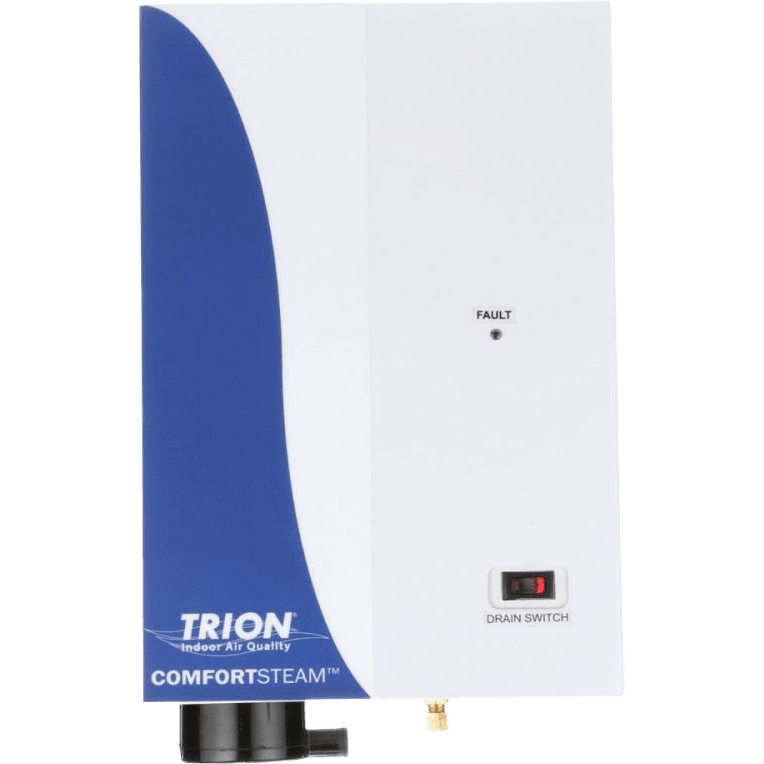

TRION ComfortSteam CFS Whole House Electronic Steam Humidifier

SKU: tr13925  |  Model: 267460-003
$1,11900
Voltage:

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

30-Month Warranty From Shipment, 24-Month Warranty From Installation (Excludes Replaceable Steam Cylinder)

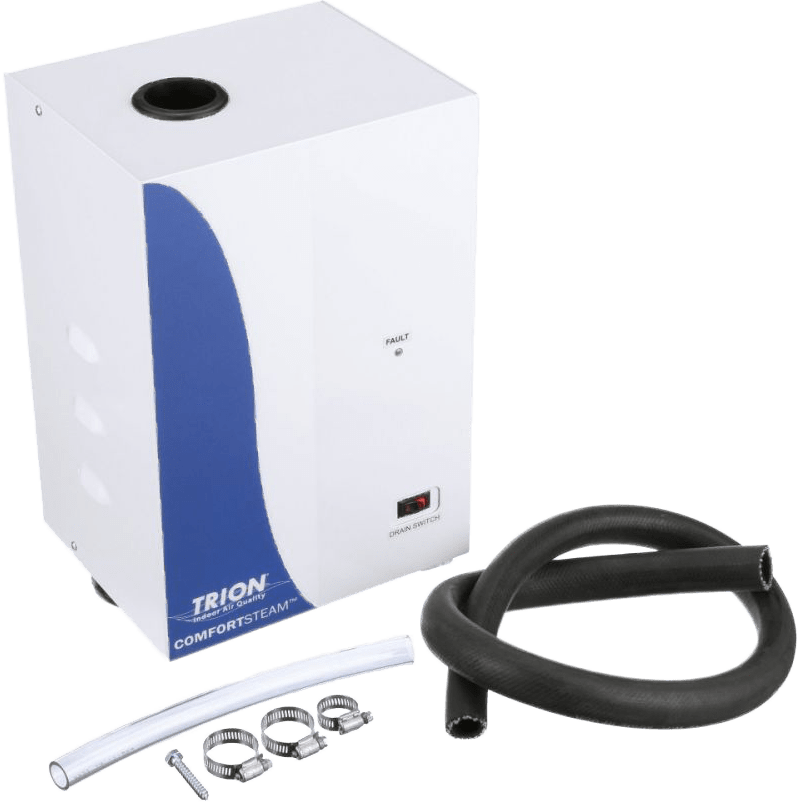

What's In The Box?
  • TRION ComfortSteam CFS Whole House Electronic Steam Humidifier
  • Owner's Manual
  • Generator Chassis Assembly
  • Humidistat
  • Air-Proving Switch
  • Stainless-Steel Duct Distributor
  • Steam Hose
  • Drain Line
  • Mounting Hole Template
  • Lag Bolts (2)

Info & Guides

Description

A tabletop humidifier in one bedroom does little for the irritation that dry indoor air causes in the rest of your house. The TRION ComfortSteam CFS Whole House Electronic Steam Humidifier treats every room at once. Electrodes generate steam inside a sealed cylinder, and your HVAC ducts carry it through the house. TRION took this technology from commercial and industrial buildings and scaled it down for homes.

The steam travels through your duct system, so it comes out of every supply register at the same time. Beyond large homes, the CFS line suits small offices, medical offices, computer and server rooms, and humidors where steady moisture matters. The 2 models differ by voltage, so your choice depends on the circuit at your installation site.

Key Features and Benefits of the TRION ComfortSteam CFS Whole House Electronic Steam Humidifier

  • Electrode Steam Generation: Electrodes boil water inside a plastic steam cylinder, giving you commercial-grade humidification with no cleaning required.
  • Whole-House Coverage: Steam travels through your HVAC ductwork to humidify tightly sealed homes up to 4,000 square feet from a single central location.
  • Direct Water Line: A direct water line fill accepts 20 to 100 pounds per square inch of supply pressure, so you never have to refill a tank by hand.
  • Complete Install Kit: Ships with the generator chassis assembly, humidistat, stainless-steel duct distributor, and steam hose, so you have what you need to install and run it.
  • Fan-Proving Switch: The included air-proving switch detects airflow in your ducts and makes it simple to set the airflow direction during setup.
  • LED Fault Indicator: An internal microprocessor monitors operation and signals faults through 1 LED that switches between off, on, and two blink speeds, so you can identify problems quickly.
  • Bottom Drain Connection: A drain connection on the bottom of the humidifier attaches to the included 1-inch drain line, which keeps your plumbing hookup tidy.
  • Template Mounting: A mounting hole template and the included lag bolts let you mark and secure the humidifier to the wall in less time.
  • Compact Footprint: It measures 9 x 11 x 18-Inches (L x W x H) and weighs 27 pounds, so you can plan wall space near the air handler.

Choose Your Voltage: CFS20 vs. CFS22

The ComfortSteam CFS line comes in 115-volt and 230-volt versions, and the voltage you pick also sets how much moisture you get each day.

  • 115V Model CFS20: The CFS20 runs on a 115-volt supply with a maximum draw of 1,330 watts, so your electrician can size the circuit easily, and it delivers 11.5 gallons of moisture per day.
  • 230V Model CFS22: The CFS22 requires a 230-volt supply with a maximum draw of 2,660 watts and produces 23 gallons of moisture per day, double the output for homes that need more humidity.

Sylvane's Expert Take

If you have a tightly sealed home up to 4,000 square feet and a ducted HVAC system, the ComfortSteam CFS line controls humidity at the air handler instead of room by room. Let your electrical panel pick the model: the 115-volt version suits a standard circuit, while the 230-volt version doubles daily output if you can supply the power. Both models need no cleaning, which makes upkeep easy. If you want steady moisture throughout the house with very little upkeep, this steam humidifier is a strong pick.

Specifications

    Key Specifications

    • HVAC Type
      Steam
    • Moisture Output Per Day (gallons)
      115V: 11.5
      230V: 23.0
    • Type
      Steam

    General

    • Color
      White
    • Controls
      Electronic
    • Fill Type
      Direct Water Line
    • Humidifier Style
      HVAC/Duct
    • Recommended Coverage Area (sq. ft.)
      115V: 3450
      230V: 5200
    • Recommended For
      Whole House
    • System Control
      Humidity

    Power

    • Maximum Amperage (Amps)
      11.5
    • Maximum Wattage (W)
      115V: 1330
      230V: 2660
    • Power Supply
      Hardwired
    • Voltage (V)
      115V: 110-120
      230V: 220-240

    Dimensions

    • Depth (in.)
      9.0
    • Height (in.)
      18.0
    • Weight (lbs.)
      27
    • Width (in.)
      11.0

    Additional Features

    • Additional Features
      Humidistat, Alert

    Warranty

    • Manufacturer's Warranty
      30-Month Warranty From Shipment, 24-Month Warranty From Installation (Excludes Replaceable Steam Cylinder)
