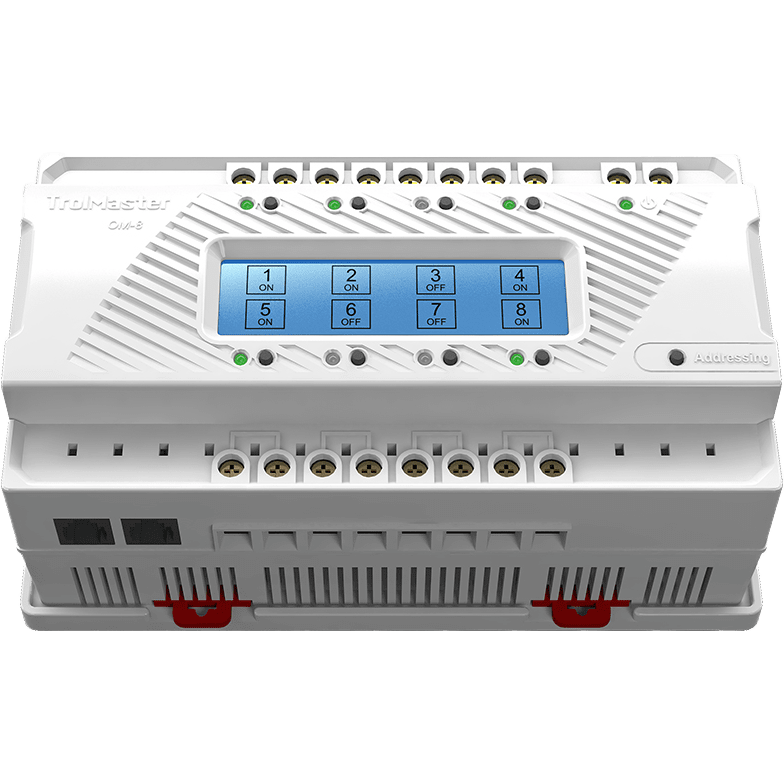

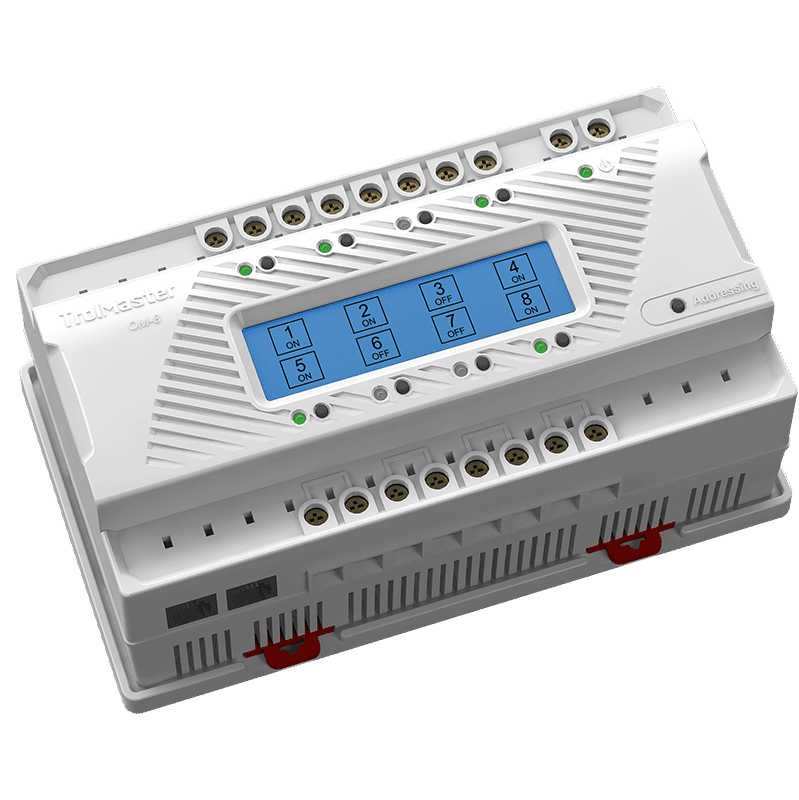

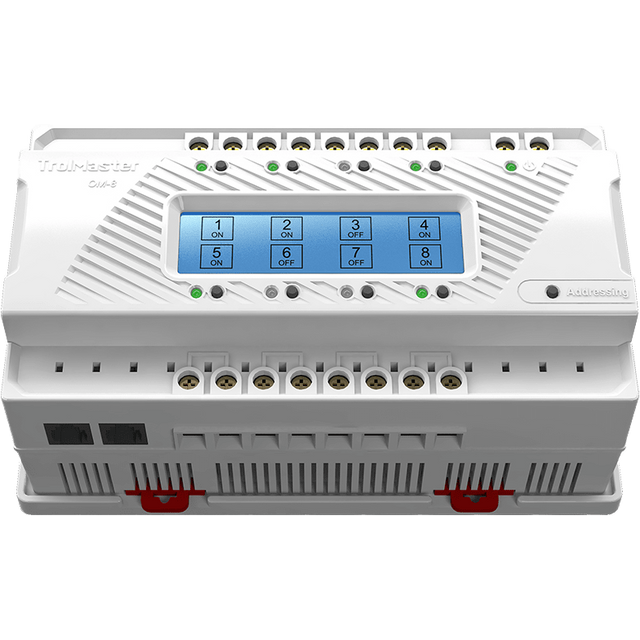

TrolMaster Dry Contact Board
SKU:
tm13149
| Model:
OM-8
$298.25
Unit price
/
Unavailable
TrolMaster Dry Contact Board is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TrolMaster Dry Contact Board
- Owner's Manual
- 16-Foot RJ12 Cable
Info & Guides
Info & Guides
TrolMaster Dry Contact Board
$298.25
Unit price
/
Unavailable
Description
Description
Control up to eight devices including cooling, heating, dehumidification, humidification, CO2, lights, irrigation pumps, and solenoids with the TrolMaster Dry Contact Board. Designed for use with the TrolMaster Hydro-X Pro and Aqua-X Pro systems, this contact board should be mounted inside an electrical control cabinet and connected to 100-240 volt power supply.
Top Features Of The TrolMaster OM-8
- LCD Display: Easily set up and monitor this dry connect board from TrolMaster.

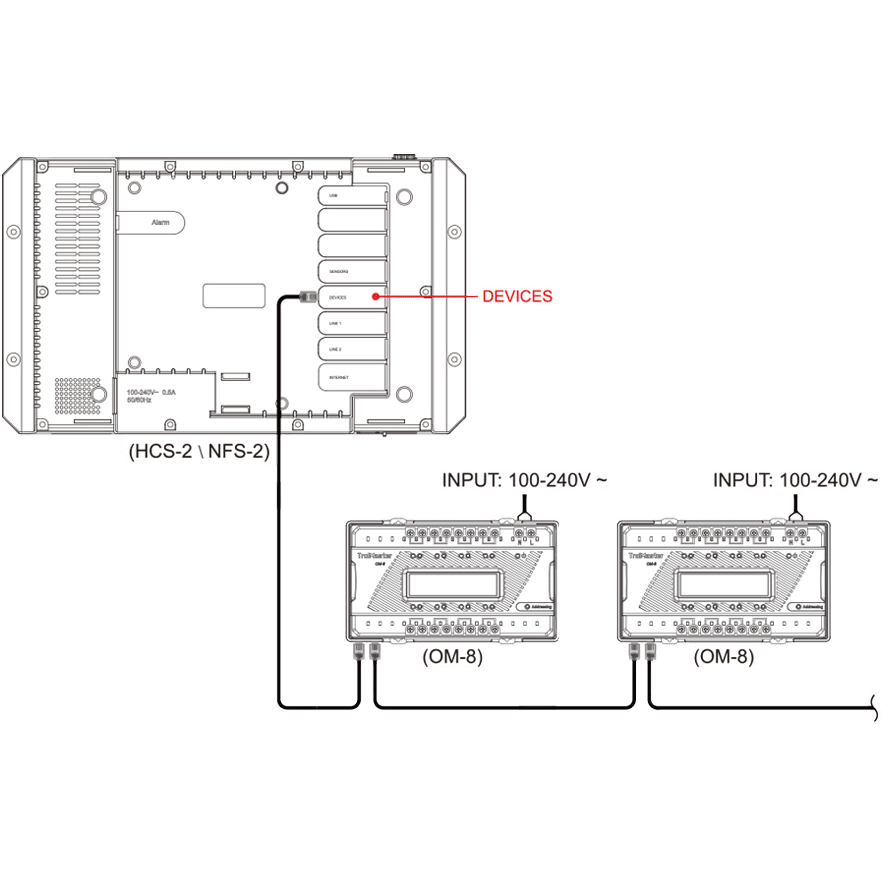

- Installation Made Easy: Simply mount the bracket to an electrical control cabinet, place the unit on the bracket, connect it to a 100-240 volt power supply, and connect the unit to the main controller using the included RJ12 cable.
- Overload Protection: Each of the the eight outputs features overload protection at 12 amps.
- Forced Open: Each contact can be forced open or closed for a duration of 30 minutes.
Summary
The TrolMaster OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it.
Specifications
Specifications
-
System ControlsHumidity, Lighting, CO2 Control, Temperature
-
Maximum Operating Temperature (degrees F)104
-
Minimum Operating Temperature (degrees F)32
-
Depth (in.)5.31
-
Depth (with front cover) (in.)5.31
-
Height (in.)3.74
-
Height (with front cover) (in.)3.74
-
Weight (lbs.)1
-
Width (in.)10.04
-
Width (with front cover) (in.)10.04
-
Additional FeaturesCO2 Integration Statistics, Applicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited Warranty
