TrolMaster Tent-X System Main Controller

Name: TrolMaster Tent-X System Main Controller
Brand: TrolMaster
Price: 339.95 USD
Availability: InStock

SKU: tm14858 | Model: TCS-1

$339⁹⁵

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty, 1-Year Sensor Warranty

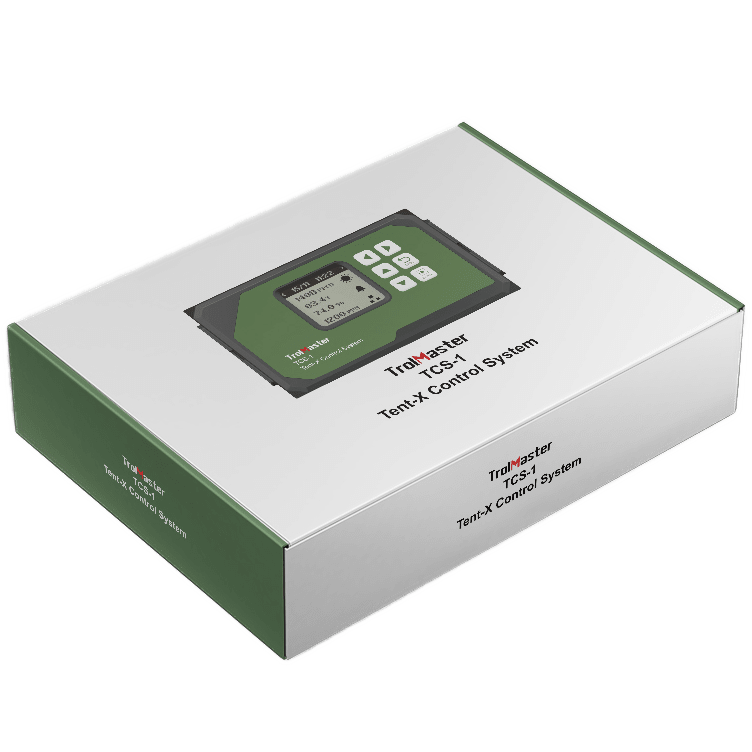

What's In The Box?

TrolMaster Tent-X Controller
TrolMaster 3-in-1 Sensor
RJ12 Cable Set for Light Connection
RJ12 Y-Splitter
Controller Backplate Bracket

Info & Guides

Description

When your tent runs on a mix of plug-in timers and standalone thermostats, every change happens in a different place. The TrolMaster Tent-X System Main Controller puts those jobs into one system, so your environment and watering schedules share a single interface. Its modular port layout also has room for a much larger sensor and device network than a single tent usually starts with.

Key Features and Benefits of the TrolMaster Tent-X System Main Controller

MBS-TH Sensor: The included MBS-TH sensor reads climate and light levels, and it daisy-chains to other sensors so you need fewer separate cable runs.
TM+ Pro App: A hardwired internet connection links the controller to the TM+ Pro app, so you can check and adjust your tent when you're away.

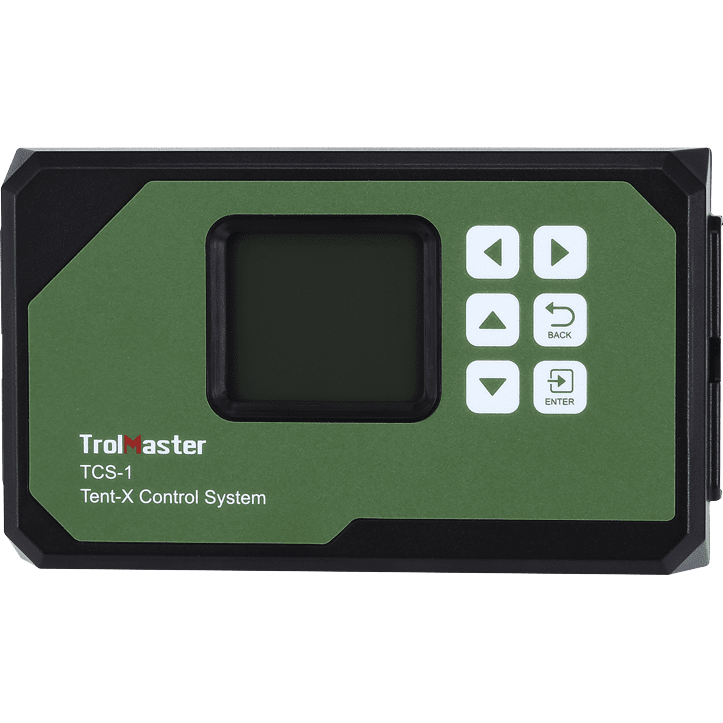

Onboard LCD: The LCD screen lets you set everything from humidity and temperature to lighting and fans right at the controller, with no phone required.
CO2 Statistics: CO2 integration statistics track carbon dioxide over time, so you get a clearer picture of how your tent's air changes through each cycle.
Light Statistics: Light integration statistics record total light exposure, which helps you judge whether your lighting schedule matches your plants' needs.
Dual Voltage: The controller is rated for 110-120 or 220-240 volts with a 0.2-amp maximum draw, so it works on either common household voltage and adds almost no electrical load.
Operating Range: The controller works from 32 to 122 degrees F, so it keeps running through a cool night or a hot lights-on cycle.
Compact Housing: At 6.52 x 3.78 x 1.63-Inches (L x W x H) and 0.54 pounds, the controller takes up very little space beside your tent.

Planning Your Sensor and Device Layout

The Tent-X divides its capacity across dedicated ports, so it helps to plan your layout before you connect anything. Its 2 sensor and device ports support up to 14 sensors, covering air climate plus root-zone readings such as growing medium and nutrient levels. Those same ports handle up to 16 devices, from pumps to fans and cameras, which means your irrigation and airflow can follow one coordinated schedule. A separate pair of lighting ports supports up to 7 lighting connections, so you can run more than one fixture group and still keep the sensor ports free.

Sylvane's Expert Take

If you run a single tent and want one controller to handle both watering and climate, the Tent-X is a good fit. It works best where you can run a hardwired internet connection, because that is how the TM+ Pro app reaches it for remote checks. The main thing to know is how much room it leaves you: the port capacity is far more than one tent needs on day one, so the controller you install now can stay in place as your setup expands.

The included MBS-TH sensor and the app connection matter most, since together they give you live readings and remote access from the first day. Set it up once, and you can spend your time on the plants instead of the plugs.
