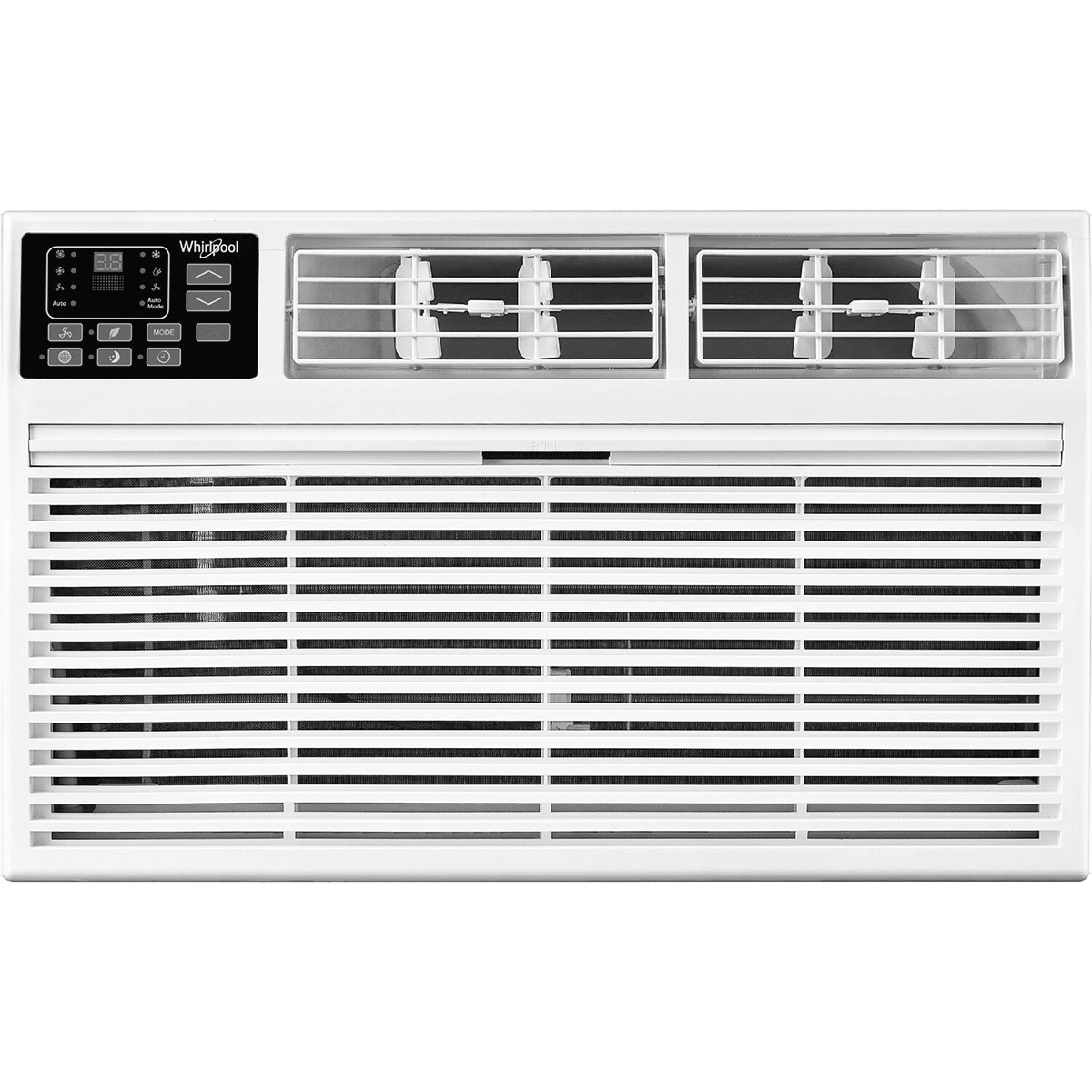

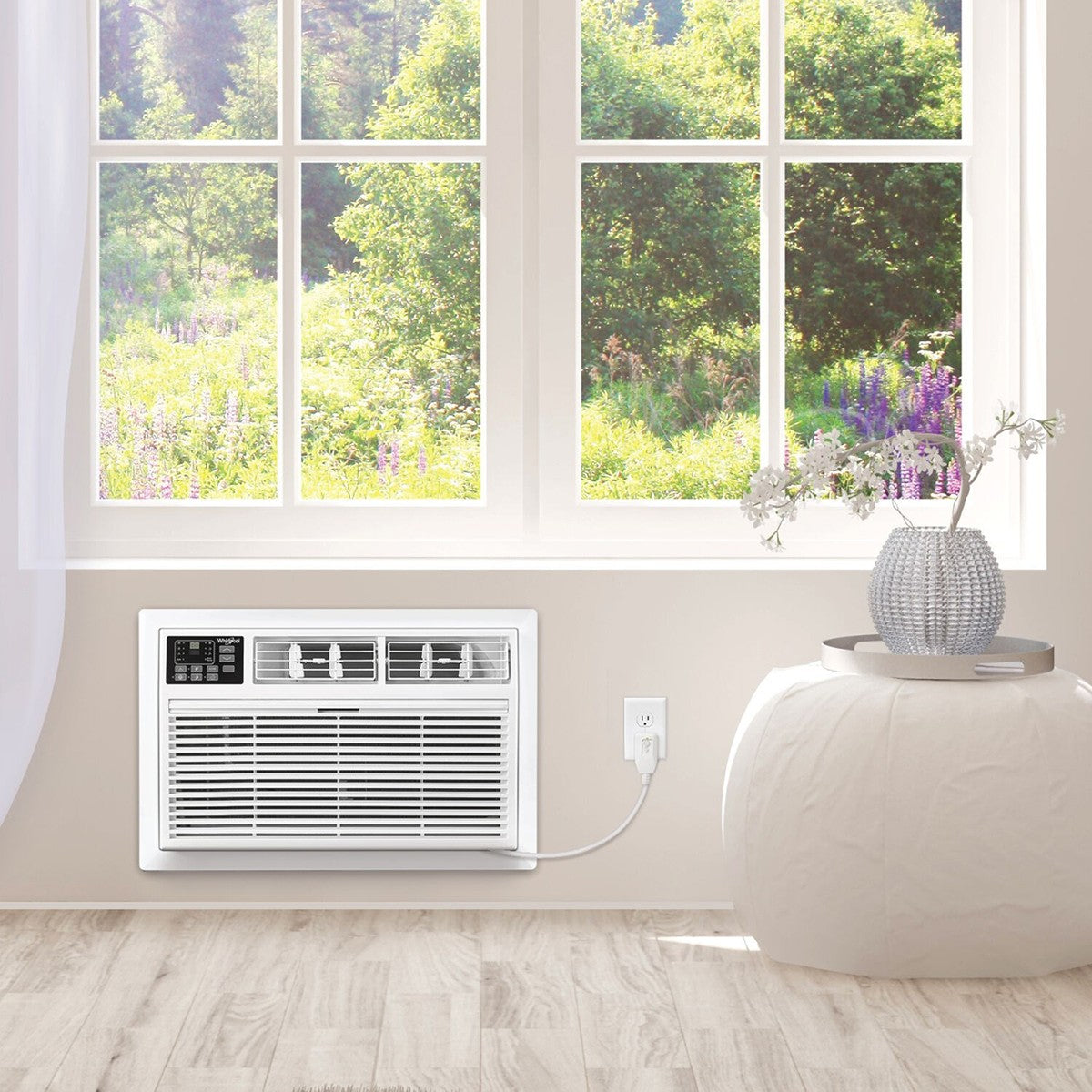

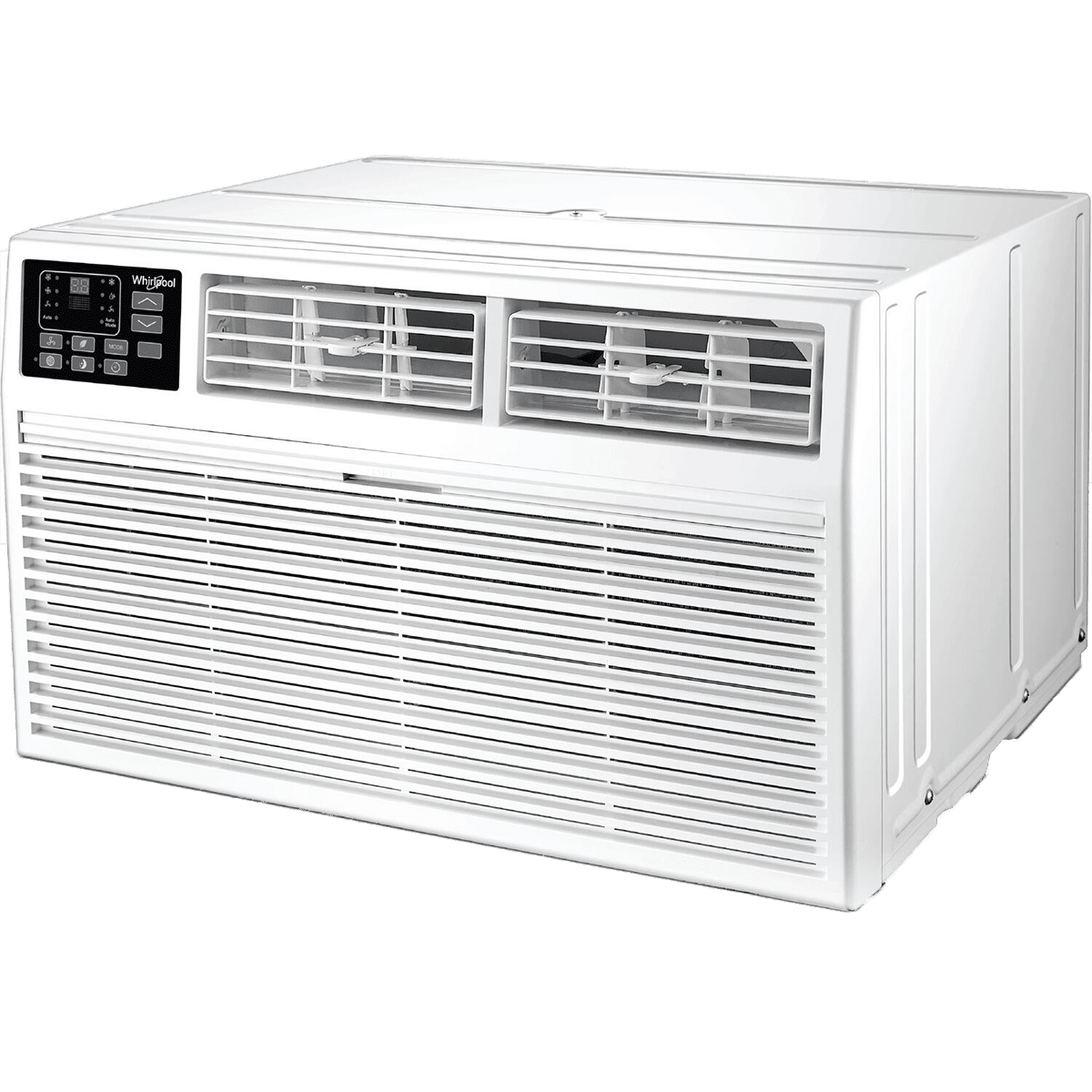

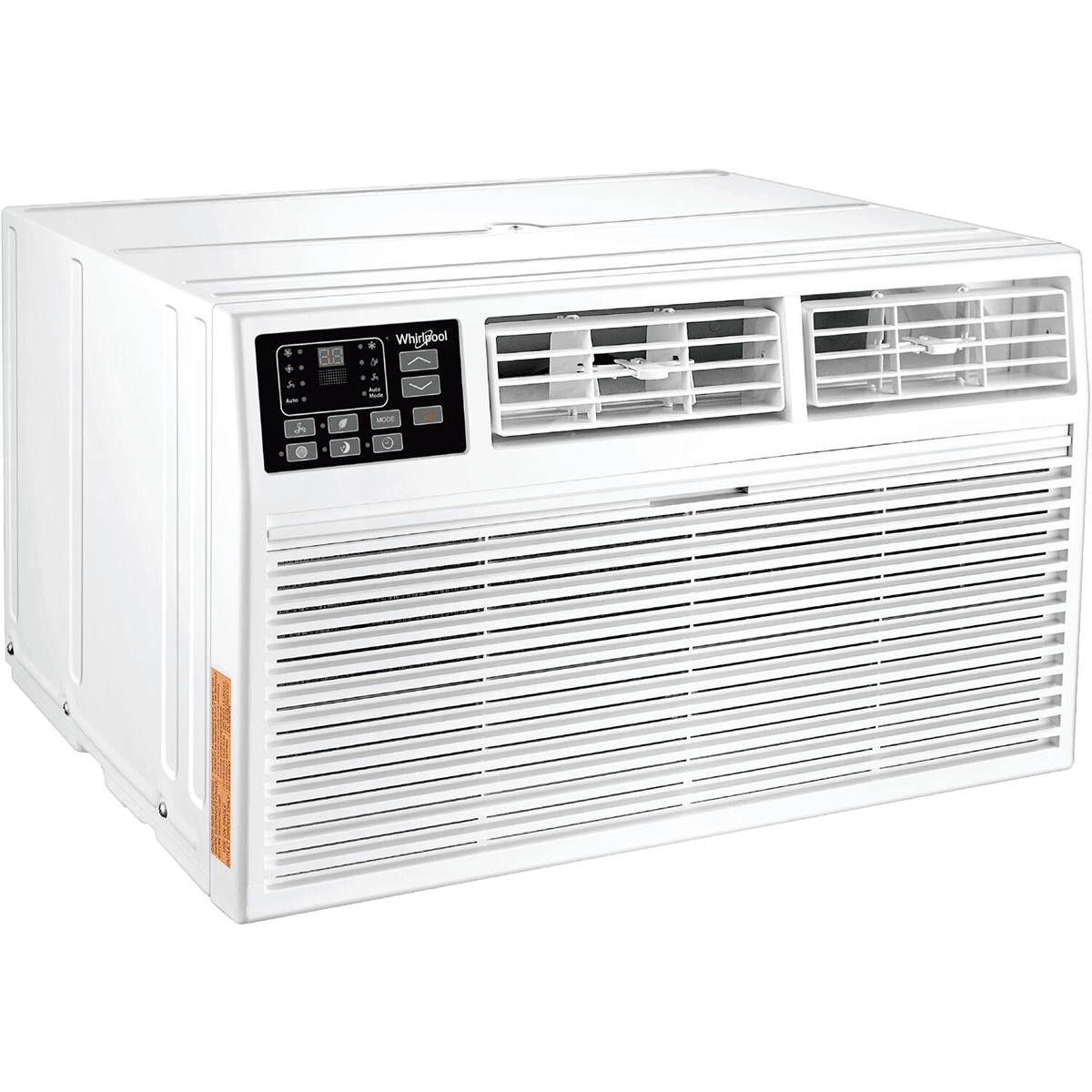

Whirlpool 10,000 BTU Through-The-Wall Air Conditioner

SKU: wh15177  |  Model: WHAT101-1BW
$52999
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Replacement (Cool Only) 1-Year Limited (with Heat)

What's In The Box?
  • Whirlpool 10,000 BTU Through-the-Wall Air Conditioner
  • Trim Kit and Rear Grille
  • Remote Control
  • Owner’s Manual

Info & Guides

Description

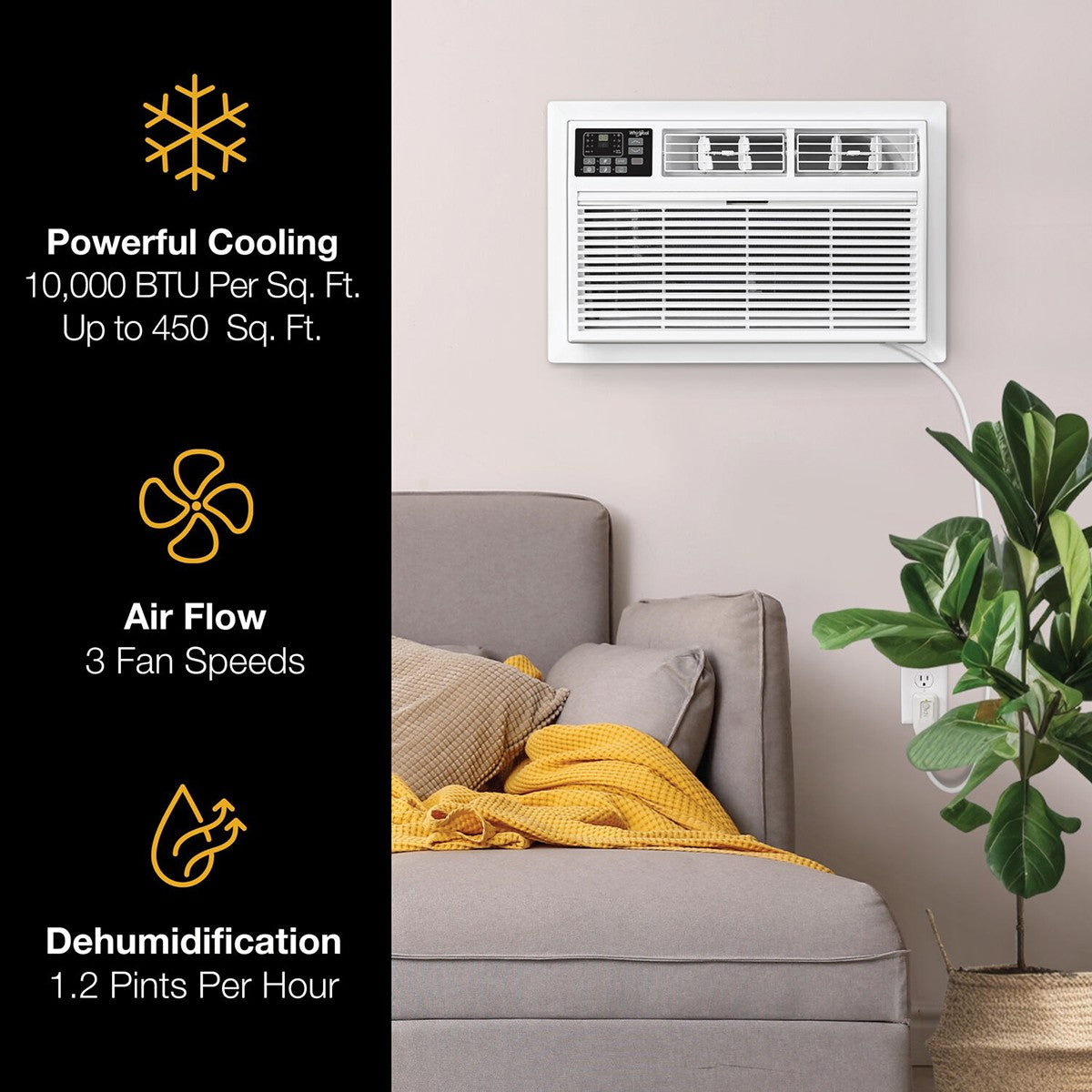

The Whirlpool 10,000 BTU Through-The-Wall Air Conditioner offers versatile climate control with exceptional cooling, supplemental heating (on heat-only models), dehumidification, and fan-only modes. Explore these options for a wider range of comfort.

  • Cool: This model has 10,000 BTUs of cooling power. It features a 3-prong 115-volt electrical plug (no heat model only).
  • Dry: Effectively combat indoor humidity by removing up to 1.2 pints of moisture every hour.
  • Fan-Only: In moderate weather, utilize this mode to bring fresh air into your space and circulate it.
  • Auto: The unit's auto mode adjusts fan speed and operating mode based on room temperature to match the thermostat setting.
  • ECO: This energy-saving mode operates the compressor at intervals while the fan continuously circulates the cooled air. This intermittent compressor operation reduces energy consumption and costs.
  • Sleep: For energy savings and comfortable sleep, this mode automatically modifies temperature and fan speed throughout the night.

Model with Heat

The 230V Whirlpool WHAT102-HAW through-the-wall AC unit includes cooling, dehumidification, fan-only, and heating modes. While not intended as a primary heat source, its 10,600 BTUs of supplemental heat can provide extra warmth on cold days or when avoiding the use of a central furnace. This model uses a NEMA 6-20P 3-prong plug for 230V circuits.

Universal Wall Fit

Whirlpool wall air conditioners, compatible with separately purchased 24.5 to 27-inch wide universal wall sleeves, include a wall trim kit and rear grille for exterior finishing. The Keystone KSTSLV1 wall sleeve is a compatible accessory.

Additional Features

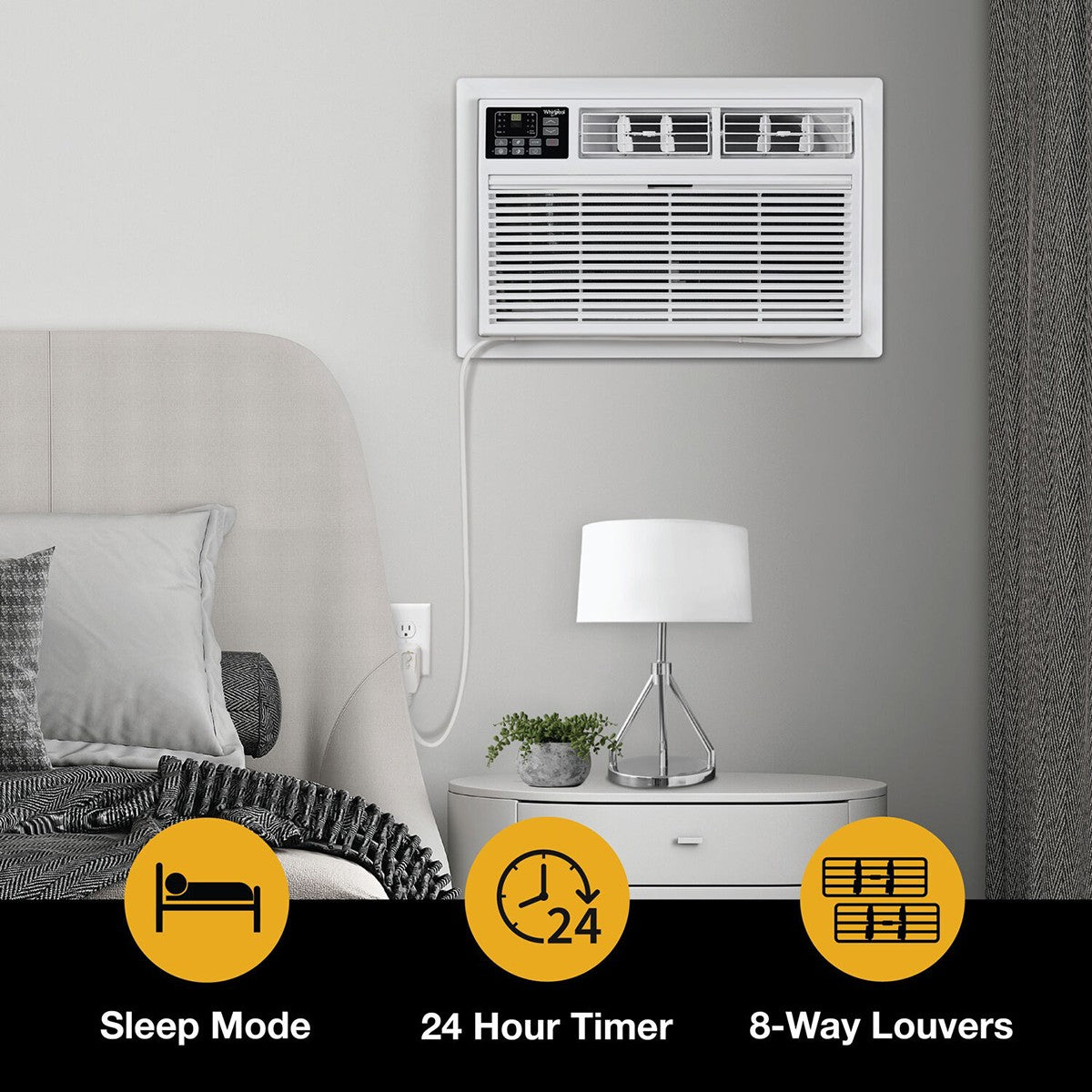

  • Airflow Control: Airflow can be controlled in eight directions thanks to two sets of louvers. This allows for either even distribution throughout a room or focused airflow in a specific area.

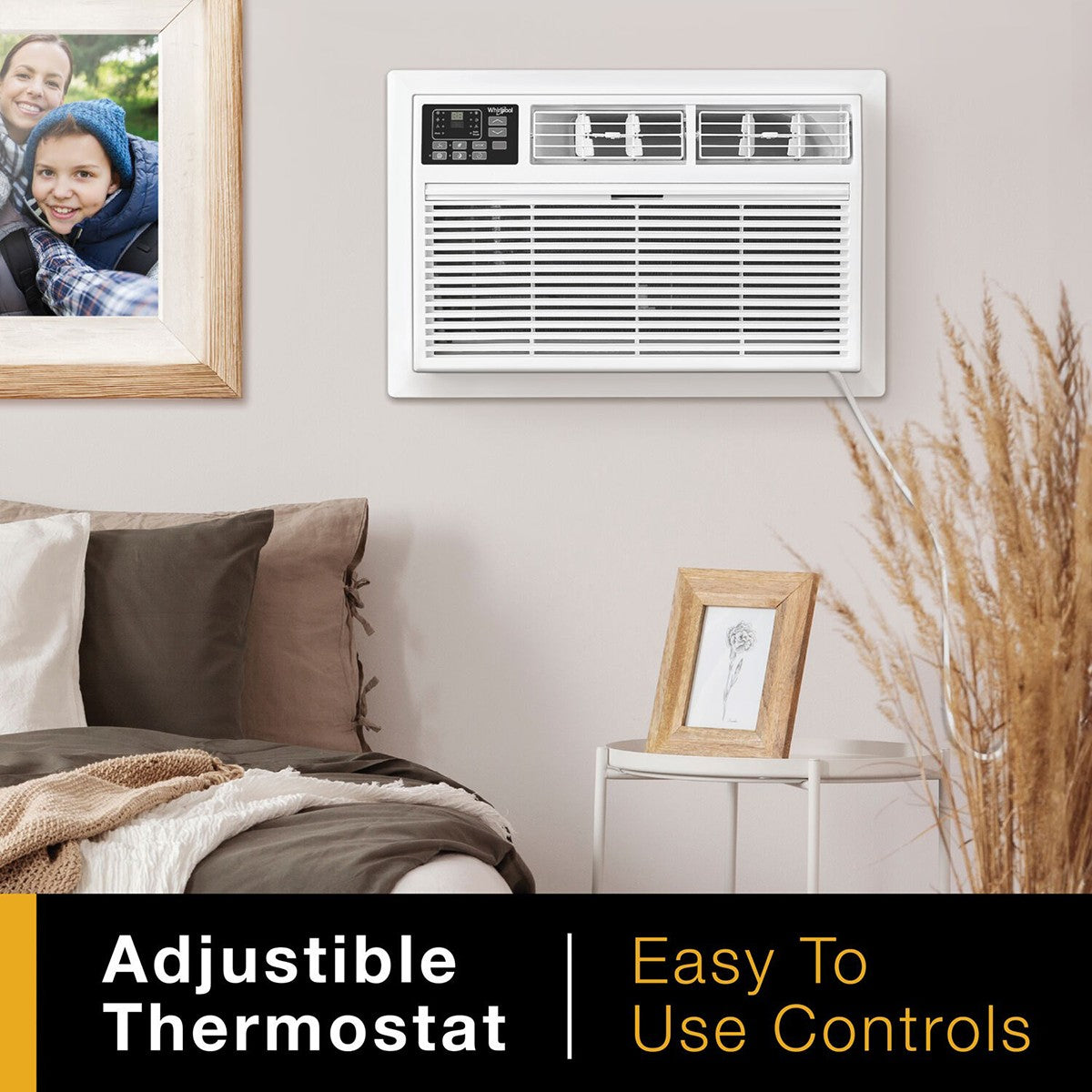

  • Programmable Thermostat: Set to your desired temperature from 62 to 86 degrees F.

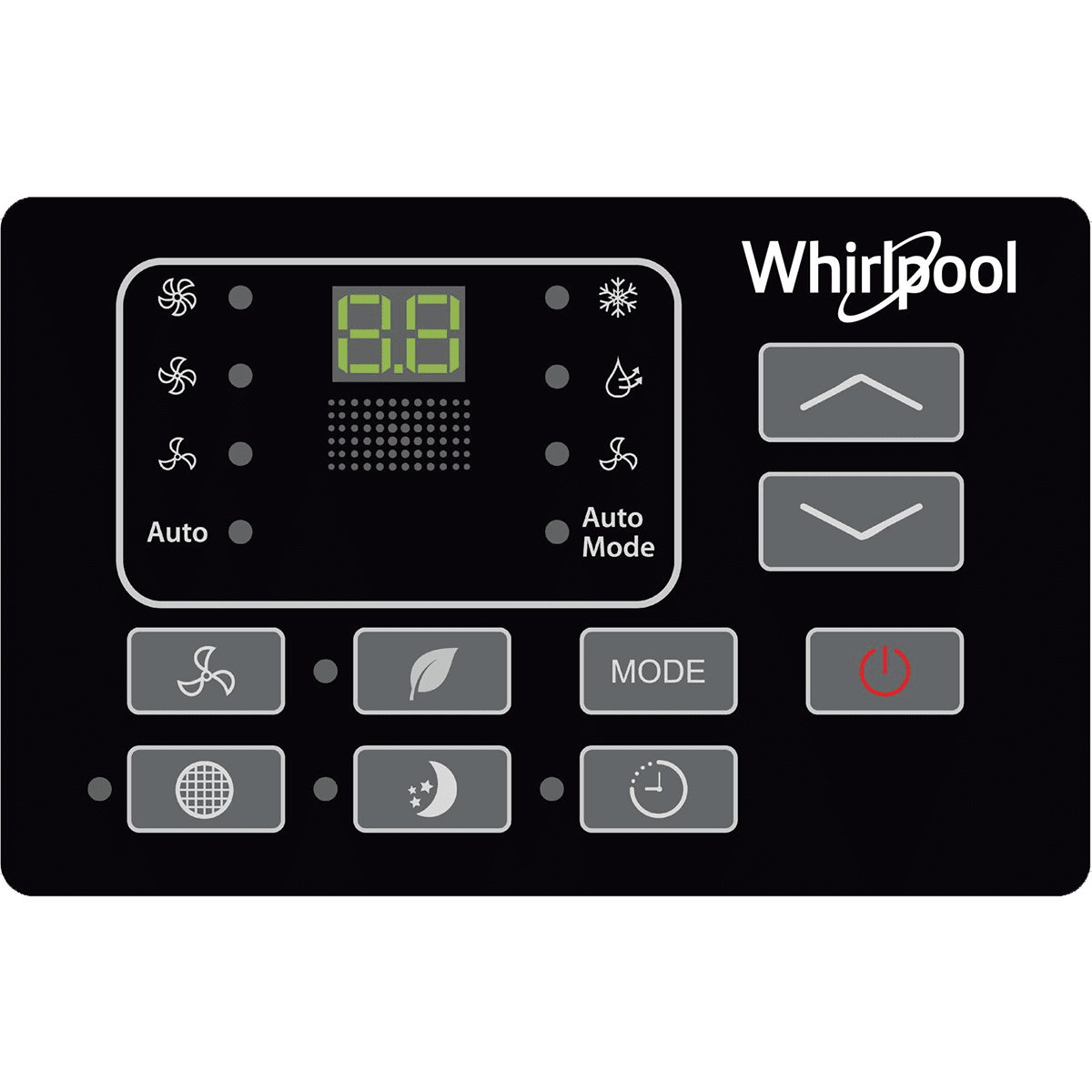

  • Electronic Controls: The WH15176's touch controls allow for easy adjustment of temperature, operating mode selection, and fan speed.
  • Remote Control: Adjust settings conveniently from your sofa with the included full-function remote.
  • Programmable Timer: Schedule your AC to automatically turn on or off at specific times using the 24-hour timer. This feature contributes to energy savings for these through-the-wall (TTW) AC units.
  • Quick Access Air Filter: This air filter features a front-access design for easy cleaning. It effectively captures large particles to improve indoor air quality. A control panel indicator light signals when cleaning is needed.
  • Auto Restart: Whirlpool air conditioners feature automatic restart, saving your settings and resuming operation immediately after a power outage.

Sylvane's Expert Take

Whirlpool 10,000 BTU through-the-wall air conditioners are designed for spaces up to 450 square feet. Features include four operating modes, ECO and Sleep modes, three fan speeds, and a remote control for easy operation. One model also offers supplemental heat. Each unit includes a trim kit and grille.

Specifications

    Key Specifications

    • Energy Efficiency Ratio (EER)
      No Heat: 10.1
      With Heat: 9.6
    • Number of Speeds
      3

    General

    • Certifications
      UL
    • Chassis Type
      Fixed
    • Circuit Breaker Rating
      No Heat: 125V-15A
      With Heat: 250V-20A
    • Color
      White
    • Estimated Yearly Operating Cost
      96
    • Heat Mode
      No Heat: No
      With Heat: Yes
    • Heating BTUs (BTUs)
      10600
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      No Heat: 265.0
      With Heat: 282.0
    • Maximum Noise Level (dB)
      No Heat: 58
      With Heat: 61
    • Minimum Noise Level (dB)
      No Heat: 54
      With Heat: 57
    • Moisture Removal per Hour (pints)
      1.2
    • Recommended Coverage Area (sq. ft.)
      450
    • Refrigerant Type
      R-32
    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Cooling Amperage (Amps)
      11
    • Maximum Cooling Wattage (W)
      980
    • Maximum Heating Amperage (Amps)
      3650
    • Maximum Heating Wattage (W)
      980
    • Plug Face Type
      No Heat: 5-15P
      With Heat: 6-20P
    • Power Cord Length (ft.)
      5.9
    • Voltage (V)
      No Heat: 110-120
      With Heat: 208-230

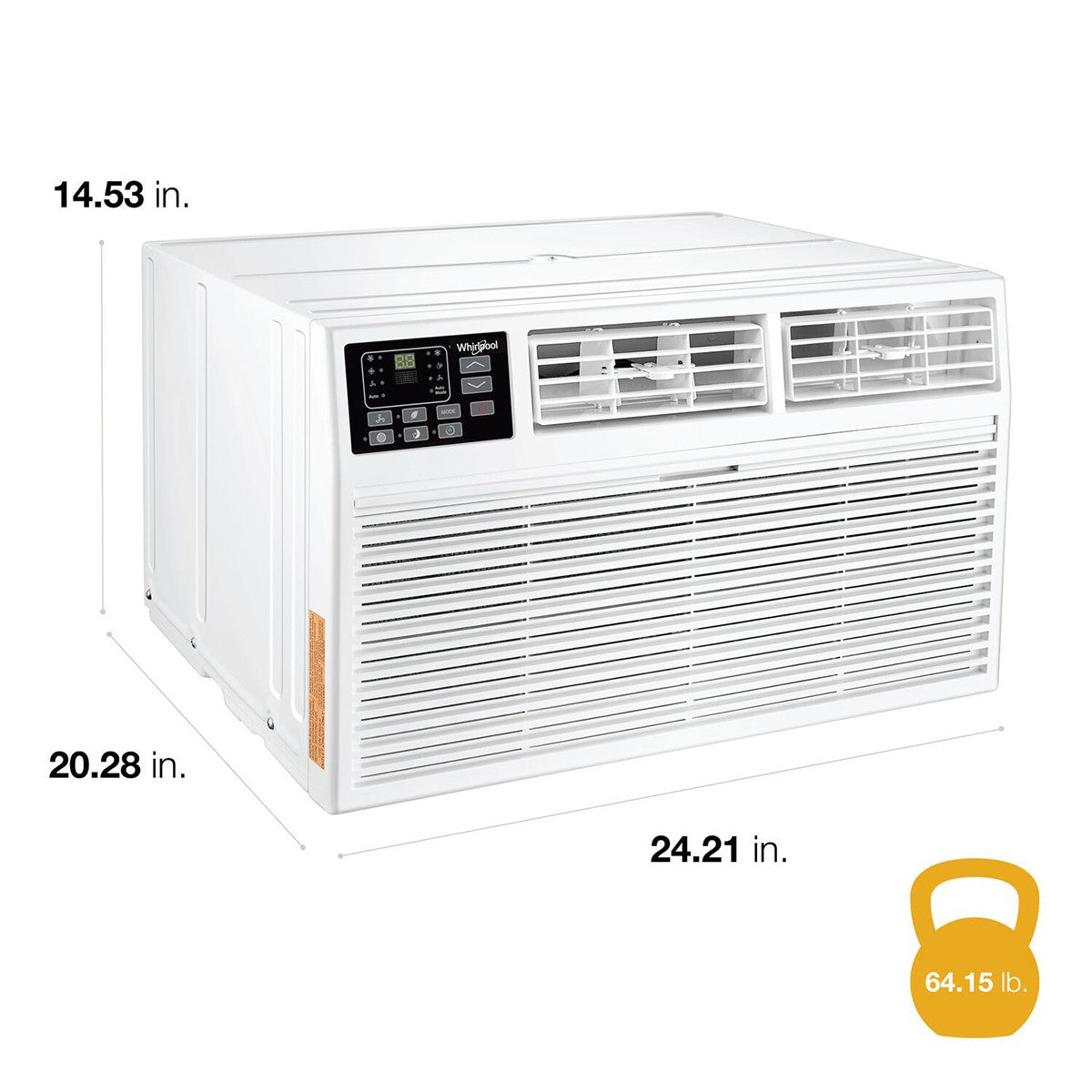

    Dimensions

    • Depth (in.)
      20.2
    • Height (in.)
      14.5
    • Weight (lbs.)
      No Heat: 64.1
      With Heat: 65.9
    • Width (in.)
      24.2

    Additional Features

    • Additional Features
      Programmable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode

    Warranty

    • Manufacturer's Warranty
      1-Year Replacement (Cool Only) 1-Year Limited (with Heat)
