Whirlpool 12,000 BTU Through-the-Wall AC
Whirlpool 12,000 BTU Through-the-Wall AC is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Whirlpool WHAT121-1AW/HAW Through-the-Wall Air Conditioner
- Trim Kit and Rear Grille
- Remote Control
- Owner’s Manual
Info & Guides
Info & Guides

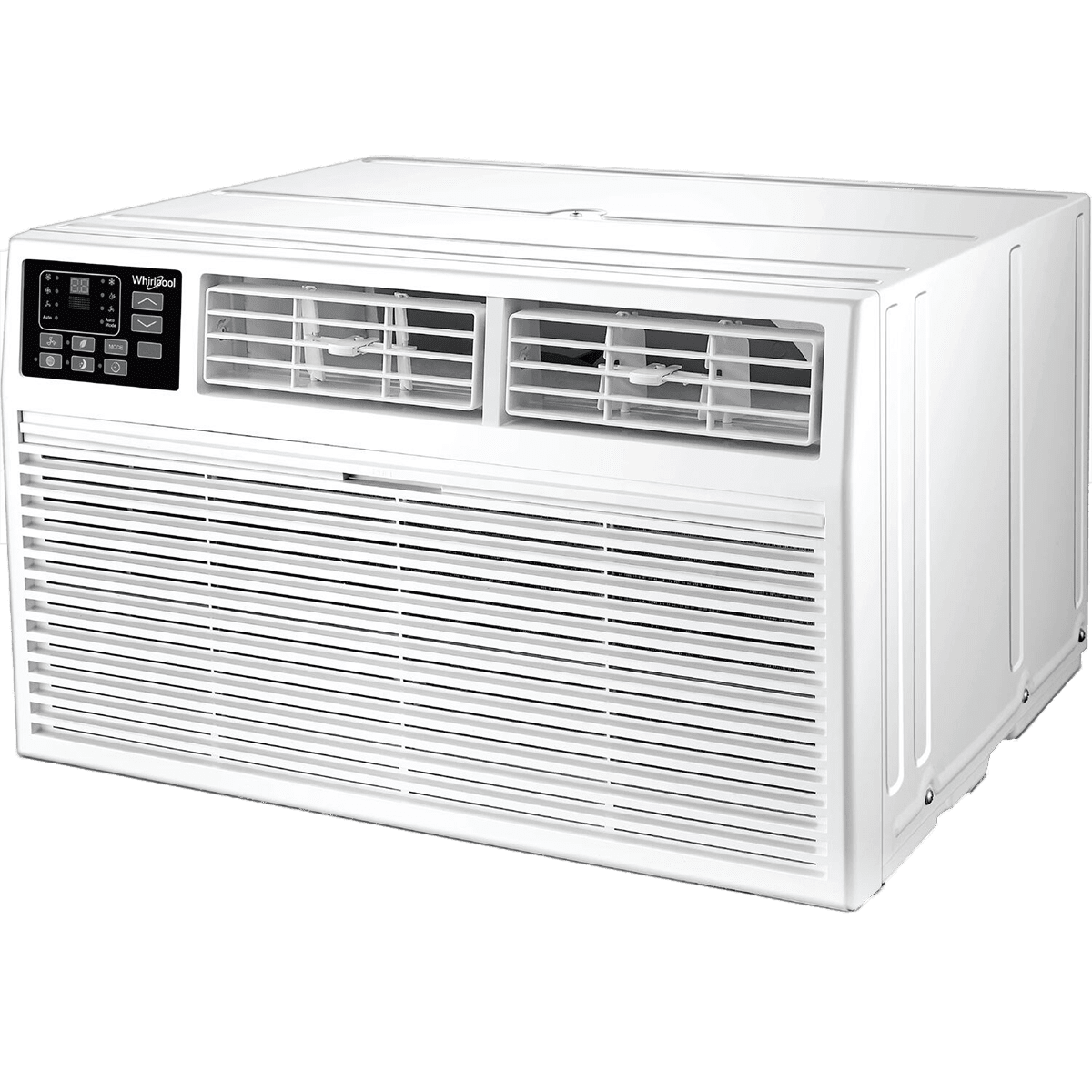

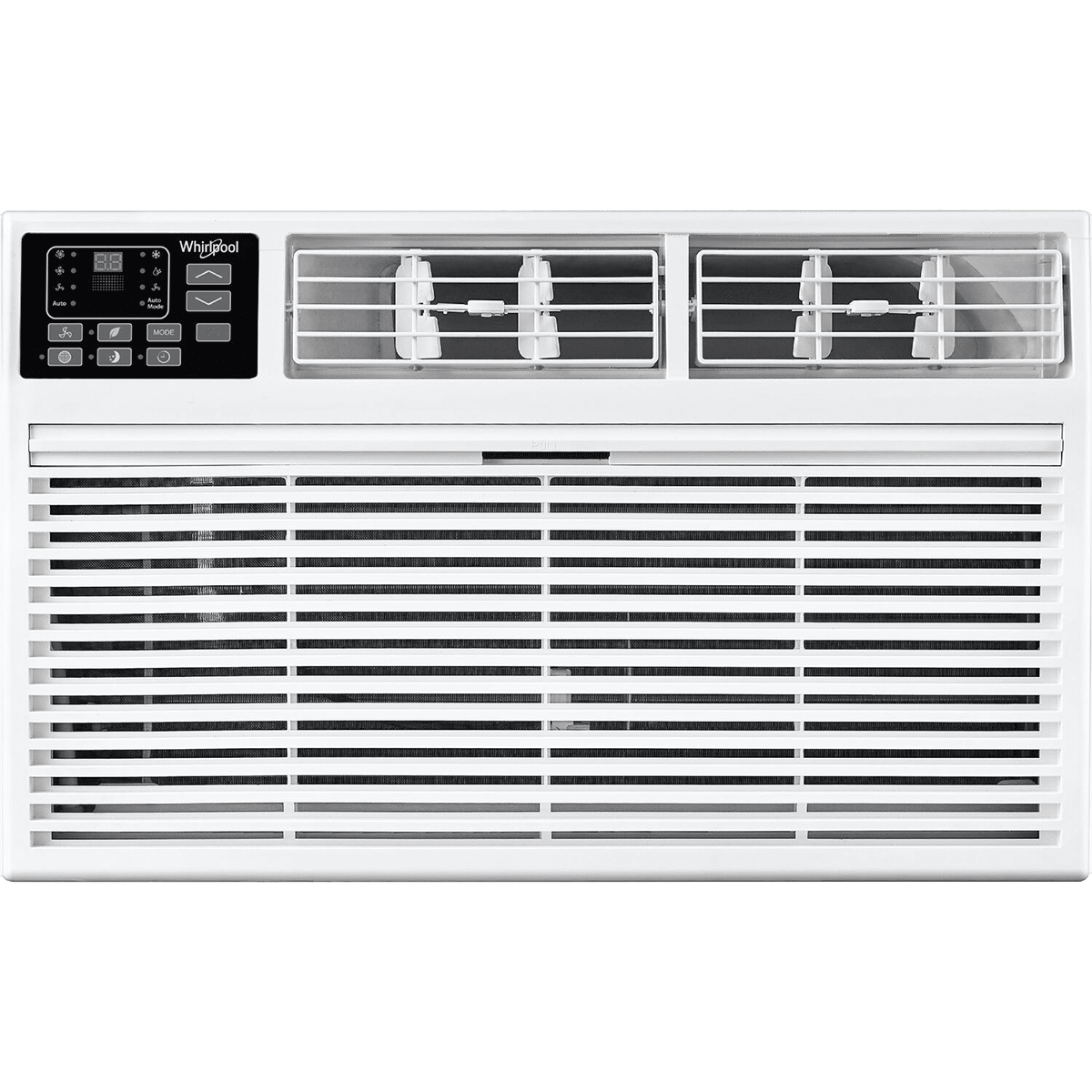

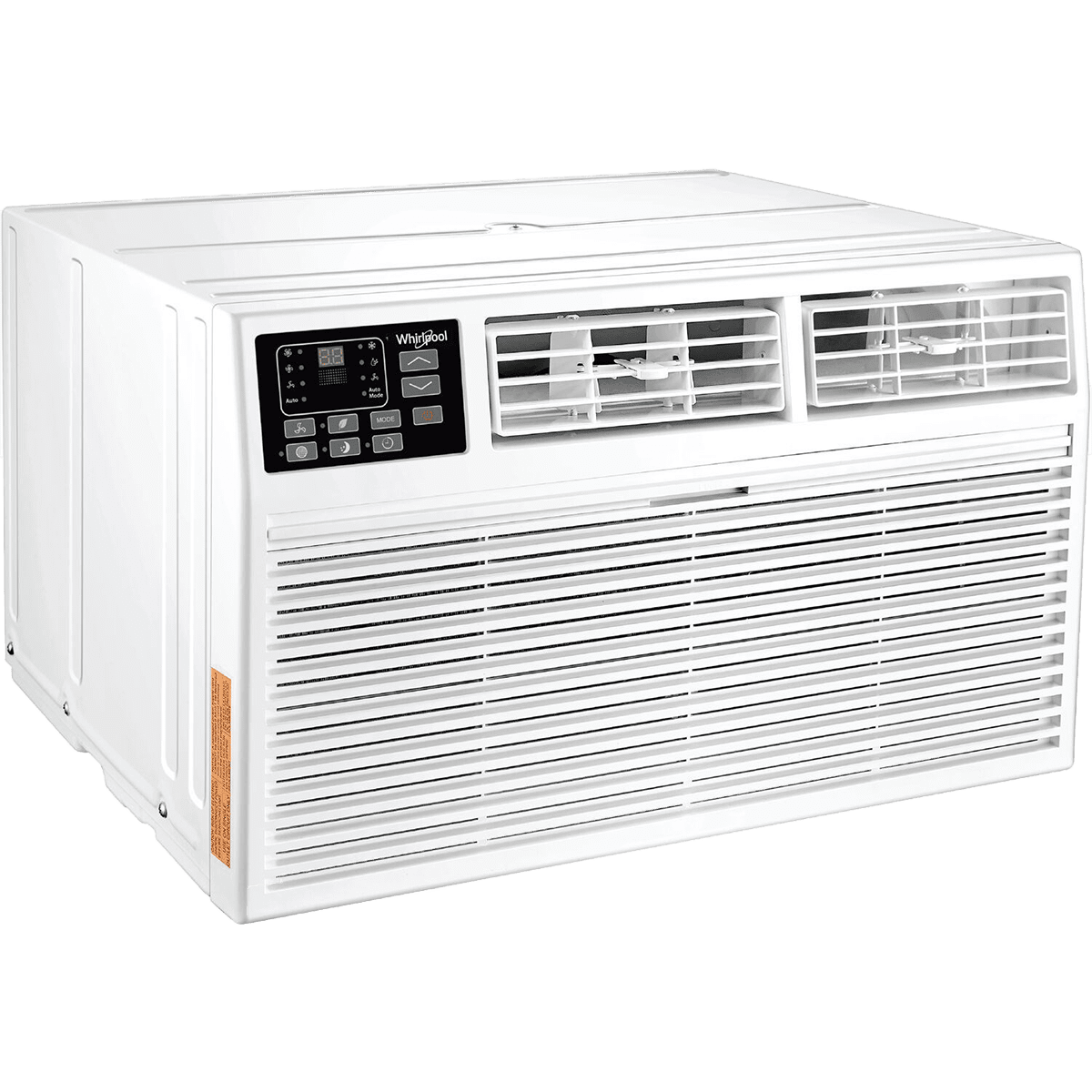

Whirlpool 12,000 BTU Through-the-Wall AC
Description
Description

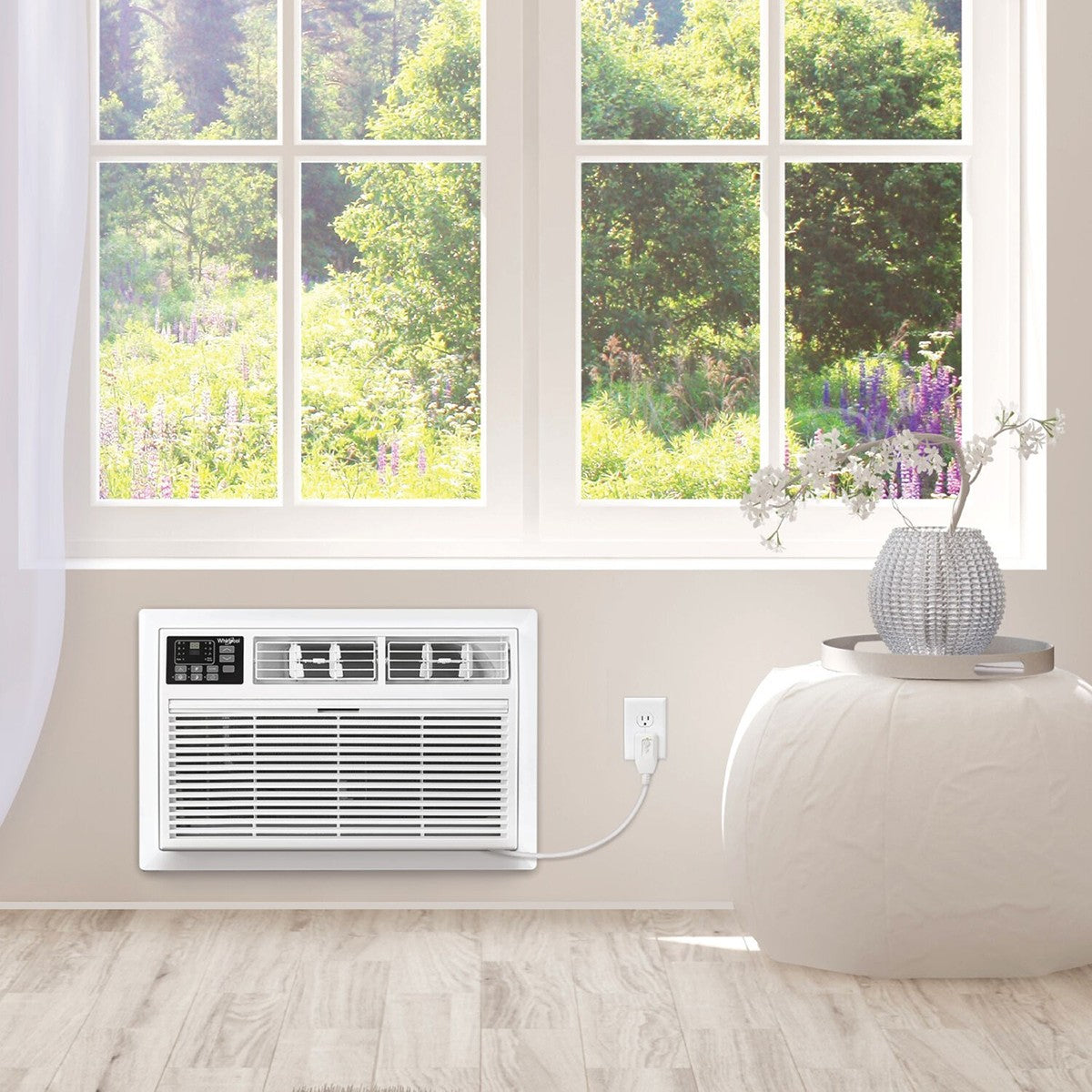

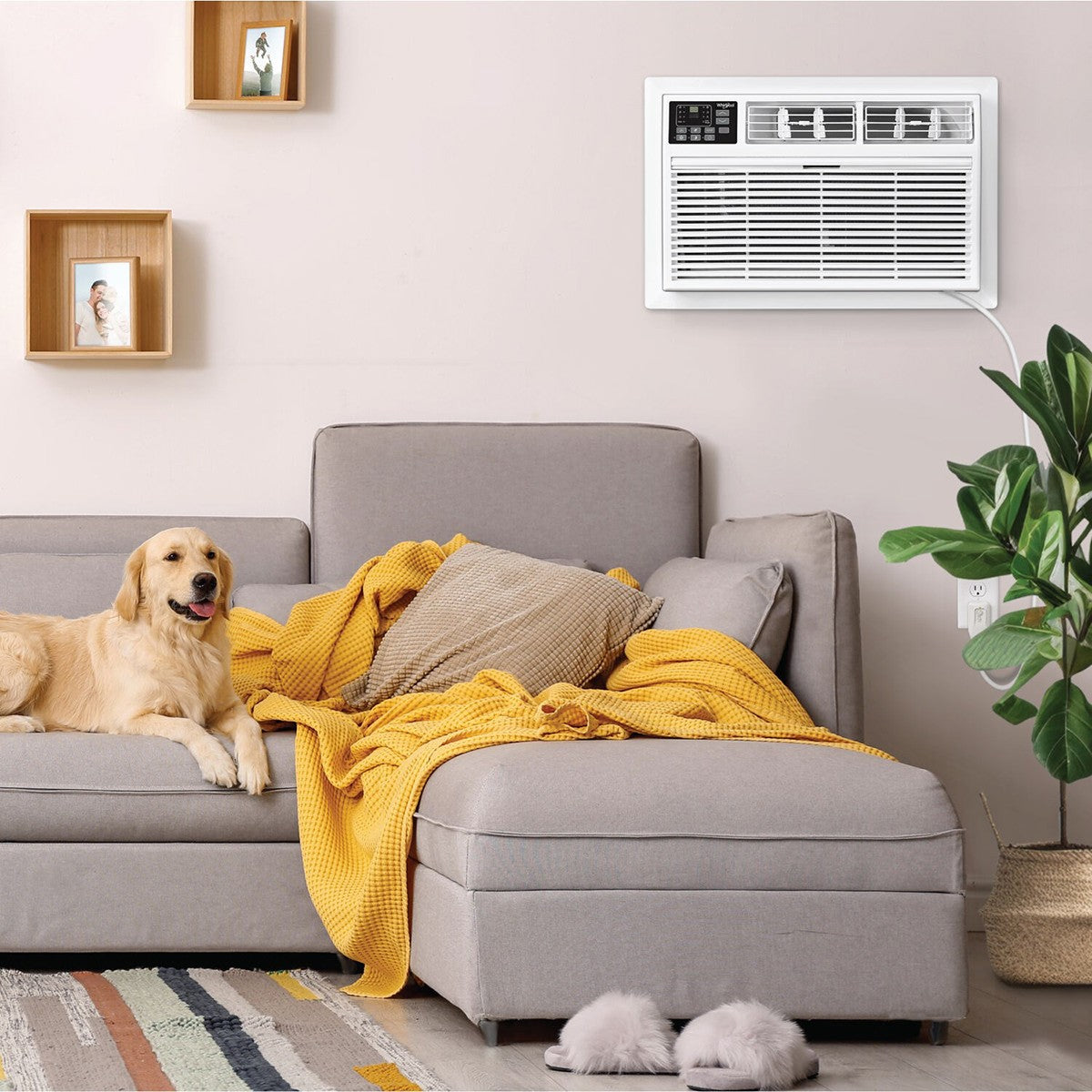

The Whirlpool 12,000 BTU Through-the-Wall Air Conditioners have four basic operating modes plus optional supplemental heat. They also have energy-saving functions and features, making them a solid choice for permanent installation in spaces up to 550 square feet.
- Cool: Using a 115-volt, 3-prong plug, this AC provides 12,000 BTUs of cooling power to combat the high heat of summer.
- Dry: When the humidity makes days unbearable, use this mode to remove up to 1.6 pints of moisture per hour.
- Fan-Only: On moderate days in the spring and fall, you can bring in the fresh air and circulate it throughout your space.
- Auto: When in this mode, the unit automatically selects the operating mode and sets the fan speed according to the room temperature.
- ECO: Save money and energy by selecting this mode, which runs the compressor intermittently while using the fan to continue circulating cooled air.

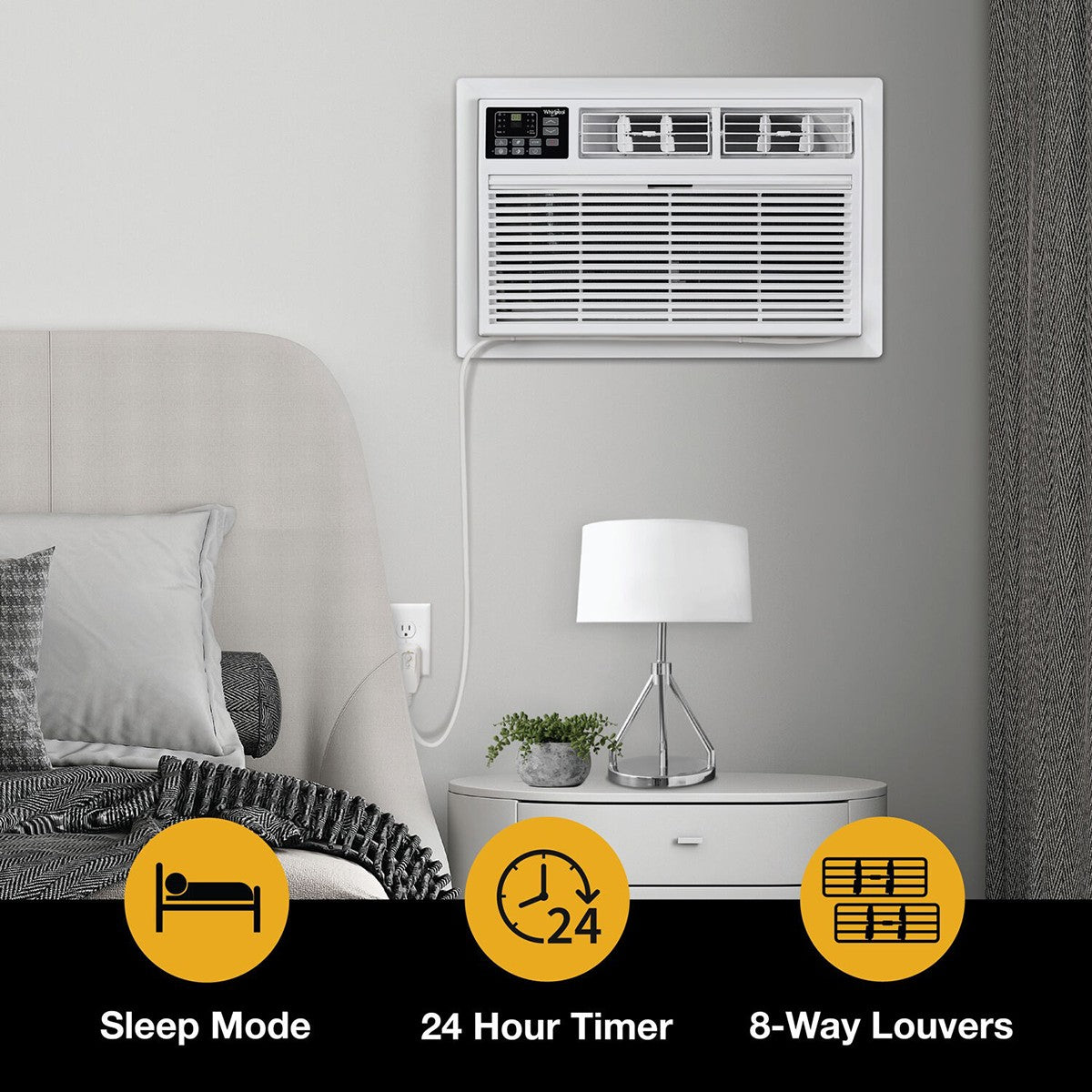

- Sleep: This mode allows you to save energy while you sleep by gradually adjusting the temperature and fan speed.
Uses Universal Wall Sleeve
The Whirlpool Thru-wall units include a wall trim kit for a finished look inside and a rear grille to complete the outside. A wall sleeve is not included.
Additional Features

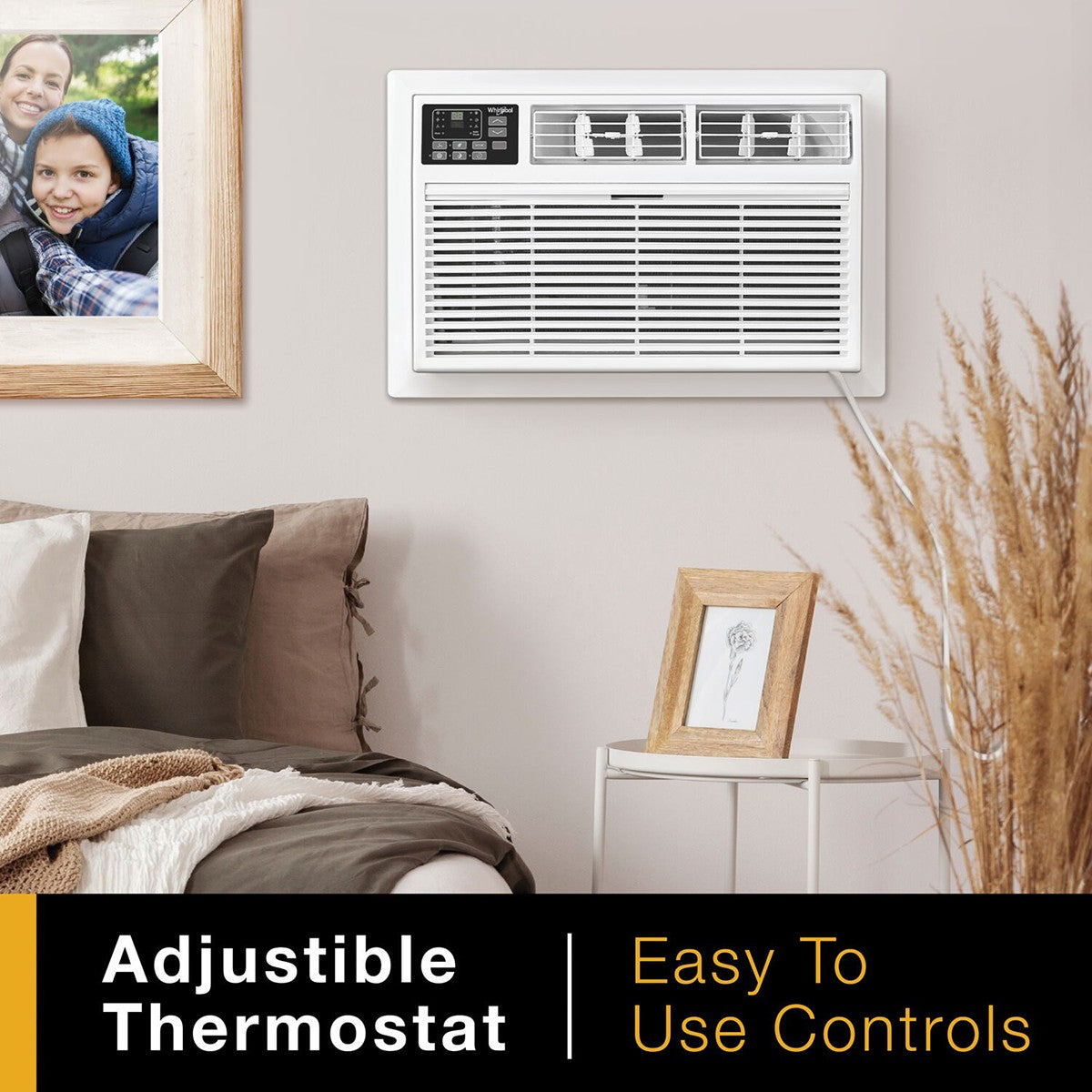

- Programmable Thermostat: Set your desired temperature from 62 to 86 degrees F.
- Programmable Timer: Use the 24-hour timer to program your AC to turn on or off according to your schedule. This is another energy-saving feature of these TTW ACs.
- Remote Control: Full-function remote allows you to make adjustments right from the comfort of your couch.

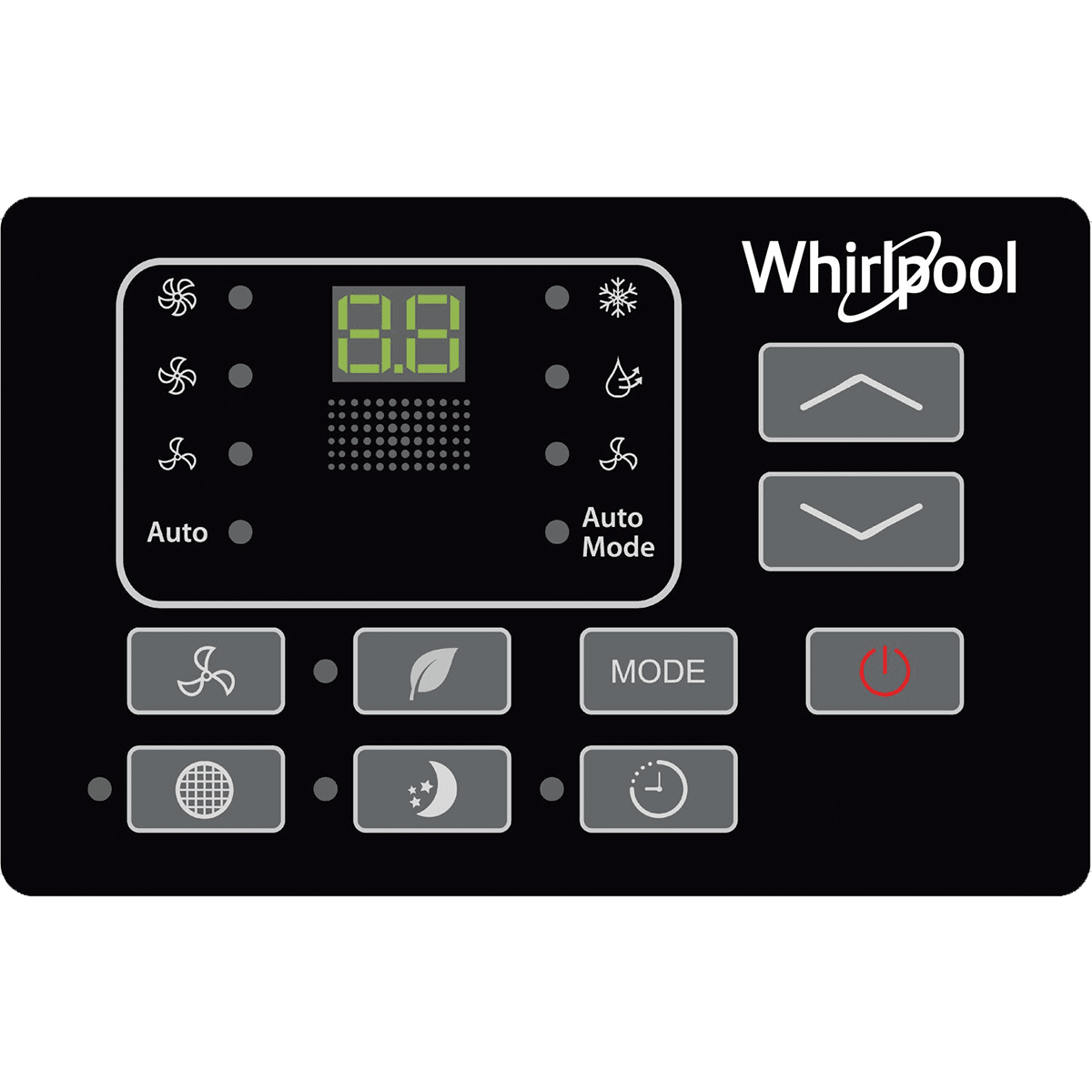

- Electronic Controls: Touch controls are simple to use for setting the temperature, selecting the operating mode, and adjusting the fan speed as needed.
- Auto Restart: In case of a power failure, these Whirlpool air conditioners save your settings and automatically restart when power is restored.
- Airflow Control: Two sets of louvers provide 8-way directional control for airflow that can be distributed evenly throughout the space or focused in a single direction.
- Quick Access Air Filter: This air filter captures large particles for cleaner indoor air and is easy to access from the front of the unit when it needs cleaning. An indicator light on the control panel will alert you.
Summary
Perfect for permanent installation, these Whirlpool 12,000 BTU Through-the-Wall Air Conditioners include a model with supplemental heat. Four operating modes, ECO and Sleep modes, and three fan speeds are designed for spaces up to 550 square feet. Remote control, trim kit, and grille are included.
Specifications
Specifications
-
ASHRAE Cooling Power (BTUs)[12000]
-
Energy Efficiency Ratio (EER)10.0
-
Number of Speeds3
-
California Residents⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL
-
Chassis TypeFixed
-
Circuit Breaker Rating115V-15A
-
ColorWhite
-
Estimated Yearly Operating Cost114
-
Heat ModeNo
-
Maximum Cubic Feet per Minute (CFM) (CFM)282.0
-
Maximum Noise Level (dB)60
-
Minimum Noise Level (dB)56
-
Moisture Removal per Hour (pints)1.6
-
Recommended Coverage Area (sq. ft.)550
-
Refrigerant TypeR-32
-
Maximum Cooling Amperage (Amps)11.5
-
Maximum Cooling Wattage (W)1060
-
Plug Face Type5-15P
-
Power Cord Length (ft.)4.9
-
Voltage (V)110-120
-
Depth (in.)20.2
-
Depth (with front cover) (in.)20.2
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)69.6
-
Width (in.)24.2
-
Width (with front cover) (in.)24.2
-
Additional FeaturesProgrammable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode
-
Manufacturer's Warranty1-Year Replacement Warranty (Cool Models Only); 1-Year Limited Warranty (Heat Models Only)
