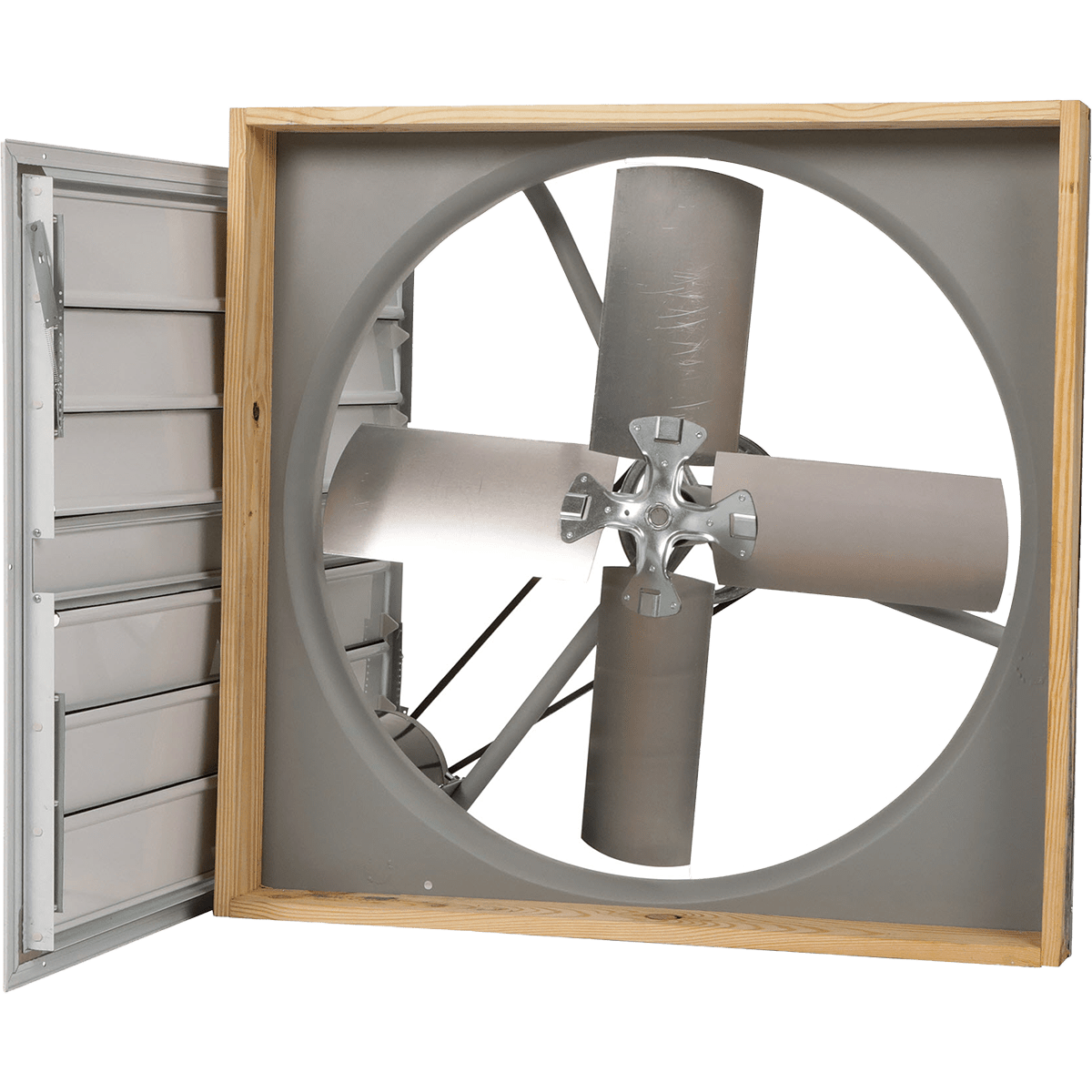

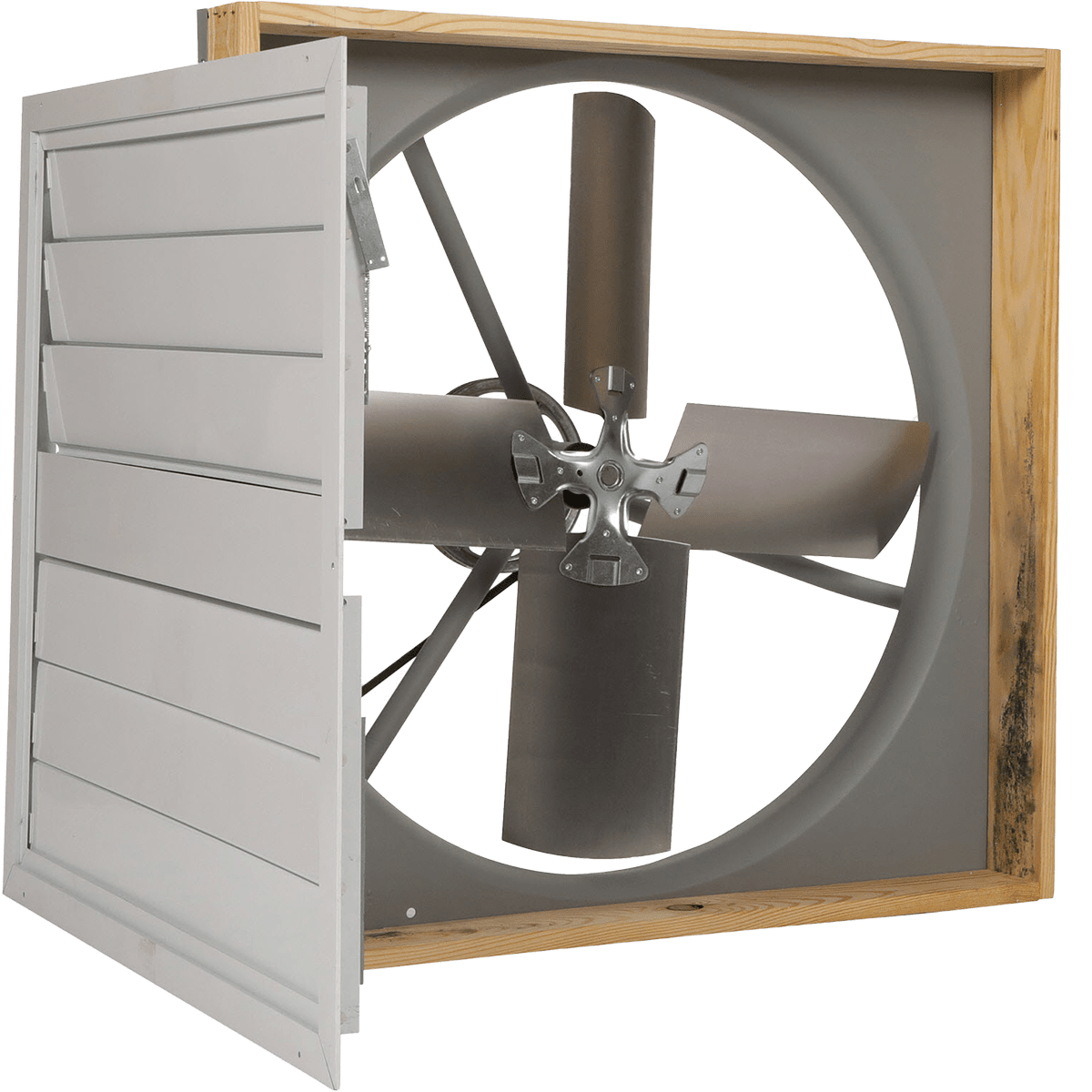

TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
SKU:
tp13506
| Model:
BD30-2-WHS
Regular price
$869.00
Unit price
/
Unavailable
Need something now? Consider this:
TPI BD24-2-WHS 24-In. 2-Speed Heavy Duty Belt Drive Whole House FanTPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI BD302WHS 30-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
- Owner's Manual
Delivering superior ventilation and airflow control to commercial applications, the TPI 30-Inch. 2-Speed Heavy Duty Belt Drive Whole House Fan is a must-have. Installing to the ceiling of attics, it brings outside air into your space to temper the air in your facility. Featuring two fan speeds and a powerful performance, it's a reliable indoor air quality solution.
Key Features Of The TPI BD302WHS
- Automatic Shutter: The no joist cut shutter automatically opens when the fan is turned on and tightly shuts when the fan is turned off.
- 1/3 Horsepower Motor: Features a powerful 1/3 horsepower motor delivering a performance of up to 520 RPMs.
- Dual Speeds: Choose from two fan speeds - Low (5,800 CFM) or High (7,600 CFM) with the TPI 2-SW two-speed controller (sold separately)..
- Durable Fan Blade: Its 30-inch fan blade lets this unit move a high volume of air.
- Hardwired Design: This unit uses a 120-volt, single-phase electrical connection.
- American-Made: It's made in the U.S.A. with domestic and foreign components.
Overall Dimensions
- Height: 14.5 inches
- Width: 35.5 inches
- Length: 34 inches
Summary
Delivering superior ventilation and airflow control to commercial applications, the TPI BD302WHS is a must-have.
-
Number of Speeds2
-
TypeWhole House Fan
-
ApplicationAttic, Residential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsElectronic
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)7600.0
-
Maximum RPM520
-
Type of FanWhole House Fan
-
Amperage (Amps)6.9
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Depth (in.)34.0
-
Depth (with front cover) (in.)34.0
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)50
-
Width (in.)35.5
-
Width (with front cover) (in.)35.5
-
Manufacturer's Warranty1-Year Limited Warranty
