Santa Fe Ultra V125 Ventilating Dehumidifier

Name: Santa Fe Ultra V125 Ventilating Dehumidifier
Brand: Santa Fe
Price: 2920.0 USD
Availability: InStock

SKU: ul17436 | Model: 4047200

$250 Off with code SF250

$2,920.00

BEST PRICE Guarantee! - Contact Us or Learn More

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

6-Year Limited Warranty

What's In The Box?

Santa Fe Ultra V125 Ventilating Dehumidifier
MERV-13 Filter

Info & Guides

Description

The Santa Fe Ultra V125 Ventilating Dehumidifier delivers whole-house humidity and fresh air management for demanding residential and light commercial spaces up to 3,000 square feet. Designed for both new construction and retrofits, it pairs high-capacity moisture removal with controlled ventilation to help you maintain a consistent, healthy indoor environment.

This horizontal Santa Fe Ultra Dehumidifier design integrates with existing ductwork or operates as a dedicated crawl space, attic, or basement dehumidifier, giving you installation flexibility without compromising performance.

Key Features and Benefits of the Santa Fe Ultra V125 Ventilating Dehumidifier

High Capacity: Removes up to 125 pints daily from areas up to 3,000 square feet under AHAM conditions (80 degrees F and 60 percent RH), protecting your home from moisture-related damage, mold, and mildew.
Built-In Ventilation: An integrated 8-inch duct introduces fresh outdoor air into your space, helping you satisfy ASHRAE 62.2 fresh air requirements with one appliance.
MERV-13 Filtration: The high-efficiency 17.5 x 14 x 1.75-inch MERV 13 filter traps fine particles and allergens, delivering cleaner supply air and reducing HVAC maintenance.
Energy-Efficient Operation: Produces 5.9 pints per kWh, lowering operating costs compared with portable or oversized equipment.
Insulated Cabinet: The sound-dampening design of the R2 insulated steel cabinet limits vibration and noise for quieter performance near occupied zones.
Eco-Friendly Refrigerant: This model uses the eco-friendly R-454B refrigerant, which is more energy efficient and has a lower global warming potential than older refrigerant formulas.
Wide Operating Range: Reliable dehumidification in cool crawl spaces, unconditioned living spaces, and hot attics in a 34 to 105 degrees F range.
Digital Controls: Set humidity locally from the integrated digital controls or pair it with the optional DEH 3000 wall controller for remote monitoring and alarms.

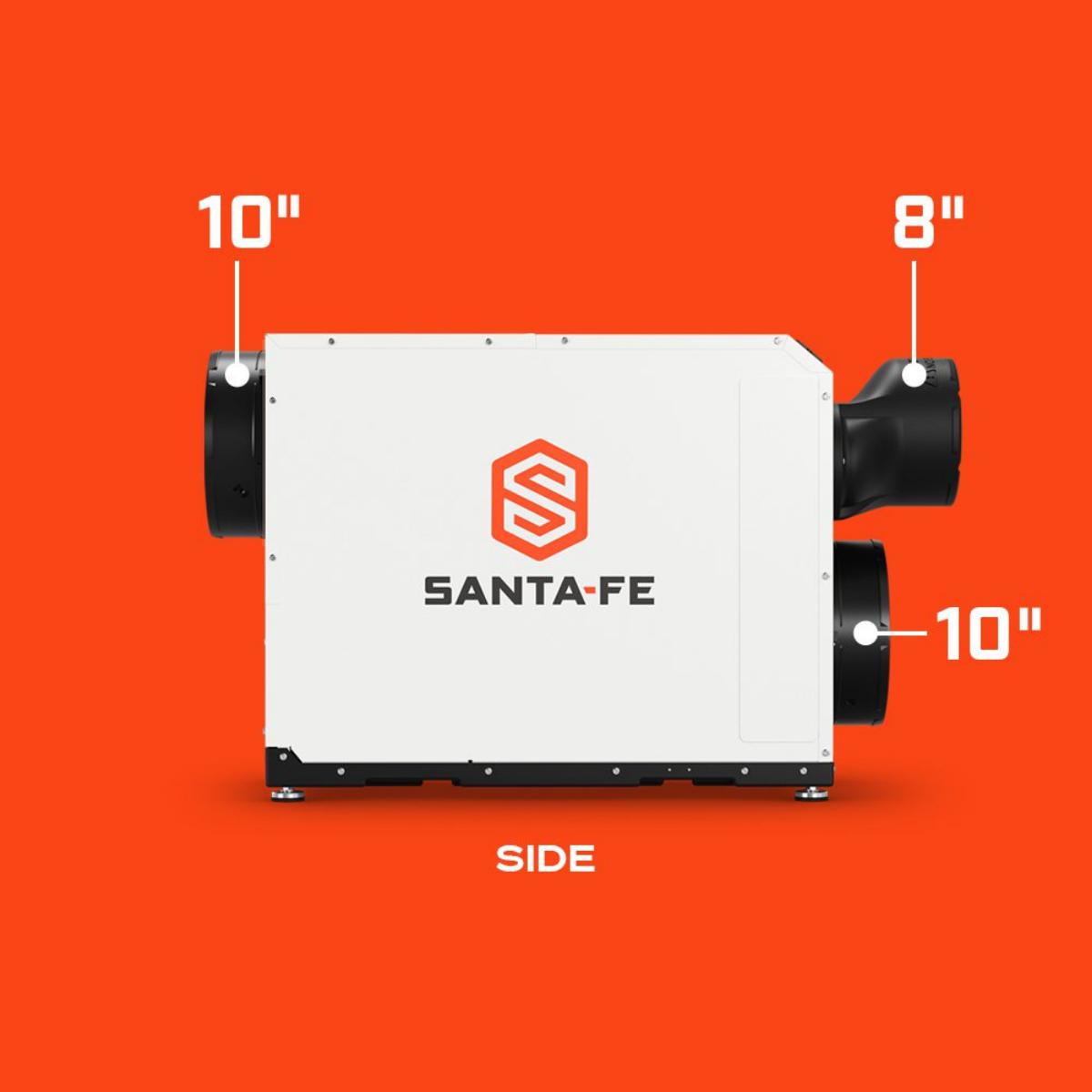

Low-Profile Layout: Multiple duct collar options (8-inch and 10-inch) and compact dimensions simplify placement in tight mechanical rooms or between floor joists.

Fresh Air Strategy

Modern building envelopes are now being built more tightly than ever, which makes controlled ventilation essential. By combining a dedicated outside air intake with high-capacity dehumidification, the Ultra V125 delivers balanced ventilation that prevents the common pitfalls of simply bringing humid air indoors. This approach is especially valuable in humid climates where traditional mechanical ventilation can introduce moisture that fuels mold growth or causes indoor comfort complaints.

Whether you manage a multifamily property, a custom home, or a commercial office, integrating the Ultra V125 into your ventilation plan supports code compliance, occupant health, and long-term building durability.

Sylvane’s Expert Take

When you need a single appliance that controls humidity and meets fresh air guidelines, the Santa Fe Ultra V125 stands out. Its high water removal rate, MERV-13 filtration, and energy-efficient performance make it a practical choice for crawl spaces, basements, attics, or full-house applications. For professionals and serious homeowners seeking a reliable, large-capacity ventilating dehumidifier, this model checks every box.

Specifications

Key Specifications

Manufacturer-Suggested Room Size (sq. ft.)

3,000
Number of Speeds

1
Pint Capacity (pints)

125.0
Sylvane's Suggested
Room Size (sq. ft.)

3,600

General

Certifications

UL, CSA
Color

White
Controls

Digital
Fan Operation

Can Run Continuously or Only When Dehumidifying
Maximum Cubic Feet per Minute (CFM) (CFM)

385.0
Recommended For

Whole House, Commercial
Refrigerant Type

R-454B

Power

Power Supply

Plug
Voltage (V)

110-120

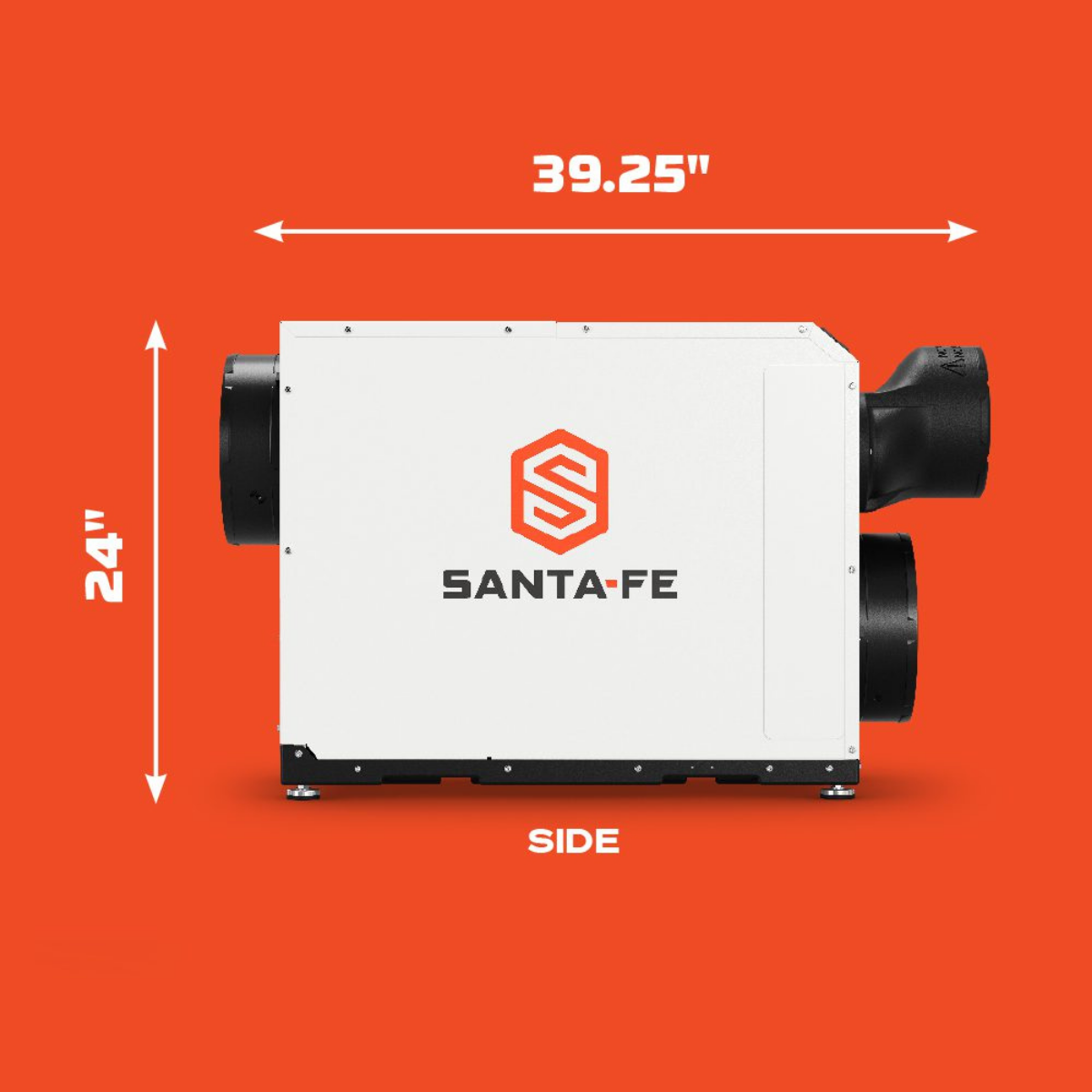

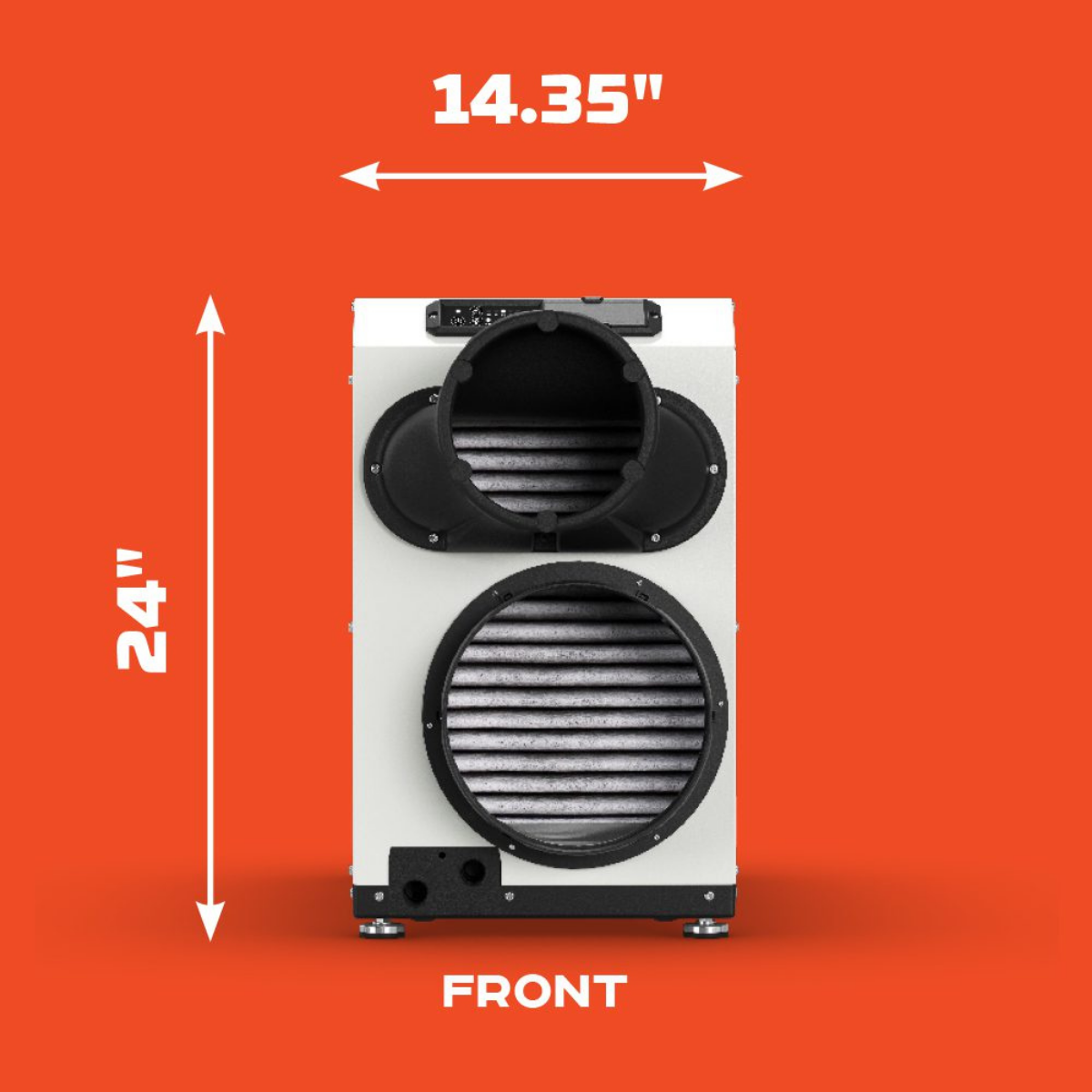

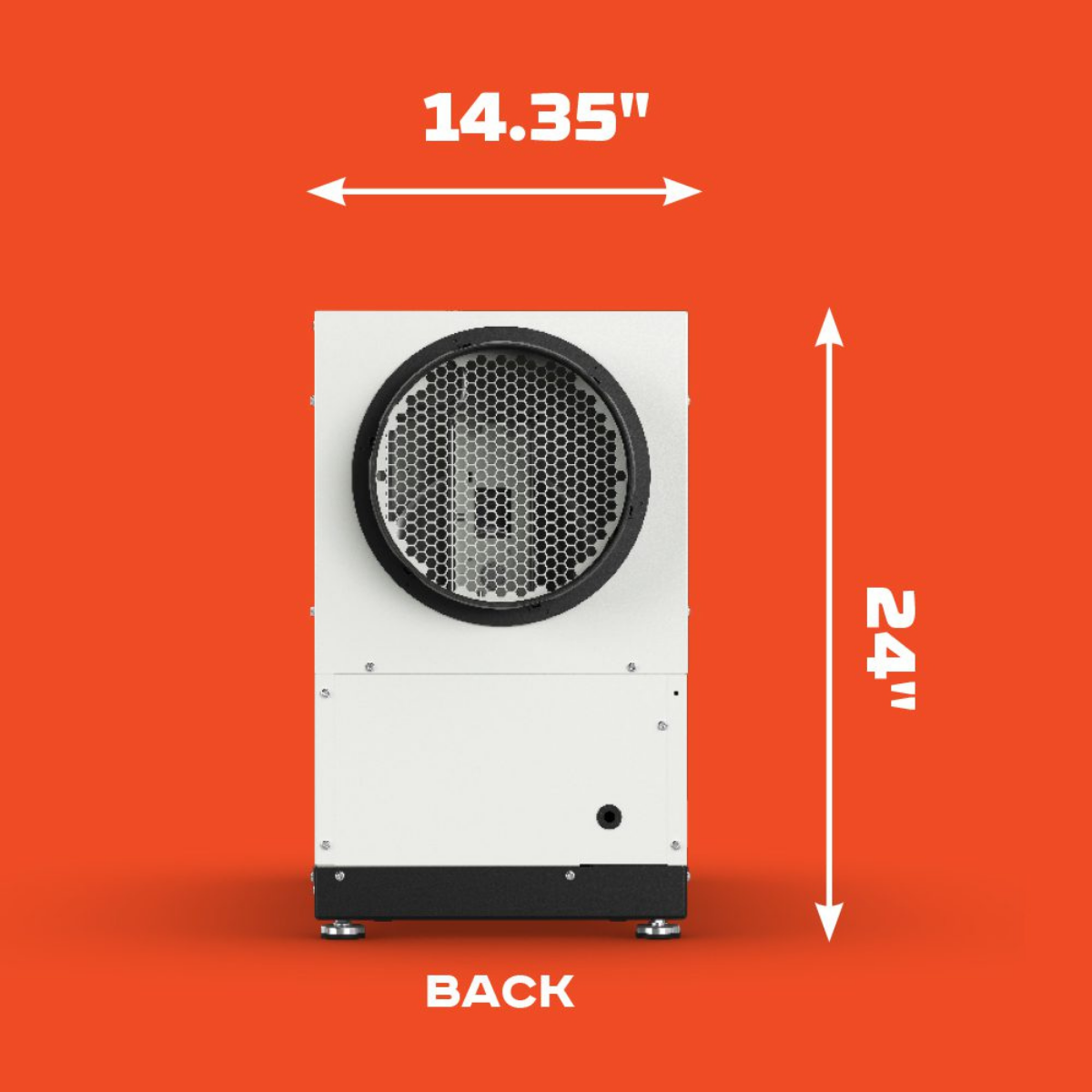

Dimensions

Depth (in.)

39.25
Depth (with front cover) (in.)

39.25
Height (in.)

24.0
Height (with front cover) (in.)

24.0
Width (in.)

14.35
Width (with front cover) (in.)

14.35

Additional Features

Additional Features

Continuous Drain Capable, Humidistat, Low Temperature Operation (41 degrees F and Under), Automatic Defrost, Auto-Restart, Ductable, Energy Star, ENERGY STAR® Most Efficient
