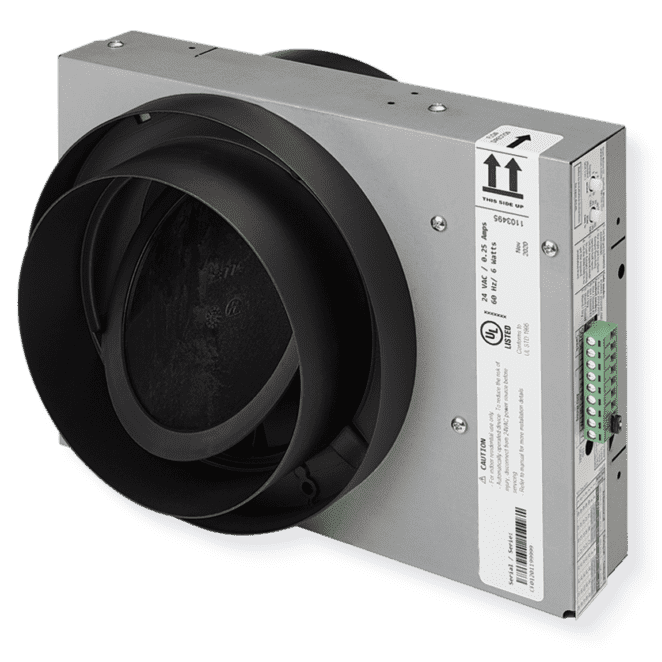

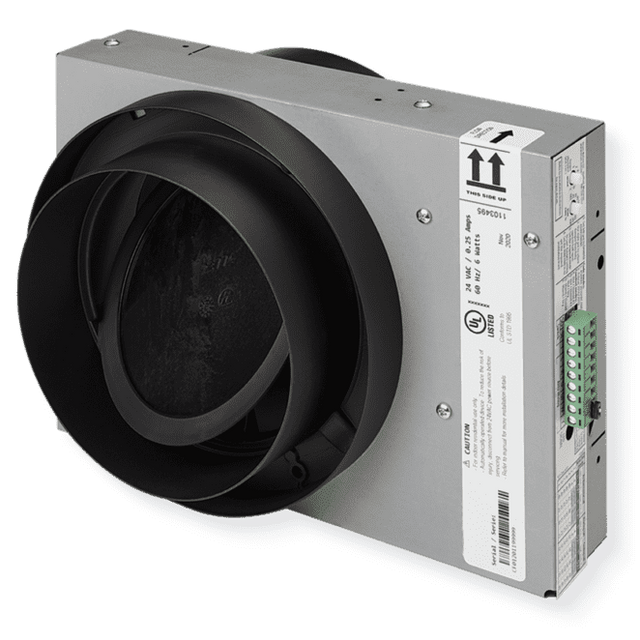

Santa Fe SmartAire Power Damper
Santa Fe SmartAire Power Damper is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- Santa Fe SmartAire Power Damper 4042960 (NOTE: This model may come packaged and labeled with a different manufacturer's brand name.)
- Owner’s Manual
Info & Guides
Info & Guides
Santa Fe SmartAire Power Damper
Description
Description
The Santa Fe SmartAire Power Damper merges with the Santa Fe Ultra Series Whole-House Ventilating Dehumidifier line to allow ventilation control via the dehumidifier, so you don’t have to worry about adding an external ventilation controller. Proper installation of this power damper ensures compliance with ASHRAE 62.2, as your Santa Fe whole-house ventilating dehumidifier provides filtered, fresh outdoor air into your home.
- Smart Ventilation: After this HVAC damper control monitors the outdoor temperature and humidity level for 48 hours continuously, it learns the best time of day to allow fresh air into the home.
- Air Leakage Protection: An insulated duct and port seal prevent condensation and air leakage upon installation.
- Operating Modes: You can choose five selectable comfort modes or two code-compliant modes.
- Controls: An integrated ON/OFF switch turns the damper off at any time without changing settings and can also be connected to a remote switch. A cover guards against unintentional control changes.
NOTE: This model may come packaged and labeled with a different manufacturer's brand name.
Compatible Models
- Santa Fe Ultra70
- Santa Fe Ultra98
- Santa Fe Ultra120
- Santa Fe Ultra120V
- Santa Fe Ultra155
- Santa Fe Ultra205
Sylvane's Expert Take
This Santa Fe damper makes it easy to maintain ASHRAE 62.2 ventilation code compliance in your home and bring in fresh outdoor air. It is compatible with multiple Santa Fe whole-house dehumidifier models to ensure the outside air is filtered and safe for your family.
- UL Listed: This damper meets UL1995 requirements covering HVAC equipment.
- Allergen Solution: Combined with a dehumidifier using a MERV-13 filter, this power damper provides a much-needed fresh air source and can help remove over 90 percent of common allergens.
Specifications
Specifications
-
TypeDamper
-
CertificationsUL
-
ColorGray
-
ControlsElectronic
-
Type of FanDamper
-
Power SupplyHardwired
-
Voltage (V)24
-
Depth (in.)6.38
-
Depth (with front cover) (in.)6.38
-
Duct Diameter (in.)6.0
-
Height (in.)7.75
-
Height (with front cover) (in.)7.75
-
Weight (lbs.)2.5
-
Width (in.)10.63
-
Width (with front cover) (in.)10.63
