iLiving 16- inch Variable Speed Wall Mounted Shutter Exhaust Fan
iLiving 16- inch Variable Speed Wall Mounted Shutter Exhaust Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving 16-Inch Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides

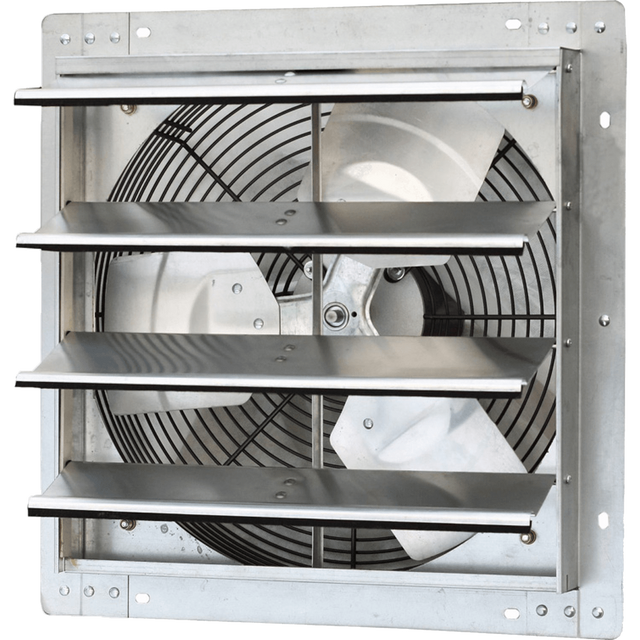

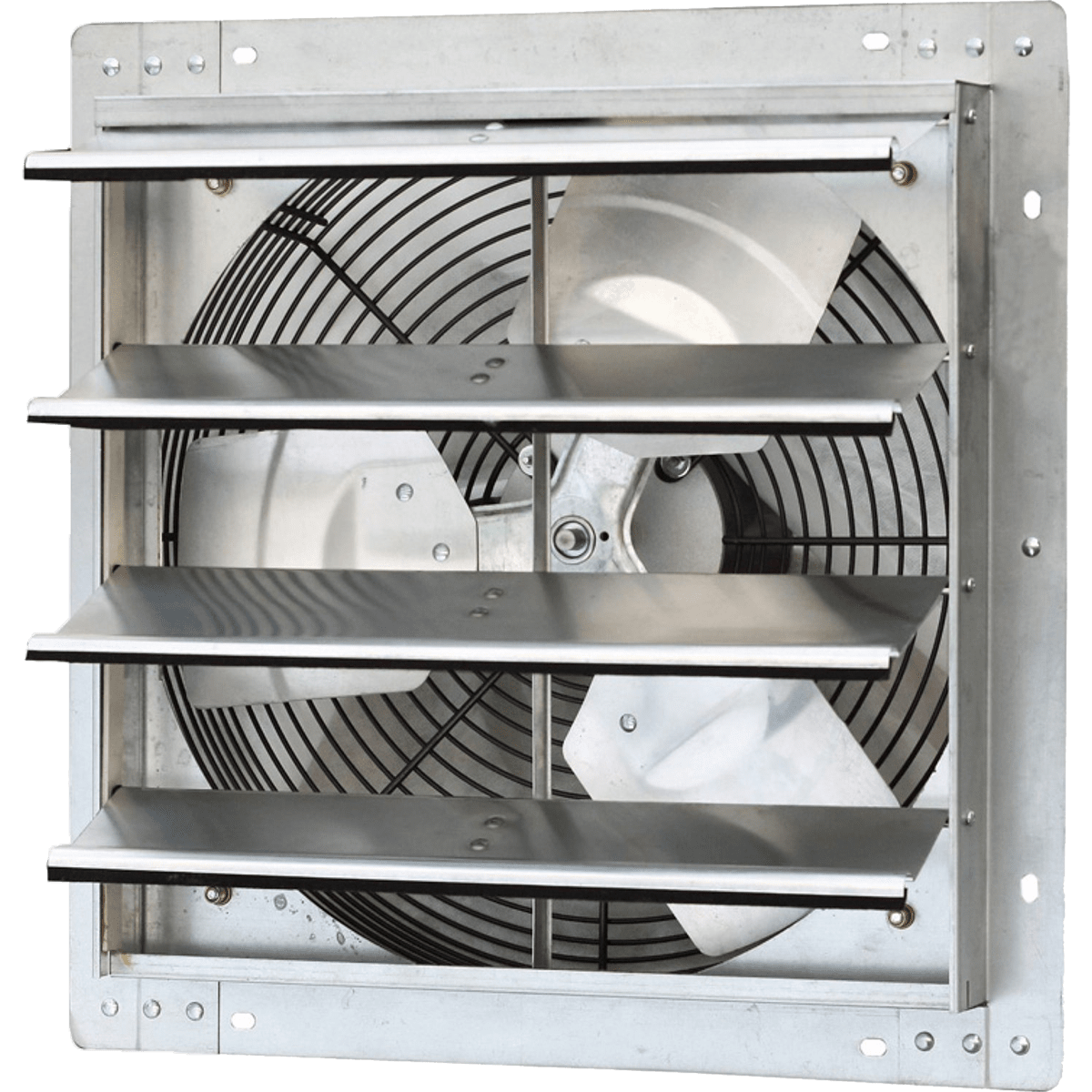

iLiving 16- inch Variable Speed Wall Mounted Shutter Exhaust Fan
The iLiving 16-Inch Exhaust Fan is an ideal way to remove excess heat, moisture and odors from commercial locations. Made from galvanized steel, it’s commonly used in restaurants, greenhouses, factories, barns and warehouses. With 1,280 CFMs, it's ideal for rooms up to 320 square feet (based on 8 foot ceilings).
Durable Construction
The iLiving ILG8SF16V is designed for long-term use thanks to these features:
- Permanently lubricated motor
- Speed controlled
- Corrosion-resistant with OSHA compliant wire guards
- Galvanized steel frame
- Aluminum shutters and fan blades
Control Options

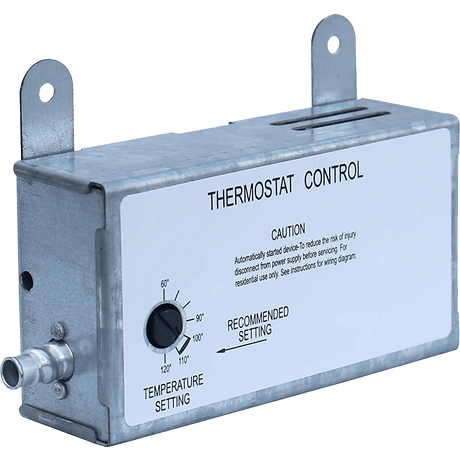

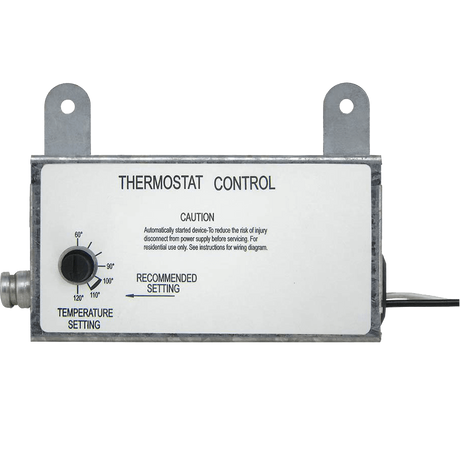

This iLiving variable speed shutter fan requires a variable speed controller, or it will operate continuously at high speed. An additional option is to install a thermostat control box which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.
For a fan operation based on more than one variable, you can install the all-in-one fan controller which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.
Additional Features
- Automatic Shutters: The shutters open when the fan is running and close when it’s not.
- Product Dimensions: This iLiving Shutter Fan measures at 5.75 x 19 x 19 inches (LxWxH).
- Fully Assembled: The only installation requirement is the electrical hardwiring. It’s a 120-volt, .85 amp, 1/20 HP, 1280 CFM fan.
- UL-Listed: This exhaust fan met and exceeded UL listing requirements.
Add the ILG8SFSC speed controller (sold separately) for variable speed control. Simply hardwire it for single-speed air exhaust.
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)6.39
-
TypeShutter Exhaust Fan
-
ApplicationResidential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)1280.0
-
Maximum RPM1550
-
Recommended Coverage Area (sq. ft.)320
-
Amperage (Amps)0.85
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)97.75
-
Ceiling or Wall Cutout Length (in.)17
-
Ceiling or Wall Cutout Width (in.)17
-
Depth (in.)5.75
-
Depth (with front cover) (in.)5.75
-
Height (in.)19.0
-
Height (with front cover) (in.)19.0
-
Shutter Fan Size (in.)16
-
Weight (lbs.)13.8
-
Width (in.)19.0
-
Width (with front cover) (in.)19.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
Fantech

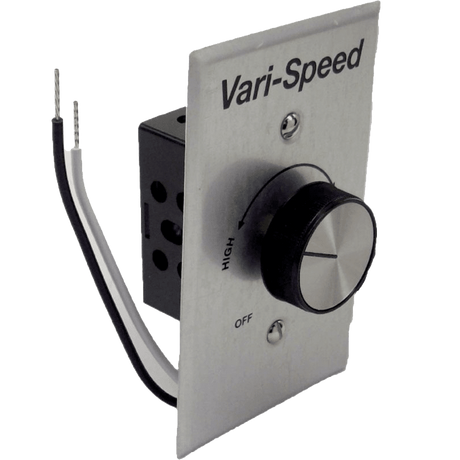

WC 15 Vari-Speed 5A Variable Speed Control w/ on-off switch
Regular price $36.99Unit price /Unavailable -
iLIVING

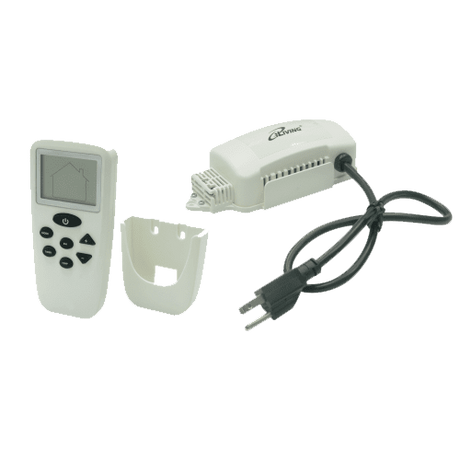

Exhaust Fan Smart Remote Control Kit w/ Thermostat
