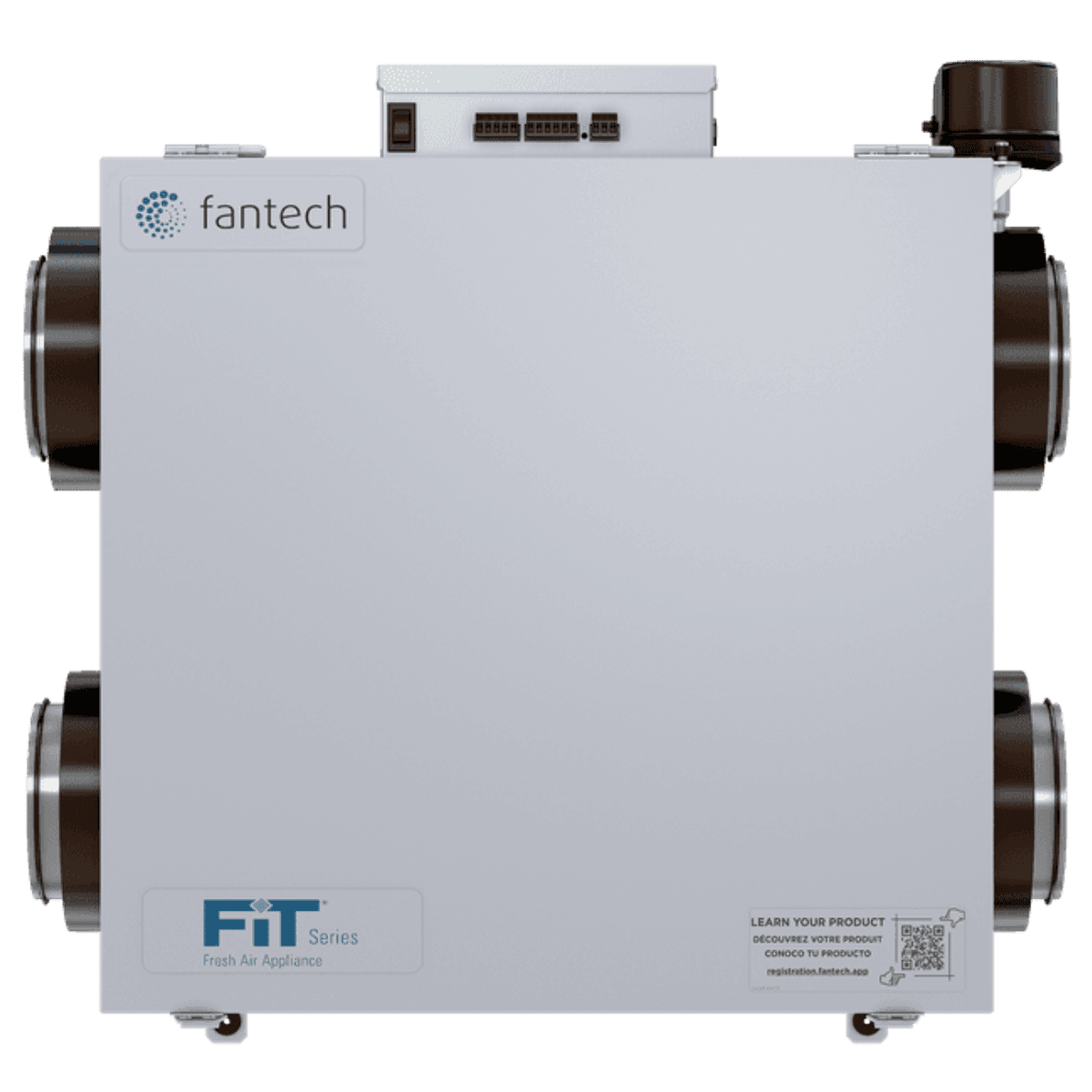

Fantech FIT 120E-D-EC-M 129 CFM Low Profile Mirrored Energy Recovery Ventilator w/ Shut-Off Damper

Name: Fantech FIT 120E-D-EC-M 129 CFM Low Profile Mirrored Energy Recovery Ventilator w/ Shut-Off Damper
Brand: Fantech
Price: 1217.0 USD
Availability: InStock

SKU: fn16837 | Model: 463414

$1,217.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core and Electrical Parts Warranty

What's In The Box?

Fantech FIT 120E-D-EC-M Series Low Profile Energy Recovery Ventilator with EC Motor
Mechanical Shut-off Damper
Electrostatic Air Filters (2)
MERV 3 Filter (1)
Ceiling Mounting Bracket
Metal Collars with Rubber Gaskets
Owner’s Manual

Info & Guides

Description

Simplify design and installation in mirrored floor plans with the Fantech FIT 120E-D-EC-M Low Profile EC Motor ERV with Shut-Off Damper. The compact, mirrored design and included ceiling bracket make it easy to install, out of the way, with a 10-inch installed depth to ensure a perfect fit.

Using high efficiency EC motors, the Fantech FIT 120E-D-EC-M series features an energy recovery core that effectively transfers moisture and heat from the outgoing air to the incoming fresh airflow, minimizing the energy needed to maintain a comfortable indoor environment year-round.

Key Features and Benefits of the Fantech FIT 120E-D-EC-M Series

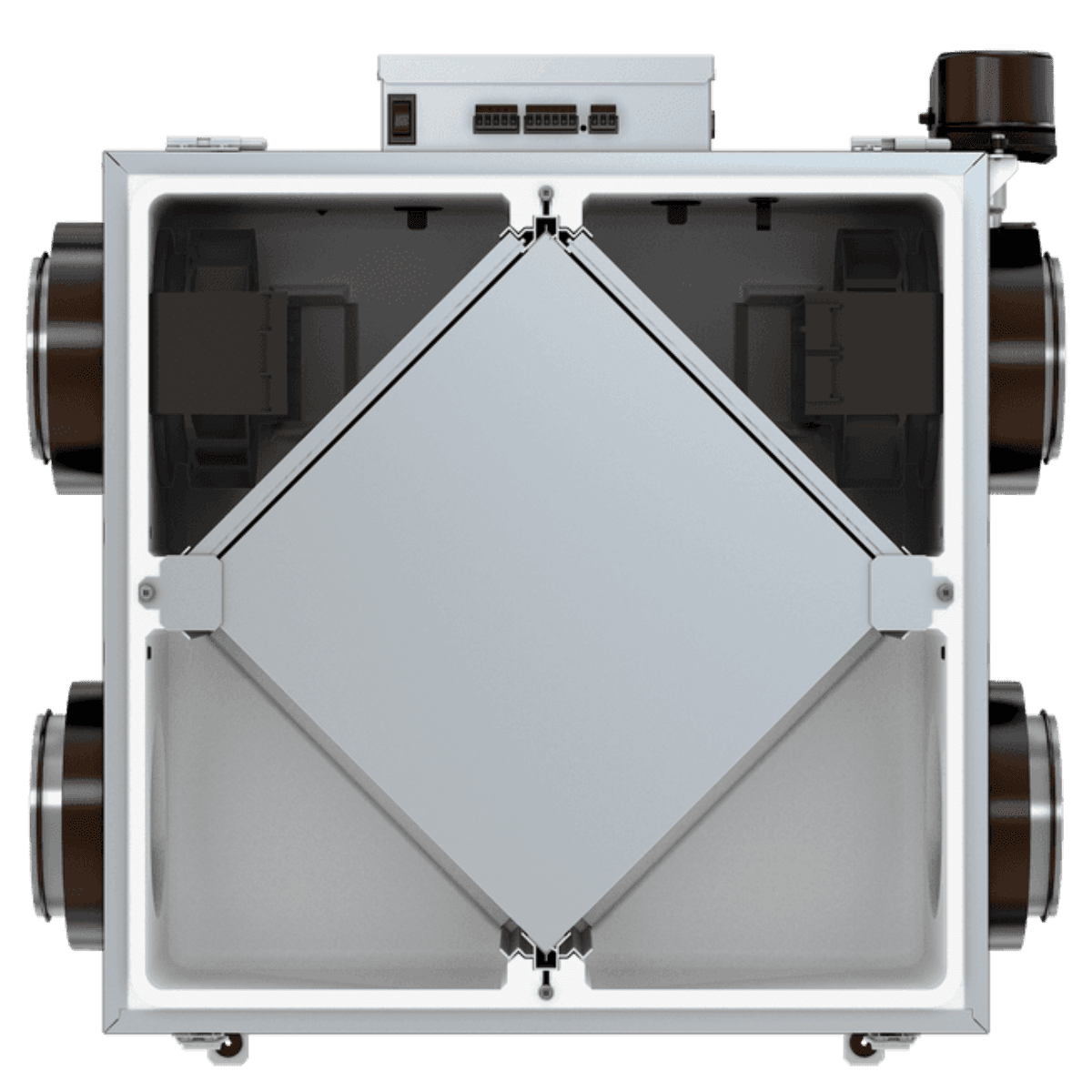

Energy Recovery Core: The energy recovery core has a durable polymer membrane facilitating water vapor transport. This core exhibits high humidity permeability and is freeze-tolerant and water-washable.
Convenient and Secure Duct Connections: It features metal collars with rubber gaskets to ensure the 5-inch side port duct connections are tightly sealed for seamless integration with your existing ductwork.
Shut-Off Damper: The integrated mechanical shutoff damper ensures the supply ductwork doesn't allow outside air to be drawn back into the space during standby or defrost mode.
Customizable Airflow Control: This fresh air appliance offers multi-speed operation from 40 to 129 CFM at 0.4 inches w.g., according to your specific space requirements. The settings can be easily managed through the external electrical box, or a separate wall control.
Frost Prevention Mechanism: When the outdoor air temperature reaches 14 degrees F or lower, the appliance automatically engages a preset frost prevention sequence where the supply blower halts operation while the exhaust blower switches to high speed, maximizing the effectiveness of the frost prevention method. Normal operation resumes afterward.
Drain-Free Design: No drain is required for installation. Moisture in the incoming air is simply transferred to the outgoing air during the circulation process.
Included Air Filters: The two washable, UL900-certified, electrostatic panel-type air filters effectively eliminate impurities from the indoor air. A MERV 3 filter is also included, with the option to upgrade to a MERV 8 filter.

Choose the Best Model

Choose from two power supply options to best fit your space. A standard option with an EC motor is available for non-mirrored floor plans. For standard AC motor appliances, the Fantech FIT 120E is offered separately in standard and mirrored builds.

ERV with Shut-Off Damper - Plug (FIT 120E-D-EC-M): A 3-foot-long power cord accompanies this model.
ERV with Shut-Off Damper - Hardwired (FIT 120E-D-EC-M-HC): For a hardwired connection, select this model for a direct connection to the main electrical power.

Sylvane's Expert Take

This Energy Star rated, HVI and CSA certified mirrored Fantech energy recovery ventilator has a compact design that fits in the ceiling with a minimal footprint, making it ideal for tight spaces in flipped layouts. It provides a balanced, continuous supply of fresh air while exhausting an equal amount of contaminated air.

This ERV with its mirrored supply option simplifies the design and installation process in mirrored floor plans, to deliver year-round comfort all year long.
