Aprilaire S86NMU Programmable Multi-Stage Universal Thermostat
Aprilaire S86NMU Programmable Multi-Stage Universal Thermostat is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- AprilAire S86NMU Thermostat
- Owner’s Manual
- Wiring Labels
- Safety & Installation Instructions
- (2) Screws
- (2) Wall Anchors
Info & Guides
Info & Guides
Aprilaire S86NMU Programmable Multi-Stage Universal Thermostat
Description
Description
The AprilAire S86NMU Programmable Multi-Stage Universal Thermostat makes it easy to control the temperature of your home to fit your needs. This programmable thermostat is compatible with 2H/2C heat/cool stages or 4H/2C heat pump stages. The simple, menu-style navigation is user-friendly and makes for a quick installation.
It also provides reminders for your HVAC service and air filter replacement.
Quick Setup
Set-up is simple thanks to the real-language instructions and information on the 2.4-inch color graphical display with a capacitive touch interface. You can access the standard daily and weekly schedule programming within minutes of setup.
Convenient Comfort
This AprilAire programmable thermostat has three operating modes: heat, cool, and auto. There is also an emergency heat function for heat pumps with auxiliary heat. When installed to work with a whole house air cleaner, it can be programmed using the air cleaning function on the menu.
The helpful Heat Blast feature raises the room temperatures by 3° to 5° Fahrenheit, along with the progressive recovery technology to reach the desired temperature just before the programmed time comes around. This resourceful design maintains your family’s comfort level with your preferred schedule settings.
Additional Features
- Service Reminders: Filter replacements and service checks as needed for your HVAC system.
- Color Display: You can view the room temperature as well as the temperature setting, device mode, and event status.
- Scale Options: Select either Fahrenheit or Celsius temperature scale.
- Dehumidifier Control: Senses and displays indoor humidity levels.
Summary
This AprilAire thermostat is universally compatible with multistage HVAC and heat pump systems, offering a helpful addition in seamlessly adjusting the comfort levels in your home.
Specifications
Specifications
-
Compatible SystemsMulti-Stage Heating and Cooling Systems
-
Program Type7-Day
-
ColorWhite
-
ControlsDigital
-
Number of Cooling Stages2
-
Number of Heating Stages4
-
System ControlHeating and Cooling
-
Time Periods per Day4
-

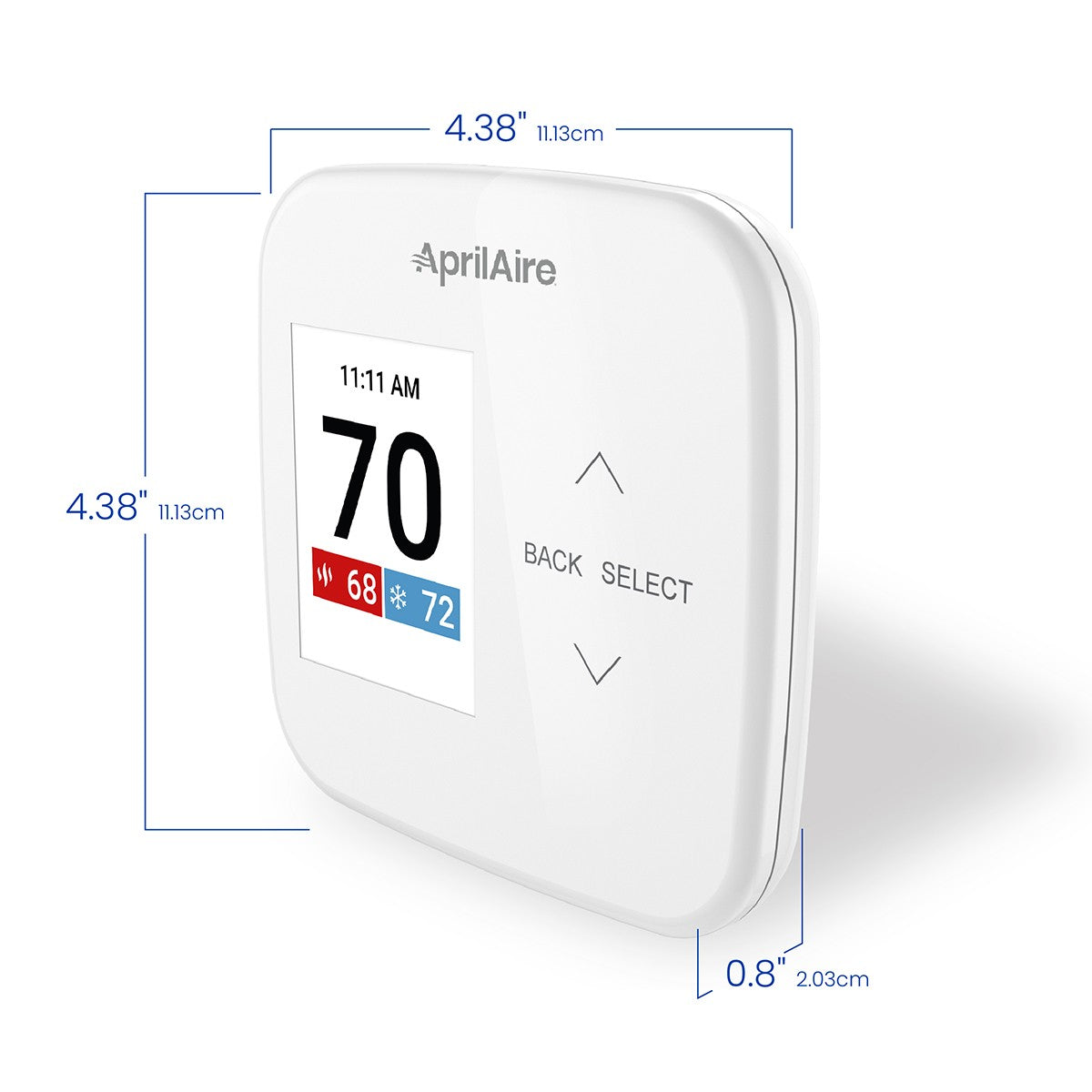

Depth (in.)0.8
-
Depth (with front cover) (in.)0.8
-
Height (in.)4.38
-
Height (with front cover) (in.)4.38
-
Width (in.)4.38
-
Width (with front cover) (in.)4.38
-
Additional FeaturesFilter Change Indicator, Programmable, Touchscreen, Early-Start Function
-
Manufacturer's Warranty5-Year Limited Warranty
