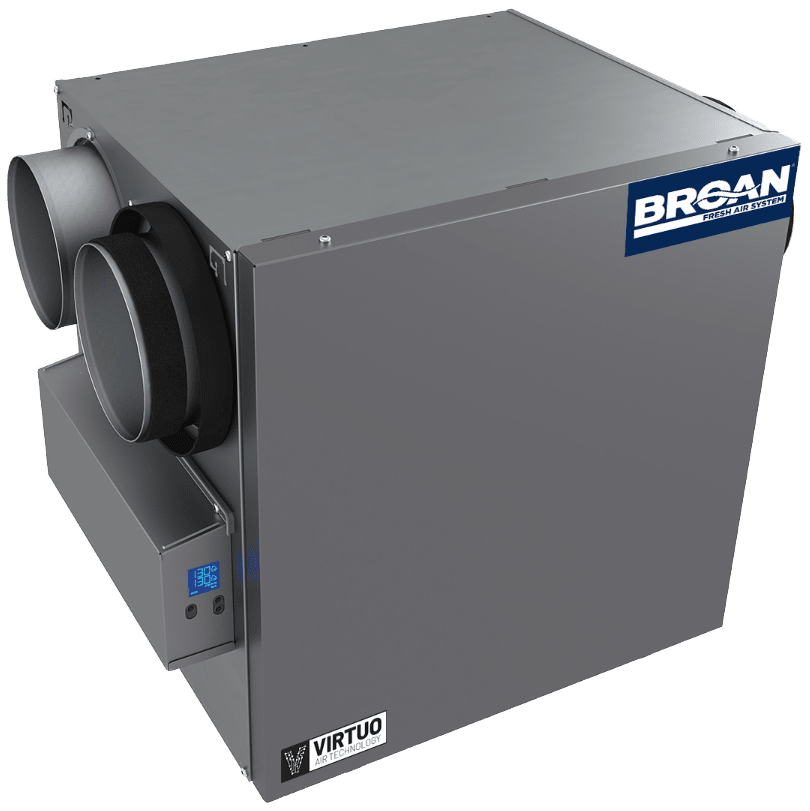

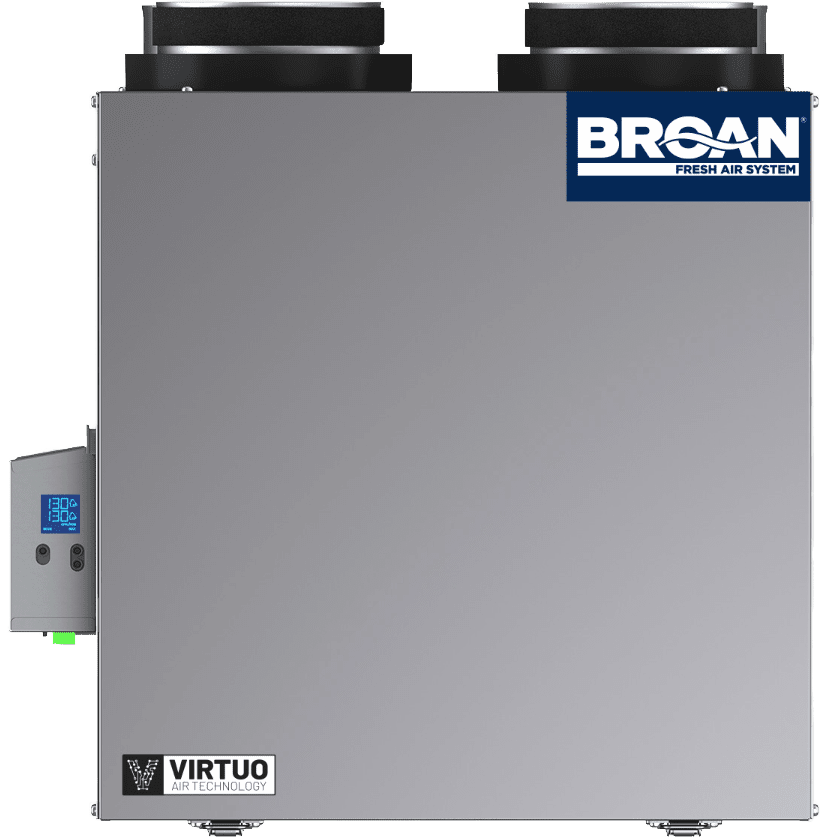

Broan B110H65R AI Series 110 CFM Heat Recovery Ventilator

Key Specifications

• Minimum Cubic Feet per Minute (CFM) (CFM)
  35.0

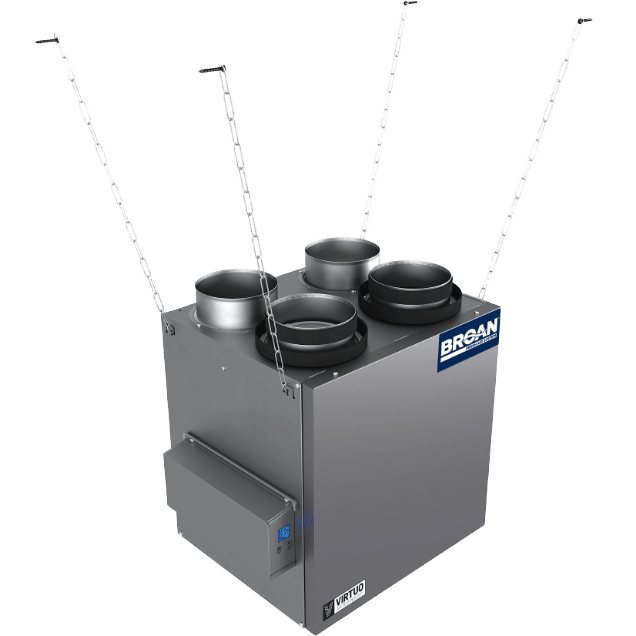

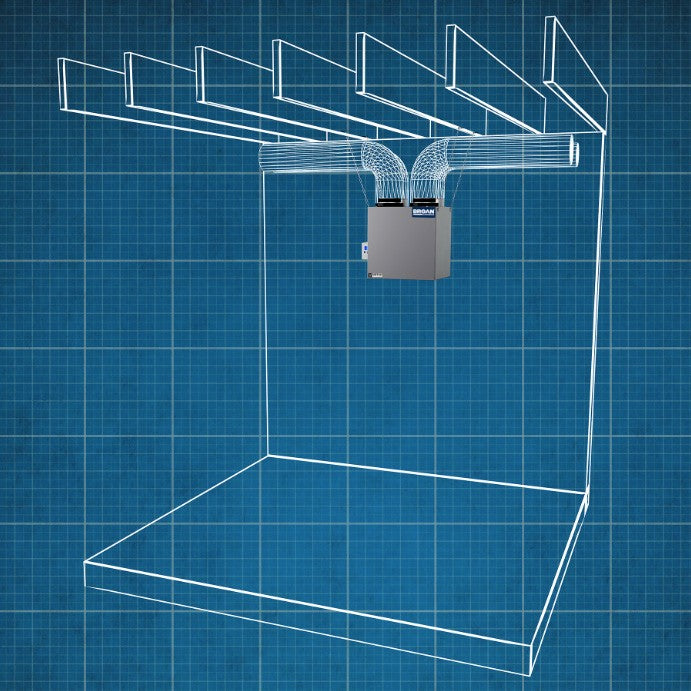

• Mounting Type
  Suspended, Wall
• Number of Speeds
  Variable
• Port Location

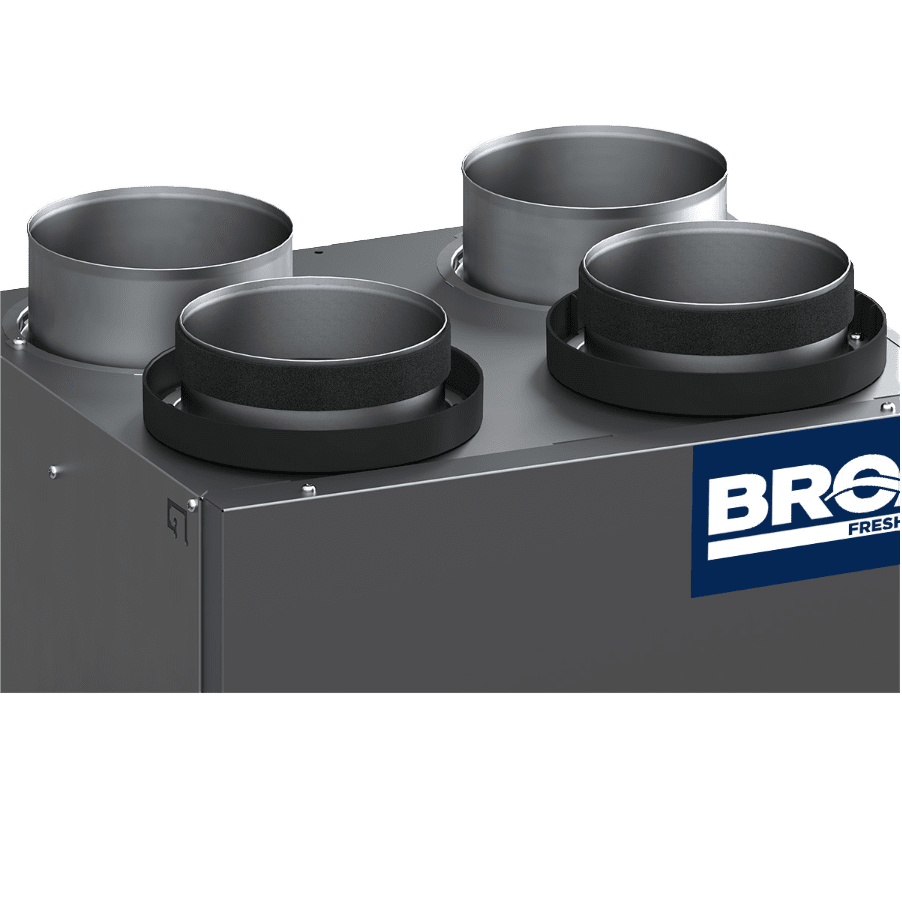

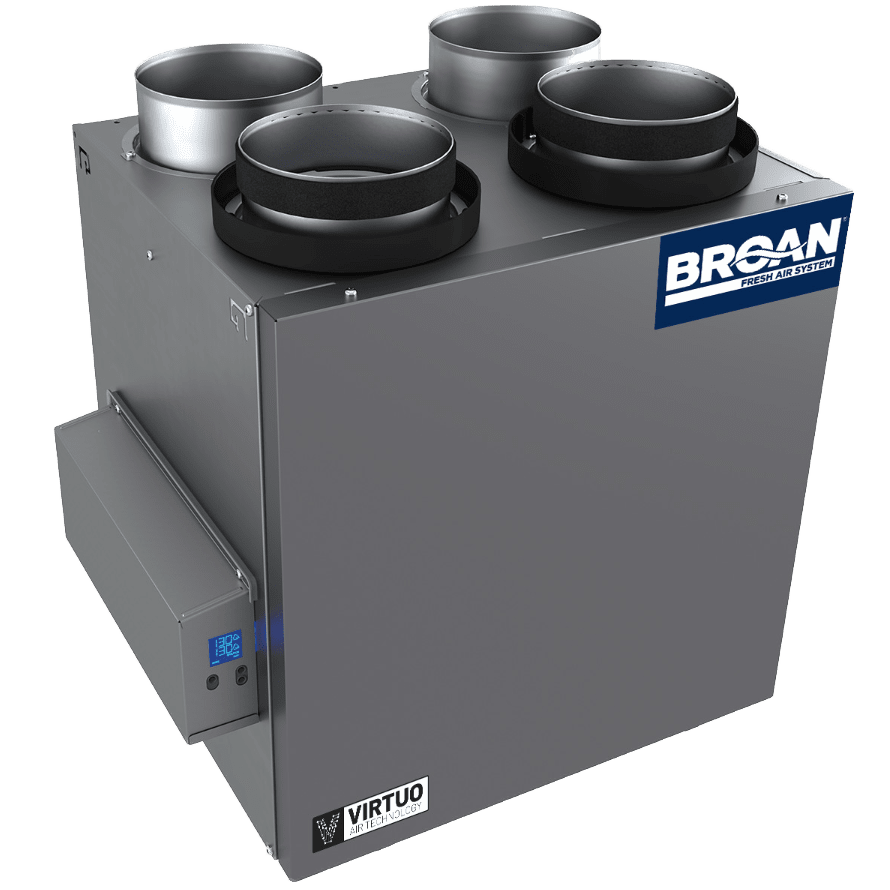

  Top Ports: Top

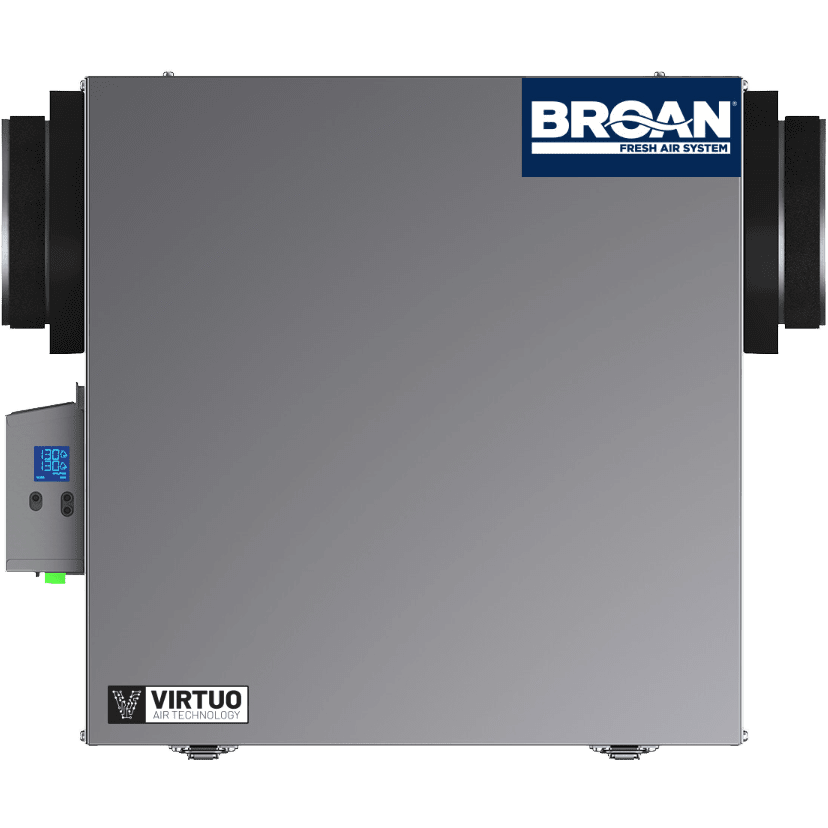

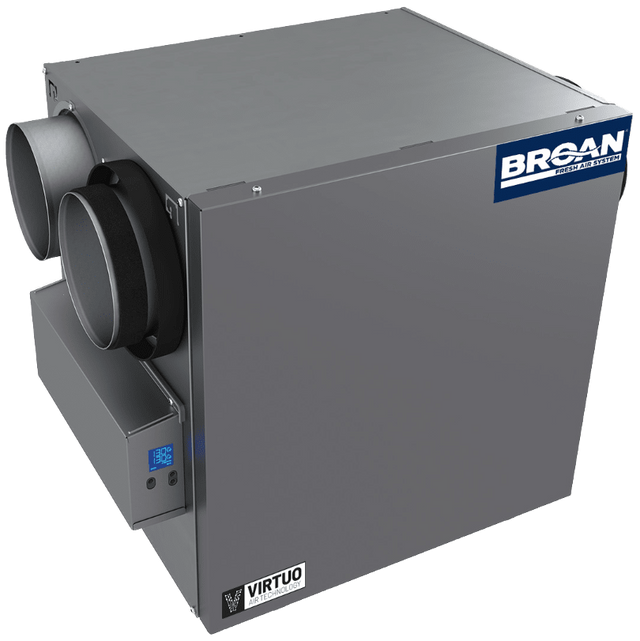

  Side Ports: Side
• Type
  HRV-Air Supply Fan

General

• Application
  Residential
• California Residents
  ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
• Certifications
  UL, cUL, HVI-Certified, California Title 24
• Color
  Gray

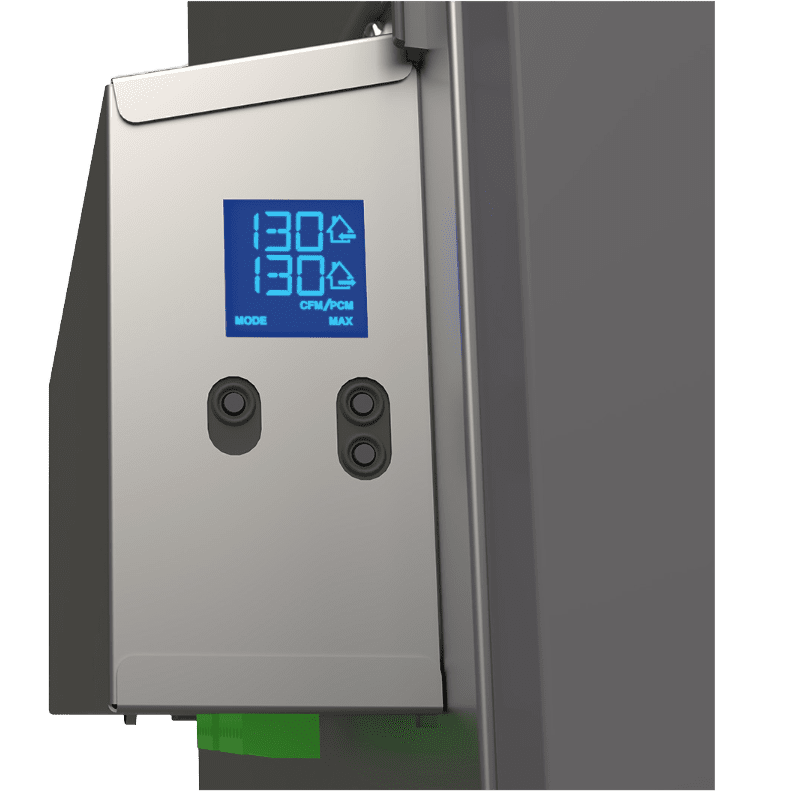

• Controls
  Electronic
• Maximum Cubic Feet per Minute (CFM) (CFM)
  110.0

Power

• Amperage (Amps)
  2.5
• Power Supply
  Plug
• Voltage (V)
  110-120
• Watts (W)
  90

Dimensions

• Depth (in.)
  16.14
• Depth (with front cover) (in.)
  16.14
• Duct Diameter (in.)
  5.0
• Height (in.)
  Top Ports: 21.58

  Side Ports: 19.12
• Height (with front cover) (in.)
  Top Ports: 21.58

  Side Ports: 19.12
• Weight (lbs.)
  35
• Width (in.)
  Top Ports: 21.07

  Side Ports: 23.78
• Width (with front cover) (in.)
  Top Ports: 21.07

  Side Ports: 23.78

Warranty

• Manufacturer's Warranty
  5-Year Limited Parts and Motor Warranty, Limited Lifetime HRV Core Warranty
