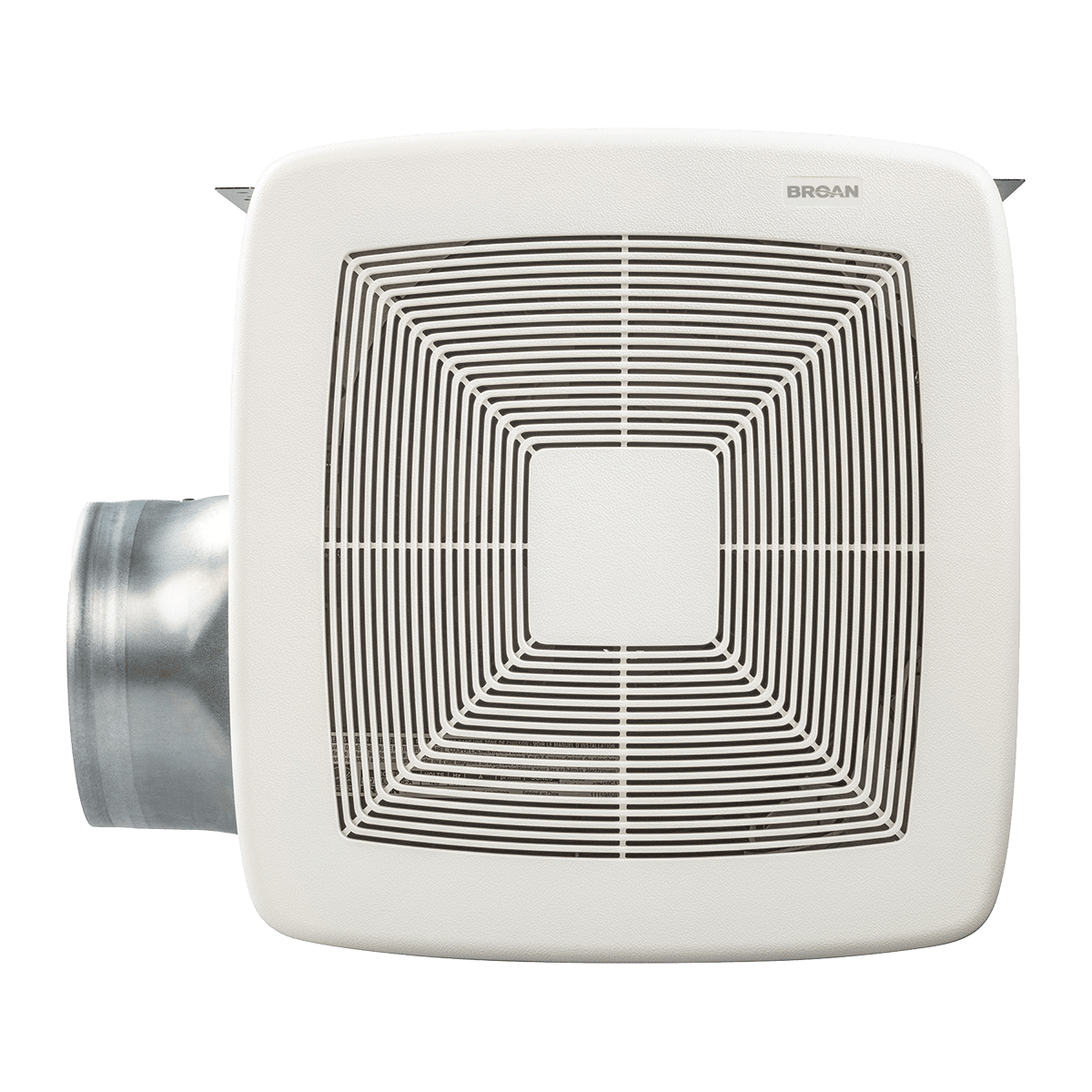

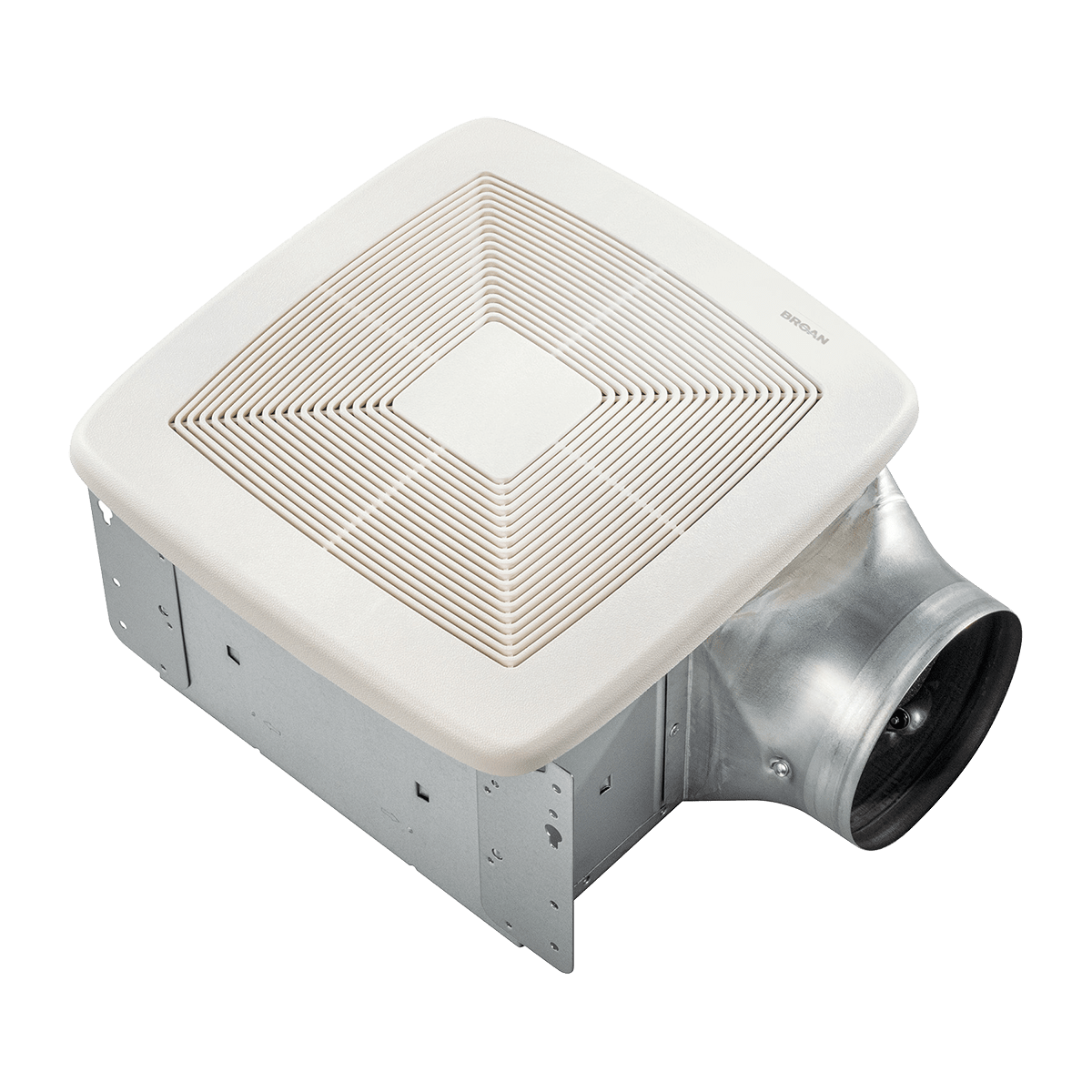

Broan QTXEG80 Bathroom Exhaust Fan
Broan QTXEG80 Bathroom Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan QTXEG080 Bathroom Exhaust Fan
- 6-inch Ducting Connector
- Hanging Brackets
- Owner’s Manual
Info & Guides
Info & Guides
Broan QTXEG80 Bathroom Exhaust Fan
Description
Description

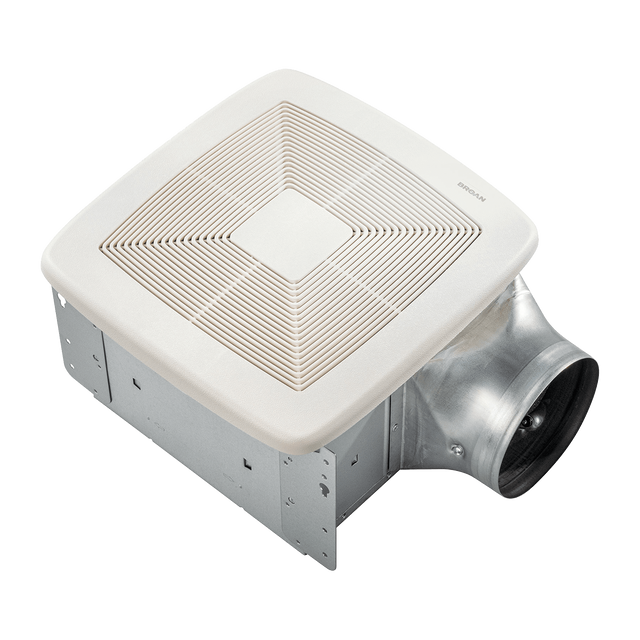

Transform your bathroom with the Broan QTXEG080 80 CFM 0.3 Sones Energy Star Bathroom Exhaust Fan, a premium ventilation fan engineered for superior performance and whisper-quiet operation.

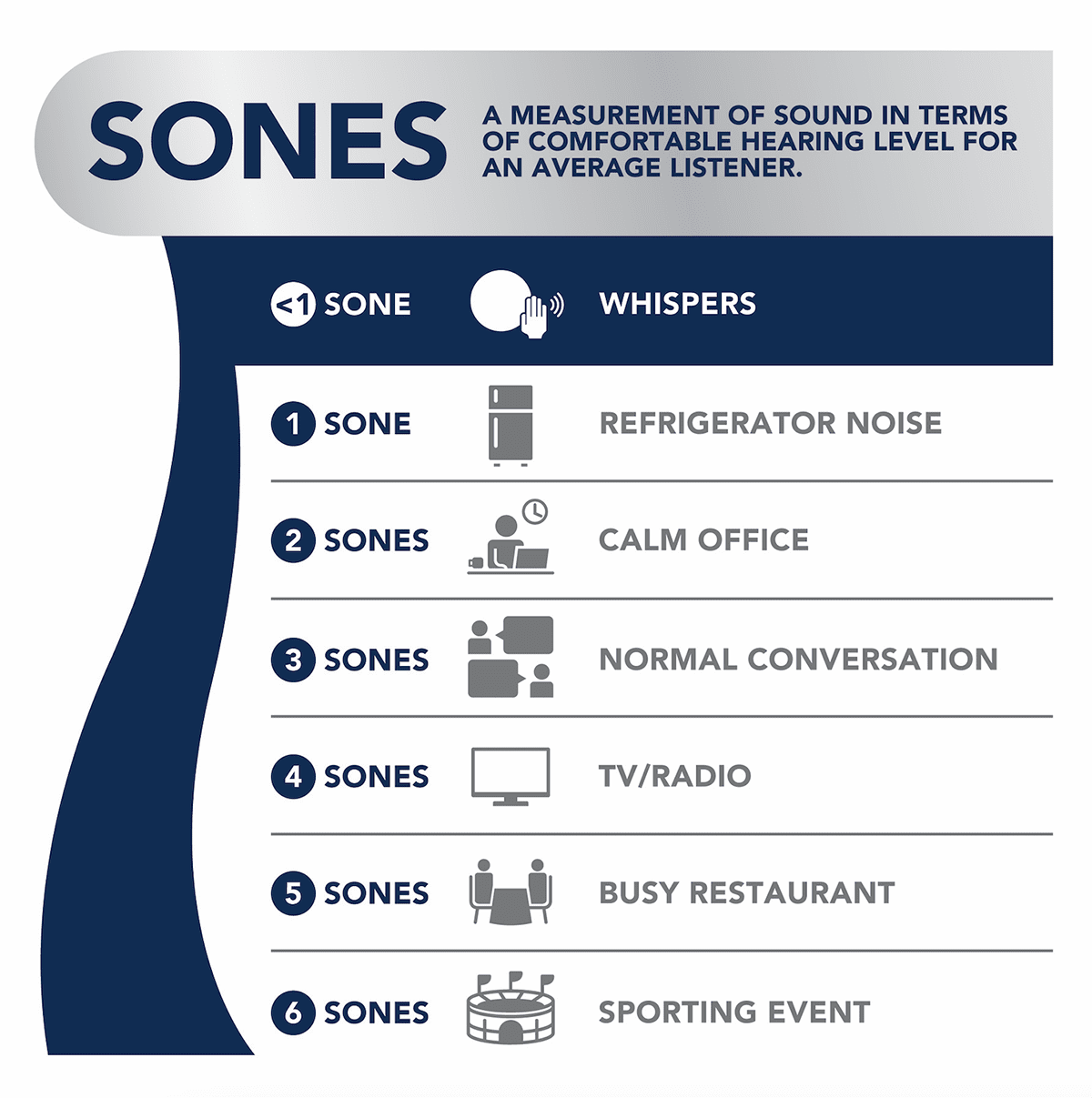

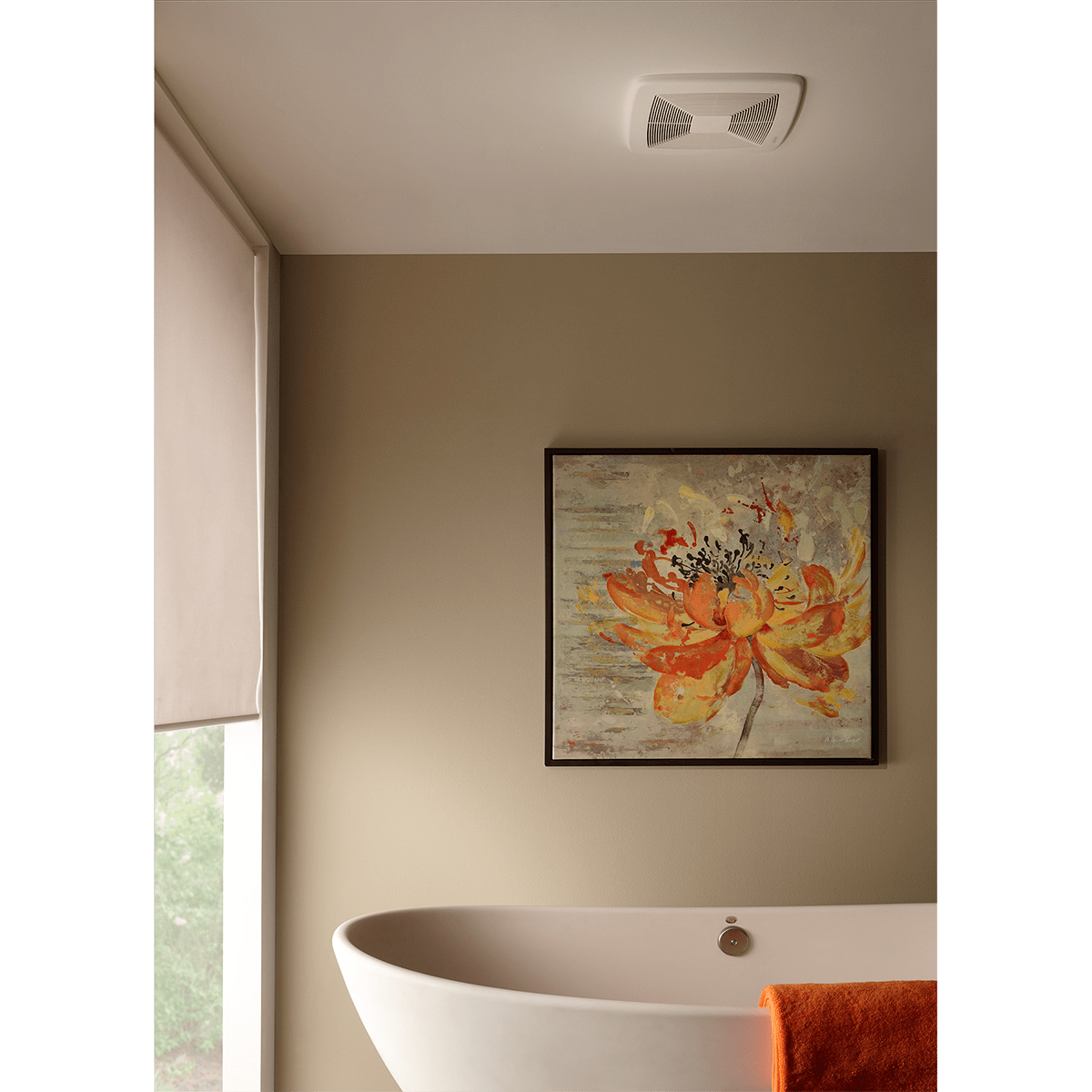

The powerful airflow of this fan clears humidity and odors effectively, while the ultra-low sound level of just 0.3 sones (quieter than a whisper) ensures minimal disruption to a user’s daily routine. Designed specifically for bathroom ceiling installations, this fan is UL-listed and safe to use over bathtubs and showers when connected to a GFCI-protected circuit.
Top Features
- Powerful Ventilation: Capable of airflows as high as 80 CFM in static pressure situations up to 0.10 inches w.g., the QTXEG080 bath fan efficiently removes moisture and odors from bathrooms up to 75 square feet.
- Energy Star Certified: Features an Energy Star-rated motor for reduced energy consumption compared to standard bathroom exhaust fans.

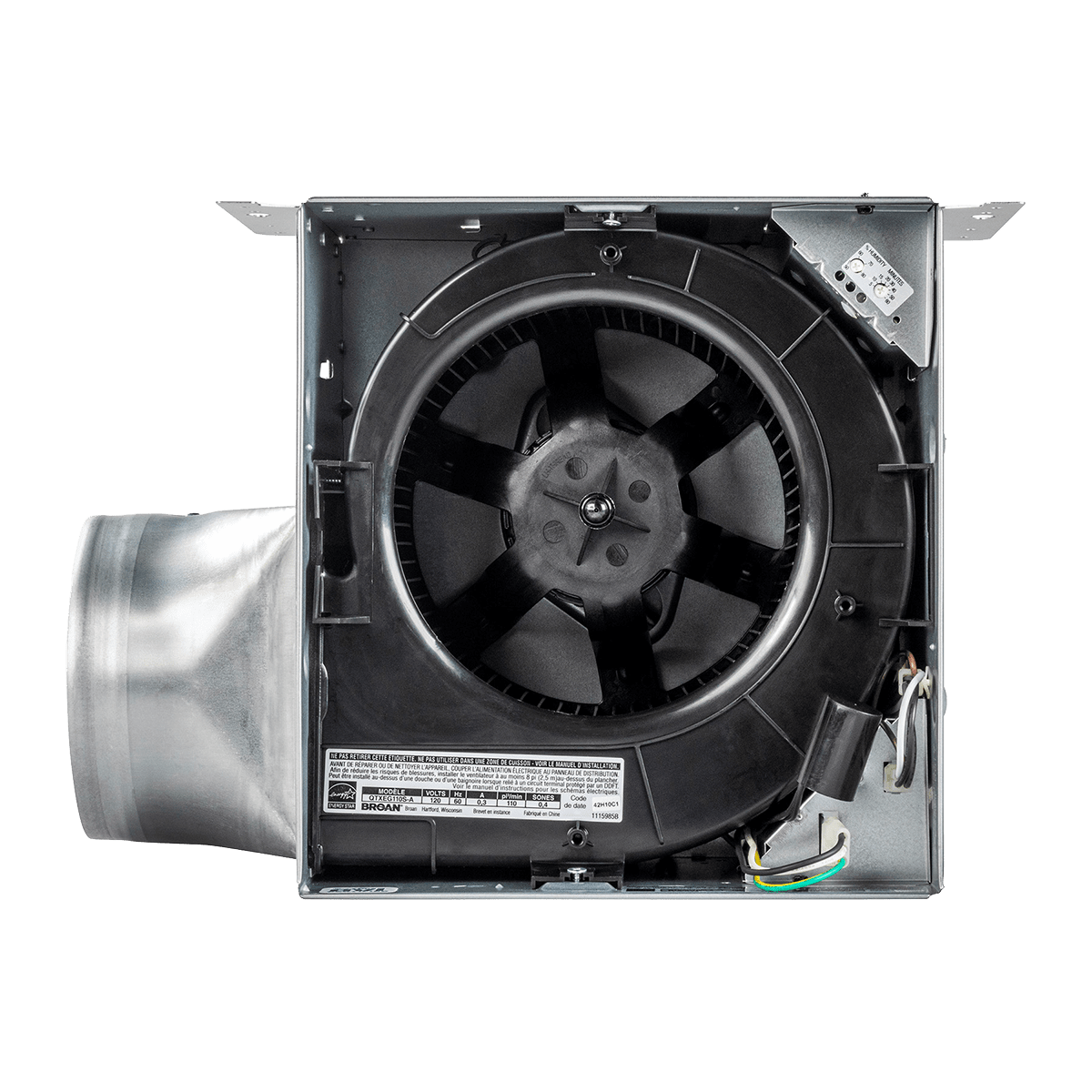

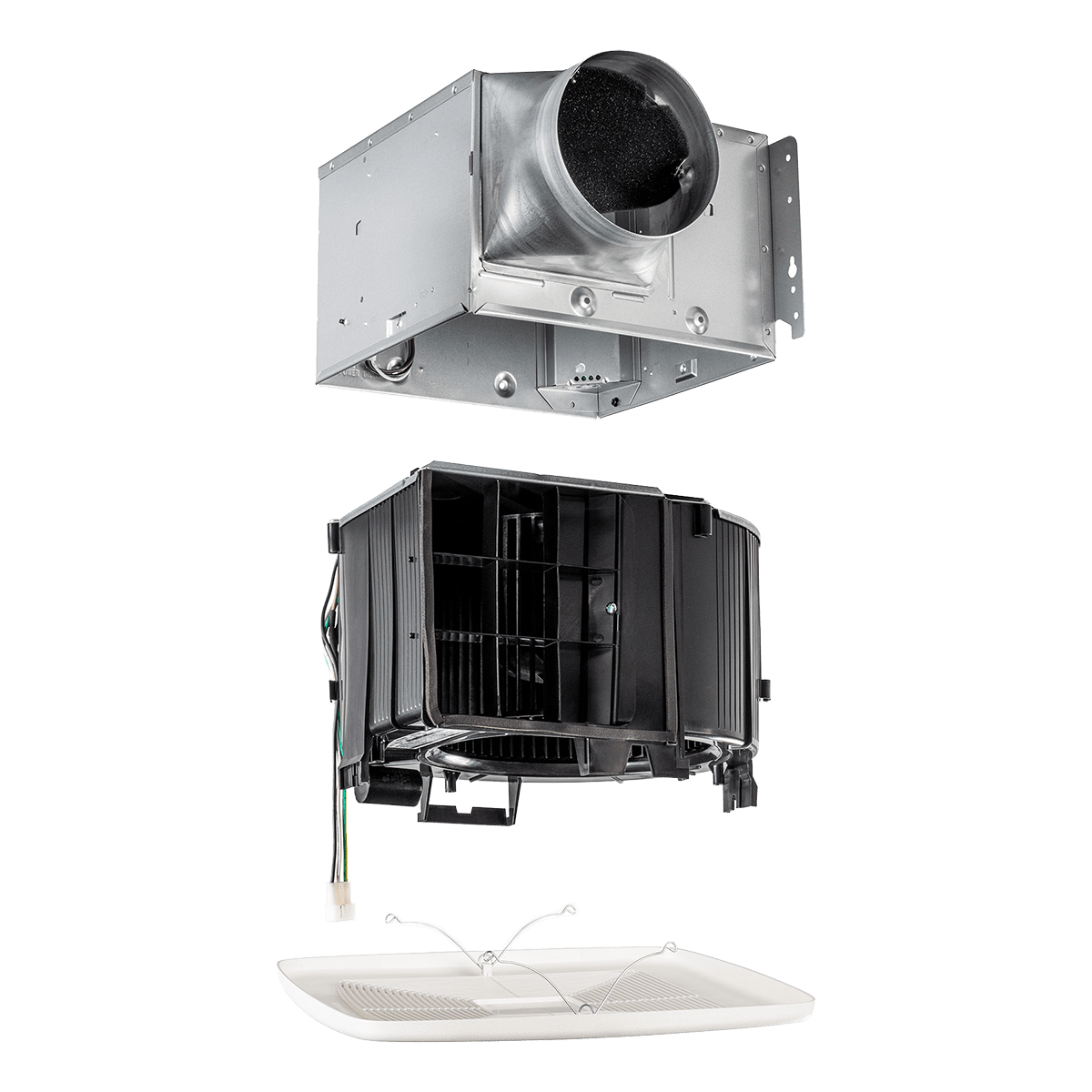

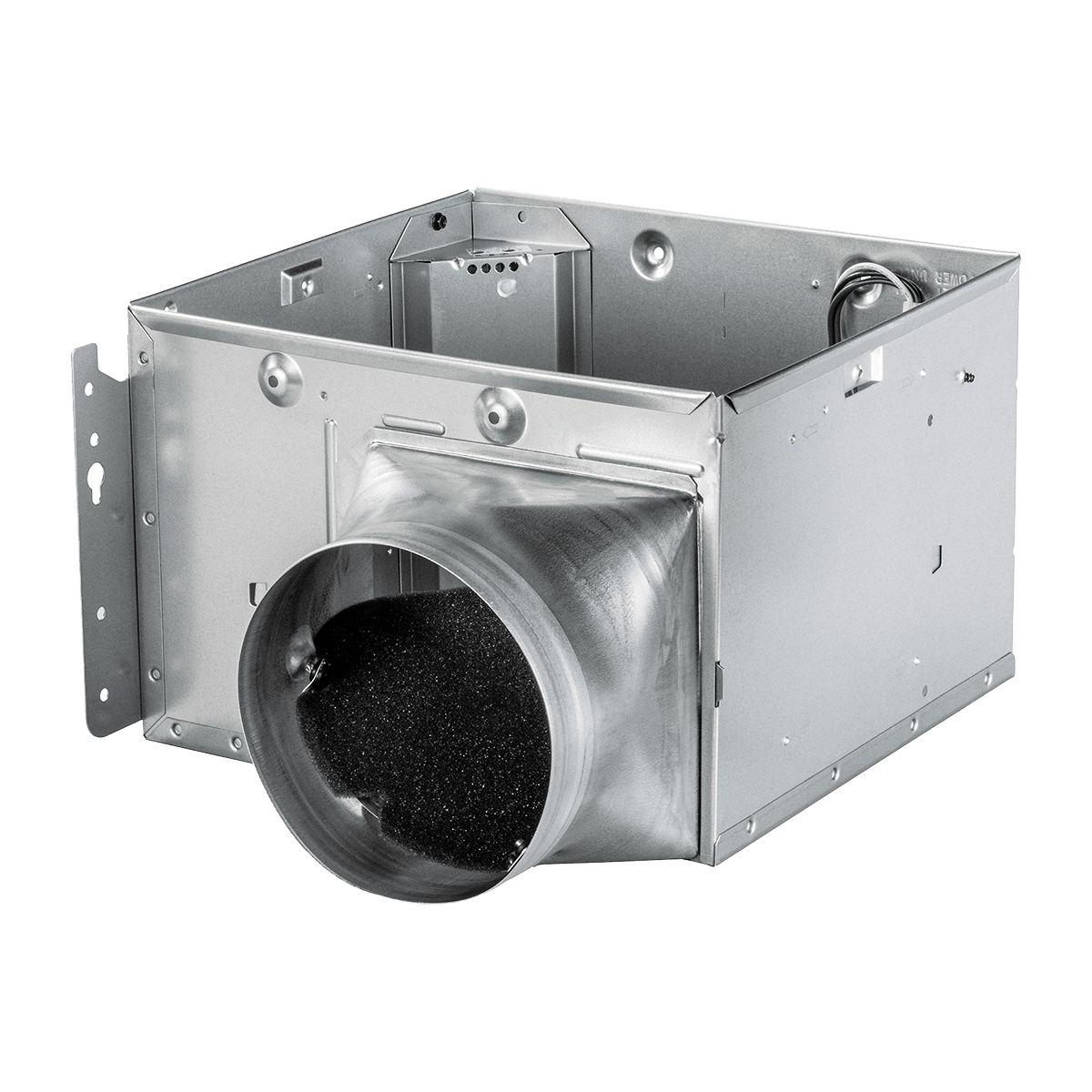

- Durable Construction: This model has a corrosion-resistant galvanized steel housing and a polymeric damper for long-lasting durability and reliability.
- Simple Installation: Includes adjustable mounting brackets and hanger bars for easy installation on joists or I-joists, accommodating 2 x 8-inch constructions and pitches up to 12/12.

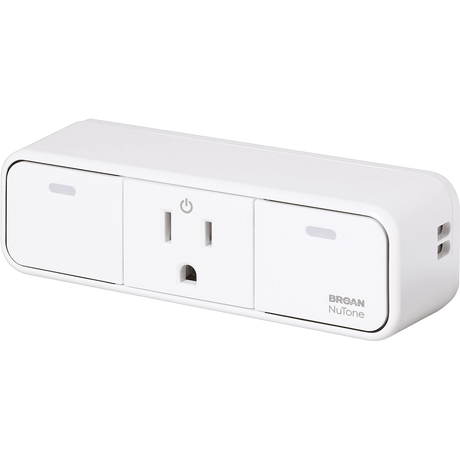

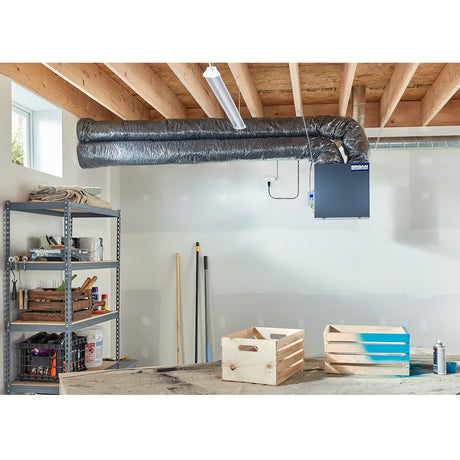

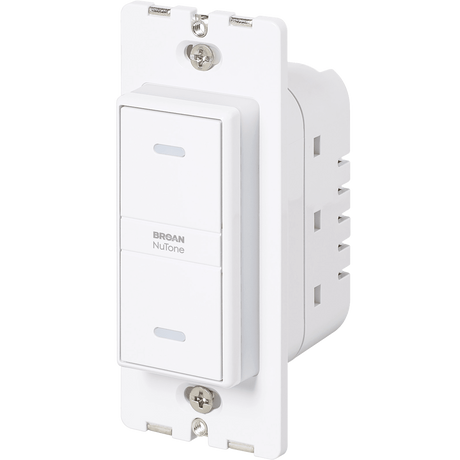

- Broan Overture Compatible: This fan is compatible with Broan’s Overture automated fresh air sensor system, which monitors and controls ventilation systems and tests for air quality.
Sylvane's Expert Take
This ultra-quiet bathroom exhaust fan provides powerful, energy-efficient ventilation that eliminates excess moisture without disrupting daily activities. Its 80 CFM airflow capacity ensures a consistently comfortable, odor-free environment.

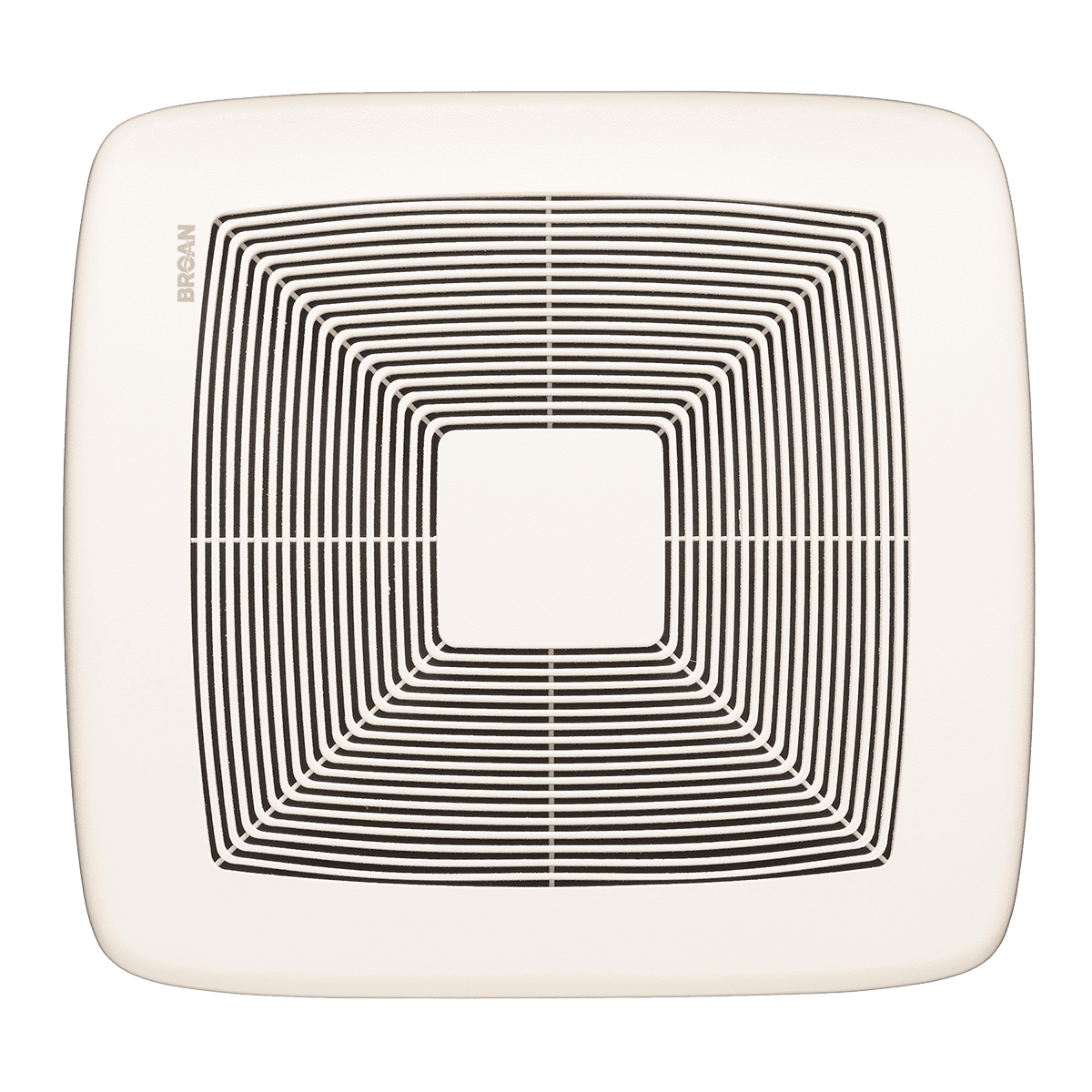

- Low Profile Design: The sleek, neutral design complements a wide range of bathroom aesthetics without requiring extensive remodeling.
- Optional Monitoring Capable: Automated compatibility options support continuous air quality monitoring for healthier indoor living.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)75
-
Number of Speeds1
-
Sound Level (Sones) (sones)0.3
-
CertificationscULus, HVI
-
ColorWhite
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)80.0
-
Maximum Amperage (Amps)0.2
-
Maximum Wattage (W)23.3
-
Voltage (V)110-120
-

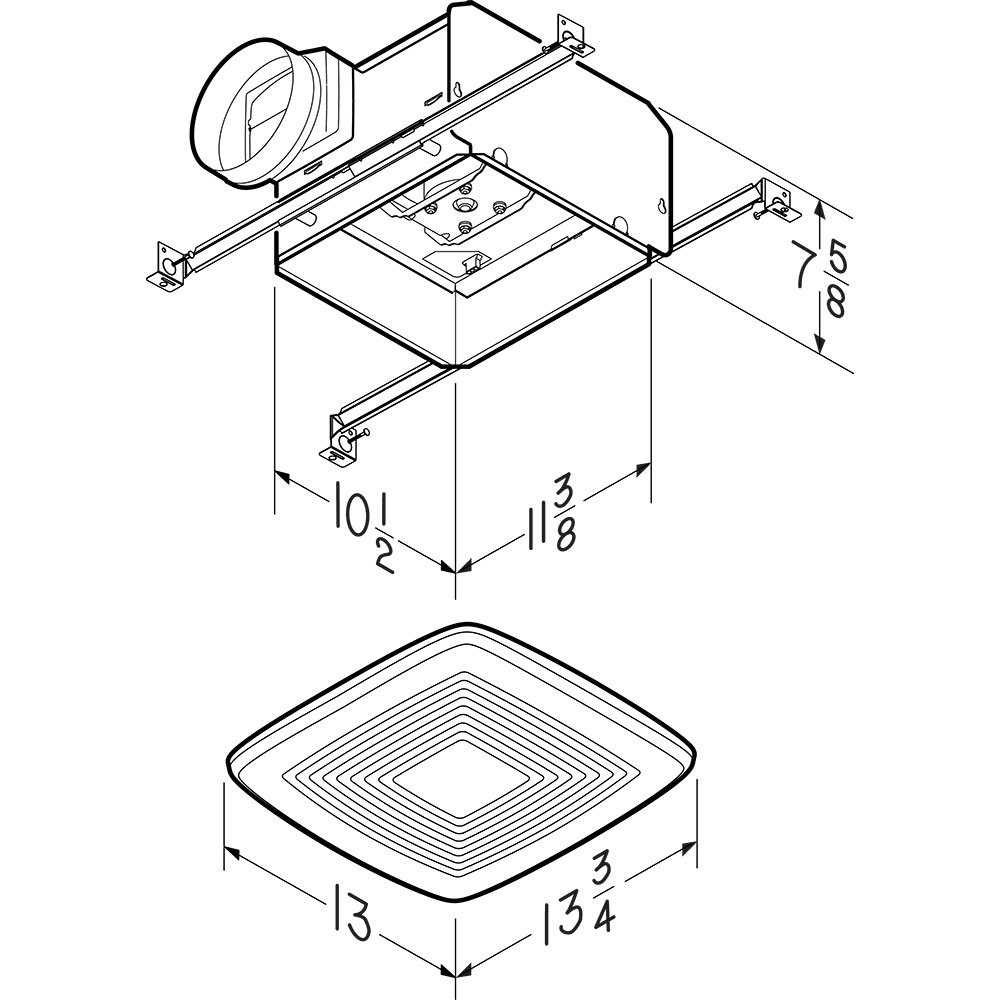

Ceiling or Wall Cutout Length (in.)10.5
-
Ceiling or Wall Cutout Width (in.)11.375
-
Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Duct Diameter (in.)6.0
-
Height (in.)7.625
-
Height (with front cover) (in.)7.625
-
Weight (lbs.)12
-
Width (in.)13.75
-
Width (with front cover) (in.)13.75
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty3-Year Limited Warranty
