Fantech ATMO 150H 150 CFM Heat Recovery Ventilator
Fantech ATMO 150H 150 CFM Heat Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech ATMO 150H Heat Recovery Ventilator
- Owner's Manual
- Hanging Chain Kit
- Drain Hose
Info & Guides
Info & Guides

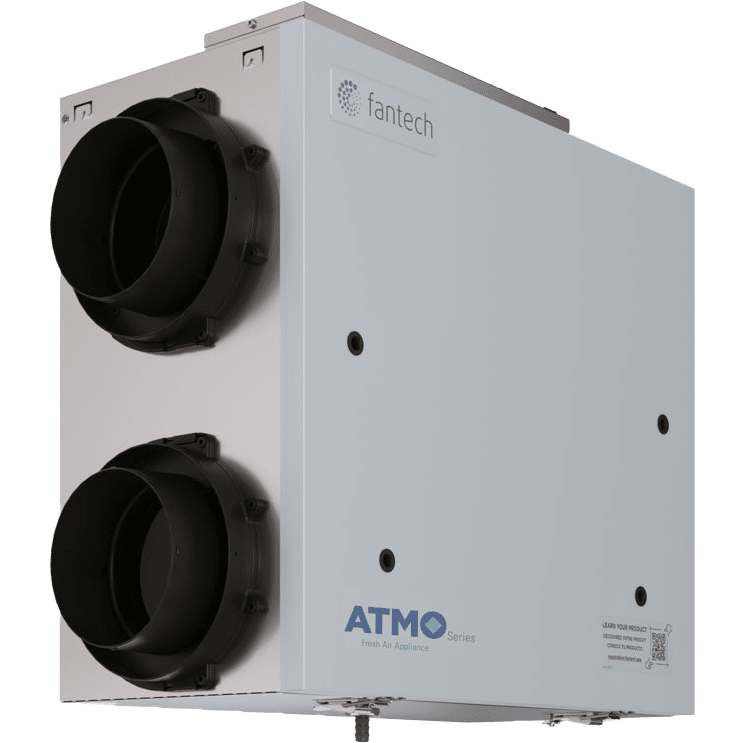

Fantech ATMO 150H 150 CFM Heat Recovery Ventilator
Description
Description
Designed for high-static pressure applications that demand high efficiency, the Fantech ATMO 150H Heat Recovery Ventilator continuously supplies 150 CFM of fresh, filtered air while removing an equal amount of stale air. Offering controlled ventilation efficiently, this fresh air appliance recovers up to 75% of the heat in your extracted air to temper the fresh air coming into your home.
Automatic Defrost Mechanism
Ideal for use in high-static pressure applications, the Fantech ATMO is equipped with an automatic defrost mechanism that is automatically activated when the outdoor temperature drops to 23 degrees Fahrenheit or lower. During the defrost cycle, the supply air fan shuts down while the exhaust air fan switches into high speed to maximize the effectiveness.
Top Features Of The Fantech ATMO 150H
Get effective residential easily with the robust design of this heat recovery ventilator from Fantech.

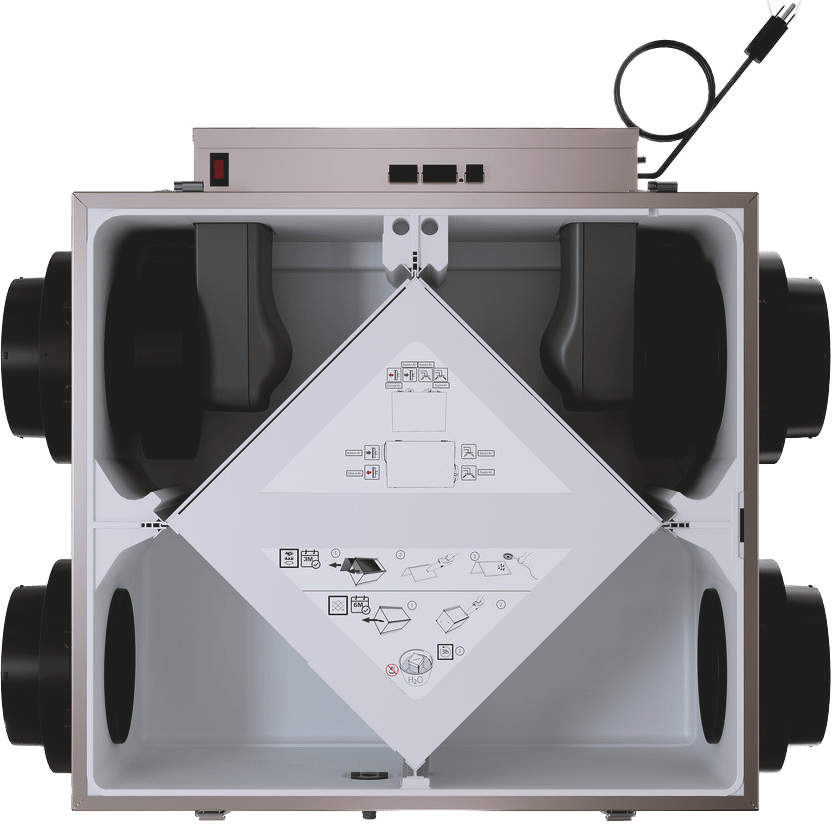

- Crossflow Core: Recovering up to 75% of the heat found in the exhausted air, this unit uses that warmth to temper the incoming air from the outside.

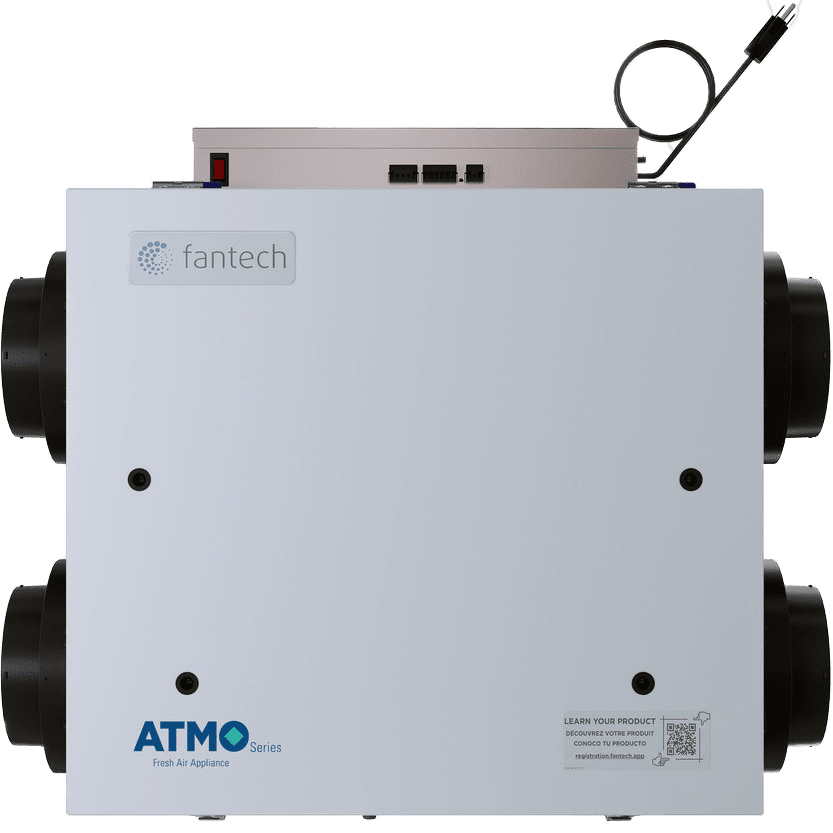

- Duct Connection: Features 6-inch side port duct connections.
- Powerful Airflow: Provides up to 150 CFM of fresh, filtered air.
- Electrical Box: Designed with an electrical box with external access and easy connectors.
- Integrated MERV-3 Filter: For unobstructed airflow and reducing textile fibers, pollen, and dust mites.
- One-Piece Foam Cabinet: UL rated with improved aerodynamics, insulation, and soundproofing.
- Easy to Maintain: All parts easily slide out for simple access.

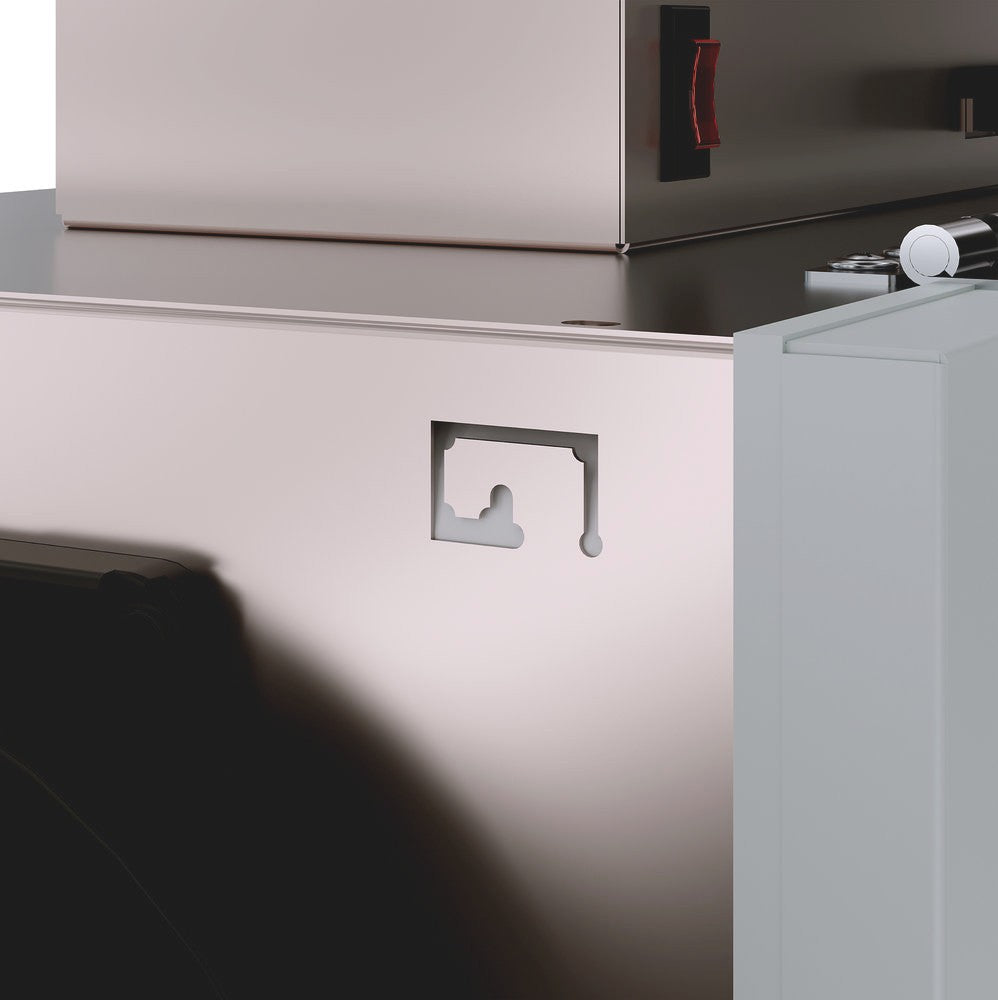

- Chain Mounted Unit: Comes with an included hanging chain kit or you can select an optional wall bracket.
- Long Warranty: Offers a limited lifetime warranty on the exchanger.
Summary
Designed for high static pressure applications that demand high efficiency, this Fantech HRV effectively ventilates homes in even low temperatures.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)150.0
-
Amperage (Amps)1.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)168
-
Depth (in.)29.5
-
Depth (with front cover) (in.)29.5
-
Duct Diameter (in.)6.0
-
Height (in.)21.5
-
Height (with front cover) (in.)21.5
-
Weight (lbs.)48.5
-
Width (in.)11.7
-
Width (with front cover) (in.)11.7
-
Manufacturer's WarrantyLifetime Limited Exchanger Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
