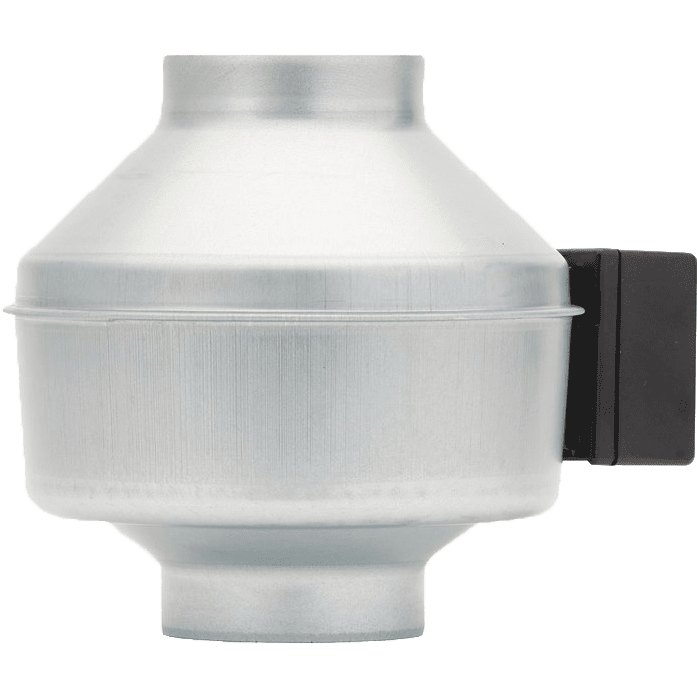

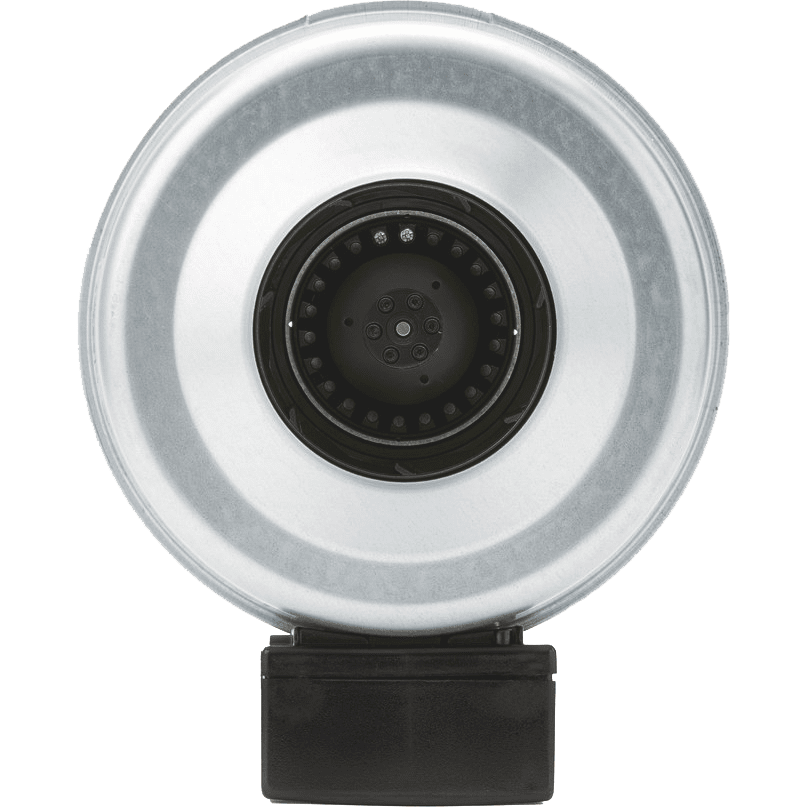

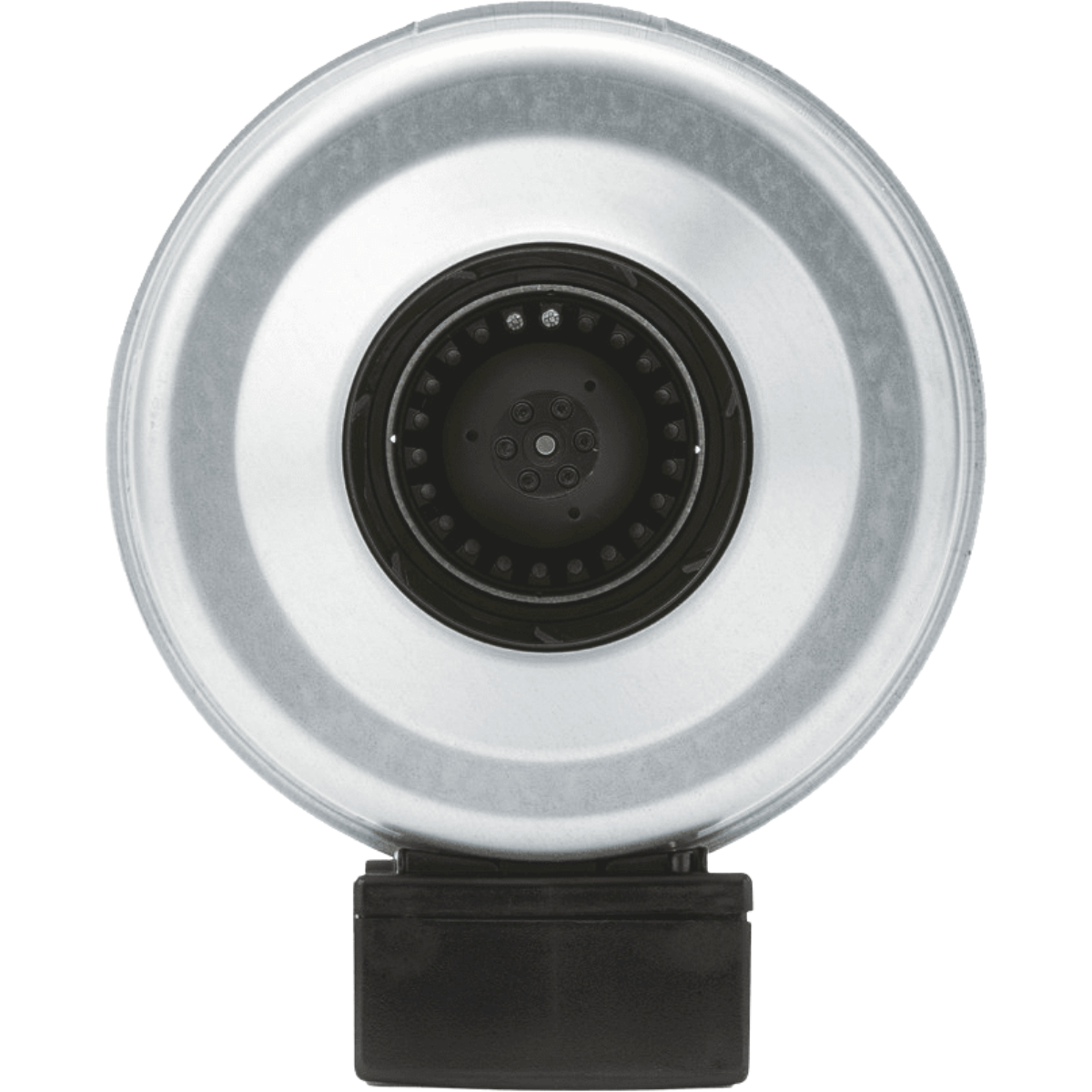

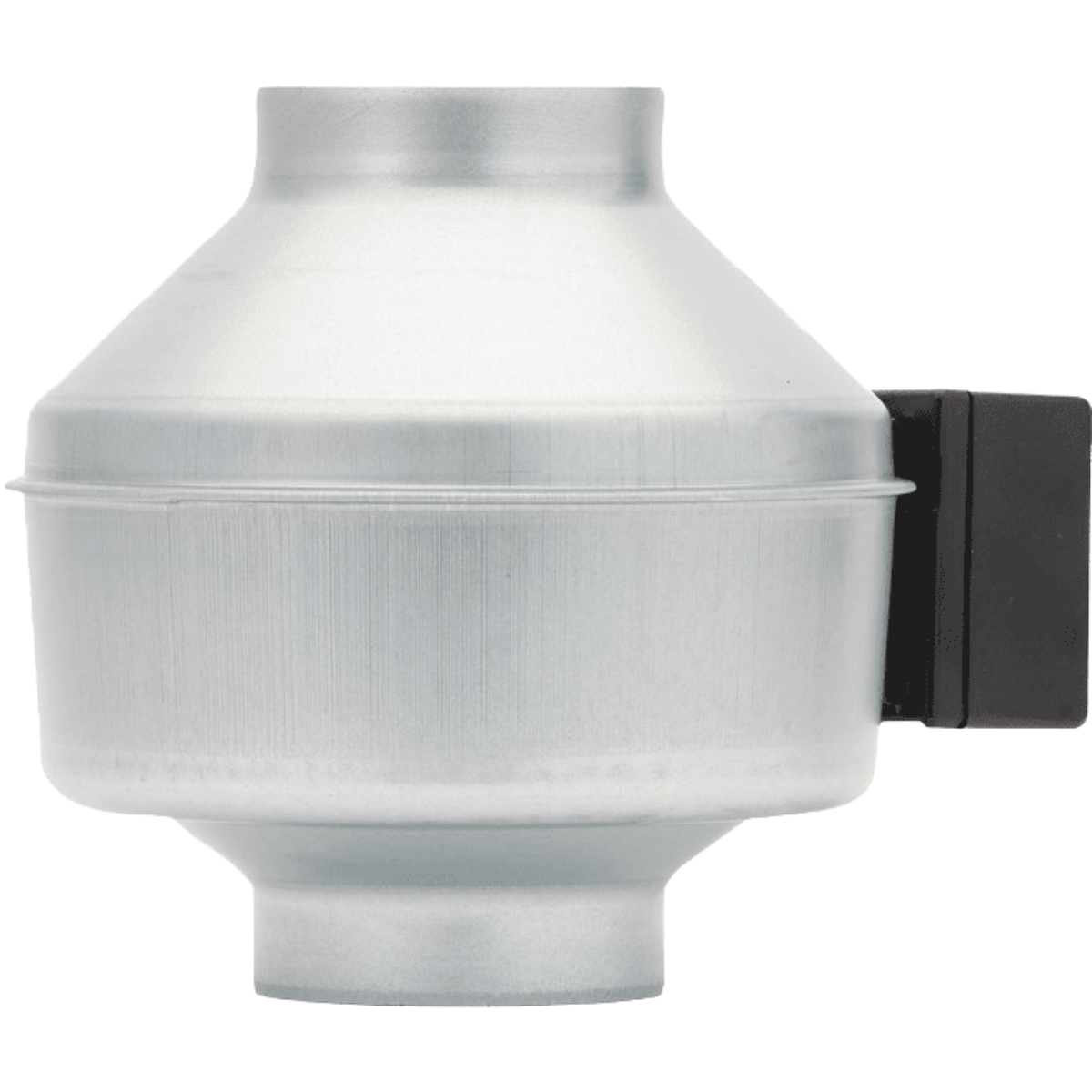

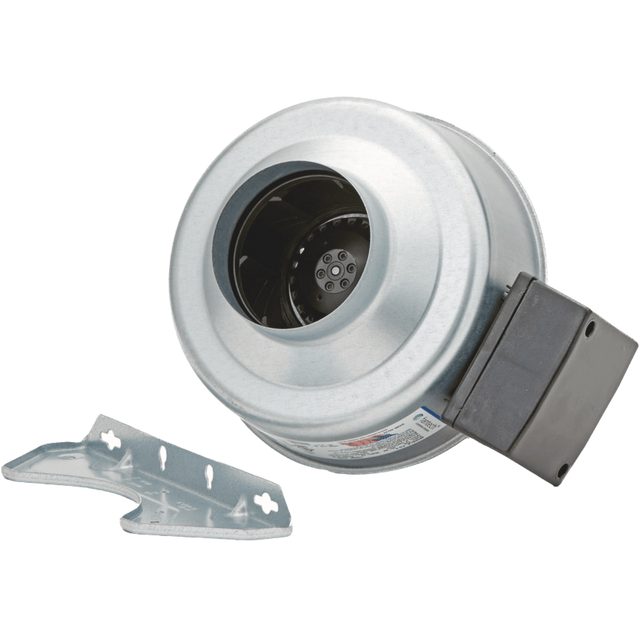

Fantech FG 4 4in. Inline Centrifugal Duct Fan

SKU: fn12434  |  Model: 40402
$18700
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?
  • Fantech FG 4 4-Inch Inline Centrifugal Duct Fan
  • Owner's Manual

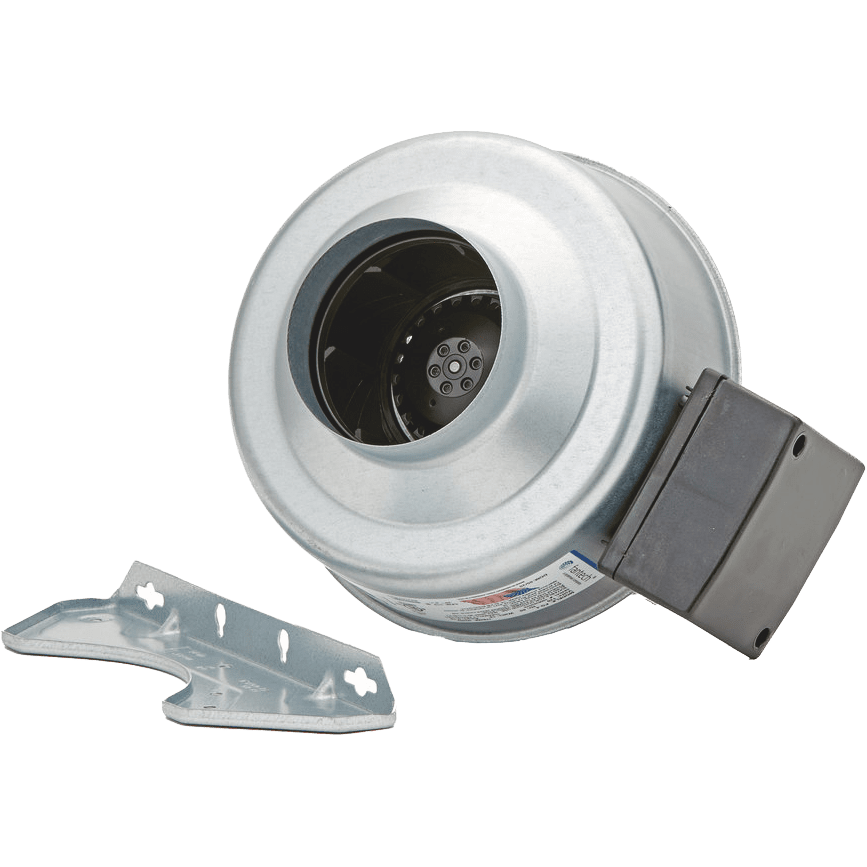

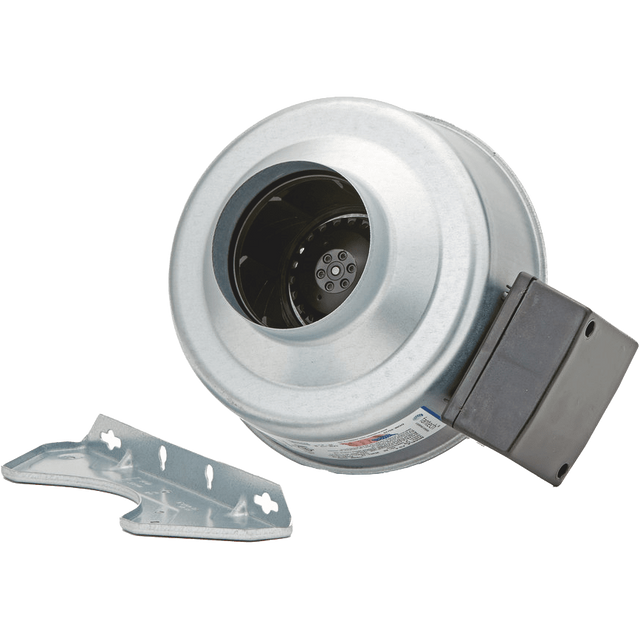

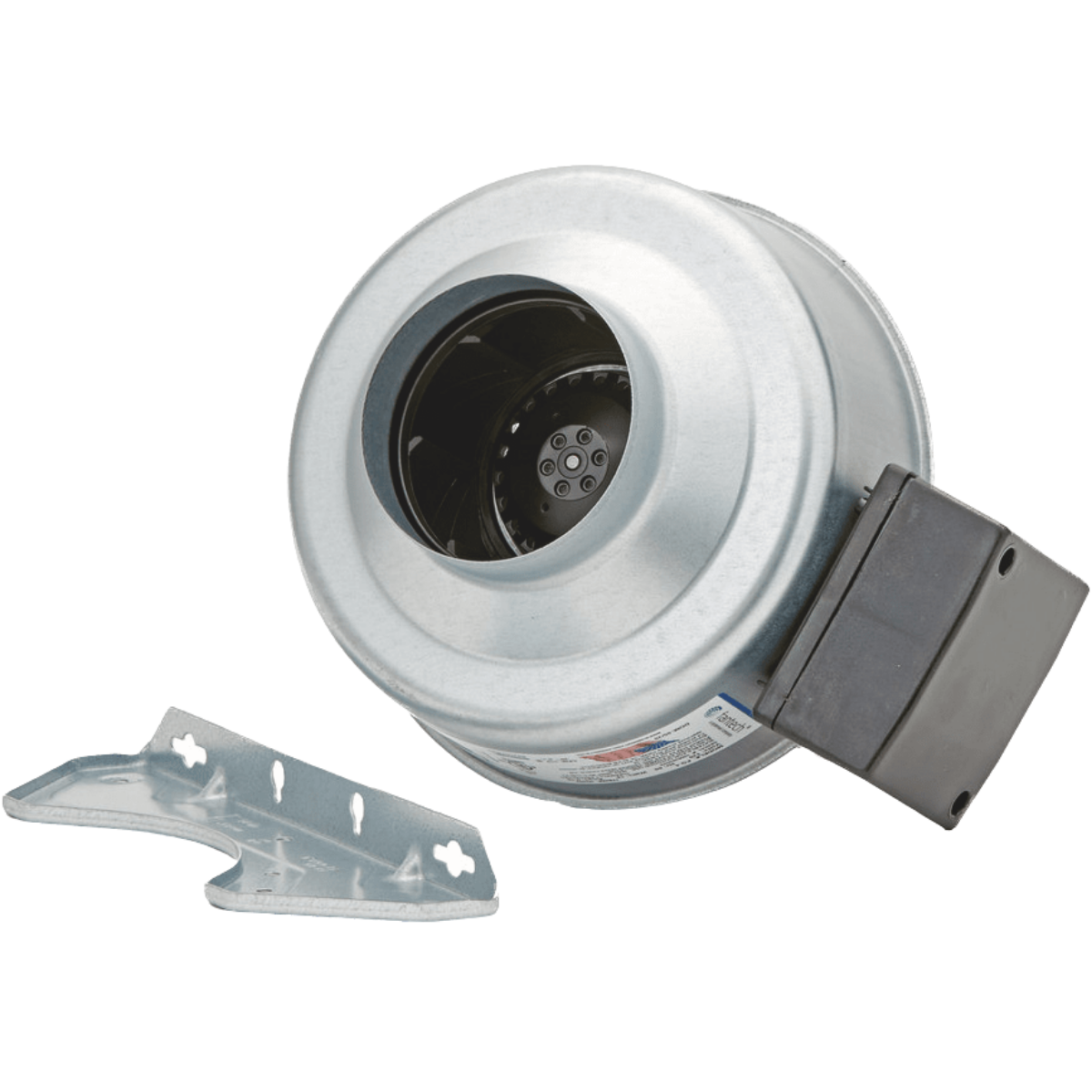

  • Mounting Hardware and Bracket

Info & Guides

Description

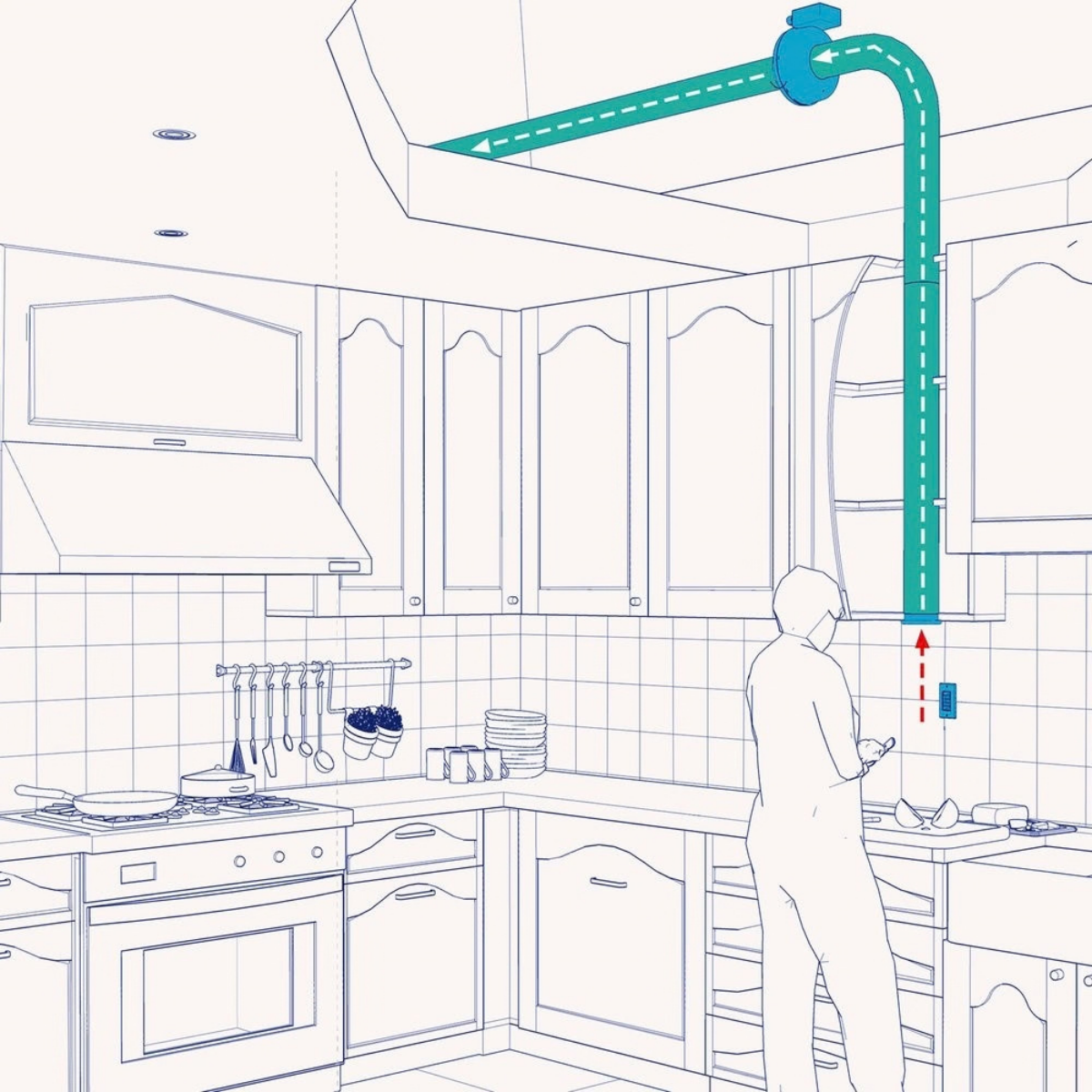

Featuring galvanized steel housings that meet code requirements for both residential and commercial applications, the Fantech FG 4 4-Inch Inline Centrifugal Duct Fan is a virtually airtight ventilation solution. An ebm-papst motor delivers reliable performance and long life. Installation is easy with a straight-through airflow that allows it to be placed at any angle and point along your ductwork. These fans are prewired and include a bracket for mounting on walls or ceilings.

This unit is available in two airflow options.

Choose The Right Option For You

Ventilation needs aren't one-size-fits-all and this centrifugal duct fan isn't either. Available in two models, choose the right airflow for your space.

  • Fantech FG4: Provides a maximum airflow of 139 CFM.
  • Fantech FG4XL: Delivers an airflow of up to 173 CFM.

Key Features

  • Versatile Installation: Its airtight galvanized steel housing makes it effective for use in commercial and residential applications.
  • Works At Low RPM: Using an ebm-papst external rotor motorized impeller, this fan has superior heat dissipation even at lower RPM.
  • Maintenance Free Design: Features permanently lubricated sealed ball bearings for a maintenance-free performance.
  • Safety Features: Designed with automatic thermal overload protection.
  • Speed Control: This unit is 100% speed controllable.
  • Air Stream Temperatures: The Fantech FG 4 is rated for air stream temperatures up to 140 degrees Fahrenheit.
  • Energy Star Rated: This Energy Star listed fan delivers a superior performance without driving up your energy costs.
  • Built to Last: Features an industry-leading 5-year limited warranty.

Summary

Whether exhausting heat from grow tents or rooms, or cooling and ventilating large areas, the Fantech FG 4 4-Inch Inline Centrifugal Duct Fan can do it all.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      0.0
    • Type
      Classic Inline Duct Booster Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      FG 4 - 139 CFM: 139.0
      FG 4XL - 173 CFM: 173.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      FG 4 - 139 CFM: 0.18
      FG 4XL - 173 CFM: 0.48
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      FG 4 - 139 CFM: 20
      FG 4XL - 173 CFM: 72

    Dimensions

    • Depth (in.)
      FG 4 - 139 CFM: 8.5
      FG 4XL - 173 CFM: 9.75
    • Duct Diameter (in.)
      4.0
    • Height (in.)
      FG 4 - 139 CFM: 4.0
      FG 4XL - 173 CFM: 11.25
    • Weight (lbs.)
      FG 4 - 139 CFM: 4.6
      FG 4XL - 173 CFM: 6
    • Width (in.)
      FG 4 - 139 CFM: 8.5
      FG 4XL - 173 CFM: 4.0

    Additional Features

    • Additional Features
      Energy Star, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
