Fantech FKD 10 10in. Mixed Flow Inline Duct Fan
Fantech FKD 10 10in. Mixed Flow Inline Duct Fan - FKD 10 - 120V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 10 10-Inch Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides

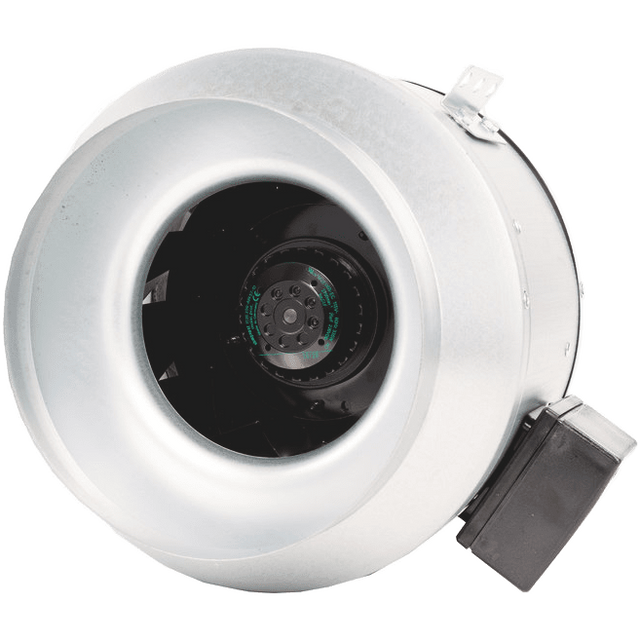

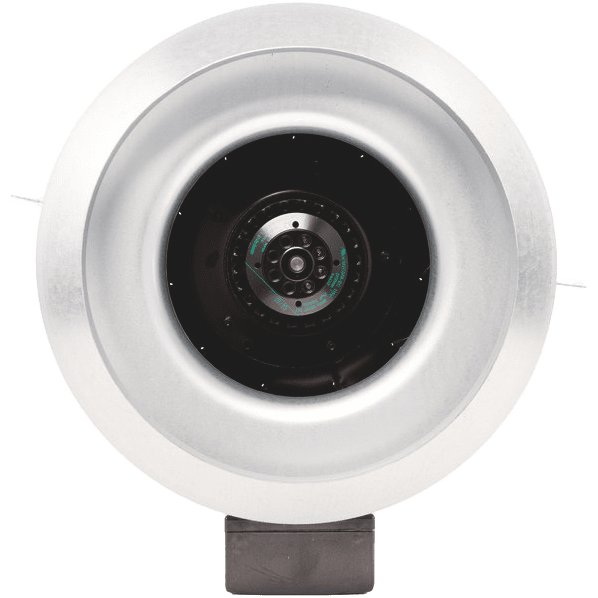

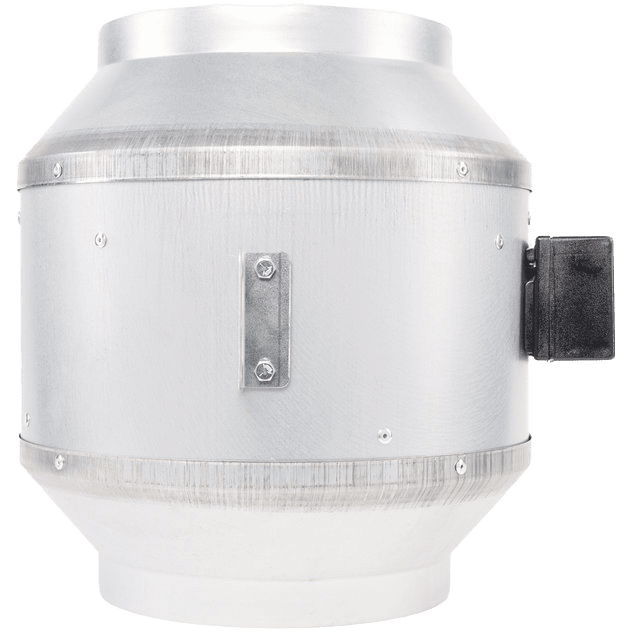

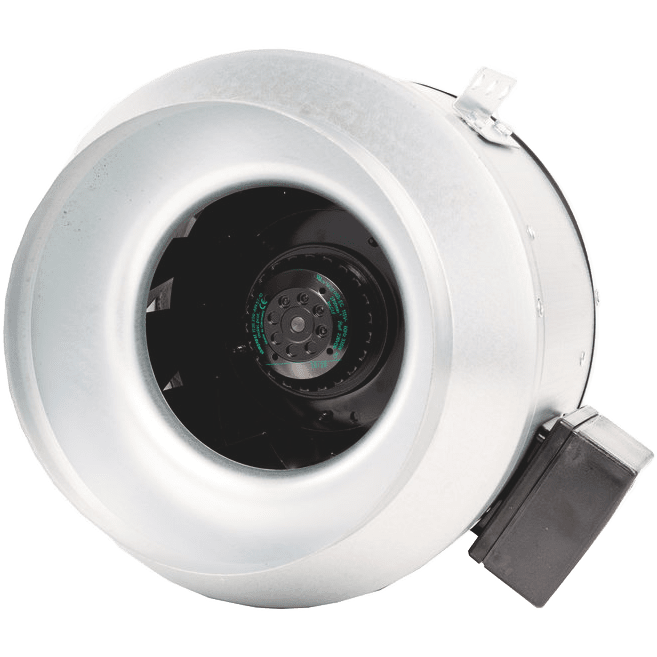

Fantech FKD 10 10in. Mixed Flow Inline Duct Fan
Description
Description
When a quieter performance and simple installation is needed for exhaust or supply applications like in offices, salons, hospitals, and more, choose the Fantech FKD 10 10-Inch Mixed Flow Inline Duct Fan. Its mixed-flow design combines the best of axial fans and backward curved impellers. Easy to set up and use, it's a customer favorite.
This inline duct fan is available in four options.
Four Fan Models To Choose From
Select the perfect Fantech FKD 10 based on your needs and voltage requirements:
- Fantech FKD 10 120V: 909 CFM Airflow
- Fantech FKD 10 230V: 875 CFM Airflow
- Fantech FKD 10XL 120V: 1,267 CFM Airflow
- Fantech FKD 10XL 230V: 1,265 CFM Airflow
Key Features
- For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
- Overload Protection: It's designed with an external rotor motor with built-in thermal protection.
- Works At Low RPM: This fan has superior heat dissipation even at lower RPM.
- Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
- Speed Controllable: This fan is 100% speed controllable.
- Easy to Install: Features a terminal box with a prewired electrical strip.
- Air Stream Temperatures: The Fantech FKD 10 Series Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.
Summary
When a quieter performance and simple installation is needed for exhaust or supply applications like in offices, salons, hospitals, and more, choose the Fantech FKD 10.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)15.320.621.023.2
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)909.0875.01267.01265.0
-
Amperage (Amps)3.012.14.842.25
-
Power SupplyHardwired
-
Voltage (V)110-120220-240110-120220-240
-
Watts (W)305299485514
-
Depth (in.)12.512.512.514.0
-
Depth (with front cover) (in.)12.512.512.514.0
-
Duct Diameter (in.)10.0
-
Height (in.)14.014.014.015.625
-
Height (with front cover) (in.)14.014.014.015.625
-
Weight (lbs.)14.314.320.524.6
-
Width (in.)10.0
-
Width (with front cover) (in.)10.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty
3-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
